一、flink介绍

Flink是一个批处理和流处理结合的统一计算框架，其核心是一个提供了数据分发以及并行化计算的流数据处理引擎。它的最大亮点是流处理，是业界最顶级的开源流处理引擎。Flink最适合的应用场景是低时延的数据处理（Data Processing）场景：高并发pipeline处理数据，时延毫秒级，且兼具可靠性。

二、环境搭建

安装flink

https://nightlies.apache.org/flink/flink-docs-master/zh/docs/try-flink/local_installation/

安装Netcat

Netcat（又称为NC）是一个计算机网络工具，它可以在两台计算机之间建立 TCP/IP 或 UDP 连接。它被广泛用于测试网络中的端口，发送文件等操作。使用 Netcat 可以轻松地进行网络调试和探测，也可以进行加密连接和远程管理等高级网络操作。因为其功能强大而又简单易用，所以在计算机安全领域也有着广泛的应用。

安装nc命令

yum install -y nc

启动socket端口

[root@node01 bin]# nc -lk 8888

三、代码工程

实验目的：无界流之读取socket文本流

pom.xml

<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0"         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">    <parent>        <artifactId>springboot-demo</artifactId>        <groupId>com.et</groupId>        <version>1.0-SNAPSHOT</version>    </parent>    <modelVersion>4.0.0</modelVersion>
    <artifactId>flink</artifactId>
    <properties>        <maven.compiler.source>8</maven.compiler.source>        <maven.compiler.target>8</maven.compiler.target>    </properties>    <dependencies>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-web</artifactId>        </dependency>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-autoconfigure</artifactId>        </dependency>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-test</artifactId>            <scope>test</scope>        </dependency>        <!-- 添加 Flink 依赖 -->        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-streaming-java</artifactId>            <version>1.17.0</version>        </dependency>        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-java -->        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-java</artifactId>            <version>1.17.0</version>        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-clients -->        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-clients</artifactId>            <version>1.17.0</version>        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-connector-base -->        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-connector-base</artifactId>            <version>1.17.0</version>        </dependency>
        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-connector-files</artifactId>            <version>1.17.0</version>        </dependency>        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-connector-kafka -->        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-connector-kafka</artifactId>            <version>1.17.0</version>        </dependency>        <dependency>            <groupId>org.apache.flink</groupId>            <artifactId>flink-runtime-web</artifactId>            <version>1.17.0</version>        </dependency>

    </dependencies>    <build>        <plugins>            <plugin>                <groupId>org.apache.maven.plugins</groupId>                <artifactId>maven-shade-plugin</artifactId>                <executions>                    <execution>                        <phase>package</phase>                        <goals>                            <goal>shade</goal>                        </goals>                        <configuration>                            <transformers>                                <transformer                                        implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">                                    <resource>META-INF/spring.handlers</resource>                                </transformer>                                <transformer                                        implementation="org.springframework.boot.maven.PropertiesMergingResourceTransformer">                                    <resource>META-INF/spring.factories</resource>                                </transformer>                                <transformer                                        implementation="org.apache.maven.plugins.shade.resource.AppendingTransformer">                                    <resource>META-INF/spring.schemas</resource>                                </transformer>                                <transformer                                        implementation="org.apache.maven.plugins.shade.resource.ServicesResourceTransformer" />                                <transformer                                        implementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer">                                    <mainClass>com.et.flink.job.SocketJob</mainClass>                                </transformer>                            </transformers>                        </configuration>                    </execution>                </executions>            </plugin>        </plugins>    </build>


</project>

SoketJob

package com.et.flink.job;
import org.apache.flink.api.common.typeinfo.TypeHint;import org.apache.flink.api.java.tuple.Tuple2;import org.apache.flink.streaming.api.datastream.DataStreamSource;import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;import org.apache.flink.util.Collector;
/** * @author liuhaihua * @version 1.0 * @ClassName SocketJob * @Description todo * @date 2024年02月29日 17:06 */
public class SocketJob {    public static void main(String[] args) throws Exception {        // 创建执行环境        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();        // 指定并行度,默认电脑线程数        env.setParallelism(3);        // 读取数据socket文本流 指定监听 IP 端口 只有在接收到数据才会执行任务        DataStreamSource<String> socketDS = env.socketTextStream("172.24.4.193", 8888);
        // 处理数据: 切换、转换、分组、聚合 得到统计结果        SingleOutputStreamOperator<Tuple2<String, Integer>> sum = socketDS                .flatMap(                        (String value, Collector<Tuple2<String, Integer>> out) -> {                            String[] words = value.split(" ");                            for (String word : words) {                                out.collect(Tuple2.of(word, 1));                            }                        }                )                .setParallelism(2)                // // 显式地提供类型信息:对于flatMap传入Lambda表达式，系统只能推断出返回的是Tuple2类型，而无法得到Tuple2<String, Long>。只有显式设置系统当前返回类型，才能正确解析出完整数据                .returns(new TypeHint<Tuple2<String, Integer>>() {                })//                .returns(Types.TUPLE(Types.STRING,Types.INT))                .keyBy(value -> value.f0)                .sum(1);

        // 输出        sum.print();
        // 执行        env.execute();    }
}

代码仓库

https://github.com/Harries/springboot-demo

四、测试

启动socket流

[root@cmn-zentao-002 ~]# nc -l 8888

本地执行

本地直接ideal启动main程序，在socket流中输入

abc bcd cdebcd cde fghcde fgh hij

console日志显示

3> (abc,1)1> (fgh,1)3> (bcd,1)3> (cde,1)3> (bcd,2)3> (cde,2)3> (cde,3)1> (fgh,2)2> (hij,1)

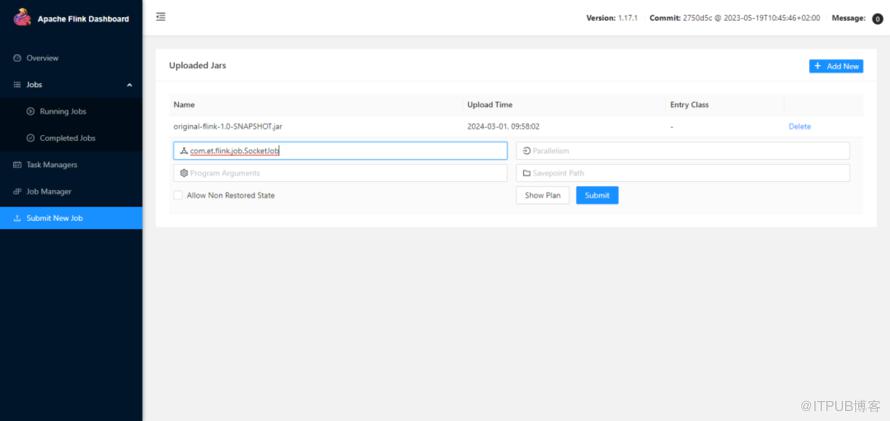

集群执行

执行maven打包，将打包的jar上传到集群中在socker中输入字符，结果和本地一样

五、引用

https://juejin.cn/post/7283311024979066937
http://www.liuhaihua.cn/archives/710270.html
