1.什么是Dag？

有向无环图(Directed Acyclic Graph)，简称DAG，是一种有向图，其中没有从节点出发经过若干条边后再回到该节点的路径。换句话说，DAG中不存在环路。这种数据结构常用于表示并解决具有依赖关系的问题。

DAG的特性

首先，DAG中的节点可以有入度和出度。节点的入度是指指向该节点的边的数量，而节点的出度是指由该节点指向其他节点的边的数量。在DAG中，节点的入度可以是0或正整数，而出度可以是0或正整数，但不能同时为负数。
DAG的另一个重要性质是存在一个或多个拓扑排序。拓扑排序是DAG中节点的线性排列，满足任意一条有向边的起点在排序中都位于终点之前。可以使用深度优先搜索(DFS)或宽度优先搜索(BFS)算法来生成拓扑排序。

DAG的应用

任务调度
编译器优化
数据流分析
电路设计

2.如何加速Spring Bean初始化？

在Spring框架中进行DAG（有向无环图）分析以实现并行初始化，可以有效提升应用程序启动的性能。通常情况下，Spring应用程序的Bean是按依赖顺序初始化的，而通过DAG分析可以识别出哪些Bean之间没有依赖关系，并行初始化这些Bean可以减少启动时间。以下是实现思路：

1. 识别依赖关系，构建DAG

首先需要识别Spring Bean之间的依赖关系。可以通过@DependsOn注解、构造器注入或@Autowired等方式获取Bean依赖。具体步骤：

遍历Spring上下文中的所有Bean定义。
根据Bean的依赖关系构建DAG，节点代表Bean，边表示依赖关系。

Spring的ApplicationContext提供了getBeanDefinitionNames()方法可以列出所有的Bean，通过BeanDefinition可以分析出依赖。

2. 拓扑排序

通过拓扑排序（Topological Sorting）对DAG进行排序，以确保Bean按依赖顺序初始化。拓扑排序可以确定哪些Bean可以并行初始化，哪些Bean必须在某些Bean之后初始化。使用算法如Kahn’s Algorithm或DFS找到所有没有依赖的Bean（入度为0的节点），这些节点可以并行初始化。

3. 并行初始化Bean

在完成拓扑排序后，使用多线程来并行初始化可以同时启动的Bean。可以使用Java的ExecutorService或类似的线程池机制来管理并发的Bean初始化过程。步骤：

针对所有入度为0的节点，启动一个线程来初始化它们。
当某个Bean初始化完成后，减少它所依赖的其他Bean的入度值。
当某个Bean的入度为0时，可以在另一个线程中启动它的初始化。

4. Spring Integration

可以通过BeanFactoryPostProcessor或ApplicationContextInitializer来挂钩到Spring的初始化流程中，分析Bean之间的依赖关系，并将并行化初始化逻辑集成到Spring容器的启动过程中。具体方法：

实现BeanFactoryPostProcessor，在Bean初始化之前分析Bean的依赖并构建DAG。
在Bean初始化阶段，使用多线程并行处理独立的Bean。

3.代码工程

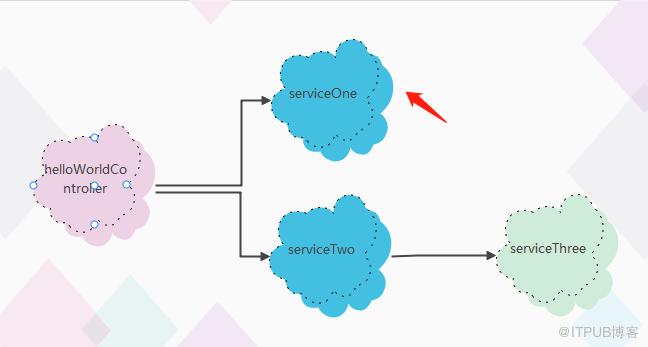

整体的依赖关系如下：

实验目标

实现自定义Bean并行化加载

pom.xml

<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0"         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">    <parent>        <groupId>org.springframework.boot</groupId>        <artifactId>spring-boot-starter-parent</artifactId>        <version>3.2.1</version>    </parent>    <modelVersion>4.0.0</modelVersion>
    <artifactId>dag</artifactId>
    <properties>        <maven.compiler.source>17</maven.compiler.source>        <maven.compiler.target>17</maven.compiler.target>    </properties>    <dependencies>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-web</artifactId>        </dependency>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-autoconfigure</artifactId>        </dependency>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-test</artifactId>            <scope>test</scope>        </dependency>        <dependency>            <groupId>org.jgrapht</groupId>            <artifactId>jgrapht-core</artifactId>            <version>1.5.1</version>        </dependency>
    </dependencies>    <build>        <pluginManagement>            <plugins>                <plugin>                    <groupId>org.apache.maven.plugins</groupId>                    <artifactId>maven-compiler-plugin</artifactId>                    <version>3.8.1</version>                    <configuration>                        <fork>true</fork>                        <failOnError>false</failOnError>                    </configuration>                </plugin>
                <plugin>                    <groupId>org.apache.maven.plugins</groupId>                    <artifactId>maven-surefire-plugin</artifactId>                    <version>2.22.2</version>                    <configuration>                        <forkCount>0</forkCount>                        <failIfNoTests>false</failIfNoTests>                    </configuration>                </plugin>            </plugins>        </pluginManagement>    </build></project>

Bean初始化

package com.et.config;
import org.jgrapht.graph.DefaultEdge;import org.jgrapht.graph.DirectedAcyclicGraph;import org.springframework.beans.BeansException;import org.springframework.beans.factory.config.BeanDefinition;import org.springframework.beans.factory.config.BeanFactoryPostProcessor;import org.springframework.beans.factory.config.ConfigurableListableBeanFactory;import org.springframework.stereotype.Component;
import java.util.*;import java.util.concurrent.CompletableFuture;import java.util.concurrent.ExecutorService;import java.util.concurrent.Executors;import java.util.stream.Collectors;
@Componentpublic class DAGBeanInitializer implements BeanFactoryPostProcessor {
    private final ExecutorService executorService = Executors.newFixedThreadPool(10);
    @Override    public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {        Map<String, BeanDefinition> beanDefinitionMap = new HashMap<>();        for (String beanName : beanFactory.getBeanDefinitionNames()) {            BeanDefinition beanDefinition = beanFactory.getBeanDefinition(beanName);            beanDefinitionMap.put(beanName, beanDefinition);        }
        // build DAG        DirectedAcyclicGraph<String, DefaultEdge> dag = buildDAG(beanDefinitionMap,beanFactory);
        // bean layers        List<Set<String>> layers = getBeansByLayer(dag);        System.out.println("layers:"+layers);        // init bean by layers        initializeBeansInLayers(layers, beanFactory);    }
    // DAG Bean    private DirectedAcyclicGraph<String, DefaultEdge> buildDAG(Map<String, BeanDefinition> beanDefinitionMap, ConfigurableListableBeanFactory beanFactory) {        DependencyResolver resolver = new DependencyResolver(beanFactory);        DirectedAcyclicGraph<String, DefaultEdge> dag = new DirectedAcyclicGraph<>(DefaultEdge.class);        for (String beanName : beanDefinitionMap.keySet()) {            if(shouldLoadBean(beanName)) {                dag.addVertex(beanName);                String[] dependencies = beanDefinitionMap.get(beanName).getDependsOn();                if (dependencies != null) {                    for (String dependency : dependencies) {                        dag.addEdge(dependency, beanName);                     }                }                // get @Autowired dependencies                Set<String> autowireDependencies = resolver.getAllDependencies(beanName);                for (String autowireDependency : autowireDependencies) {                    // convert beanName                    String autowireBeanName = convertToBeanName(autowireDependency);                    dag.addVertex(autowireBeanName);                    dag.addEdge(autowireBeanName, beanName);                }            }        }        return dag;    }    private String convertToBeanName(String className) {        String simpleName = className.substring(className.lastIndexOf('.') + 1);        return Character.toLowerCase(simpleName.charAt(0)) + simpleName.substring(1);    }    private List<Set<String>> getBeansByLayer(DirectedAcyclicGraph<String,DefaultEdge> dag) {        List<Set<String>> layers = new ArrayList<>();        Map<String, Integer> inDegree = new HashMap<>();        Queue<String> queue = new LinkedList<>();
        // init all nodes degree        for (String vertex : dag) {            int degree = dag.inDegreeOf(vertex);            inDegree.put(vertex, degree);            if (degree == 0) {                queue.offer(vertex);  //zero degree as the first layer            }        }
        // BFS process everyLayers        while (!queue.isEmpty()) {            Set<String> currentLayer = new HashSet<>();            int size = queue.size();            for (int i = 0; i < size; i++) {                String currentBean = queue.poll();                currentLayer.add(currentBean);
                // iterator layers                for (String successor : getSuccessors(dag,currentBean)) {                    inDegree.put(successor, inDegree.get(successor) - 1);                    if (inDegree.get(successor) == 0) {                        queue.offer(successor);  // add next layer when the degress is zero                    }                }            }            layers.add(currentLayer);        }
        return layers;    }    // get next node    private Set<String> getSuccessors(DirectedAcyclicGraph<String, DefaultEdge> dag, String vertex) {        // get outgoingEdges        Set<DefaultEdge> outgoingEdges = dag.outgoingEdgesOf(vertex);
        // find the next node        return outgoingEdges.stream()                .map(edge -> dag.getEdgeTarget(edge))                .collect(Collectors.toSet());    }    // init beans by layer    private void initializeBeansInLayers(List<Set<String>> layers, ConfigurableListableBeanFactory beanFactory) {        for (Set<String> layer : layers) {            // Beans of the same layer can be initialized in parallel            List<CompletableFuture<Void>> futures = new ArrayList<>();            for (String beanName : layer) {                // only load beans that  wrote by yourself                if (shouldLoadBean(beanName)) {                    CompletableFuture<Void> future = CompletableFuture.runAsync(() -> {                        try {                            beanFactory.getBean(beanName);  // init Bean                        } catch (Exception e) {                            System.err.println("Failed to initialize bean: " + beanName);                            e.printStackTrace();                        }                    }, executorService);                    futures.add(future);                }            }            //Wait for all beans in the current layer to be initialized before initializing the next layer.            CompletableFuture<Void> allOf = CompletableFuture.allOf(futures.toArray(new CompletableFuture[0]));            allOf.join();  // make sure to be done on current layer        }    }
    private boolean shouldLoadBean(String beanName) {        return beanName.startsWith("helloWorldController")                ||beanName.startsWith("serviceOne")                ||beanName.startsWith("serviceTwo")                ||beanName.startsWith("serviceThree");    }}

获取bean@Autowired依赖

package com.et.config;
import org.springframework.beans.factory.config.BeanDefinition;import org.springframework.beans.factory.config.ConfigurableListableBeanFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Component;
import java.lang.reflect.Field;import java.util.HashSet;import java.util.Set;
@Componentpublic class DependencyResolver {
    private final ConfigurableListableBeanFactory beanFactory;
    @Autowired    public DependencyResolver(ConfigurableListableBeanFactory beanFactory) {        this.beanFactory = beanFactory;    }
    public Set<String> getAllDependencies(String beanName) {        Set<String> dependencies = new HashSet<>();
        // get Bean definite        BeanDefinition beanDefinition = beanFactory.getBeanDefinition(beanName);
        // reflect        try {            Class<?> beanClass = Class.forName(beanDefinition.getBeanClassName());            Field[] fields = beanClass.getDeclaredFields();            for (Field field : fields) {                if (field.isAnnotationPresent(Autowired.class)) {                    dependencies.add(field.getType().getName());                 }            }        } catch (ClassNotFoundException e) {            e.printStackTrace();        }
        return dependencies;    }}

controller

package com.et.controller;
import com.et.service.ServiceTwo;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RestController;import com.et.service.*;import java.util.HashMap;import java.util.Map;
@RestControllerpublic class HelloWorldController {    @Autowired    ServiceOne ServiceOne;    @Autowired    ServiceTwo ServiceTwo;    @RequestMapping("/hello")    public Map<String, Object> showHelloWorld(){        Map<String, Object> map = new HashMap<>();        map.put("msg", "HelloWorld");        return map;    }}

service

package com.et.service;
import org.springframework.stereotype.Service;
/** * @author liuhaihua * @version 1.0 * @ClassName ServiceOne * @Description todo * @date 2024/09/20/ 14:01 */@Servicepublic class ServiceOne {    private   void  sayhi(){        System.out.println("this is service one sayhi");    }}

package com.et.service;
import org.springframework.stereotype.Service;
/** * @author liuhaihua * @version 1.0 * @ClassName ServiceOne * @Description todo * @date 2024/09/20/ 14:01 */@Servicepublic class ServiceThree {
    private   void  sayhi(){        System.out.println("this is service three sayhi");    }}

package com.et.service;
import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service;
/** * @author liuhaihua * @version 1.0 * @ClassName ServiceOne * @Description todo * @date 2024/09/20/ 14:01 */@Servicepublic class ServiceTwo {    @Autowired    ServiceThree serviceThree;    private   void  sayhi(){        System.out.println("this is service two sayhi");    }}

只是一些关键代码，所有代码请参见下面代码仓库

代码仓库

https://github.com/Harries/springboot-demo(dag)

4.测试

启动Spring Boot工程，查看bean加载顺序如下


2024-09-20T15:51:27.081+08:00 INFO 33188 --- [ main] com.et.DemoApplication : Starting DemoApplication using Java 17.0.9 with PID 33188 (D:\IdeaProjects\ETFramework\dag\target\classes started by Dell in D:\IdeaProjects\ETFramework)2024-09-20T15:51:27.085+08:00 INFO 33188 --- [ main] com.et.DemoApplication : No active profile set, falling back to 1 default profile: "default"layers:[[serviceOne, serviceThree], [serviceTwo], [helloWorldController]]2024-09-20T15:51:28.286+08:00 INFO 33188 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat initialized with port 8088 (http)2024-09-20T15:51:28.297+08:00 INFO 33188 --- [ main] o.apache.catalina.core.StandardService : Starting service [Tomcat]2024-09-20T15:51:28.297+08:00 INFO 33188 --- [ main] o.apache.catalina.core.StandardEngine : Starting Servlet engine: [Apache Tomcat/10.1.17]2024-09-20T15:51:28.373+08:00 INFO 33188 --- [ main] o.a.c.c.C.[Tomcat].[localhost].[/] : Initializing Spring embedded WebApplicationContext2024-09-20T15:51:28.374+08:00 INFO 33188 --- [ main] w.s.c.ServletWebServerApplicationContext : Root WebApplicationContext: initialization completed in 1198 ms2024-09-20T15:51:28.725+08:00 INFO 33188 --- [ main] o.s.b.w.embedded.tomcat.TomcatWebServer : Tomcat started on port 8088 (http) with context path ''2024-09-20T15:51:28.732+08:00 INFO 33188 --- [ main] com.et.DemoApplication

5.引用

https://jgraph.github.io/mxgraph/docs/manual_javavis.html
http://www.liuhaihua.cn/archives/711405.html
