1.AJ-Captcha介绍

行为验证码

采用嵌入式集成方式，接入方便，安全，高效。抛弃了传统字符型验证码展示-填写字符-比对答案的流程，采用验证码展示-采集用户行为-分析用户行为流程，用户只需要产生指定的行为轨迹，不需要键盘手动输入，极大优化了传统验证码用户体验不佳的问题；同时，快速、准确的返回人机判定结果

AJ-Captcha行为验证码

AJ-Captcha行为验证码，包含滑动拼图、文字点选两种方式，UI支持弹出和嵌入两种方式。后端提供Java实现，前端提供了php、angular、html、vue、uni-app、flutter、android、ios等代码示例。

2.代码工程

pom.xml

<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0"         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">    <parent>        <artifactId>springboot-demo</artifactId>        <groupId>com.et</groupId>        <version>1.0-SNAPSHOT</version>    </parent>    <modelVersion>4.0.0</modelVersion>
    <artifactId>Captcha</artifactId>
    <properties>        <maven.compiler.source>8</maven.compiler.source>        <maven.compiler.target>8</maven.compiler.target>    </properties>    <dependencies>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-web</artifactId>        </dependency>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-autoconfigure</artifactId>        </dependency>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-test</artifactId>            <scope>test</scope>        </dependency>        <dependency>            <groupId>com.anji-plus</groupId>            <artifactId>spring-boot-starter-captcha</artifactId>            <version>1.3.0</version>        </dependency>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-data-redis</artifactId>        </dependency>    </dependencies></project>

application.yaml

spring.application.name=captcha-serviceserver.port=8080
# 滑动验证，底图路径，不配置将使用默认图片# 支持全路径# 支持项目路径,以classpath:开头,取resource目录下路径,例：classpath:images/jigsawaj.captcha.jigsaw=classpath:images/jigsaw# 滑动验证，底图路径，不配置将使用默认图片# 支持全路径# 支持项目路径,以classpath:开头,取resource目录下路径,例：classpath:images/pic-clickaj.captcha.pic-click=classpath:images/pic-click
# 对于分布式部署的应用，我们建议应用自己实现CaptchaCacheService，比如用Redis或者memcache，# 参考CaptchaCacheServiceRedisImpl.java# 如果应用是单点的，也没有使用redis，那默认使用内存。# 内存缓存只适合单节点部署的应用，否则验证码生产与验证在节点之间信息不同步，导致失败。# ！！！注意啦，如果应用有使用spring-boot-starter-data-redis，# 请打开CaptchaCacheServiceRedisImpl.java注释。# redis ----->  SPI：在resources目录新建META-INF.services文件夹(两层)，参考当前服务resources。# 缓存local/redis...aj.captcha.cache-type=local# local缓存的阈值,达到这个值，清除缓存#aj.captcha.cache-number=1000# local定时清除过期缓存(单位秒),设置为0代表不执行#aj.captcha.timing-clear=180#spring.redis.host=10.108.11.46#spring.redis.port=6379#spring.redis.password=#spring.redis.database=2#spring.redis.timeout=6000
# 验证码类型default两种都实例化。aj.captcha.type=default# 汉字统一使用Unicode,保证程序通过@value读取到是中文，可通过这个在线转换# https://tool.chinaz.com/tools/unicode.aspx 中文转Unicode# 右下角水印文字(我的水印)aj.captcha.water-mark=我的水印# 右下角水印字体(不配置时，默认使用文泉驿正黑)# 由于宋体等涉及到版权，我们jar中内置了开源字体【文泉驿正黑】# 方式一：直接配置OS层的现有的字体名称，比如：宋体# 方式二：自定义特定字体，请将字体放到工程resources下fonts文件夹，支持ttf\ttc\otf字体# aj.captcha.water-font=WenQuanZhengHei.ttf# 点选文字验证码的文字字体(文泉驿正黑)# aj.captcha.font-type=WenQuanZhengHei.ttf# 校验滑动拼图允许误差偏移量(默认5像素)aj.captcha.slip-offset=5# aes加密坐标开启或者禁用(true|false)aj.captcha.aes-status=true# 滑动干扰项(0/1/2)aj.captcha.interference-options=2
#点选字体样式 默认Font.BOLDaj.captcha.font-style=1#点选字体字体大小aj.captcha.font-size=25#点选文字个数,存在问题，暂不支持修改#aj.captcha.click-word-count=4

aj.captcha.history-data-clear-enable=false
# 接口请求次数一分钟限制是否开启 true|falseaj.captcha.req-frequency-limit-enable=false# 验证失败5次，get接口锁定aj.captcha.req-get-lock-limit=5# 验证失败后，锁定时间间隔,saj.captcha.req-get-lock-seconds=360# get接口一分钟内请求数限制aj.captcha.req-get-minute-limit=30# check接口一分钟内请求数限制aj.captcha.req-check-minute-limit=30# verify接口一分钟内请求数限制(暂用不上，可后台直接调用captchaService)#aj.captcha.req-verify-minute-limit=30

CaptchaConfig.java

package com.et.captcha.config;
import com.et.captcha.service.CaptchaCacheServiceRedisImpl;import com.anji.captcha.properties.AjCaptchaProperties;import com.anji.captcha.service.CaptchaCacheService;import com.anji.captcha.service.impl.CaptchaServiceFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.context.annotation.Primary;import org.springframework.data.redis.core.StringRedisTemplate;
@Configurationpublic class CaptchaConfig {
    @Autowired    StringRedisTemplate redisTemplate;
    @Bean(name = "CaptchaCacheService")    @Primary    public CaptchaCacheService captchaCacheService(AjCaptchaProperties config){        //缓存类型redis/local/....        CaptchaCacheService ret = CaptchaServiceFactory.getCache(config.getCacheType().name());        if(ret instanceof CaptchaCacheServiceRedisImpl){            ((CaptchaCacheServiceRedisImpl)ret).setStringRedisTemplate(redisTemplate);        }        return ret;    }}

CaptchaCacheService有很多种实现类，可以动态扩展，具体方式可以参考官方教程，下面提出默认local的实现方式DefaultCaptchaServiceImpl

package com.anji.captcha.service.impl;
import com.anji.captcha.model.common.RepCodeEnum;import com.anji.captcha.model.common.ResponseModel;import com.anji.captcha.model.vo.CaptchaVO;import com.anji.captcha.service.CaptchaService;import com.anji.captcha.util.StringUtils;import java.util.Iterator;import java.util.Properties;
public class DefaultCaptchaServiceImpl extends AbstractCaptchaService {    public DefaultCaptchaServiceImpl() {    }
    public String captchaType() {        return "default";    }
    public void init(Properties config) {        Iterator var2 = CaptchaServiceFactory.instances.keySet().iterator();
        while(var2.hasNext()) {            String s = (String)var2.next();            if (!this.captchaType().equals(s)) {                this.getService(s).init(config);            }        }
    }
    public void destroy(Properties config) {        Iterator var2 = CaptchaServiceFactory.instances.keySet().iterator();
        while(var2.hasNext()) {            String s = (String)var2.next();            if (!this.captchaType().equals(s)) {                this.getService(s).destroy(config);            }        }
    }
    private CaptchaService getService(String captchaType) {        return (CaptchaService)CaptchaServiceFactory.instances.get(captchaType);    }
    public ResponseModel get(CaptchaVO captchaVO) {        if (captchaVO == null) {            return RepCodeEnum.NULL_ERROR.parseError(new Object[]{"captchaVO"});        } else {            return StringUtils.isEmpty(captchaVO.getCaptchaType()) ? RepCodeEnum.NULL_ERROR.parseError(new Object[]{"类型"}) : this.getService(captchaVO.getCaptchaType()).get(captchaVO);        }    }
    public ResponseModel check(CaptchaVO captchaVO) {        if (captchaVO == null) {            return RepCodeEnum.NULL_ERROR.parseError(new Object[]{"captchaVO"});        } else if (StringUtils.isEmpty(captchaVO.getCaptchaType())) {            return RepCodeEnum.NULL_ERROR.parseError(new Object[]{"类型"});        } else {            return StringUtils.isEmpty(captchaVO.getToken()) ? RepCodeEnum.NULL_ERROR.parseError(new Object[]{"token"}) : this.getService(captchaVO.getCaptchaType()).check(captchaVO);        }    }
    public ResponseModel verification(CaptchaVO captchaVO) {        if (captchaVO == null) {            return RepCodeEnum.NULL_ERROR.parseError(new Object[]{"captchaVO"});        } else if (StringUtils.isEmpty(captchaVO.getCaptchaVerification())) {            return RepCodeEnum.NULL_ERROR.parseError(new Object[]{"二次校验参数"});        } else {            try {                String codeKey = String.format(REDIS_SECOND_CAPTCHA_KEY, captchaVO.getCaptchaVerification());                if (!CaptchaServiceFactory.getCache(cacheType).exists(codeKey)) {                    return ResponseModel.errorMsg(RepCodeEnum.API_CAPTCHA_INVALID);                }
                CaptchaServiceFactory.getCache(cacheType).delete(codeKey);            } catch (Exception var3) {                this.logger.error("验证码坐标解析失败", var3);                return ResponseModel.errorMsg(var3.getMessage());            }
            return ResponseModel.success();        }    }}

获取验证码

package com.anji.captcha.controller;
import com.anji.captcha.model.common.ResponseModel;import com.anji.captcha.model.vo.CaptchaVO;import com.anji.captcha.service.CaptchaService;import com.anji.captcha.util.StringUtils;import javax.servlet.http.HttpServletRequest;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.PostMapping;import org.springframework.web.bind.annotation.RequestBody;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RestController;
@RestController@RequestMapping({"/captcha"})public class CaptchaController {    @Autowired    private CaptchaService captchaService;
    public CaptchaController() {    }
    @PostMapping({"/get"})    public ResponseModel get(@RequestBody CaptchaVO data, HttpServletRequest request) {        assert request.getRemoteHost() != null;
        data.setBrowserInfo(getRemoteId(request));        return this.captchaService.get(data);    }
    @PostMapping({"/check"})    public ResponseModel check(@RequestBody CaptchaVO data, HttpServletRequest request) {        data.setBrowserInfo(getRemoteId(request));        return this.captchaService.check(data);    }
    public ResponseModel verify(@RequestBody CaptchaVO data, HttpServletRequest request) {        return this.captchaService.verification(data);    }
    public static final String getRemoteId(HttpServletRequest request) {        String xfwd = request.getHeader("X-Forwarded-For");        String ip = getRemoteIpFromXfwd(xfwd);        String ua = request.getHeader("user-agent");        return StringUtils.isNotBlank(ip) ? ip + ua : request.getRemoteAddr() + ua;    }
    private static String getRemoteIpFromXfwd(String xfwd) {        if (StringUtils.isNotBlank(xfwd)) {            String[] ipList = xfwd.split(",");            return StringUtils.trim(ipList[0]);        } else {            return null;        }    }}

验证验证码

package com.et.captcha.controller;
import com.anji.captcha.model.common.ResponseModel;import com.anji.captcha.model.vo.CaptchaVO;import com.anji.captcha.service.CaptchaService;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.web.bind.annotation.PostMapping;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestParam;import org.springframework.web.bind.annotation.RestController;
/** * 后端二次校验接口示例 */@RestController@RequestMapping("/auth")public class LoginController {
    @Autowired    private CaptchaService captchaService;
    @PostMapping("/login")    public ResponseModel get(@RequestParam("captchaVerification") String captchaVerification) {        CaptchaVO captchaVO = new CaptchaVO();        captchaVO.setCaptchaVerification(captchaVerification);        ResponseModel response = captchaService.verification(captchaVO);        if(response.isSuccess() == false){            //验证码校验失败，返回信息告诉前端            //repCode  0000  无异常，代表成功            //repCode  9999  服务器内部异常            //repCode  0011  参数不能为空            //repCode  6110  验证码已失效，请重新获取            //repCode  6111  验证失败            //repCode  6112  获取验证码失败,请联系管理员        }        return response;    }
}

前端工程代码太多就不贴出来了，具体可以查看web-ui文件家里面的内容，以上只是一些关键代码，所有代码请参见下面代码仓库

代码仓库

https://github.com/Harries/springboot-demo

3.测试

第一步:启动后端，启动service/springboot的StartApplication。

第二步:启动前端，终端进入文件夹view/vue，

yarn install
yarn run dev

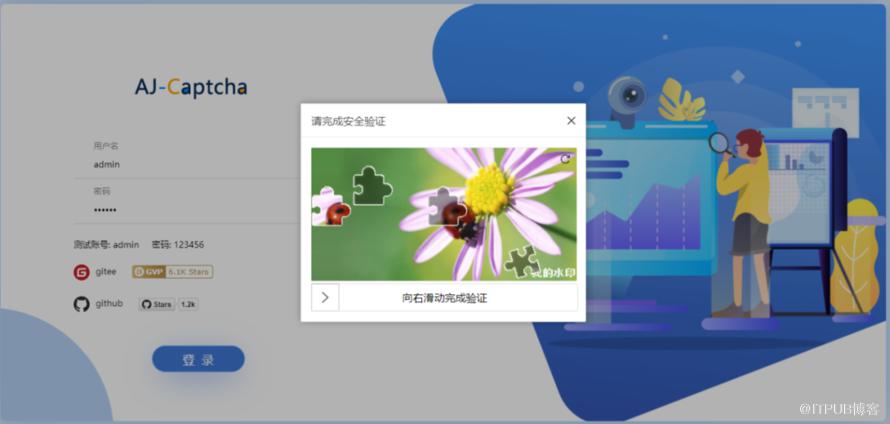

浏览器登录 http://localhost:8081/#/

4.引用

https://gitee.com/anji-plus/captcha
http://www.liuhaihua.cn/archives/710384.html
