1.多版本背景介绍

在以SpringBoot开发Restful接口时，由于模块，系统等业务的变化，需要对同一接口提供不同版本的参数实现（老的接口还有模块或者系统在用，不能直接改，所以需要不同版本）。如何更加优雅的实现多版本接口呢？网上很多自定义版本注解的方法，但是我不太建议这样做，因为硬编码和增加系统的维护成本。而且springboot本身就很好的支持多版本，没有必要再去造轮子。

2.代码工程

pomx.ml

<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0"         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">    <parent>        <artifactId>springboot-demo</artifactId>        <groupId>com.et</groupId>        <version>1.0-SNAPSHOT</version>    </parent>    <modelVersion>4.0.0</modelVersion>
    <artifactId>api-version</artifactId>
    <properties>        <maven.compiler.source>8</maven.compiler.source>        <maven.compiler.target>8</maven.compiler.target>    </properties>    <dependencies>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-web</artifactId>        </dependency>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-autoconfigure</artifactId>        </dependency>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-test</artifactId>            <scope>test</scope>        </dependency>
    </dependencies></project>

controller



package com.et.api.version.controller;
import org.springframework.web.bind.annotation.GetMapping;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RestController;
import java.util.HashMap;import java.util.Map;
@RestController@RequestMapping("/users")public class HelloWorldController {    //@GetMapping(params = "version=1")    //@GetMapping(produces = "application/vnd.company.app-v1+json")    @GetMapping(headers = "API-Version=1")    public Map<String, Object> showHelloWorldone(){        Map<String, Object> map = new HashMap<>();        map.put("msg", "HelloWorld1");        return map;    }    //@GetMapping(params = "version=2")    //@GetMapping(produces = "application/vnd.company.app-v2+json")    @GetMapping(headers = "API-Version=2")    public Map<String, Object> showHelloWorldtwo(){        Map<String, Object> map = new HashMap<>();        map.put("msg", "HelloWorld2");        return map;    }

}

‍

package com.et.api.version.controller;
import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.ResponseBody;import org.springframework.web.bind.annotation.RestController;
import java.util.HashMap;import java.util.Map;
@RestController@RequestMapping("/v2/users")public class HelloWorldTwoController {    @RequestMapping("/hello")    public Map<String, Object> showHelloWorld(){        Map<String, Object> map = new HashMap<>();        map.put("msg", "HelloWorld2");        return map;    }


}

DemoApplication.java

package com.et.api.version;
import org.springframework.boot.SpringApplication;import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplicationpublic class DemoApplication {
   public static void main(String[] args) {      SpringApplication.run(DemoApplication.class, args);   }}

application.yaml

server:  port: 8088

以上只是一些关键代码，所有代码请参见下面代码仓库

代码仓库

https://github.com/Harries/springboot-demo

3.测试

1.url路径控制

多个类分别设置不同url例如



@RequestMapping("/v1/users")public class HelloWorldOneController {}@RequestMapping("/v2/users")public class HelloWorldTwoController {}

http://127.0.0.1:8088/v1/users/hello
http://127.0.0.1:8088/v2/users/hello

2.请求参数控制

  @GetMapping(params = "version=1")    public Map<String, Object> showHelloWorldone(){        Map<String, Object> map = new HashMap<>();        map.put("msg", "HelloWorld1");        return map;    }    @GetMapping(params = "version=2")    public Map<String, Object> showHelloWorldtwo(){        Map<String, Object> map = new HashMap<>();        map.put("msg", "HelloWorld2");        return map;    }

http://127.0.0.1:8088/users?version=1
http://127.0.0.1:8088/users?version=2

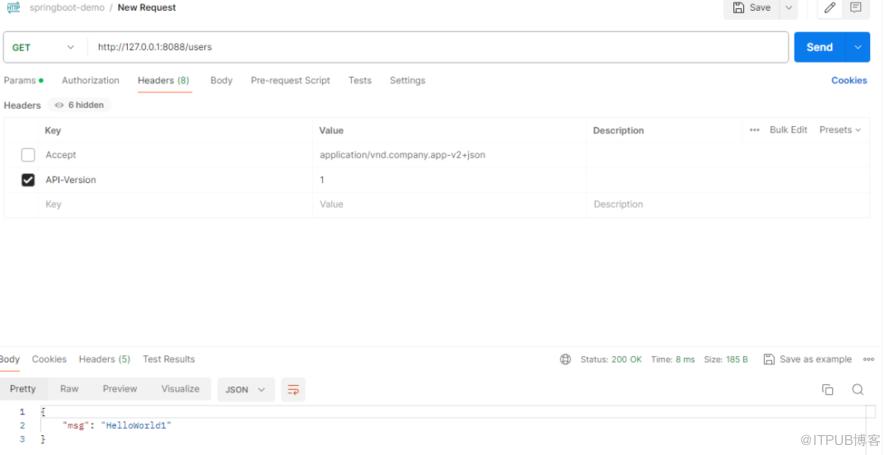

3.通过header控制

 @GetMapping(headers = "API-Version=1")    public Map<String, Object> showHelloWorldone(){        Map<String, Object> map = new HashMap<>();        map.put("msg", "HelloWorld1");        return map;    }     @GetMapping(headers = "API-Version=2")    public Map<String, Object> showHelloWorldtwo(){        Map<String, Object> map = new HashMap<>();        map.put("msg", "HelloWorld2");        return map;    }

4.通过Media Type控制

@GetMapping(produces = "application/vnd.company.app-v1+json")public Map<String, Object> showHelloWorldone(){    Map<String, Object> map = new HashMap<>();    map.put("msg", "HelloWorld1");    return map;}@GetMapping(produces = "application/vnd.company.app-v2+json")public Map<String, Object> showHelloWorldtwo(){    Map<String, Object> map = new HashMap<>();    map.put("msg", "HelloWorld2");    return map;}

4.引用

https://medium.com/@avi.singh.iit01/a-guide-to-api-versioning-in-spring-boot-d564595bba00
http://www.liuhaihua.cn/archives/710409.html
