1.什么zipkin

Zipkin是一款开源的分布式实时数据追踪系统（Distributed Tracking System），基于 Google Dapper的论文设计而来，由 Twitter 公司开发贡献。其主要功能是聚集来自各个异构系统的实时监控数据。Zipkin默认支持Http协议，除此之外，它还支持kafka,rabbitmq以及scribe协议：

2.搭建zipkin环境

1.获取镜像

docker pull openzipkin/zipkin

2.启动

docker run --name zipkin -d -p 9411:9411 openzipkin/zipkin

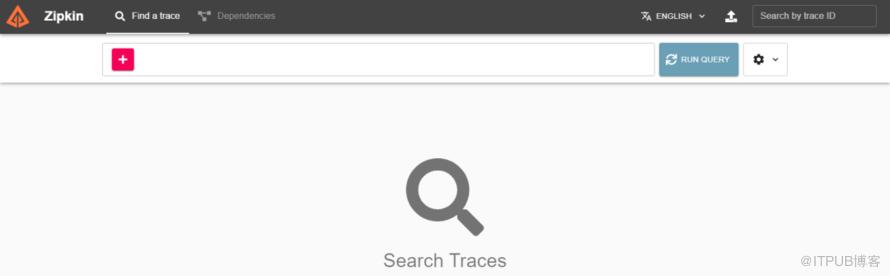

3.web端查看

浏览器打开 http://127.0.0.1:9411

3.代码项目

实验目的：实现监控数据上报到zipkin，并分析每个方法的执行时间

pom.xml

<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0"         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">    <parent>        <artifactId>springboot-demo</artifactId>        <groupId>com.et</groupId>        <version>1.0-SNAPSHOT</version>    </parent>    <modelVersion>4.0.0</modelVersion>
    <artifactId>zipkin</artifactId>
    <properties>        <maven.compiler.source>8</maven.compiler.source>        <maven.compiler.target>8</maven.compiler.target>    </properties>    <dependencies>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-web</artifactId>        </dependency>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-autoconfigure</artifactId>        </dependency>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-test</artifactId>            <scope>test</scope>        </dependency>        <dependency>            <groupId>org.springframework.cloud</groupId>            <artifactId>spring-cloud-starter-zipkin</artifactId>            <version>2.2.5.RELEASE</version>        </dependency>        <dependency>            <groupId>org.springframework.cloud</groupId>            <artifactId>spring-cloud-starter-sleuth</artifactId>            <version>2.2.5.RELEASE</version>        </dependency>    </dependencies></project>

application.properties

#zipkinspring.zipkin.base-url=http://127.0.0.1:9411/spring.zipkin.enabled=truespring.sleuth.sampler.probability=1##server.port=8088

controller

package com.et.zipkin.controller;
import org.slf4j.Logger;import org.slf4j.LoggerFactory;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.ResponseBody;import org.springframework.web.bind.annotation.RestController;import org.springframework.web.client.RestTemplate;
import java.net.URI;import java.util.HashMap;import java.util.Map;@RestControllerpublic class HelloWorldController {    private static Logger log = LoggerFactory.getLogger(HelloWorldController.class);

    @Autowired    private RestTemplate restTemplate;
    @RequestMapping("ping")    public Object ping() {        log.info("进入ping");        return "pong study";    }
    @RequestMapping("log")    public Object log() {        log.info("this is info log");        log.error("this is error log");        log.debug("this is debug log");        log.warn("this is warn log");        log.trace("this is trace log");        return "123";    }
    @RequestMapping("http")    public Object httpQuery() {
        String studyUrl = "http://localhost:8088/ping";        URI studyUri = URI.create(studyUrl);        String study = restTemplate.getForObject(studyUri, String.class);        log.info("study:{}", study);
        String floorUrl = "http://localhost:8088/log";        URI floorUri = URI.create(floorUrl);        String floor = restTemplate.getForObject(floorUri, String.class);        log.info("floor:{}", floor);
        String roomUrl = "http://localhost:8088/ping";        URI roomUri = URI.create(roomUrl);        String room = restTemplate.getForObject(roomUri, String.class);        log.info("room:{}", room);        return study + "-------" + floor + "-------" + room + "-------";    }

}

config

package com.et.zipkin.config; import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import org.springframework.http.client.ClientHttpRequestFactory;import org.springframework.http.client.SimpleClientHttpRequestFactory;import org.springframework.web.client.RestTemplate;
/** * RestTemplate  config */@Configurationpublic class RestTemplateConfig {     @Bean    public RestTemplate restTemplate(ClientHttpRequestFactory factory){        return new RestTemplate(factory);    }     @Bean    public ClientHttpRequestFactory simpleClientHttpRequestFactory(){        SimpleClientHttpRequestFactory factory = new SimpleClientHttpRequestFactory();        factory.setReadTimeout(5000);//unit is ms        factory.setConnectTimeout(5000);//unit is ms        return factory;    }}

以上只是一些关键代码，所有代码请参见下面代码仓库

代码仓库

https://github.com/Harries/springboot-demo

4.测试

启动Spring Boot应用

访问controller

浏览器输入http://127.0.0.1:8088/http，可以看到控制台生成traceID 和spanid

2024-04-19 10:54:18.353 INFO [,37bf669cd6027ce8,86712cf932e61e5b,true] 31404 --- [nio-8088-exec-2] c.e.z.controller.HelloWorldController : 进入ping2024-04-19 10:54:18.370 INFO [,37bf669cd6027ce8,37bf669cd6027ce8,true] 31404 --- [nio-8088-exec-1] c.e.z.controller.HelloWorldController : study:pong study2024-04-19 10:54:18.373 INFO [,37bf669cd6027ce8,eb552e780a6de261,true] 31404 --- [nio-8088-exec-3] c.e.z.controller.HelloWorldController : this is info log2024-04-19 10:54:18.373 ERROR [,37bf669cd6027ce8,eb552e780a6de261,true] 31404 --- [nio-8088-exec-3] c.e.z.controller.HelloWorldController : this is error log2024-04-19 10:54:18.374 WARN [,37bf669cd6027ce8,eb552e780a6de261,true] 31404 --- [nio-8088-exec-3] c.e.z.controller.HelloWorldController : this is warn log2024-04-19 10:54:18.375 INFO [,37bf669cd6027ce8,37bf669cd6027ce8,true] 31404 --- [nio-8088-exec-1] c.e.z.controller.HelloWorldController : floor:1232024-04-19 10:54:18.377 INFO [,37bf669cd6027ce8,3b1df4558b01739f,true] 31404 --- [nio-8088-exec-4] c.e.z.controller.HelloWorldController : 进入ping2024-04-19 10:54:18.379 INFO [,37bf669cd6027ce8,37bf669cd6027ce8,true] 31404 --- [nio-8088-exec-1] c.e.z.controller.HelloWorldController : room:pong study

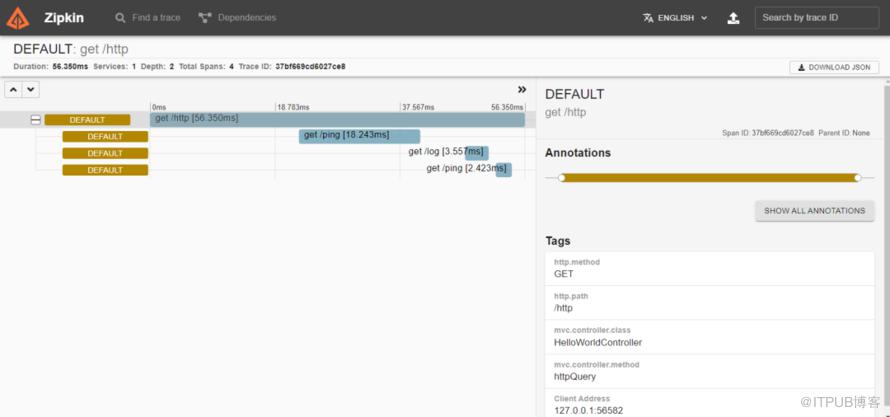

zipkin查看调用链

可以看到刚刚访问trace id，以及调用的3个方法耗时，以及具体的代码位置信息

5.参考

http://www.liuhaihua.cn/archives/710448.html
https://spring.academy/guides/spring-spring-zipkin
