1.什么是Swagger？

Swagger 是一个规范和完整的框架，用于生成、描述、调用和可视化 RESTful 风格的 Web 服务。

主要作用：

使得前后端分离开发更加方便，有利于团队协作。（实际开发中，接口文档的内容会不停的发生变化，如果没有及时更新接口文档，那么前后端就不能及时同步信息。我们通过在线的接口文档swagger，这样前后端工程师都遵守swagger就行了，只要接口文档发生了变化，就会实时更新。）
接口的文档在线自动生成，降低后端开发人员编写接口文档的负担
功能测试

Spring已经将Swagger纳入自身的标准，建立了Spring-swagger项目，现在叫Springfox。通过在项目中引入Springfox ，即可非常简单快捷的使用Swagger

2.代码工程

实验目的：接口的文档在线自动生成

pom.xml

<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0"         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">    <parent>        <artifactId>springboot-demo</artifactId>        <groupId>com.et</groupId>        <version>1.0-SNAPSHOT</version>    </parent>    <modelVersion>4.0.0</modelVersion>
    <artifactId>swagger</artifactId>
    <properties>        <maven.compiler.source>8</maven.compiler.source>        <maven.compiler.target>8</maven.compiler.target>    </properties>    <dependencies>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-web</artifactId>        </dependency>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-autoconfigure</artifactId>        </dependency>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-test</artifactId>            <scope>test</scope>        </dependency>        <dependency>            <groupId>io.springfox</groupId>            <artifactId>springfox-boot-starter</artifactId>            <version>3.0.0</version>        </dependency>        <dependency>            <groupId>org.projectlombok</groupId>            <artifactId>lombok</artifactId>        </dependency>
    </dependencies></project>

config

package com.et.swagger.config;
import org.springframework.context.annotation.Bean;import org.springframework.context.annotation.Configuration;import springfox.documentation.builders.PathSelectors;import springfox.documentation.builders.RequestHandlerSelectors;import springfox.documentation.service.ApiInfo;import springfox.documentation.service.Contact;import springfox.documentation.spi.DocumentationType;import springfox.documentation.spring.web.plugins.Docket;
import java.util.Collections;
@Configurationpublic class SwaggerConfiguration {    private ApiInfo apiInfo() {        return new ApiInfo("Blog REST APIs",                "REST APIs for Blog Application",                "1.0",                "http://www.liuhaihua.cn",                new Contact("HBLOG", "http://www.liuhaihua.cn", "xxx"),                "License of API",                "API license URL",                Collections.emptyList());    }    @Bean    public Docket api() {        return new Docket(DocumentationType.SWAGGER_2)                .apiInfo(apiInfo())                .select()                .apis(RequestHandlerSelectors.any())                .paths(PathSelectors.any())                .build();    }}

controller

package com.et.swagger.controller;
import com.et.swagger.model.LoginDto;import io.swagger.annotations.Api;import io.swagger.annotations.ApiOperation;import org.springframework.web.bind.annotation.*;
import java.util.HashMap;import java.util.Map;
@RestController@Api(value = "HelloWorldController", tags = "HelloWorldController", description = "this is a test")public class HelloWorldController {    @GetMapping("/hello")    @ApiOperation("showHelloWorld")    public Map<String, Object> showHelloWorld(){        Map<String, Object> map = new HashMap<>();        map.put("msg", "HelloWorld");        LoginDto loginDto =  new LoginDto();        loginDto.setPassword("123456");        loginDto.setPhone("11111123123");        map.put("loginuser", loginDto);        return map;    }    @PostMapping("/login_auth")    @ApiOperation("login")    public LoginDto login(@RequestBody LoginDto loginDto){        return loginDto;    }}

model

package com.et.swagger.model;
import io.swagger.annotations.ApiModelProperty;import lombok.Data;
@Datapublic class LoginDto {    @ApiModelProperty(value = "phone",required = true)    private String phone;    @ApiModelProperty(value = "password",required = true)    private String password;}

以上只是一些关键代码，所有代码请参见下面代码仓库

代码仓库

https://github.com/Harries/springboot-demo

3.测试

启动Spring Boot应用

Swagger 文档的 JSON API

http://localhost:8088/v3/api-docs

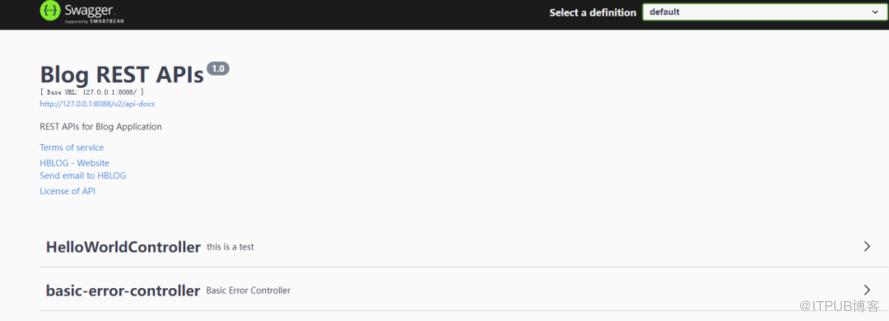

访问 Swagger UI

http://127.0.0.1:8088/swagger-ui/

在线测试接口

4.参考引用

https://swagger.io/
http://www.liuhaihua.cn/archives/710497.html
