1.什么是rmi？

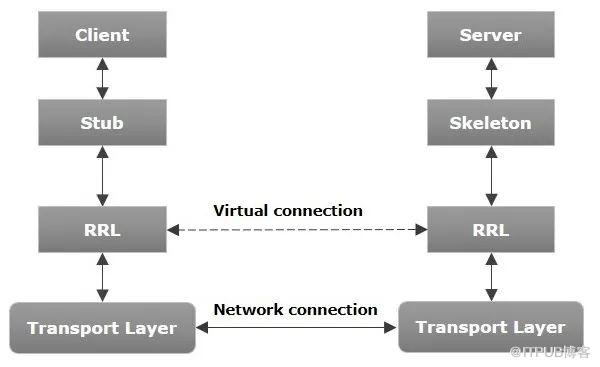

RMI（Remote Method Invocation）即远程方法调用，是分布式编程中的一个基本思想。实现远程方法调用的技术有很多，比如CORBA、WebService，这两种都是独立于各个编程语言的。而Java RMI是专为Java环境设计的远程方法调用机制，是一种用于实现远程调用（RPC，Remote Procedure Call）的Java API，能直接传输序列化后的Java对象和分布式垃圾收集。它的实现依赖于JVM，因此它支持从一个JVM到另一个JVM的调用。在Java RMI中，远程服务器实现具体的Java方法并提供接口，客户端本地仅需根据接口类的定义，提供相应的参数即可调用远程方法，其中对象是通过序列化方式进行编码传输的。所以平时说的反序列化漏洞的利用经常是涉及到RMI，就是这个意思。 RMI依赖的通信协议为JRMP（Java Remote Message Protocol，Java远程消息交换协议），该协议是为Java定制的，要求服务端与客户端都必须是Java编写的。

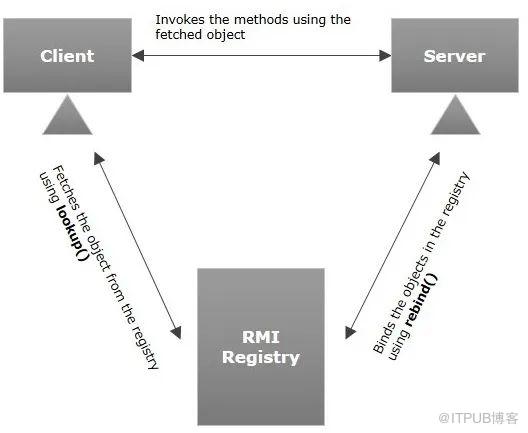

交互过程

交互过程可简单概述为：

首先，启动RMI Registry服务，启动时可以指定服务监听的端口，也可以使用默认的端口（1099）；
其次，Server端在本地先实例化一个提供服务的实现类，然后通过RMI提供的Naming/Context/Registry等类的bind或rebind方法将刚才实例化好的实现类注册到RMI Registry上并对外暴露一个名称；
最后，Client端通过本地的接口和一个已知的名称（即RMI Registry暴露出的名称），使用RMI提供的Naming/Context/Registry等类的lookup方法从RMI Service那拿到实现类。这样虽然本地没有这个类的实现类，但所有的方法都在接口里了，便可以实现远程调用对象的方法了；

2.代码工程

实验目标

实验一个简单rmi服务，并且通过客户端调用它

rmi-server

这是一个服务端工程，主要提供rmi service接口

pom.xml

<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0"         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">    <parent>        <artifactId>rmi</artifactId>        <groupId>com.et</groupId>        <version>1.0-SNAPSHOT</version>    </parent>    <modelVersion>4.0.0</modelVersion>
    <artifactId>rmi-server</artifactId>
    <properties>        <maven.compiler.source>8</maven.compiler.source>        <maven.compiler.target>8</maven.compiler.target>    </properties>    <dependencies>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-web</artifactId>        </dependency>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-autoconfigure</artifactId>        </dependency>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-test</artifactId>            <scope>test</scope>        </dependency>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-data-jpa</artifactId>        </dependency>        <dependency>            <groupId>com.et</groupId>            <artifactId>rmi-common</artifactId>            <version>1.0-SNAPSHOT</version>        </dependency>        <dependency>            <groupId>com.h2database</groupId>            <artifactId>h2</artifactId>            <version>1.4.200</version>        </dependency>    </dependencies></project>

config

package com.et.rmi.server.config;
import com.et.rmi.server.dao.CustomerRepository;
import com.et.rmi.server.model.Customer;import com.et.rmi.server.service.CustomerServiceImpl;import om.et.rmi.common.CustomerService;import org.springframework.boot.ApplicationArguments;import org.springframework.boot.ApplicationRunner;import org.springframework.context.annotation.Bean;import org.springframework.remoting.rmi.RmiServiceExporter;import org.springframework.stereotype.Component;
import java.util.logging.Logger;
@Componentpublic class RmiServerApplicationRunner implements ApplicationRunner {
    private CustomerRepository repository;    private CustomerServiceImpl customerService;    private final Logger log = Logger.getLogger(this.getClass().getName());
    public RmiServerApplicationRunner(CustomerServiceImpl customerService) {        this.customerService = customerService;    }
    @Override    public void run(ApplicationArguments args) throws Exception {        Customer customer1 = new Customer("John", "Smith", "123-456-7890");        customerService.saveCustomer(customer1);        customerService.getCustomers().forEach(System.out::println);    }
    @Bean    public RmiServiceExporter customerServiceExporter() {        RmiServiceExporter customerServiceExporter = new RmiServiceExporter();        customerServiceExporter.setRegistryPort(1199);        customerServiceExporter.setServiceName("customerService");        customerServiceExporter.setServiceInterface(CustomerService.class);        customerServiceExporter.setService(customerService);        log.info("Started RMI Server");        return customerServiceExporter;    }}

service

package com.et.rmi.server.service;
import com.et.rmi.server.dao.CustomerRepository;
import com.et.rmi.server.mapper.CustomerMapper;import com.et.rmi.server.model.Customer;import om.et.rmi.common.CustomerDTO;import om.et.rmi.common.CustomerService;import org.springframework.stereotype.Service;
import java.util.List;
@Servicepublic class CustomerServiceImpl implements CustomerService {
    private CustomerRepository repository;
    public CustomerServiceImpl(CustomerRepository repository) {        this.repository = repository;    }
    @Override    public CustomerDTO getCustomer(long id) {        Customer customer = repository.findById(id).orElseThrow(IllegalArgumentException::new);        CustomerMapper mapper = new CustomerMapper();        CustomerDTO dto = mapper.mapToDTO(customer);        System.out.println(dto);        return dto;    }
    public List<Customer> getCustomers() {        return (List<Customer>)repository.findAll();    }    public void saveCustomer(Customer customer) {        repository.save(customer);    }}

dao

package com.et.rmi.server.dao;
import com.et.rmi.server.model.Customer;import org.springframework.data.repository.CrudRepository;import org.springframework.stereotype.Repository;
import java.util.Optional;
@Repositorypublic interface CustomerRepository extends CrudRepository<Customer, Long> {    Optional<Customer> findById(long id);}

mapper

package com.et.rmi.server.mapper;
import com.et.rmi.server.model.Customer;
import om.et.rmi.common.CustomerDTO;
public class CustomerMapper {
    public CustomerMapper() {    }
    public CustomerDTO mapToDTO(Customer customer){        CustomerDTO dto = new CustomerDTO();        dto.setFirstName(customer.getFirstName());        dto.setLastName(customer.getLastName());        dto.setSocialSecurityCode(customer.getSocialSecurityCode());        return dto;    }}

model

package com.et.rmi.server.model;

import javax.persistence.*;
@Entity@SequenceGenerator(name = "CUST_SEQ", initialValue = 1_000_001)public class Customer {
    @Id    @GeneratedValue(strategy = GenerationType.SEQUENCE, generator = "CUST_SEQ")    private long id;    private String firstName;    private String lastName;    private String socialSecurityCode;
    public Customer() {    }
    public Customer(String firstName, String lastName, String socialSecurityCode) {        this.firstName = firstName;        this.lastName = lastName;        this.socialSecurityCode = socialSecurityCode;    }
    public long getId() {        return id;    }
    public String getFirstName() {        return firstName;    }
    public void setFirstName(String firstName) {        this.firstName = firstName;    }
    public String getLastName() {        return lastName;    }
    public void setLastName(String lastName) {        this.lastName = lastName;    }
    public String getSocialSecurityCode() {        return socialSecurityCode;    }
    public void setSocialSecurityCode(String socialSecurityCode) {        this.socialSecurityCode = socialSecurityCode;    }
    @Override    public String toString() {        return "Customer{" +                "id=" + id +                ", firstName='" + firstName + '\'' +                ", lastName='" + lastName + '\'' +                ", socialSecurityCode='" + socialSecurityCode + '\'' +                '}';    }}

application.properties

spring.jpa.show-sql=falsespring.jpa.hibernate.ddl-auto=updatespring.jpa.properties.hibernate.dialect=org.hibernate.dialect.H2Dialect

rmi-client

这是一个客户端工程，主要调用远程的rmi服务

pom.xml

<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0"         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">    <parent>        <artifactId>rmi</artifactId>        <groupId>com.et</groupId>        <version>1.0-SNAPSHOT</version>    </parent>    <modelVersion>4.0.0</modelVersion>
    <artifactId>rmi-cilent</artifactId>
    <properties>        <maven.compiler.source>8</maven.compiler.source>        <maven.compiler.target>8</maven.compiler.target>    </properties>    <dependencies>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-web</artifactId>        </dependency>
        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-autoconfigure</artifactId>        </dependency>        <dependency>            <groupId>org.springframework.boot</groupId>            <artifactId>spring-boot-starter-test</artifactId>            <scope>test</scope>        </dependency>        <dependency>            <groupId>com.et</groupId>            <artifactId>rmi-common</artifactId>            <version>1.0-SNAPSHOT</version>        </dependency>    </dependencies></project>

controller

package com.et.rmi.client.controller;

import om.et.rmi.common.CustomerDTO;import om.et.rmi.common.CustomerService;import org.springframework.http.MediaType;import org.springframework.http.ResponseEntity;import org.springframework.remoting.rmi.RmiProxyFactoryBean;import org.springframework.stereotype.Controller;import org.springframework.web.bind.annotation.PathVariable;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RequestMethod;
@Controller@RequestMapping(value = "customers")public class CustomerController {
    private RmiProxyFactoryBean proxyFactoryBean;
    public CustomerController(RmiProxyFactoryBean proxyFactoryBean) {        this.proxyFactoryBean = proxyFactoryBean;    }
    @RequestMapping(value = "{id}", method = RequestMethod.GET, produces = MediaType.APPLICATION_JSON_VALUE)    public ResponseEntity<CustomerDTO> getCustomer(@PathVariable long id) {        CustomerService service = (CustomerService) proxyFactoryBean.getObject();        CustomerDTO dto = service.getCustomer(id);        return ResponseEntity.ok(dto);    }}

config

package com.et.rmi.client.config;
import om.et.rmi.common.CustomerService;import org.springframework.context.annotation.Bean;import org.springframework.remoting.rmi.RmiProxyFactoryBean;import org.springframework.stereotype.Component;import org.springframework.util.StringUtils;
import java.util.logging.Logger;
@Componentpublic class Config {
    public final Logger log = Logger.getLogger(this.getClass().getName());
    @Bean    public RmiProxyFactoryBean proxyFactoryBean() {        String remoteHost = System.getProperty("RMI_SERVER_HOST");        if(StringUtils.isEmpty(remoteHost)){            remoteHost="127.0.0.1";        }        String rmiHost = String.format("rmi://%s:1199/customerService", remoteHost);        log.info("RMI Host name is " + rmiHost);        RmiProxyFactoryBean proxy = new RmiProxyFactoryBean();        proxy.setServiceInterface(CustomerService.class);        proxy.setServiceUrl(rmiHost);        proxy.afterPropertiesSet();        return proxy;    }}

application.properties

server.port=8081

rmi-common

这是一个公共包，server和client都要引用

package om.et.rmi.common;
import java.io.Serializable;
public class CustomerDTO implements Serializable {
    private String firstName;    private String lastName;    private String socialSecurityCode;
    public CustomerDTO() {    }
    public String getFirstName() {        return firstName;    }
    public void setFirstName(String firstName) {        this.firstName = firstName;    }
    public String getLastName() {        return lastName;    }
    public void setLastName(String lastName) {        this.lastName = lastName;    }
    public String getSocialSecurityCode() {        return socialSecurityCode;    }
    public void setSocialSecurityCode(String socialSecurityCode) {        this.socialSecurityCode = socialSecurityCode;    }
    @Override    public String toString() {        final StringBuffer sb = new StringBuffer("CustomerDTO{");        sb.append("firstName='").append(firstName).append('\'');        sb.append(", lastName='").append(lastName).append('\'');        sb.append(", socialSecurityCode='").append(socialSecurityCode).append('\'');        sb.append('}');        return sb.toString();    }}

package om.et.rmi.common;
public interface CustomerService {    CustomerDTO getCustomer(long id);}

以上只是一些关键代码，所有代码请参见下面代码仓库

代码仓库

https://github.com/Harries/springboot-demo

3.测试

启动rmi-server服务
启动rmi-client服务
访问http://127.0.0.1:8081/customers/1000001
返回{"firstName":"John","lastName":"Smith","socialSecurityCode":"123-456-7890"}

4.引用

https://www.tutorialspoint.com/java_rmi/java_rmi_introduction.htm
https://docs.oracle.com/javase/8/docs/technotes/guides/rmi/index.html
http://www.liuhaihua.cn/archives/710836.html
