1. 创建工程

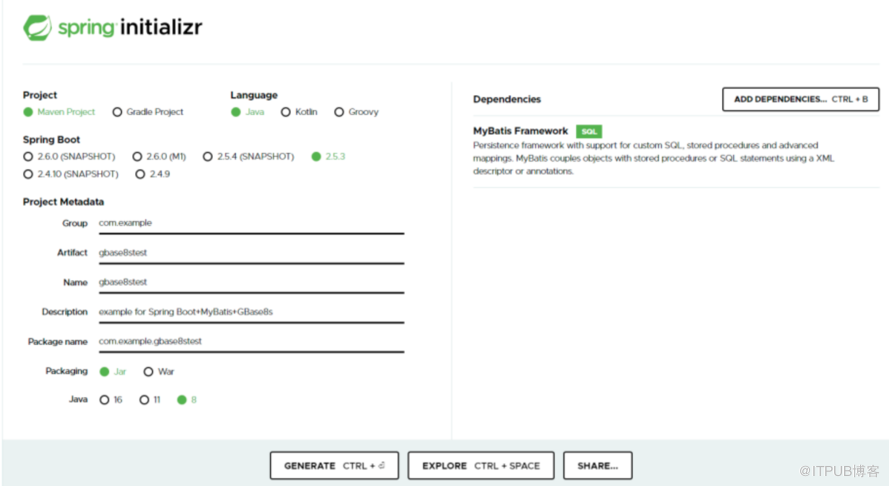

登入https://start.spring.io/ ，选择如下：

然后点击GENERATE 按钮。

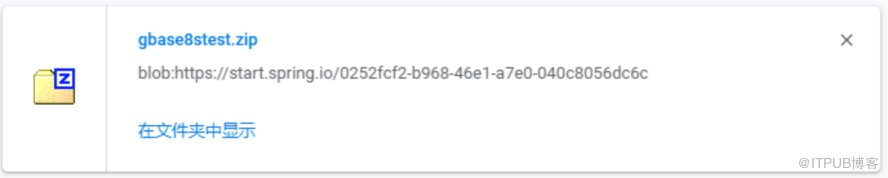

点击后，浏览器会下载如下压缩包：

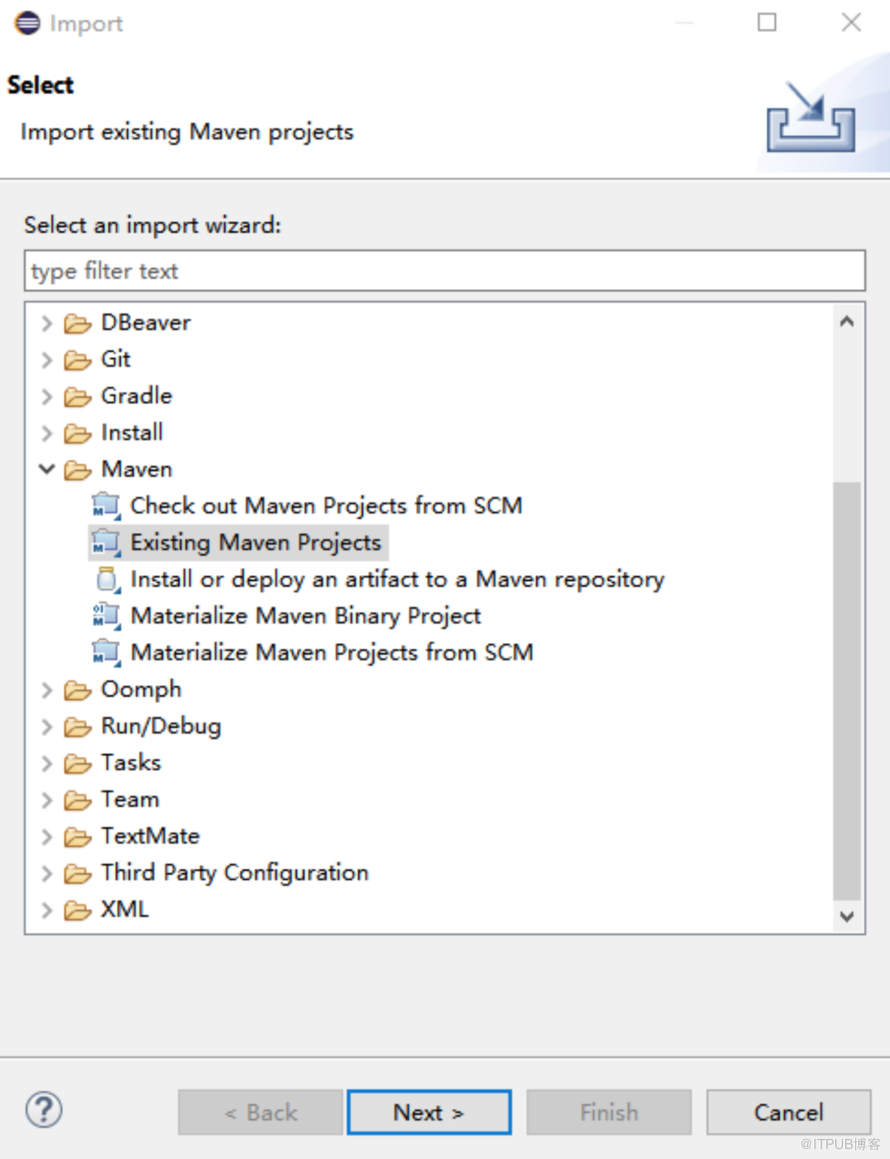

将压缩包解压后，使用eclipse 的 import 功能导入工程，如下图所示：

点击next 导入成功。

2. 添加依赖

在pom.xml 中添加如下内容：

< dependency >

< groupId > cn.gbase.jdbc </ groupId >

< artifactId > gbase8s </ artifactId >

< version > v87 </ version >

< scope > system </ scope >

< systemPath > E:\jar\gbasedbtjdbc_3.3.0_2_36477d.jar </ systemPath >

</ dependency >

E:\jar\gbasedbtjdbc_3.3.0_2_36477d.jar 为GBase8s 的 jdbc 包在本地的存放路径。

3. 配置数据源

在application.properties 中配置如下配置项：

spring.datasource.driverClassName= com.gbasedbt.jdbc.Driver

spring.datasource.url= jdbc:gbasedbt- sqli :// localhost :12345/test:gbasedbtserver=ol_gbasedbt1210

spring.datasource.username= gbasedbt

spring.datasource.password= GBase123!

4. 创建表

在数据库test 中创建 city 表

create table city (id int eger primary key , name varchar (20) , state varchar (20) , country varchar (20) ) ;

5. 创建类

创建City 实体类

public class City implements Serializable {

private static final long serialVersionUID = 1L;

private Long id ;

private String name ;

private String state ;

private String country ;

public Long getId() {

return this . id ;

}

public void setId(Long id ) {

this . id = id ;

}

public String getName() {

return this . name ;

}

public void setName(String name ) {

this . name = name ;

}

public String getState() {

return this . state ;

}

public void setState(String state ) {

this . state = state ;

}

public String getCountry() {

return this . country ;

}

public void setCountry(String country ) {

this . country = country ;

}

@Override

public String toString() {

return getId() + "," + getName() + "," + getState() + "," + getCountry();

}

创建CityDao 类

@Component

public class CityDao {

private final SqlSession sqlSession ;

public CityDao(SqlSession sqlSession ) {

this . sqlSession = sqlSession ;

}

public City selectCityById( long id ) {

return this . sqlSession .selectOne( "selectCityById" , id );

}

创建CityMapper 接口

@Mapper

public interface CityMapper {

@Select ( "select id, name, state, country from city where state = #{state}" )

City findByState( @Param ( "state" ) String state );

}

修改 Gbase8stestApplication 类，内容如下

@SpringBootApplication

public class Gbase8stestApplication implements CommandLineRunner {

private final CityDao cityDao ;

public static void main(String[] args ) {

SpringApplication. run (Gbase8stestApplication. class , args );

}

public Gbase8stestApplication(CityDao cityDao ) {

this . cityDao = cityDao ;

}

@Override

public void run(String... args ) {

System. out .println( this . cityDao . selectCityById (1));

}

6. 创建xml 文件

创建CityMapper.xml

<!DOCTYPE mapper

PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"

"http://mybatis.org/dtd/mybatis-3-mapper.dtd">

select id, name, state, country from city where id = #{id}

</select>

</mapper>

创建mybatis-configure.xml

<!DOCTYPE configuration

PUBLIC "-//mybatis.org//DTD Config 3.0//EN"

"http://mybatis.org/dtd/mybatis-3-config.dtd">

</typeAliases>

</mappers>

</configuration>

7. 测试

在GBase8s 中执行如下 SQL 语句：

insert into test: city ( id, name, state, country) values ( 1, 'San Francisco' , 'CA' , 'US' ) ;

启动Gbase8stestApplication 类，输出结果如下：

. ____ _ __ _ _

/\\ / ___'_ __ _ _(_)_ __ __ _ \ \ \ \

( ( )\___ | '_ | '_| | '_ \/ _` | \ \ \ \

\\/ ___)| |_)| | | | | || (_| | ) ) ) )

' |____| .__|_| |_|_| |_\__, | / / / /

=========|_|==============|___/=/_/_/_/

:: Spring Boot :: (v2.5.3)

2021-08-20 18:03:51.702 DEBUG 34544 --- [ main] s.m.x.mapper.CityMapper.selectCityById : ==> Preparing: select id, name, state, country from city where id = ?

2021-08-20 18:03:51.866 DEBUG 34544 --- [ main] s.m.x.mapper.CityMapper.selectCityById : ==> Parameters: 1(Long)

2021-08-20 18:03:51.977 TRACE 34544 --- [ main] s.m.x.mapper.CityMapper.selectCityById : <== Columns: id, name, state, country

2021-08-20 18:03:51.977 TRACE 34544 --- [ main] s.m.x.mapper.CityMapper.selectCityById : <== Row: 1, San Francisco, CA, US

2021-08-20 18:03:51.983 DEBUG 34544 --- [ main] s.m.x.mapper.CityMapper.selectCityById : <== Total: 1

1,San Francisco,CA,US

从结果中可以看到查询到的结果。
