BlueOcean
概念
提供了一套可视化操作界面来帮助创建、编辑 Pipeline 任务它为开发人员提供了更具乐趣的Jenkins使用方式实现了一种全新的、现代风格的用户界面有助于任何规模的团队实现持续交付
特性
流水线编辑器：是一种直观并可视化的流水线编辑器
流水线的可视化：对流水线的可视化表示
流水线的诊断：即刻定位任务问题
个性化仪表盘：用户可以自定义仪表盘，只显示与自身相关的流水线
安装

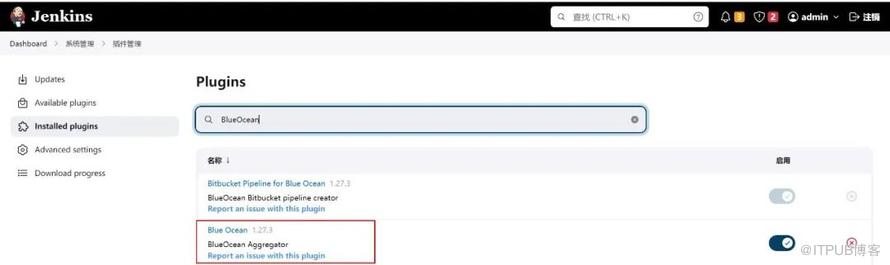

需要在 Jenkins plugin 中安装 BlueOcean
Pipeline
概念
借用Unix 中的Pipeline思路，一种高内聚低耦合的工具
Jenkins 2.0 以上才会有
一系列 Jenkins 插件将整个持续集成用解释性代码 Jenkinsfile 来描述
Jenkinsfile 使用方法：
Jenkins 任务页面输入源代码工程中编辑
语法类型：
Declarative pipeline
Scripts pipeline
采用Jenkins 任务页面输入

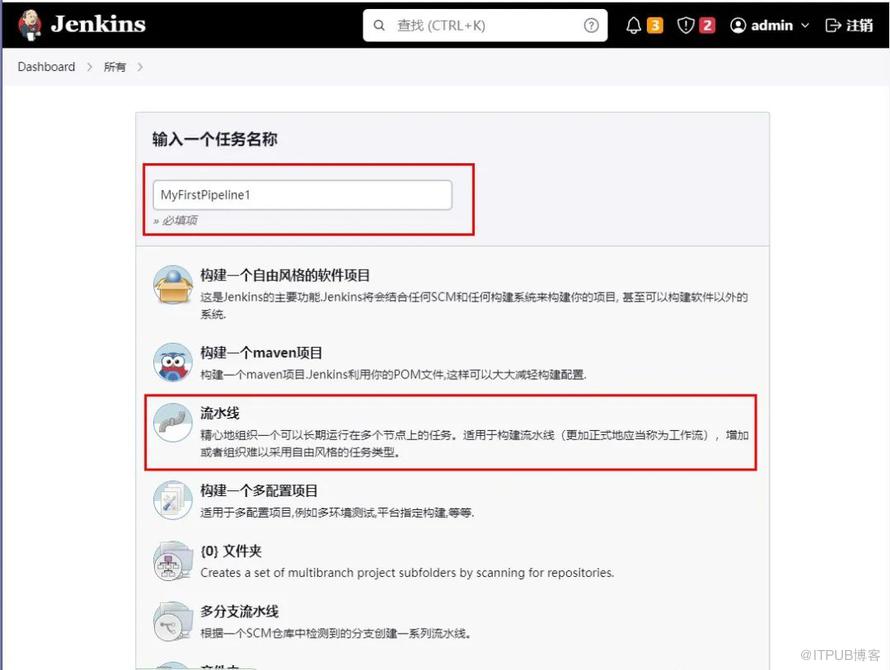

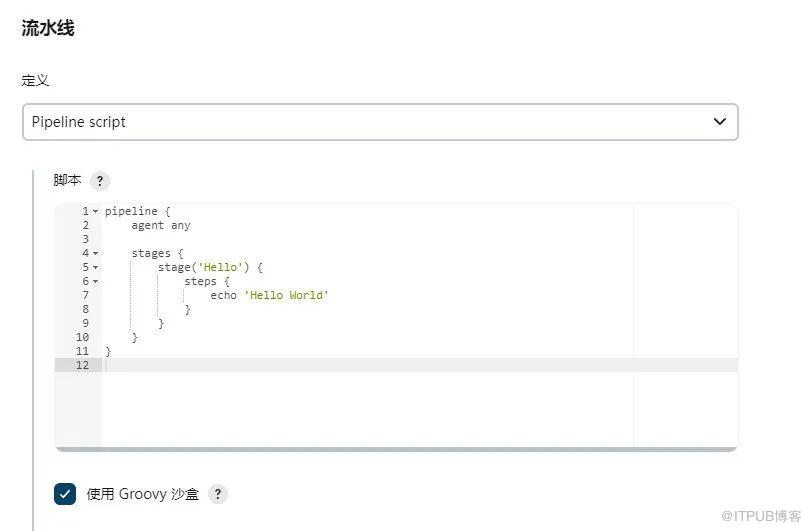

Jenkins中创建一个 pipeline 任务
Definition 中选择 Pipeline Script
在 Pipeline 模块添加Pipeline代码
pipeline {
agent any
stages {
stage('Hello') {
steps {
echo 'Hello World'
}
}
}
}

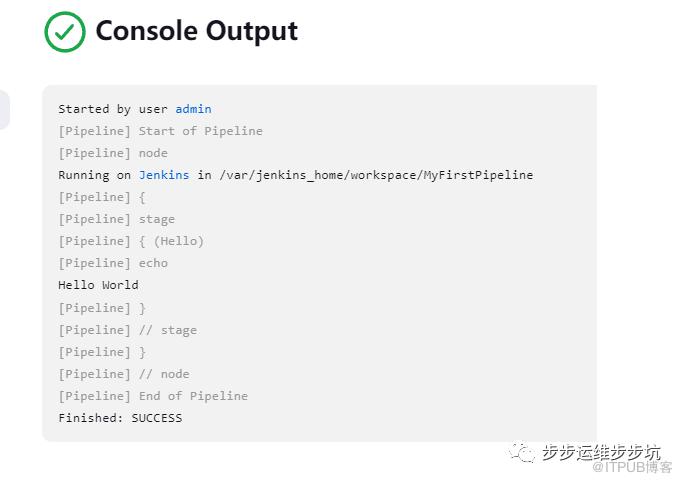

运行
利用Git源码库导入 Jenkins Pipeline
在Jenkins Pipeline 任务中选择 Pipeline script from SCM，
然后添加 git 源码地址，

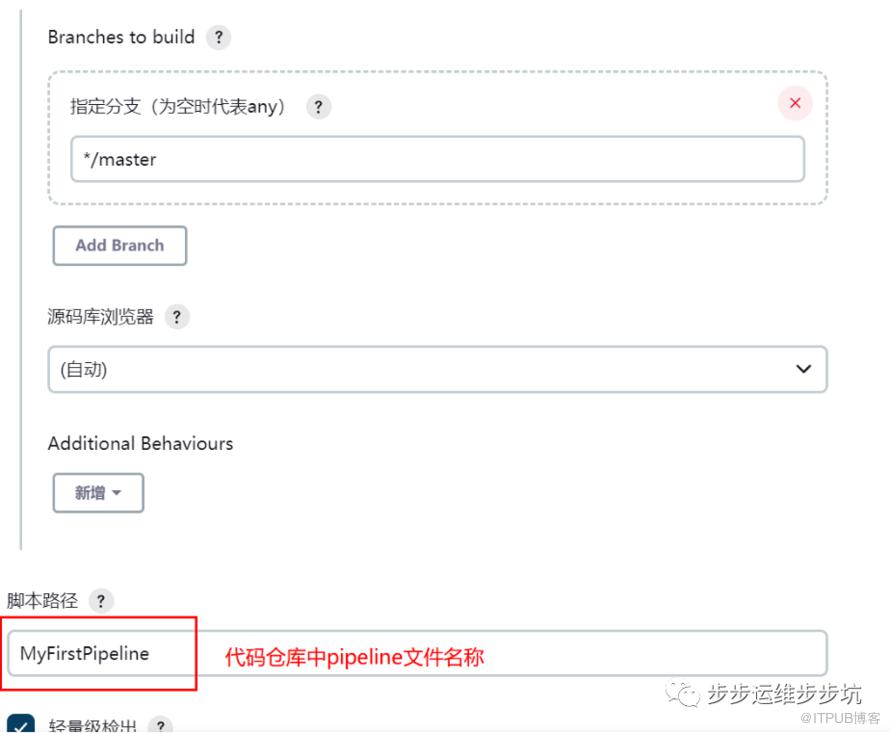

在Script Path中填写需要运行的Jenkinsfile文件所在的地址

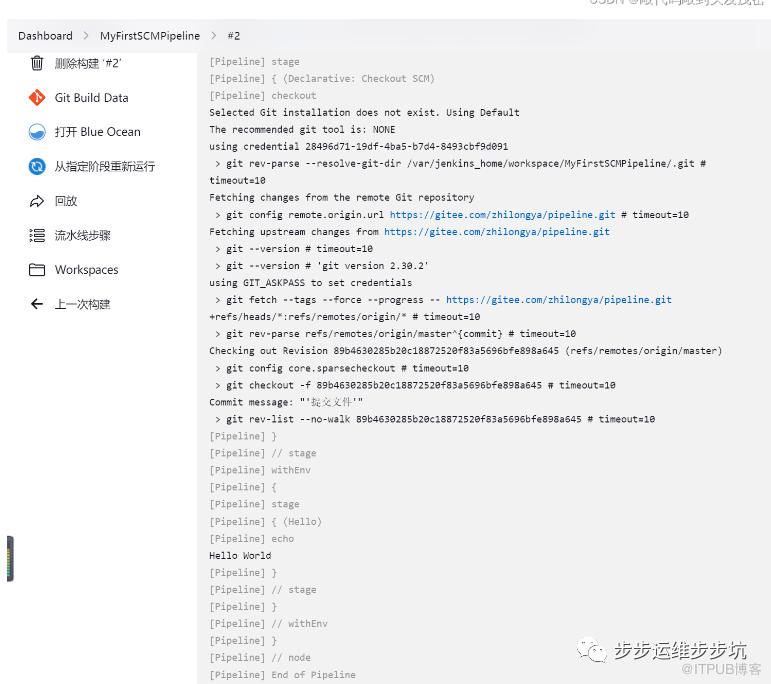

运行
语法简介

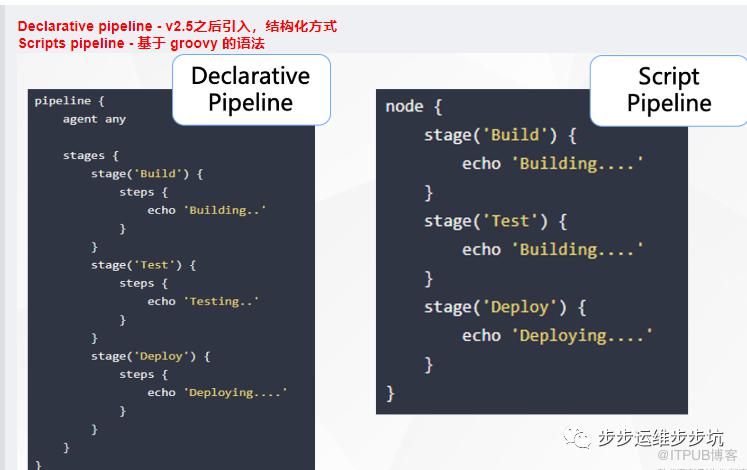

Jenkinsfile 支持两种语法形式 ：
Declarative pipeline - v2.5之后引入，结构化方式Scripts pipeline - 基于 groovy 的语法
Declarative Pipeline
a.必须包含在一个pipeline块内，具体来说是：*
pipeline {}*b.基本的部分是“steps”，steps 告诉Jenkins要做什么c.语句分类具体包含Sections, Steps，赋值等几大类
agent
定义pipeline执行节点必须出现的指令参数
any：可以在任意agent上执行pipelinenone：pipeline将不分配全局agent, 每个stage分配自己的agentlabel：指定运行节点的Labelnode：自定义运行节点配置，
指定 label指定 customWorkspace
docker：控制目标节点上的docker运行相关内容
代码举例
pipeline {
agent {
label 'master'
customWorkspace 'myWorkspace'
}
}
stages
必须出现的指令无参数包含一个或多个stage的序列，Pipeline的大部分工作在此执行;每个Pipeline 代码区间中必须只有一个stages
stage
必须出现的指令无参数包含在stages中Pipeline完成的所有实际工作都需要包含到stage中需要定义stage的名字
Declarative Pipeline - steps
必须出现的指令无参数具体执行步骤，包含在 stage 代码区间中
代码举例
stages {
stage('pull source code'){
steps {
echo 'pull source code'
sleep 5
}
}
}

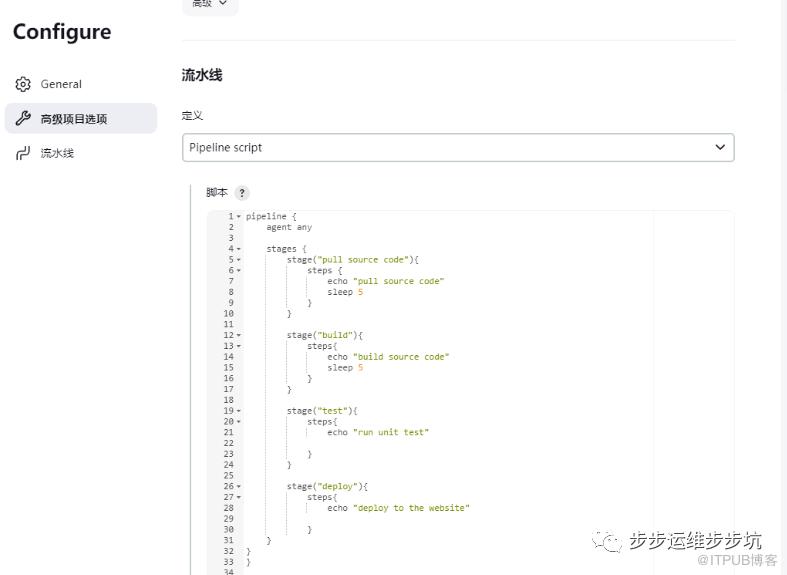

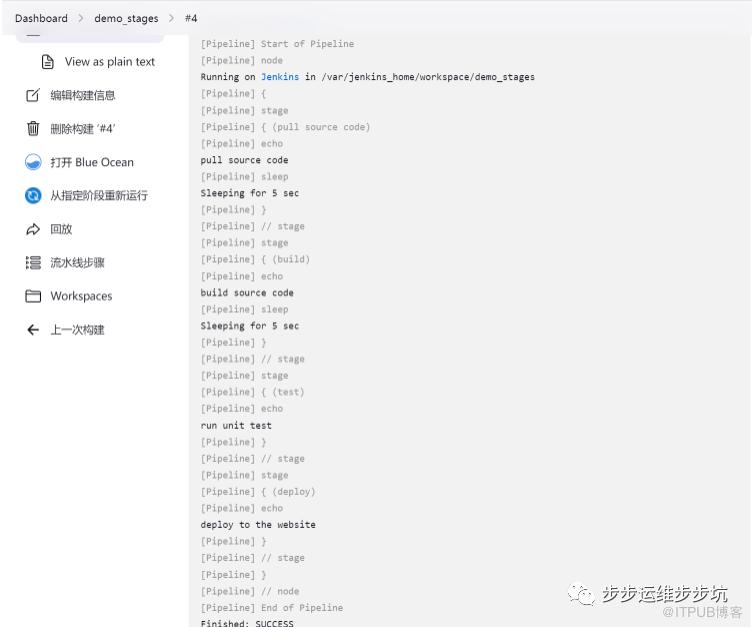

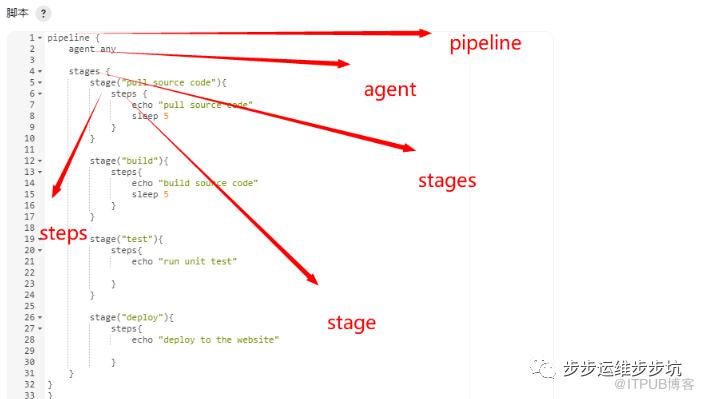

代码演示
pipeline {
agent any
stages {
stage("pull source code"){
steps {
echo "pull source code"
sleep 5
}
}
stage("build"){
steps{
echo "build source code"
sleep 5
}
}
stage("test"){
steps{
echo "run unit test"
}
}
stage("deploy"){
steps{
echo "deploy to the website"
}
}
}
}
JenkinsFile语法参数post
定义Pipeline或stage运行结束时的操作不是必须出现的指令参数:
always：无论Pipeline运行的完成状态如何都会运行changed：只有当前Pipeline运行的状态与先前完成的Pipeline的状态不同时，才能运行failure：仅当当前Pipeline处于“失败”状态时才运行success ：仅当当前Pipeline具有“成功”状态时才运行unstable：只有当前Pipeline具有“不稳定”状态才能运行aborted：只有当前Pipeline处于“中止”状态时才能运行
执行失败
pipeline{
agent any
stages {
stage('Test'){
steps{
echo "This is test code"
sleep 2
sh 'exit -1'
}
}
}
post{
always{
echo 'say goodby'
}
success{
echo 'This is success exit'
}
failure{
echo 'This is failure exit'
}
}
}
执行成功
pipeline{
agent any
stages {
stage('Test'){
steps{
echo "This is test code"
sleep 2
sh 'exit 0'
}
}
}
post{
always{
echo 'say goodby'
}
success{
echo 'This is success exit'
}
failure{
echo 'This is failure exit'
}
}
}
options
定义pipeline 的专有属性不是必须出现的指令参数:
buildDiscarder：保持构建的最大个数(历史构建个数)disableConcurrentBuilds：不允许并行执行pipeline任务timeout：pipeline 超时时间retry：失败后，重试整个Pipeline的次数timestamps：预定义由Pipeline生成的所有控制台输出时间skipStagesAfterUnstable：一旦构建状态进入了“Unstable”状态，就跳过此stage
正常情况
pipeline{
agent {
node{
label 'docker_node'
customWorkspace "pipelineWorkspace"
}
}
options {
timeout(time: 10,unit:"SECONDS") //构建超过10s,就会超时
buildDiscarder(logRotator(numToKeepStr:"2")) //最多保留2个最新的构建
retry(5) //失败后尝试运行5次
}
stages {
stage('begin'){
steps{
echo 'hello pipeline begin'
sleep 2
}
}
stage('running'){
steps{
echo 'hello pipeline running'
sleep 2
}
}
stage('finsh'){
steps{
echo 'hello pipeline finsh'
sleep 2
sh "exit 0"
}
}
}
post{
always{
echo 'say goodby'
}
success{
echo 'This is success exit'
}
failure{
echo 'This is failure exit'
}
}
}
控制台输出
Started by user admin
[Pipeline] Start of Pipeline
[Pipeline] node
Running on docker_node in /root/jenkins_mulu/workspace/pipeline_demo_options
[Pipeline] {
[Pipeline] ws
Running in /root/jenkins_mulu/pipelineWorkspace
[Pipeline] {
[Pipeline] timeout
Timeout set to expire in 10 sec
[Pipeline] {
[Pipeline] retry
[Pipeline] {
[Pipeline] stage
[Pipeline] { (begin)
[Pipeline] echo
hello pipeline begin
[Pipeline] sleep
Sleeping for 2 sec
[Pipeline] }
[Pipeline] // stage
[Pipeline] stage
[Pipeline] { (running)
[Pipeline] echo
hello pipeline running
[Pipeline] sleep
Sleeping for 2 sec
[Pipeline] }
[Pipeline] // stage
[Pipeline] stage
[Pipeline] { (finsh)
[Pipeline] echo
hello pipeline finsh
[Pipeline] sleep
Sleeping for 2 sec
[Pipeline] sh
+ exit 0
[Pipeline] }
[Pipeline] // stage
[Pipeline] stage
[Pipeline] { (Declarative: Post Actions)
[Pipeline] echo
say goodby
[Pipeline] echo
This is success exit
[Pipeline] }
[Pipeline] // stage
[Pipeline] }
[Pipeline] // retry
[Pipeline] }
[Pipeline] // timeout
[Pipeline] }
[Pipeline] // ws
[Pipeline] }
[Pipeline] // node
[Pipeline] End of Pipeline
Finished: SUCCESS
异常情况
pipeline{
agent {
node{
label 'docker_node'
customWorkspace "pipelineWorkspace"
}
}
options {
timeout(time: 10,unit:"SECONDS") //构建超过10s,就会超时
buildDiscarder(logRotator(numToKeepStr:"2")) //最多保留2个最新的构建
retry(5) //失败后尝试运行5次
}
stages {
stage('begin'){
steps{
echo 'hello pipeline begin'
sleep 2
}
}
stage('running'){
steps{
echo 'hello pipeline running'
sleep 2
}
}
stage('finsh'){
steps{
echo 'hello pipeline finsh'
sleep 2
sh "exit -1"
}
}
}
post{
always{
echo 'say goodby'
}
success{
echo 'This is success exit'
}
failure{
echo 'This is failure exit'
}
}
}
parameters
定义pipeline 的专有参数列表不是必须出现的指令参数:
支持数据类型：booleanParam, choice, credentials, file, text, password, run, string类似参数化构建的选项
代码举例
parameters {
string(name: 'PERSON', defaultValue: 'Jenkins', description: '输入的文本参数')
choice(name: 'CHOICE', choices: ['One', 'Two', 'Three'], description: 'Pick something')
}

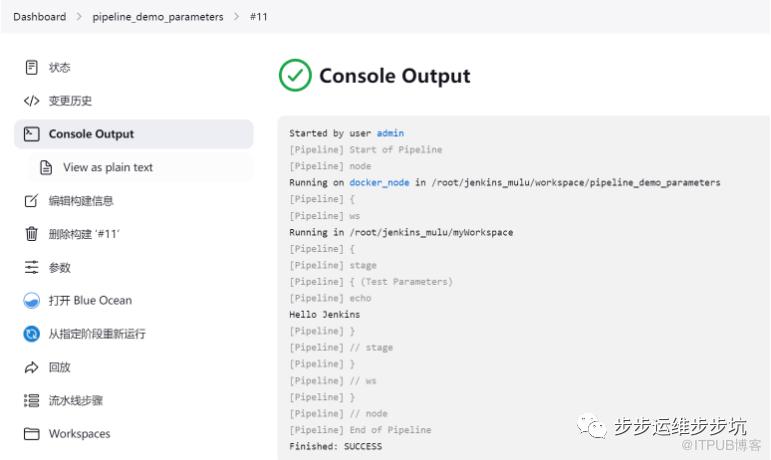

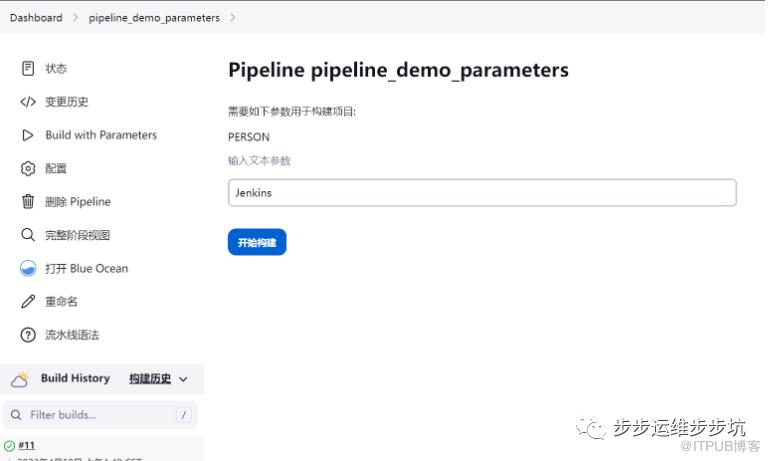

案例:以默认值构建
pipeline {
agent{
node{
label 'docker_node'
customWorkspace "myWorkspace"
}
}
parameters{
string(name:'PERSON',defaultValue:'Jenkins',description:'输入文本参数')
}
stages{
stage('Test Parameters'){
steps{
echo "Hello ${PERSON}"
}
}
}
}

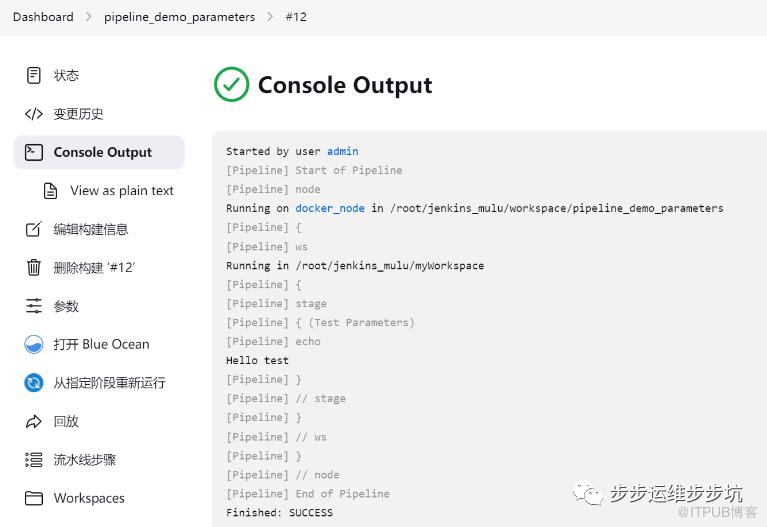

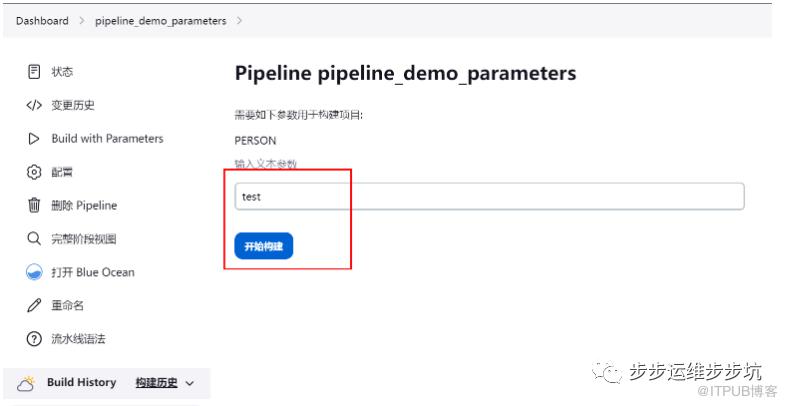

非默认值构建
解决第一次运行失败的问题
pipeline {
agent{
node{
label 'docker_node'
customWorkspace "myWorkspace"
}
}
parameters{
string(name:'PERSON',defaultValue:'Jenkins',description:'输入文本参数')
}
environment{
PERSON ="$params.PERSON"
}
stages{
stage('Test Parameters'){
steps{
echo "Hello ${PERSON}"
}
}
}
}
JenkinsFile 语法参数
env_tools(有问题)
Scripts pipeline: 环境变量定义与引用
环境工具变量的定义设置位置：“Manage Jenkins”——> “Global Tool Configuration”
环境变量定义

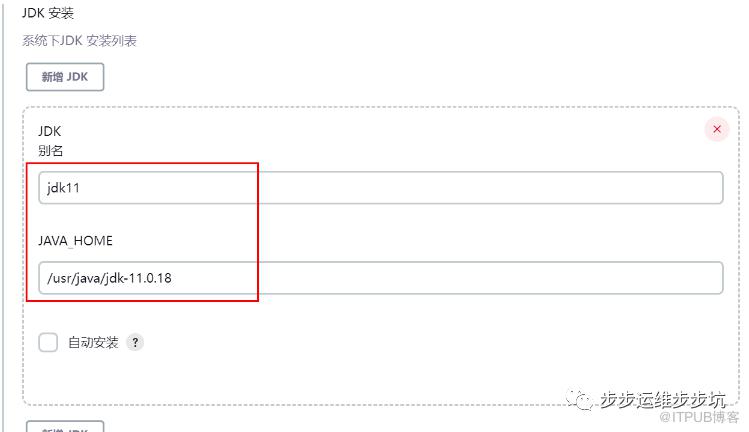

JDK Home的定义

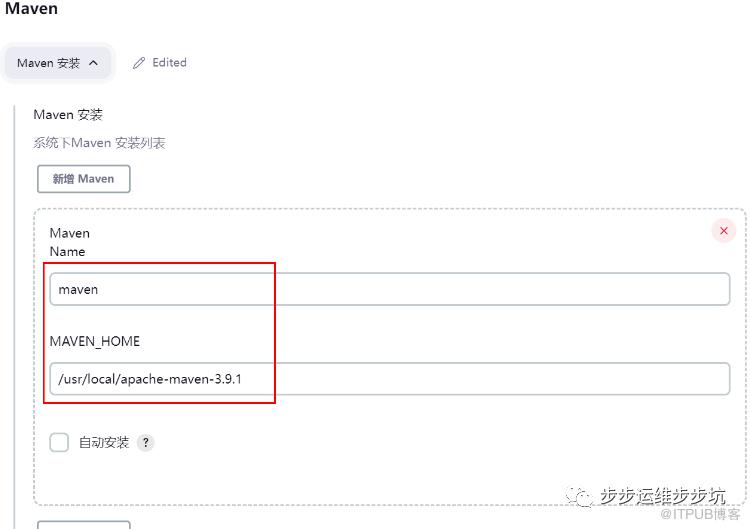

Maven Home的定义
Script 代码中引用环境变量
调用java、maven工具
stage('env tools') {
node('docker_node'){
//定义maven java环境
def mvnHome = tool 'maven'
def jdkHome = tool 'jdk11'
//引用环境变量，配置PATH变量
env.PATH = "${mvnHome}/bin:${env.PATH}"
env.PATH = "${jdkHome}/bin:${env.PATH}"
//调用java mvn 工具
sh "java -version"
sh "mvn --version"
}
}
运行结果
Scripts pipeline

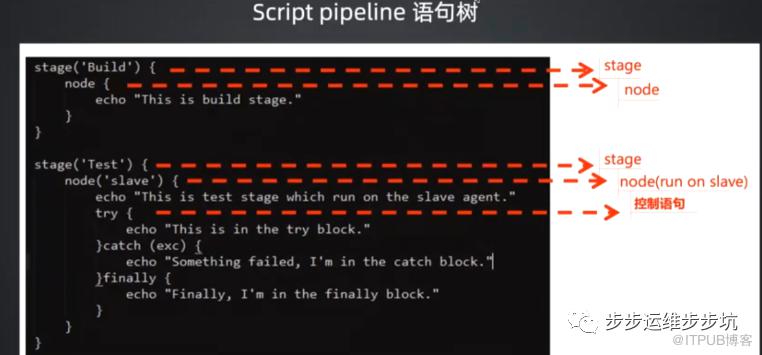

基于 groovy 语法定制的一种DSL语言灵活性更高可扩展性更好Script pipeline 与 Declarative pipeline 程序构成方式有雷同之处，基本语句也有相似之处
流程控制之 – if/else
node {
stage('Example') {
if (env.BRANCH_NAME == 'master') {
echo 'I only execute on the master branch'
} else {
echo 'I execute elsewhere'
}
}
}
stage('Build'){
node {
echo 'this is build stage.'
}
}

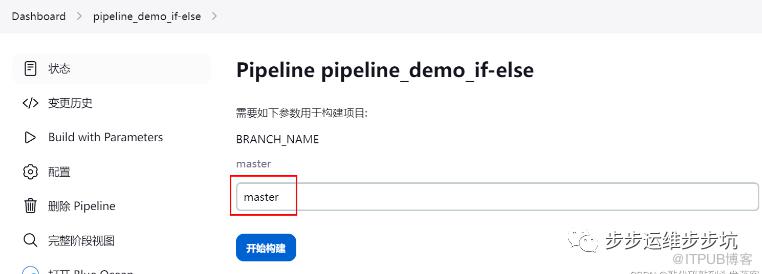

采用master构建
采用

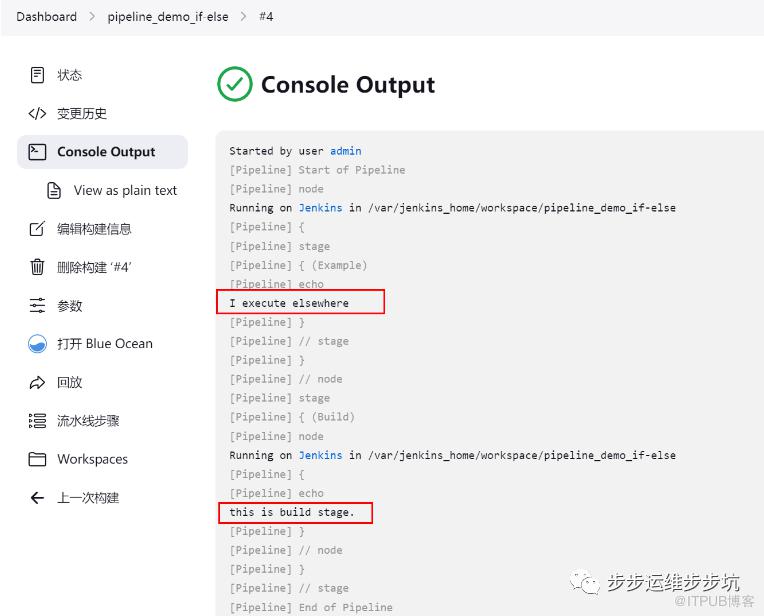

非master构建
流程控制之 – try/catch
场景:异常处理,在运行程序的时候,不希望代码的错误,导致程序的退出使用try进行捕获,使用catch对异常的代码进行处理

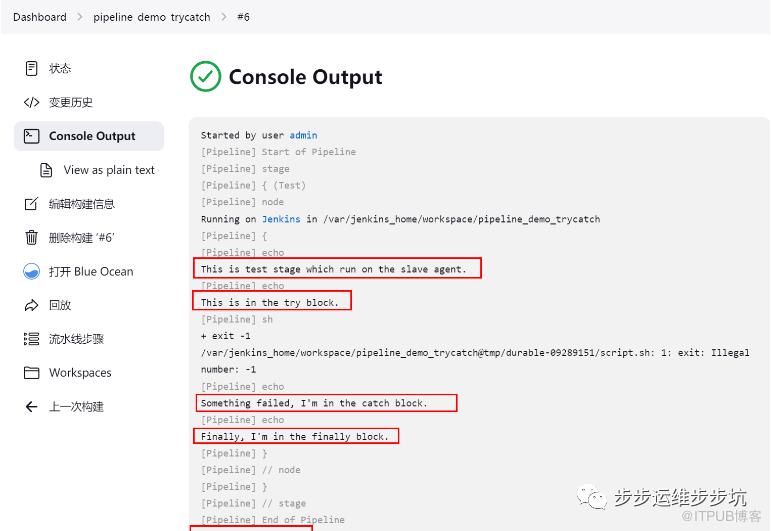

演示出现异常
stage('Test') {
node{
echo "This is test stage which run on the slave agent."
try {
echo "This is in the try block."
sh 'exit 1'
}catch (exc) {
echo "Something failed, I'm in the catch block."
}finally {
echo "Finally, I'm in the finally block."
}
}
}
演示正常
stage('Test') {
node{
echo "This is test stage which run on the slave agent."
try {
echo "This is in the try block."
sh 'exit 0'
}catch (exc) {
echo "Something failed, I'm in the catch block."
}finally {
echo "Finally, I'm in the finally block."
}
}
}
environment
定义Pipeline或stage运行时的环境变量不是必须出现的指令无参数
代码举例
environment {
hlw = 'hello world'
}
运行演示
pipeline {
agent {
node{
label 'docker_node'
customWorkspace "myWorkspace"
}
}
environment {
hlw = 'hello world'
}
stages {
stage('Print environment_1'){
steps {
echo hlw
sleep 1
}
}
stage('Print environment_2'){
steps {
sh 'echo ${hlw}'
sleep 1
}
}
}
post {
success {
echo 'goodbye pipeline success!'
sleep 5
}
failure {
echo 'ops!!! pipeline failed....'
sleep 5
}
always {
echo 'always say goodbye'
}
}
}
运行结果
triggers
triggers：定义了Pipeline自动化触发的方式不是必须出现的指令参数:
cron：接受一个cron风格的字符串来定义Pipeline触发的常规间隔pollSCM：接受一个cron风格的字符串来定义 Jenkins 检查SCM源更改的常规间隔；如果存在新的更改，则Pipeline将被重新触发。
代码举例
triggers {cron('H/2 * * * *')
}
运行演示
pipeline {
agent{
node{
label 'docker_node'
customWorkspace "myWorkspace"
}
}
triggers {
cron('H/2 * * * *')
}
stages{
stage('Test Parameters'){
steps{
echo "Hello"
}
}
}
}
