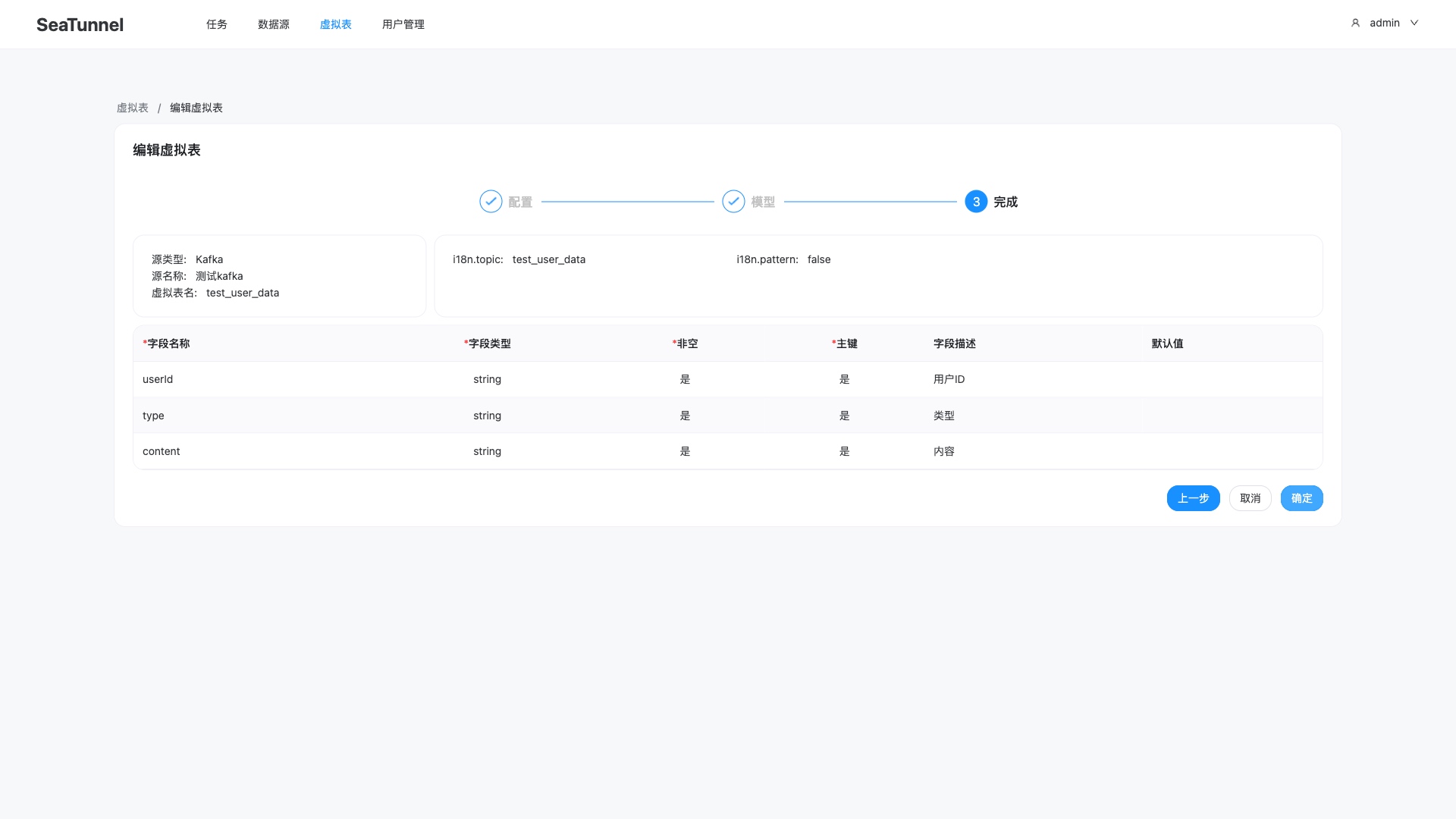

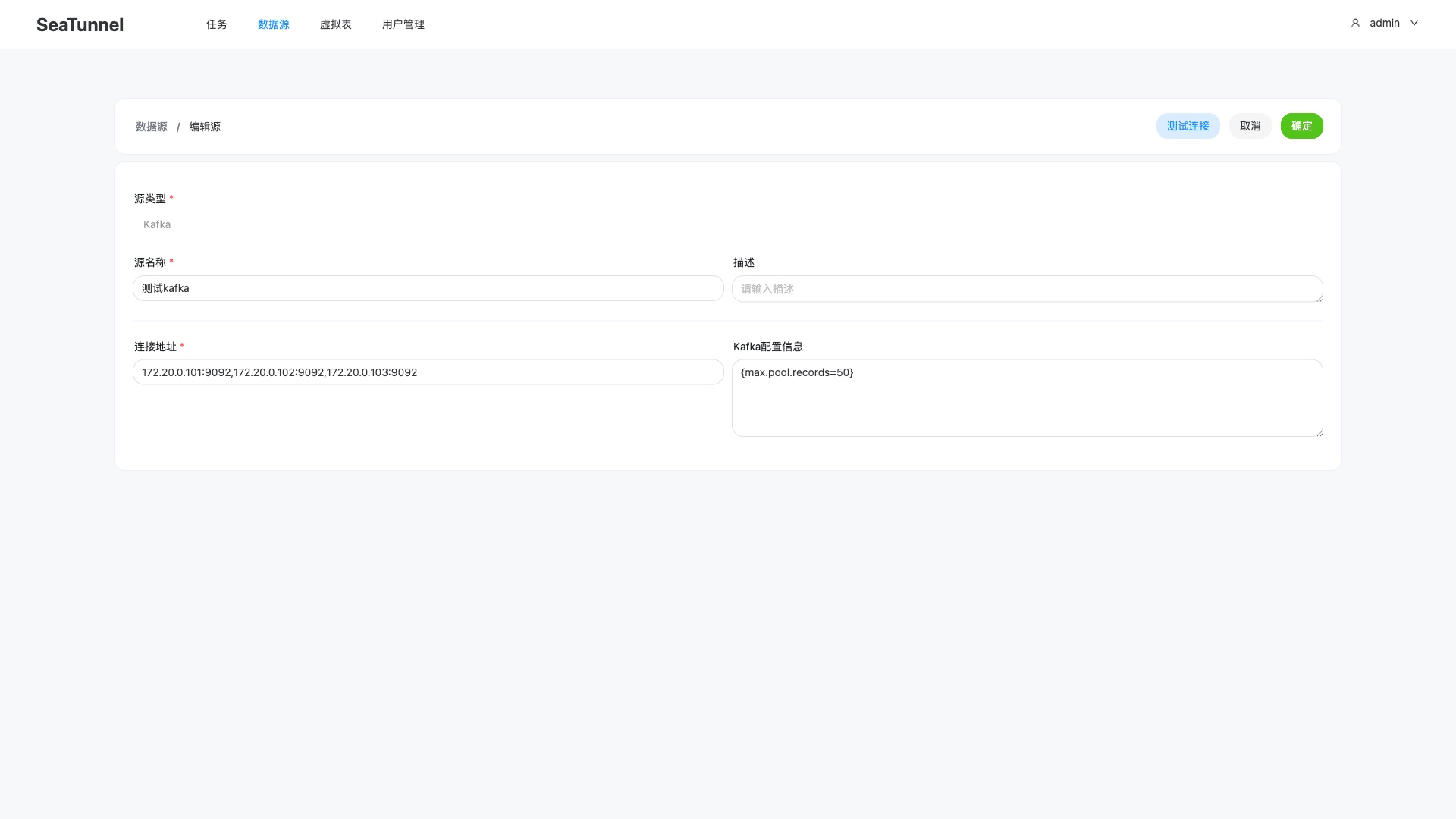

本文档详细介绍如何使用 Docker 部署 SeaTunnel 2.3.11，并配置 Kafka 虚拟表、数据源以及 Kafka 同步到 Hive 和 Elasticsearch 的完整实战案例。

安装准备

目录结构

seatunnel-docker/
├── docker-compose.yml              # 主编排文件
├── hive/                           # Hive 配置
│   ├── hive-site.xml
│   └── lib/                        # 依赖 jar 包
│       └── postgresql-42.5.1.jar
├── init-sql/                       # 初始化 SQL
│   └── seatunnel_server_mysql.sql
├── seatunnel/                      # SeaTunnel 服务端配置
│   ├── Dockerfile
│   └── apache-seatunnel-2.3.11/    # 解压后的二进制包
│       └── lib/                    # 依赖 jar 包
│           ├── hive-exec-3.1.3.jar
│           ├── hive-metastore-3.1.3.jar
│           ├── libfb303-0.9.3.jar
│           ├── mysql-connector-java-8.0.28.jar
│           └── seatunnel-hadoop3-3.1.4-uber.jar
└── seatunnel-web/                  # SeaTunnel Web 配置
    ├── Dockerfile
    └── apache-seatunnel-web-1.0.3-bin/  # 解压后的二进制包
        └── libs/                   # 依赖 jar 包
            └── mysql-connector-java-8.0.28.jar

下载 seatunnel

# seatunnel-2.3.11
https://dlcdn.apache.org/seatunnel/2.3.11/apache-seatunnel-2.3.11-bin.tar.gz
# 源码构建seatunnel-web-1.0.3
git clone https://github.com/apache/seatunnel-web.git
cd seatunnel-web
sh build.sh code

下载依赖包

#hive-metastore容器需要（PostgreSQL为Hive 元数据库）
https://jdbc.postgresql.org/download/postgresql-42.5.1.jar
#hive-metastore同步报错缺少依赖包（实际验证加前3个包即可）
https://repo1.maven.org/maven2/org/apache/hive/hive-exec/3.1.3/hive-exec-3.1.3.jar
https://repo1.maven.org/maven2/org/apache/hive/hive-metastore/3.1.3/hive-metastore-3.1.3.jar
https://repo.maven.apache.org/maven2/org/apache/thrift/libfb303/0.9.3/libfb303-0.9.3.jar
https://repo1.maven.org/maven2/org/apache/thrift/libthrift/0.12.0/libthrift-0.12.0.jar
https://repo1.maven.org/maven2/org/apache/hive/hive-common/3.1.3/hive-common-3.1.3.jar

创建项目目录

将准备好的相关文件存放 seatunnel-docker 目录

mkdir seatunnel-docker
cd seatunnel-docker

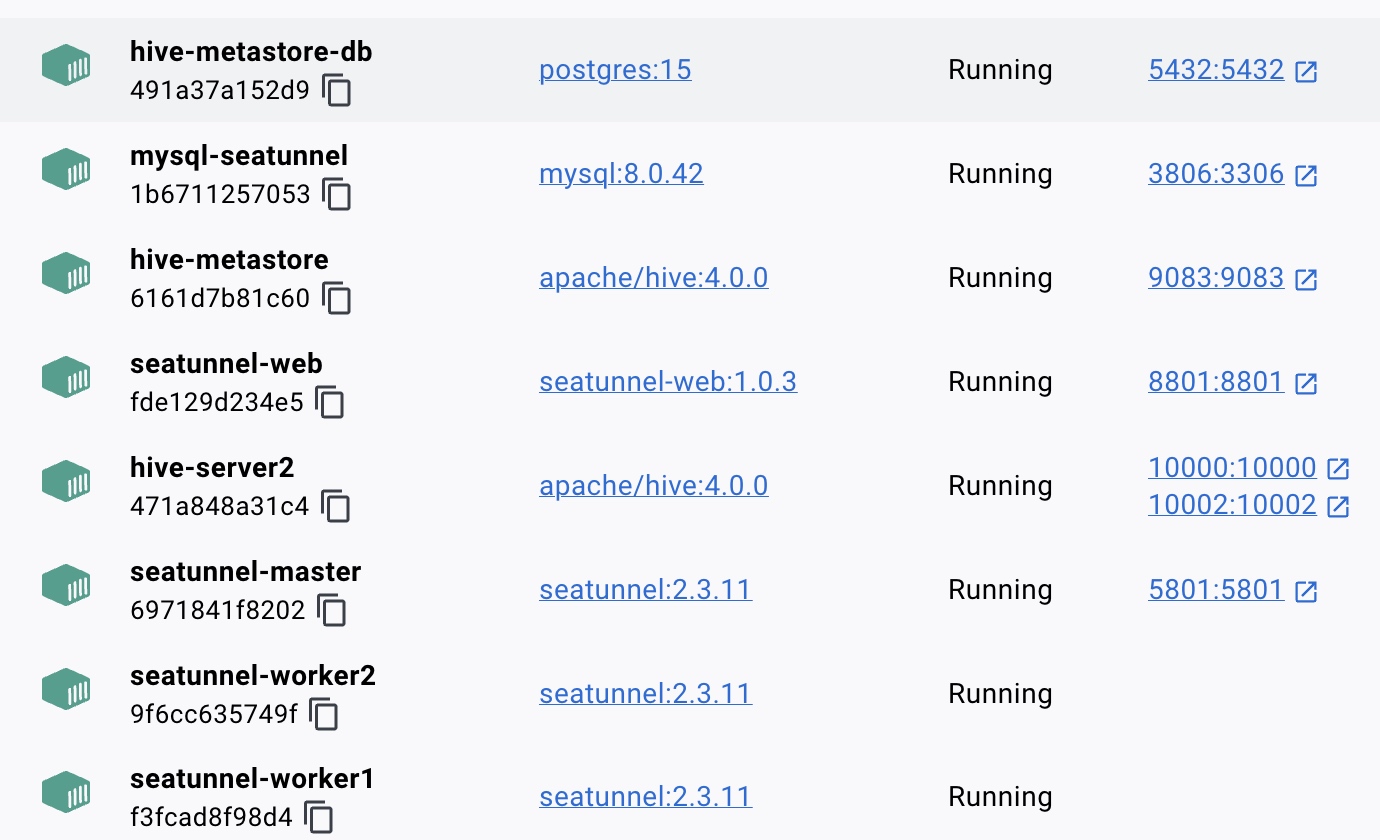

Docker 部署

docker-compose.yml 配置

version: '3.9'
networks:
  seatunnel-network:
    driver: bridge
    ipam:
      config:
        - subnet: 172.16.0.0/24
services:
  # ===== Hive 相关服务 =====
  hive-metastore-db:
    image: postgres:15
    container_name: hive-metastore-db
    hostname: hive-metastore-db
    environment:
      POSTGRES_DB: metastore_db
      POSTGRES_USER: hive
      POSTGRES_PASSWORD: hive123456
    ports:
      - "5432:5432"
    volumes:
      - ./hive-metastore-db-data:/var/lib/postgresql/data
    networks:
      seatunnel-network:
        ipv4_address: 172.16.0.2
    healthcheck:  # 添加健康检查
      test: ["CMD-SHELL", "pg_isready -U hive -d metastore_db"]
      interval: 5s
      timeout: 5s
      retries: 10
      start_period: 10s
  hive-metastore:
    image: apache/hive:4.0.0
    container_name: hive-metastore
    hostname: hive-metastore
    depends_on:
       hive-metastore-db:
        condition: service_healthy  # 等待数据库健康后才启动
    environment:
      SERVICE_NAME: metastore
      DB_DRIVER: postgres
      SERVICE_OPTS: >-
        -Djavax.jdo.option.ConnectionDriverName=org.postgresql.Driver
        -Djavax.jdo.option.ConnectionURL=jdbc:postgresql://hive-metastore-db:5432/metastore_db
        -Djavax.jdo.option.ConnectionUserName=hive
        -Djavax.jdo.option.ConnectionPassword=hive123456
    ports:
      - "9083:9083"
    volumes:
      - ./hive/lib/postgresql-42.5.1.jar:/opt/hive/lib/postgresql-42.5.1.jar
      - ./hive/hive-site.xml:/opt/hive/conf/hive-site.xml
      - ./hive-warehouse:/opt/hive/data/warehouse
    networks:
      seatunnel-network:
        ipv4_address: 172.16.0.3
  hive-server2:
    image: apache/hive:4.0.0
    container_name: hive-server2
    hostname: hive-server2
    depends_on:
      - hive-metastore
    environment:
      HIVE_SERVER2_THRIFT_PORT: 10000
      SERVICE_NAME: hiveserver2
      IS_RESUME: "true"
      SERVICE_OPTS: "-Dhive.metastore.uris=thrift://hive-metastore:9083"
    ports:
      - "10000:10000"
      - "10002:10002"
    volumes:
      - ./hive-warehouse:/opt/hive/data/warehouse
    networks:
      seatunnel-network:
        ipv4_address: 172.16.0.4
  # ===== MySQL =====
  mysql-seatunnel:
    image: mysql:8.0.42
    container_name: mysql-seatunnel
    hostname: mysql-seatunnel
    environment:
      MYSQL_ROOT_PASSWORD: root123456
      MYSQL_DATABASE: seatunnel
      MYSQL_ROOT_HOST: '%'
    ports:
      - "3806:3306"
    volumes:
      - ./mysql_data:/var/lib/mysql
      - ./init-sql:/docker-entrypoint-initdb.d
    networks:
      seatunnel-network:
        ipv4_address: 172.16.0.5
    command: --default-authentication-plugin=mysql_native_password
    healthcheck:
      test: [ "CMD", "mysqladmin", "ping", "-h", "localhost" ]
      interval: 10s
      timeout: 5s
      retries: 5
  # ===== SeaTunnel =====
  seatunnel-master:
    build:
      context: ./seatunnel
      dockerfile: Dockerfile
    image: seatunnel:2.3.11
    container_name: seatunnel-master
    hostname: seatunnel-master
    extra_hosts:
      - "hive-metastore:172.16.0.3"
      - "hive-metastore-db:172.16.0.2"
    environment:
      - SEATUNNEL_HOME=/opt/seatunnel
    command: >
      sh -c "
      cd /opt/seatunnel &&
      exec bin/seatunnel-cluster.sh -r master
      "
    ports:
      - "5801:5801"
    volumes:
      - ./seatunnel/apache-seatunnel-2.3.11/:/opt/seatunnel/
      - ./logs/master:/opt/seatunnel/logs
      # [修改点] 挂载 Hive 仓库目录，确保数据写入宿主机共享目录
      - ./hive-warehouse:/opt/hive/data/warehouse
    networks:
      seatunnel-network:
        ipv4_address: 172.16.0.10
  seatunnel-worker1:
    image: seatunnel:2.3.11
    container_name: seatunnel-worker1
    hostname: seatunnel-worker1
    extra_hosts:
      - "hive-metastore:172.16.0.3"
      - "hive-metastore-db:172.16.0.2"
    environment:
      - SEATUNNEL_HOME=/opt/seatunnel
    command: >
      sh -c "
      cd /opt/seatunnel &&
      exec bin/seatunnel-cluster.sh -r worker
      "
    volumes:
      - ./seatunnel/apache-seatunnel-2.3.11/:/opt/seatunnel/
      - ./logs/worker1:/opt/seatunnel/logs
      # [修改点] 挂载 Hive 仓库目录，确保数据写入宿主机共享目录
      - ./hive-warehouse:/opt/hive/data/warehouse
    depends_on:
      - seatunnel-master
    networks:
      seatunnel-network:
        ipv4_address: 172.16.0.11
  seatunnel-worker2:
    image: seatunnel:2.3.11
    container_name: seatunnel-worker2
    hostname: seatunnel-worker2
    extra_hosts:
      - "hive-metastore:172.16.0.3"
      - "hive-metastore-db:172.16.0.2"
    environment:
      - SEATUNNEL_HOME=/opt/seatunnel
    command: >
      sh -c "
      cd /opt/seatunnel &&
      exec bin/seatunnel-cluster.sh -r worker
      "
    volumes:
      - ./seatunnel/apache-seatunnel-2.3.11/:/opt/seatunnel/
      - ./logs/worker2:/opt/seatunnel/logs
      # [修改点] 挂载 Hive 仓库目录，确保数据写入宿主机共享目录
      - ./hive-warehouse:/opt/hive/data/warehouse
    depends_on:
      - seatunnel-master
    networks:
      seatunnel-network:
        ipv4_address: 172.16.0.12
  seatunnel-web:
    build:
      context: ./seatunnel-web
      dockerfile: Dockerfile
    image: seatunnel-web:1.0.3
    container_name: seatunnel-web
    hostname: seatunnel-web
    extra_hosts:
      - "hive-metastore:172.16.0.3"
      - "hive-metastore-db:172.16.0.2"
    environment:
      - SEATUNNEL_HOME=/opt/seatunnel
      - SEATUNNEL_WEB_HOME=/opt/seatunnel-web
    ports:
      - "8801:8801"
    volumes:
      - ./seatunnel/apache-seatunnel-2.3.11/:/opt/seatunnel/
      - ./seatunnel-web/apache-seatunnel-web-1.0.3-bin/:/opt/seatunnel-web/
      - ./logs/web:/opt/seatunnel-web/logs
      # [修改点] 挂载 Hive 仓库目录，保持环境一致性
      - ./hive-warehouse:/opt/hive/data/warehouse
    depends_on:
      - seatunnel-master
    networks:
      seatunnel-network:
        ipv4_address: 172.16.0.13

SeaTunnel 配置

Dockerfile

FROM eclipse-temurin:8-jdk-ubi9-minimal
WORKDIR /opt/seatunnel/
# 设置环境变量
ENV SEATUNNEL_HOME=/opt/seatunnel
ENV PATH=$PATH:$SEATUNNEL_HOME/bin
# 暴露端口
EXPOSE 5801
# 启动命令
CMD ["sh", "bin/seatunnel-cluster.sh", "-r", "master"]

hazelcast-client.yaml 客户端配置

编辑 seatunnel/apache-seatunnel-2.3.11/config/hazelcast-client.yaml：

hazelcast-client:
  cluster-name: seatunnel
  properties:
    hazelcast.logging.type: log4j2
  connection-strategy:
    connection-retry:
      cluster-connect-timeout-millis: 3000
  network:
    cluster-members:
      - seatunnel-master:5801

hazelcast-master.yaml 配置

编辑 seatunnel/apache-seatunnel-2.3.11/config/hazelcast-master.yaml：

hazelcast:
  cluster-name: seatunnel
  network:
    rest-api:
      enabled: false
      endpoint-groups:
        CLUSTER_WRITE:
          enabled: true
        DATA:
          enabled: true
    join:
      tcp-ip:
        enabled: true
        member-list:
          - seatunnel-master:5801
          - seatunnel-worker1:5802
          - seatunnel-worker2:5802
    port:
      auto-increment: false
      port: 5801
  properties:
    hazelcast.invocation.max.retry.count: 20
    hazelcast.tcp.join.port.try.count: 30
    hazelcast.logging.type: log4j2
    hazelcast.operation.generic.thread.count: 50
    hazelcast.heartbeat.failuredetector.type: phi-accrual
    hazelcast.heartbeat.interval.seconds: 2
    hazelcast.max.no.heartbeat.seconds: 180
    hazelcast.heartbeat.phiaccrual.failuredetector.threshold: 10
    hazelcast.heartbeat.phiaccrual.failuredetector.sample.size: 200
    hazelcast.heartbeat.phiaccrual.failuredetector.min.std.dev.millis: 100

hazelcast-worker.yaml 配置

编辑 seatunnel/apache-seatunnel-2.3.11/config/hazelcast-worker.yaml：

hazelcast:
  cluster-name: seatunnel
  network:
    join:
      tcp-ip:
        enabled: true
        member-list:
          - seatunnel-master:5801
          - seatunnel-worker1:5802
          - seatunnel-worker2:5802
    port:
      auto-increment: false
      port: 5802
  properties:
    hazelcast.invocation.max.retry.count: 20
    hazelcast.tcp.join.port.try.count: 30
    hazelcast.logging.type: log4j2
    hazelcast.operation.generic.thread.count: 50
    hazelcast.heartbeat.failuredetector.type: phi-accrual
    hazelcast.heartbeat.interval.seconds: 2
    hazelcast.max.no.heartbeat.seconds: 180
    hazelcast.heartbeat.phiaccrual.failuredetector.threshold: 10
    hazelcast.heartbeat.phiaccrual.failuredetector.sample.size: 200
    hazelcast.heartbeat.phiaccrual.failuredetector.min.std.dev.millis: 100

安装连接器依赖包

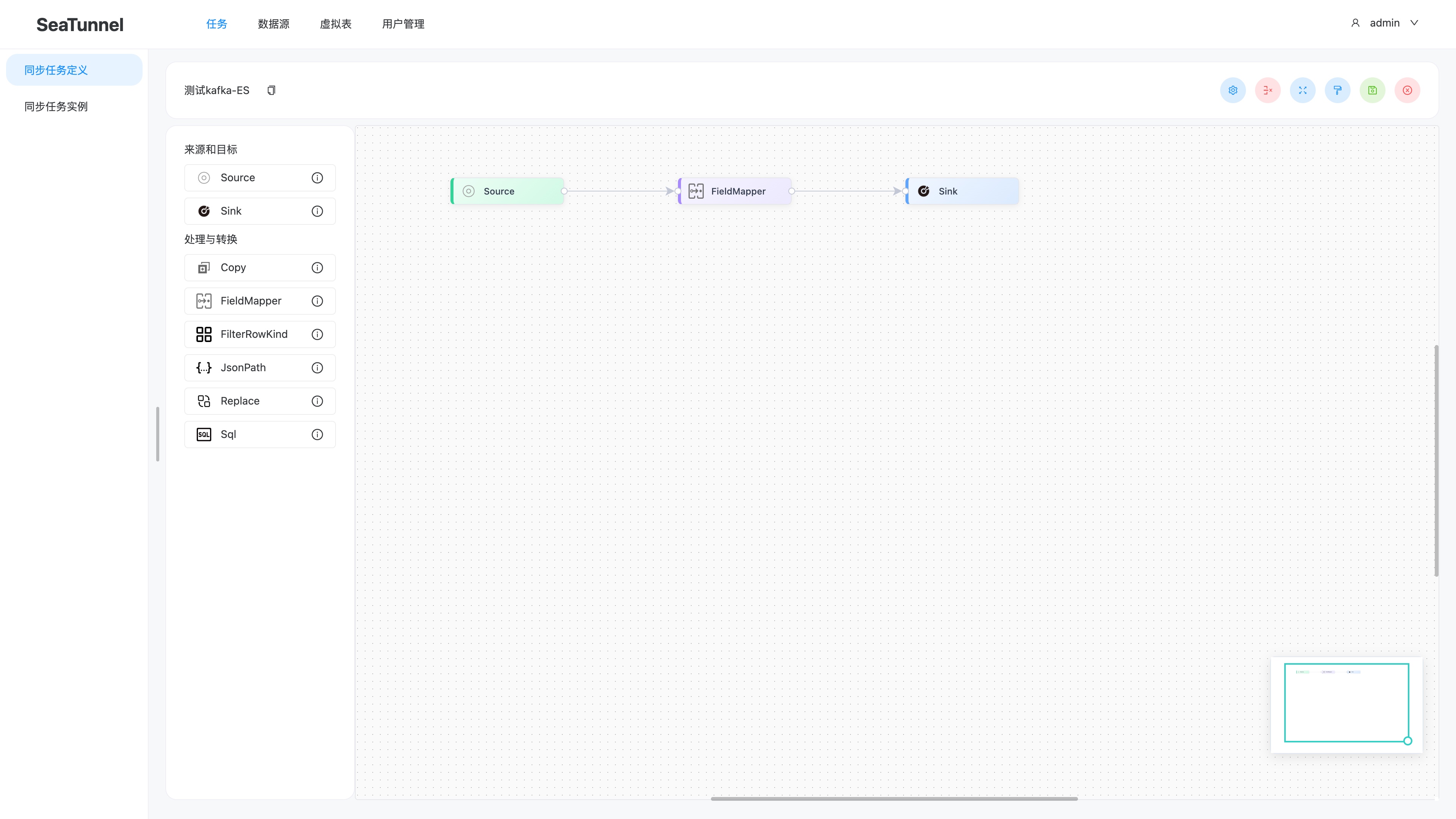

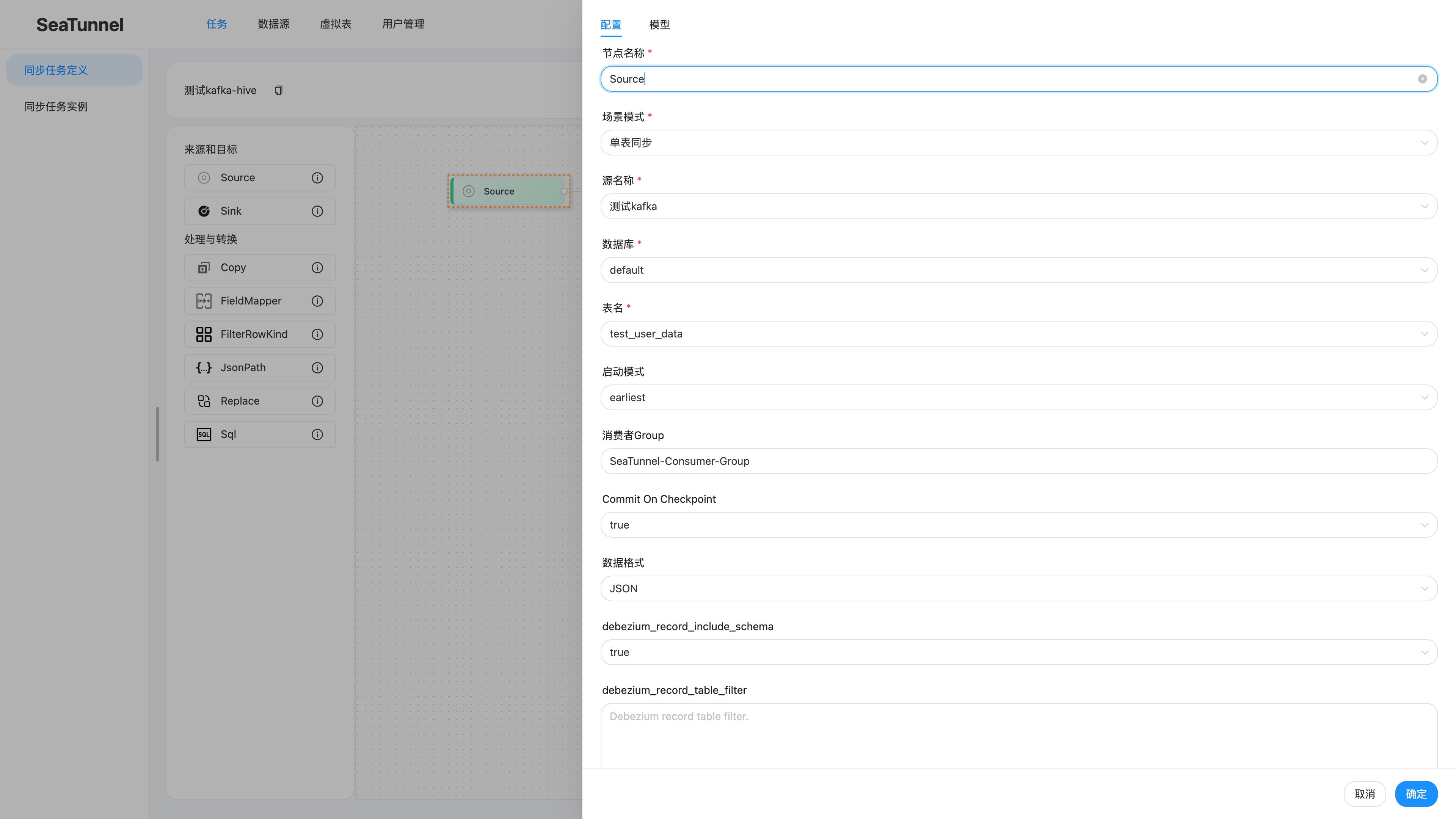

配置同步任务，点击 Source 组件，源名称下拉框没有数据，需要安装依赖才可以显示。

cd seatunnel/apache-seatunnel-2.3.11/
 sh bin/install-plugin.sh

SeaTunnel Web 配置

Dockerfile 配置

FROM eclipse-temurin:8-jdk-ubi9-minimal
WORKDIR /opt/seatunnel-web/
# 设置环境变量
ENV SEATUNNEL_WEB_HOME=/opt/seatunnel-web
ENV SEATUNNEL_HOME=/opt/seatunnel
# 暴露端口
EXPOSE 8801
# 启动命令
CMD ["sh", "bin/seatunnel-backend-daemon.sh", "start"]

application.yml 配置

编辑 seatunnel-web/apache-seatunnel-web-1.0.3-bin/conf/application.yml：

server:
  port: 8801
spring:
  main:
    allow-circular-references: true
  application:
    name: seatunnel
  jackson:
    date-format: yyyy-MM-dd HH:mm:ss
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://mysql-seatunnel:3306/seatunnel?useSSL=false&useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true&allowPublicKeyRetrieval=true
    username: root
    password: root123456
jwt:
  expireTime: 86400
  # please add key when deploy 要配置下token 32位
  secretKey: a3f5c8d2e1b4098765432109abcdef1234567890abcdef
  algorithm: HS256

hazelcast-client.yaml 客户端配置

编辑 seatunnel-web/apache-seatunnel-web-1.0.3-bin/conf/hazelcast-client.yaml：

hazelcast-client:
  cluster-name: seatunnel
  properties:
    hazelcast.logging.type: log4j2
  connection-strategy:
    connection-retry:
      cluster-connect-timeout-millis: 3000
  network:
    cluster-members:
      - seatunnel-master:5801

seatunnel-backend-daemon.sh

编辑 seatunnel-web/apache-seatunnel-web-1.0.3-bin/bin/seatunnel-backend-daemon.sh：去除后台模式去掉 nohup 和最后的 &

$JAVA_HOME/bin/java $JAVA_OPTS \
  -cp "$CLASSPATH" $SPRING_OPTS \
  org.apache.seatunnel.app.SeatunnelApplication >> "${LOGDIR}/seatunnel.out" 2>&1
  echo "seatunnel-web started"

plugin-mapping.properties 配置

实际验证此步骤可省略。拷贝 seatunnel/apache-seatunnel-2.3.11/connectors/plugin-mapping.properties 到 seatunnel-web/apache-seatunnel-web-1.0.3-bin/conf/plugin-mapping.properties

cd seatunnel-docker
cp seatunnel/apache-seatunnel-2.3.11/connectors/plugin-mapping.properties  seatunnel-web/apache-seatunnel-web-1.0.3-bin/conf/plugin-mapping.properties

Hive 配置

hive-site.xml 配置

<?xml version="1.0" encoding="UTF-8"?>
<configuration>
    <property>
        <name>hive.metastore.uris</name>
        <value>thrift://hive-metastore:9083</value>
    </property>
    <property>
        <name>hive.metastore.warehouse.dir</name>
        <value>/opt/hive/data/warehouse</value>
    </property>
    <property>
        <name>metastore.metastore.event.db.notification.api.auth</name>
        <value>false</value>
    </property>
</configuration>

lib 目录依赖包

postgresql-42.5.1.jar

Mysql 配置

init-sql 目录初始 SQL 脚本

拷贝 seatunnel-web/apache-seatunnel-web-1.0.3-bin/script/seatunnel\ server\mysql.sql 到 init-sql/seatunnel\ server\mysql.sql

cd seatunnel-docker
 cp seatunnel-web/apache-seatunnel-web-1.0.3-bin/script/seatunnel_server_mysql.sql init-sql/seatunnel_server_mysql.sql

docker 启动

# 启动所有服务
docker compose up -d --build
# 访问web ui页面 默认登录账号：admin / admin
open http://localhost:8801

运行示例

登录配置语言

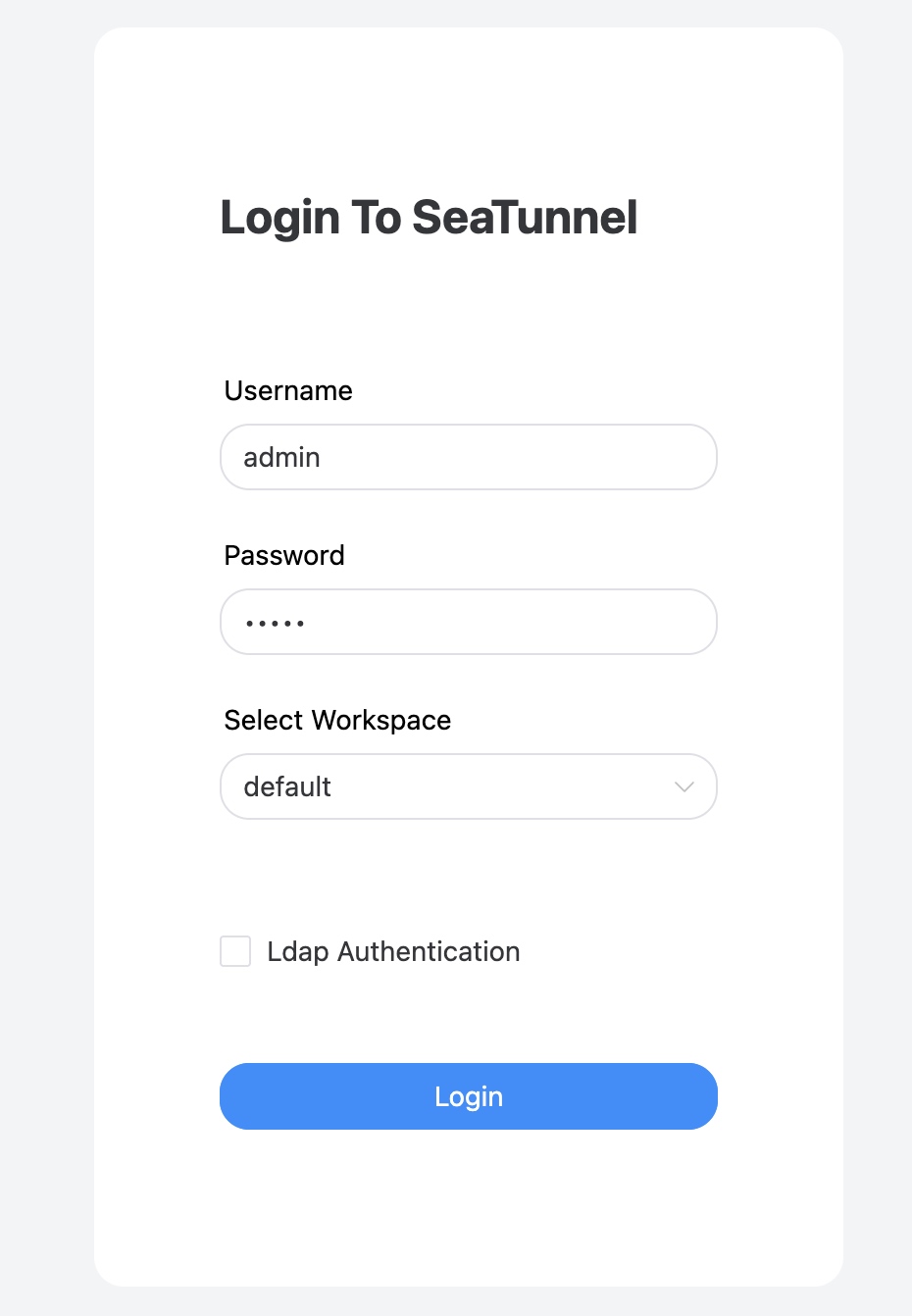

登录页面

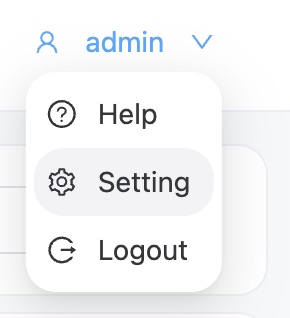

设置

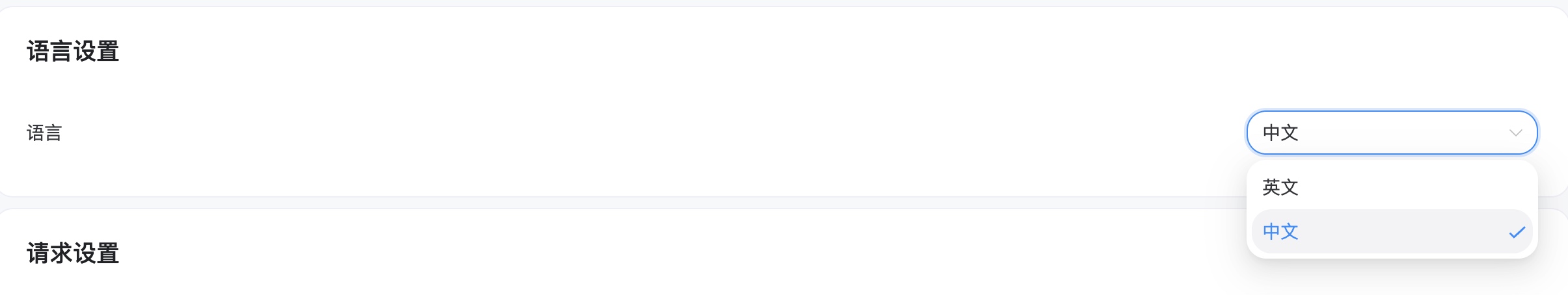

配置语言

配置数据源

kafka 数据源

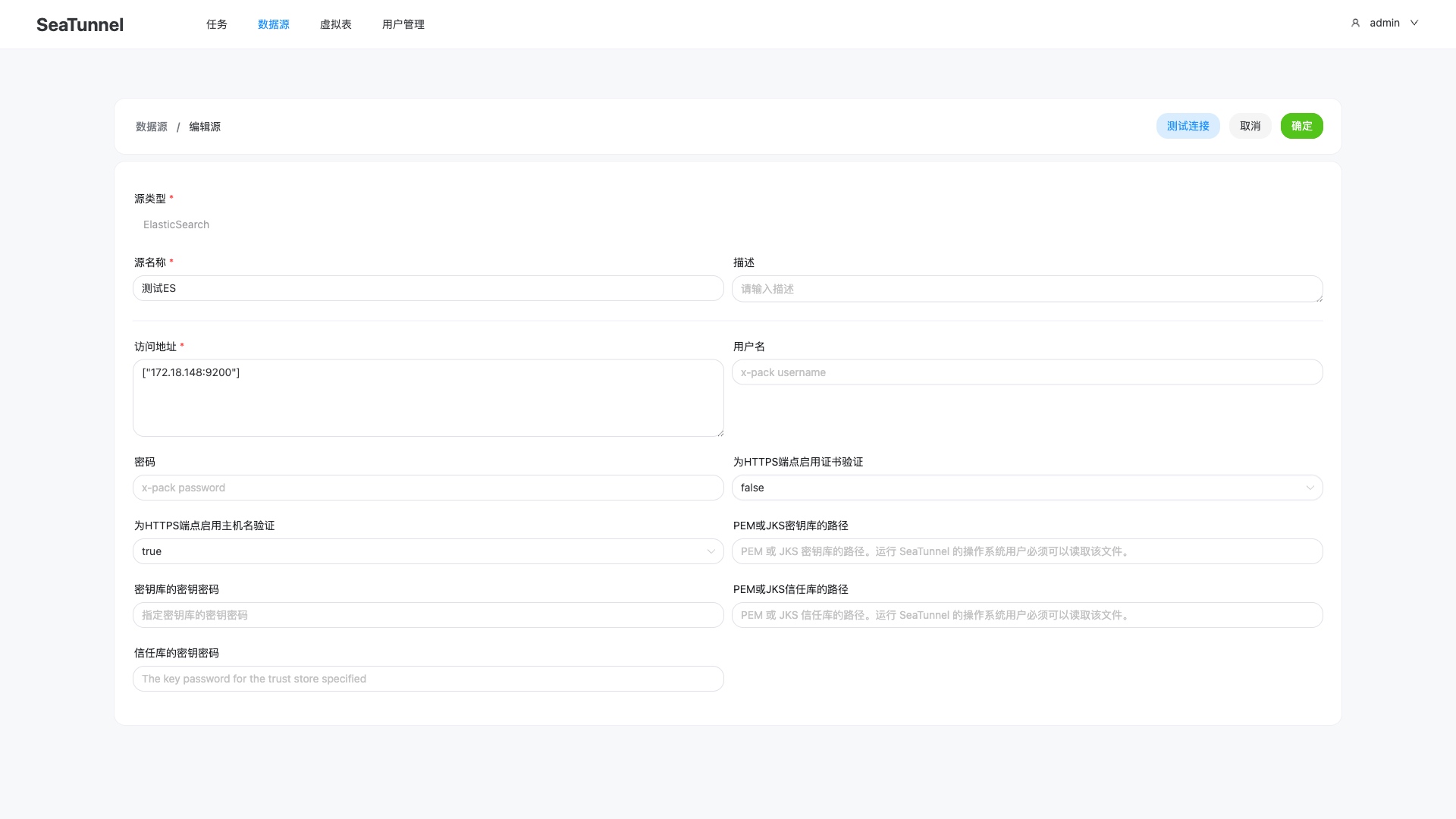

ES 数据源

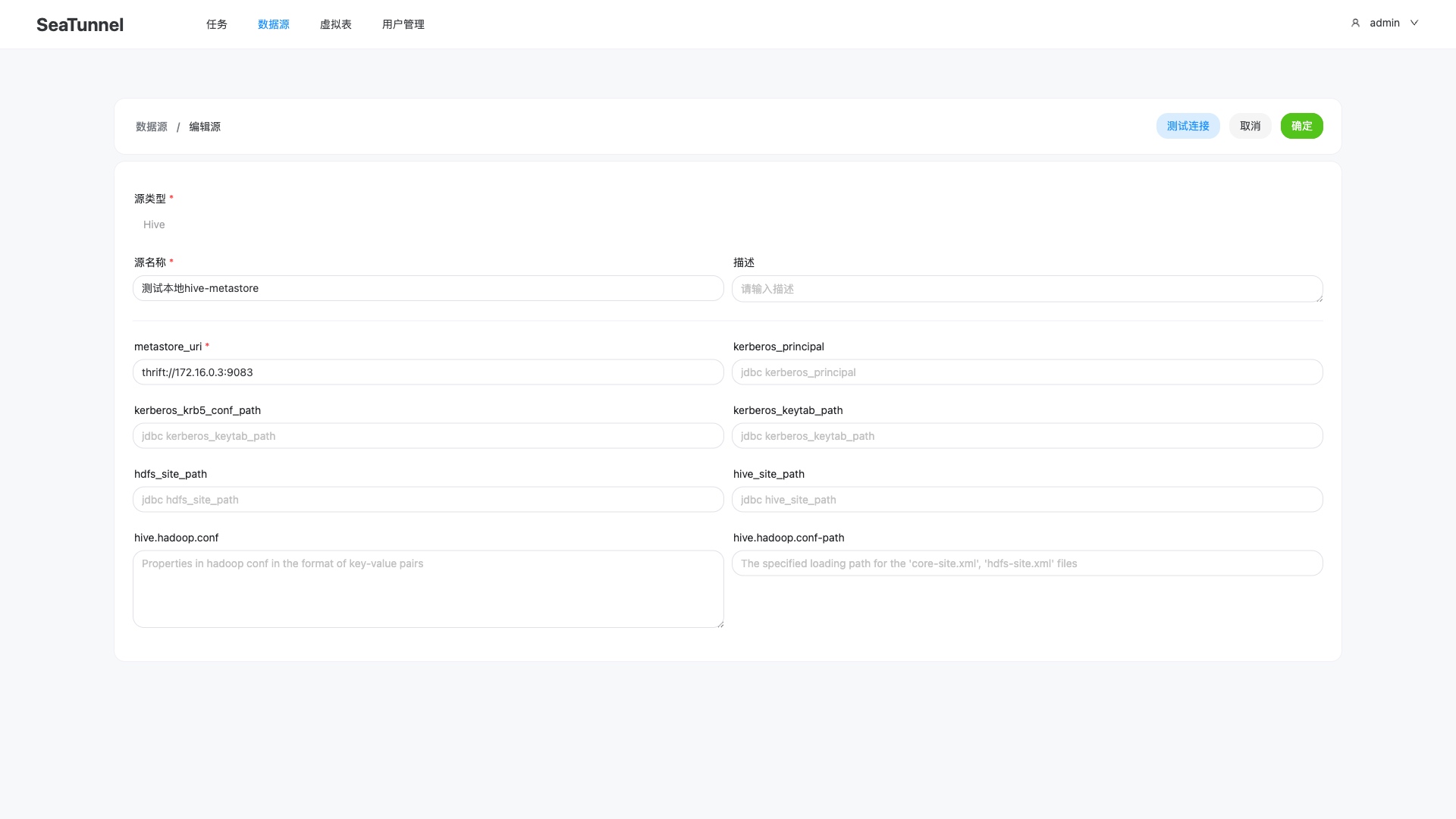

Hive-metastore 本地数据源

配置为 thrift://hive-metastore:9083 也可以。

配置虚拟表

虚拟表列表

创建虚拟表流程

进入「虚拟表」菜单，点击「创建」按钮
选择数据源，配置虚拟表信息
点击「下一步」配置字段映射
点击「下一步」确认信息并保存

配置同步任务

kafka-hive 同步任务

任务组件配置

Source 组件配置

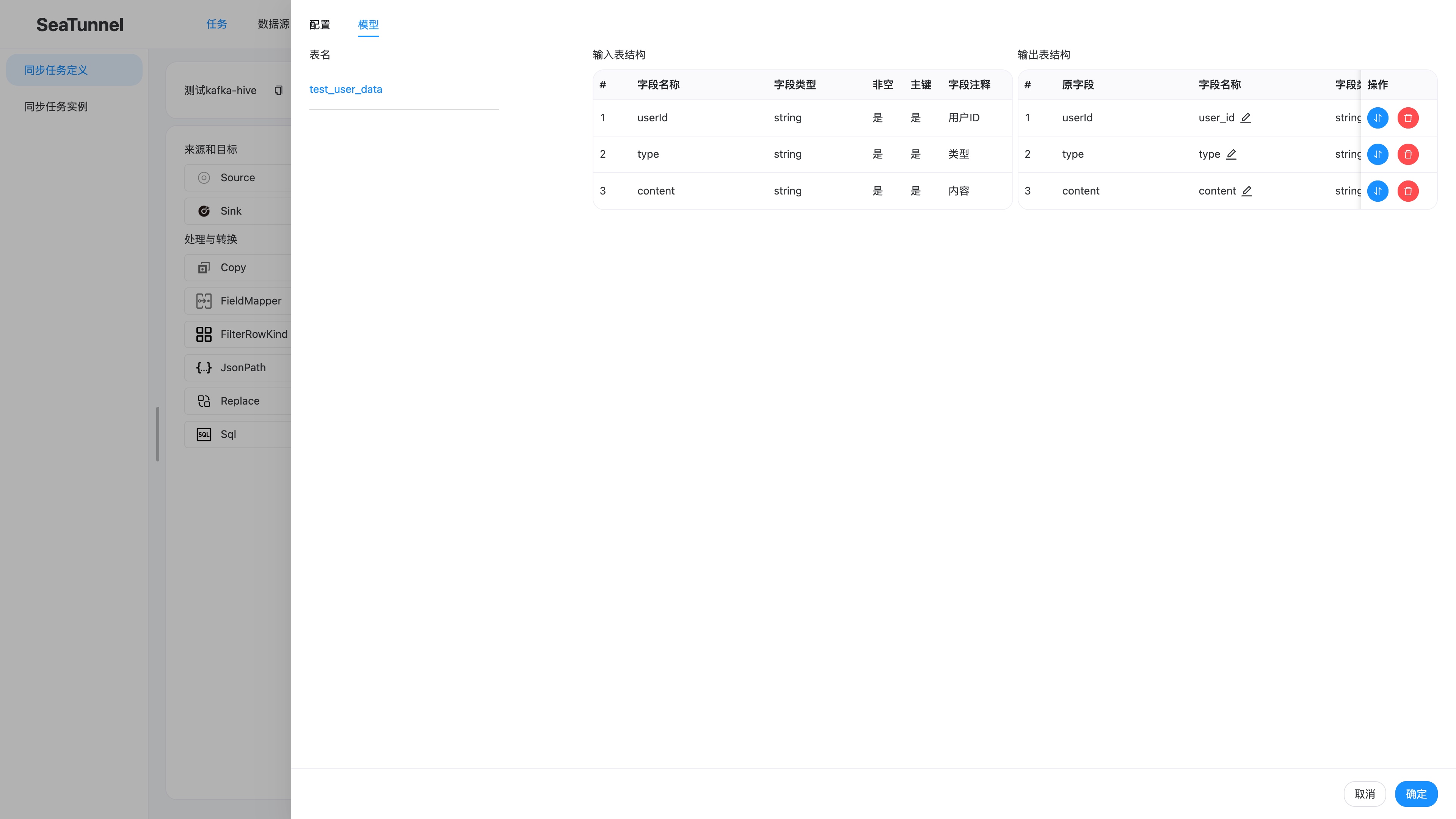

FieldMapper 组件配置（模型视图）

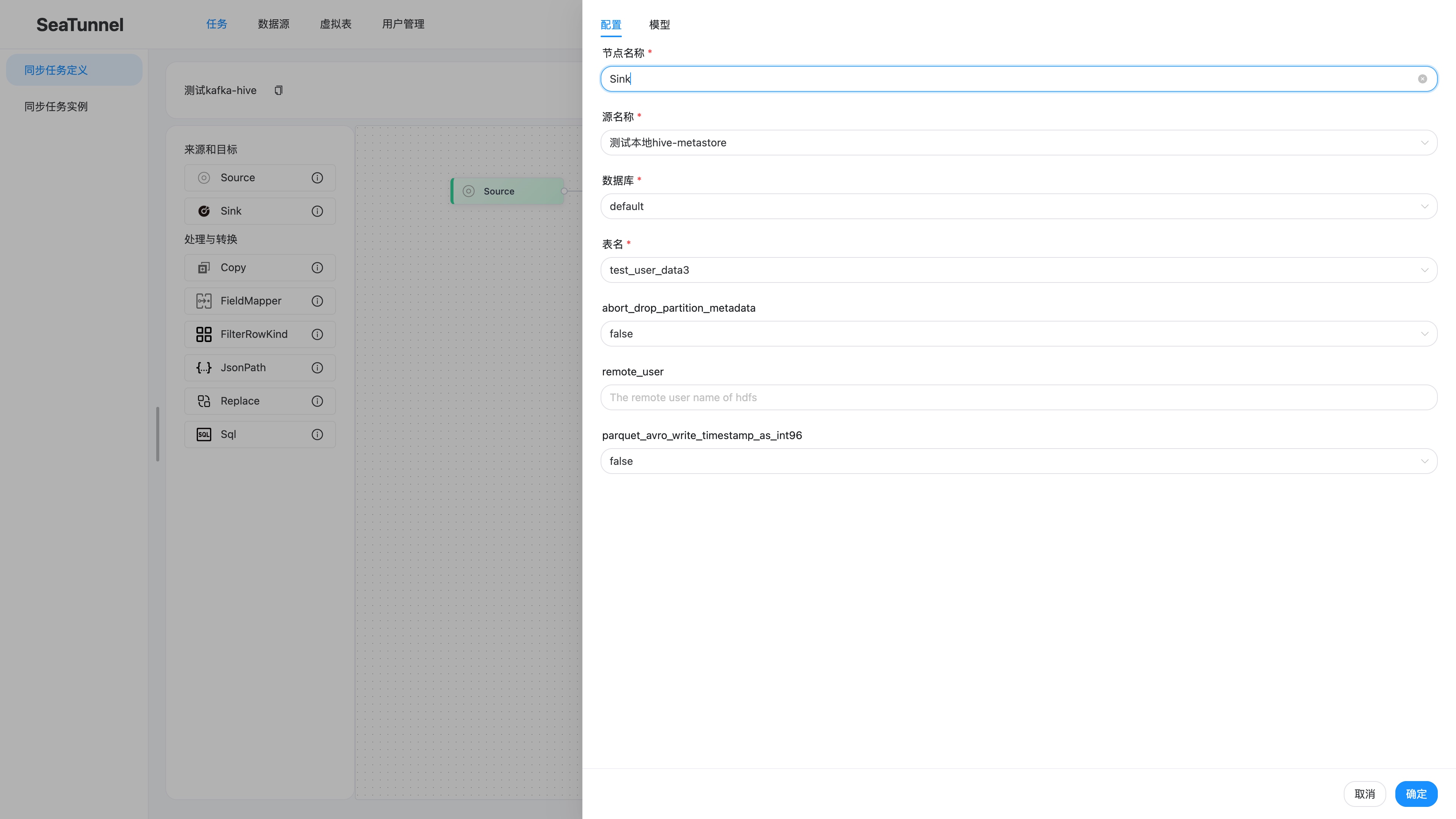

Sink 组件配置

Kafka-Elasticsearch 同步任务

任务组件配置

Source 组件配置

FieldMapper 组件配置（模型视图）

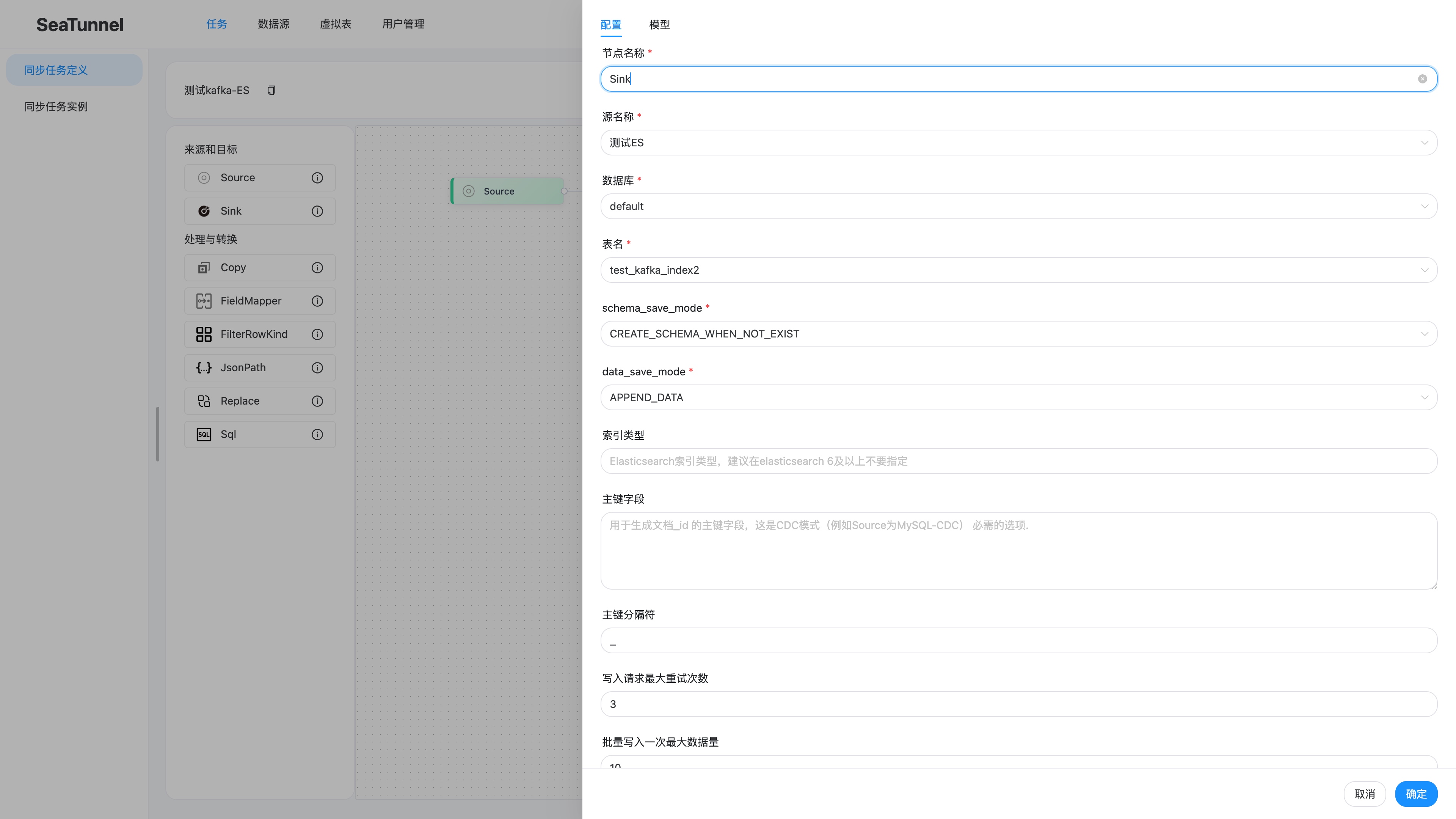

Sink 组件配置

创建同步任务通用流程

进入「任务」→「同步任务定义」，点击「创建」按钮
拖拽或选择 Source、FieldMapper、Sink 组件构建任务流程
双击 Source 组件，配置数据源信息（选择已配置的 Kafka 数据源）
双击 FieldMapper 组件，点击「模型」按钮配置字段映射关系
双击 Sink 组件，配置目标数据源信息（Hive 或 Elasticsearch）
保存并启动任务

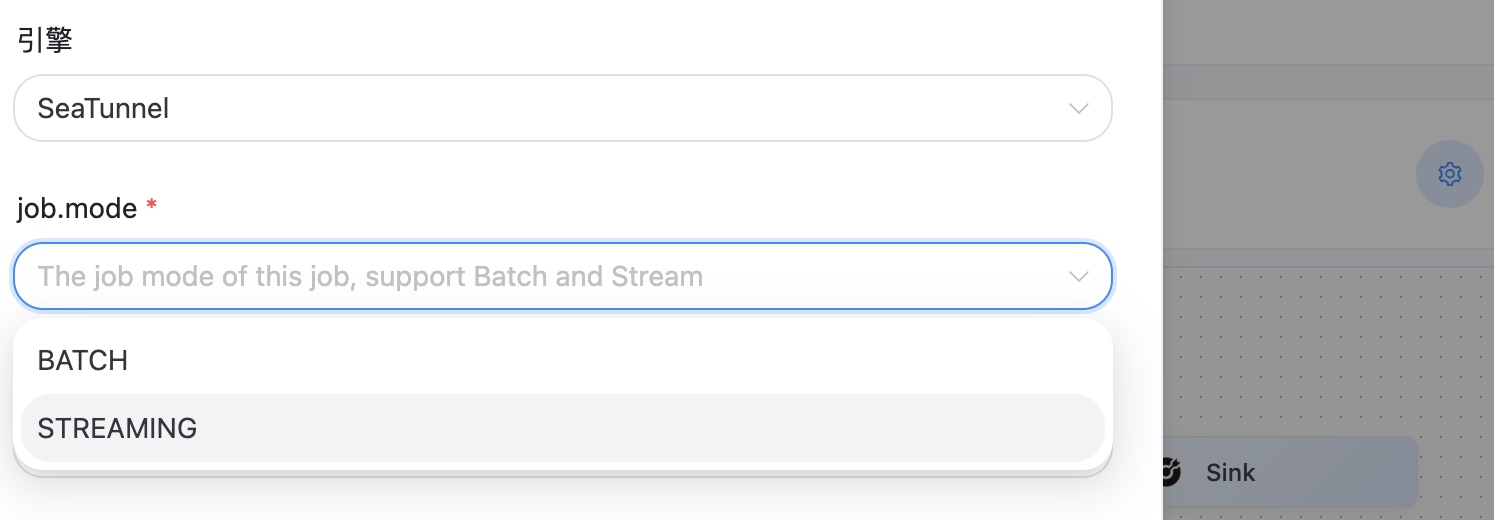

需要配置 job mode ，不然保存不了，报错 job env can't be empty, please change config

hive 相关操作

创建表

# 进入 HiveServer2 容器
docker exec -it hive-server2 beeline -u jdbc:hive2://localhost:10000 -e "
CREATE TABLE IF NOT EXISTS default.test_user_data3 (
user_id STRING,
type STRING,
content STRING
)
ROW FORMAT DELIMITED
FIELDS TERMINATED BY '\t'
STORED AS TEXTFILE;
"
# 或创建 Parquet 格式（推荐）
docker exec -it hive-server2 beeline -u jdbc:hive2://localhost:10000 -e "
CREATE TABLE IF NOT EXISTS default.test_user_data3 (
user_id STRING,
type STRING,
content STRING
)
STORED AS PARQUET;
"

查看表结构

docker exec -it hive-server2 beeline -u jdbc:hive2://localhost:10000 -e "
SHOW TABLES IN default;
DESCRIBE default.test_user_data3;
"

查询表数据

docker exec -it hive-server2 beeline -u jdbc:hive2://localhost:10000 -e "
SELECT * FROM default.test_user_data3 LIMIT 10;
"

备注

seatunnel-web 容器启动就退出

排查是否配置

seatunnel-backend-daemon.sh

编辑 seatunnel-web/apache-seatunnel-web-1.0.3-bin/bin/seatunnel-backend-daemon.sh：去除后台模式去掉 nohup 和最后的 &

$JAVA_HOME/bin/java $JAVA_OPTS \
  -cp "$CLASSPATH" $SPRING_OPTS \
  org.apache.seatunnel.app.SeatunnelApplication >> "${LOGDIR}/seatunnel.out" 2>&1
  echo "seatunnel-web started"

seatunnel-web 启动后访问页面报错 Unknown exception. secret key byte array cannot be null or empty

排查 application.yml 是否配置

jwt:
  expireTime: 86400
  # please add key when deploy
  secretKey:  a3f5c8d2e1b4098765432109abcdef1234567890abcdef
  algorithm: HS256

hive 地址解析异常

seatunnel seatunnel-web ERROR [qtp2135089262-20] [MetaStoreUtils.logAndThrowMetaException():166] - Got exception: java.net.URISyntaxException Illegal character in hostname at index 44: thrift://hive-metastore.seatunnel-docker_seatunnel-network:9083

docker-compose.yml 对应容器加上 ip 绑定

extra_hosts:
   - "hive-metastore:172.16.0.3"
   - "hive-metastore-db:172.16.0.2"

Hive 同步报错 error java.lang.NoClassDefFoundError

seatunnel/apache-seatunnel-2.3.11/lib 存放依赖包

hive-exec-3.1.3.jar
hive-metastore-3.1.3.jar
libfb303-0.9.3.jar

hive 同步任务显示成功，实际没有数据写入

docker-compose.yml 对应容器加上 hive 写入本地目录的配置

volumes:
  # [修改点] 挂载 Hive 仓库目录，确保数据写入宿主机共享目录
  - ./hive-warehouse:/opt/hive/data/warehouse

查看任务执行日志 will be executed on worker

./logs/master/seatunnel-engine-master.log

Task [TaskGroupLocation{jobId=1080750681855361026, pipelineId=1, taskGroupId=2}] will be executed on worker [[seatunnel-worker2]:5801], slotID [2], resourceProfile [ResourceProfile{cpu=CPU{core=0}, heapMemory=Memory{bytes=0}}], sequence [db6b679c-67cc-43b8-b64a-acaa85c2a4c0], assigned [1080750681855361026]

作者 | 云婷原文链接： https://www.cnblogs.com/thao/p/19666609

ITPub博客

速进！SeaTunnel 2.3.11 用 Docker 部署，实现 Kafka 同步 Hive/ES

安装准备

目录结构

下载 seatunnel

下载依赖包

创建项目目录

Docker 部署

docker-compose.yml 配置

SeaTunnel 配置

Dockerfile

hazelcast-client.yaml 客户端配置

hazelcast-master.yaml 配置

hazelcast-worker.yaml 配置

安装连接器依赖包

SeaTunnel Web 配置

Dockerfile 配置

application.yml 配置

hazelcast-client.yaml 客户端配置

seatunnel-backend-daemon.sh

plugin-mapping.properties 配置

Hive 配置

hive-site.xml 配置

lib 目录 依赖包

Mysql 配置

init-sql 目录 初始 SQL 脚本

docker 启动

运行示例

登录配置语言

登录页面

设置

配置语言

配置数据源

kafka 数据源

ES 数据源

Hive-metastore 本地数据源

配置虚拟表

虚拟表列表

创建虚拟表流程

配置同步任务

kafka-hive 同步任务

任务组件配置

Source 组件配置

FieldMapper 组件配置（模型视图）

Sink 组件配置

Kafka-Elasticsearch 同步任务

任务组件配置

Source 组件配置

FieldMapper 组件配置（模型视图）

Sink 组件配置

创建同步任务通用流程

hive 相关操作

创建表

查看表结构

查询表数据

备注

seatunnel-web 容器启动就退出

seatunnel-backend-daemon.sh

seatunnel-web 启动后访问页面报错 Unknown exception. secret key byte array cannot be null or empty

hive 地址解析异常

Hive 同步报错 error java.lang.NoClassDefFoundError

hive 同步任务显示成功，实际没有数据写入

查看任务执行日志 will be executed on worker

最新文章

lib 目录依赖包

init-sql 目录初始 SQL 脚本
