在本文中，我们可以了解多人之间即时通讯系统搭建，他们可以在彼此之间共享文本。应用程序或图片，因此一旦用户通过应用程序将消息发送给朋友，朋友将在给定时间收到推送通知。即时应用程序等应用程序的精髓是可用的，并对正在进行的操作做出反应。此外，推送通知可以成为一种出色的促销工具，可用于通知用户有关更新和新功能的信息。
仓库源码：ms.jstxym.top
CloudDB API - Cloud DB 用于存储用户数据、用户聊天以及管理用户与其他用户的聊天记录。
a、更新插入
i、Insert data of the users from the profile. ii、Create and insert room id, room id is consider as a reference between two users chat. Using room id will store all the respective chat data in the DB. iii、 Insert Chat data between two users based on the room id.
b、查询
i、 Get list of Contacts for chat. ii、Get list of users with whom logged in user chatted before. ii、Get details of the chat screen with all the chat messages which includes images, text and location.
认证服务——我们使用认证服务在生态系统上注册用户。我们正在使用电话号码身份验证服务来接收 OTP 并在此处验证用户。
云功能——我们使用云功能触发推送通知系统。

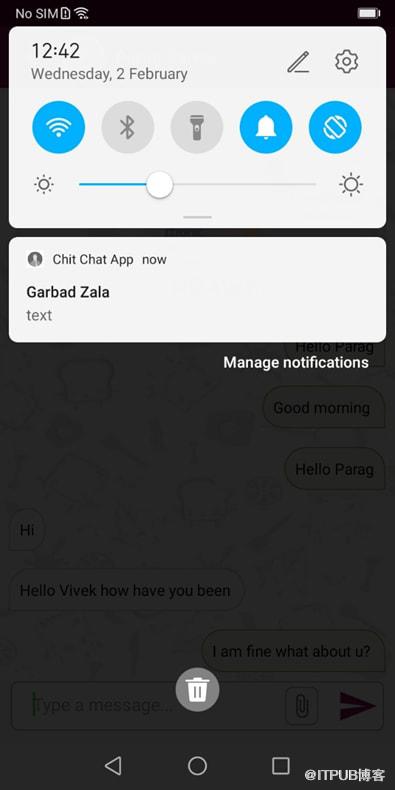

推送工具包 - 推送工具包用于将消息通知推送给其他用户。因此，当一个用户发送消息时，它将仅通过推送通知通知其他用户。
使用云功能的休息端点在消息结束后发送推送通知，从设备触发。
On HMSMessage Received 这是在实现上根据我们的需要解析一次数据，所以我们需要在其他成功共享时解析图像和位置。
数据库结构 现在是在控制台上创建项目和开发 集成准备 您必须完成以下准备工作：
在控制台注册为开发者。
在 AppGallery Connect 中创建一个项目和一个应用程序。
生成并配置签名证书指纹。
启用 Auth 服务、Push 和 Cloud DB。
详情请参考在AppGallery Connect中为HMS配置应用信息
首先创建云数据库区域
创建 3 种对象类型
ChatRoomId：包含所有聊天室id。
用户：所有注册用户的详细信息。
UserChat：所有用户的聊天详情。
让我们从登录页面开始开发
我们将使用 HMS Auth 服务使用电话号码登录。

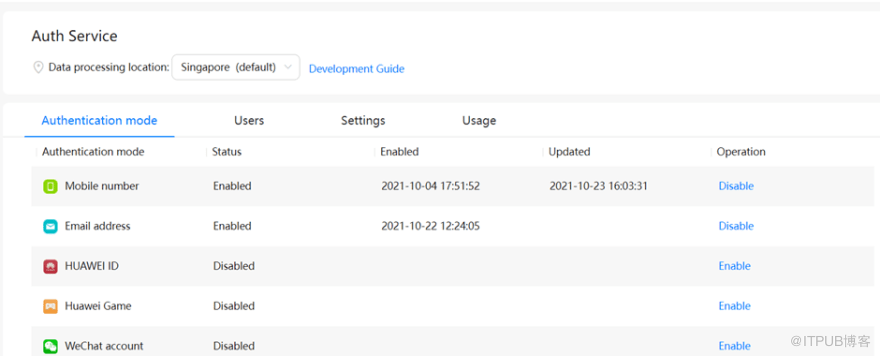

启用电话号码验证模式，如下图所示。
添加依赖
// HMS dependencies implementation "com.huawei.agconnect:agconnect-database:$rootProject.ext.agdatabase" implementation "com.huawei.agconnect:agconnect-auth:$rootProject.ext.agauth" implementation "com.huawei.hms:push:$rootProject.ext.pushkit"
输入有效的电话号码，我们将使用以下方法在同一号码上获得 OTP。
获取一次性密码
VerifyCodeSettings settings = new VerifyCodeSettings.Builder()
.action(VerifyCodeSettings.ACTION_REGISTER_LOGIN)
.sendInterval(30)
.locale(Locale.getDefault())
.build();
Task<VerifyCodeResult> task = AGConnectAuth.getInstance().requestVerifyCode(countryCodeStr, phoneNumberStr, settings);
task.addOnSuccessListener(TaskExecutors.immediate(), verifyCodeResult -> {
if (null != verifyCodeResult) {
verifyCodeResultMutableLiveData.postValue(verifyCodeResult);
}
});
task.addOnFailureListener(e ->
AppLog.logE(TAG, "onFailure: " + e.getCause()));
验证联系方式
PhoneUser phoneUser = new PhoneUser.Builder()
.setCountryCode(countryCodeStr)
.setPhoneNumber(phoneNumberStr)
.setVerifyCode(code)
.build();
AGConnectAuth.getInstance().createUser(phoneUser)
.addOnSuccessListener(signInResult -> {
if (signInResult != null) {
User user = new User();
user.setUsername(signInResult.getUser().getDisplayName());
user.setPhoneNumber(phoneNumberStr);
userMutableLiveData.postValue(user);
}
})
.addOnFailureListener(e -> {
Log.e(TAG, "verifyContactDetails: " + e.getStackTrace());
User user = new User();
user.setPhoneNumber(phoneNumberStr);
userMutableLiveData.setValue(user);
});
验证后，用户可以认证成功。

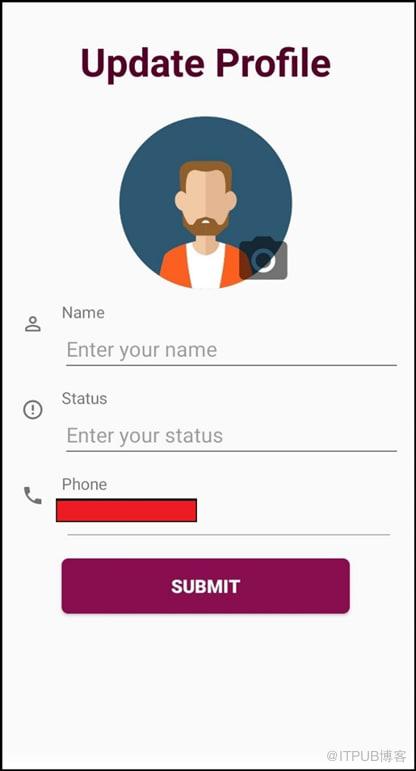

现在我们必须完成用户配置文件，如下图所示，您可以看到我们只有电话号码。
创建/更新配置文件
public void saveUser(User user, Context context) {
CloudDBHelper.getInstance().openDb((isConnected, cloudDBZone) -> {
if (isConnected && cloudDBZone != null) {
if (cloudDBZone == null) {
return;
} else {
Task<Integer> insertTask = cloudDBZone.executeUpsert(user);
insertTask.addOnSuccessListener(integer -> {
userMutableLiveData.setValue(true);
CloudDBHelper.getInstance().closeDb(context);
}).addOnFailureListener(e -> {
userMutableLiveData.setValue(false);
CloudDBHelper.getInstance().closeDb(context);
});
}
}
});
}
生成推送令牌
GetToken getToken = new GetToken(app_id, UserProfileActivity.this); getToken.setGetTokenListener(this); getToken.execute();
GetToken 类是生成推送令牌的服务类
public class GetToken extends AsyncTask<Void, Void, String> {
private static final String TAG = GetToken.class.getSimpleName();
private Context context;
private String appId;
private GetTokenListener getTokenListener;
public GetToken(String appId, Context context) {
this.appId = appId;
this.context = context;
}
public void setGetTokenListener(GetTokenListener getTokenListener) {
this.getTokenListener = getTokenListener;
}
@Override
protected void onPreExecute() {
super.onPreExecute();
}
@Override
protected String doInBackground(Void... voids) {
try {
String pushToken = HmsInstanceId.getInstance(context).getToken(appId, HmsMessaging.DEFAULT_TOKEN_SCOPE);
AppLog.logD(TAG, pushToken);
getTokenListener.getToken(pushToken);
return pushToken;
} catch (ApiException e) {
e.printStackTrace();
}
return null;
}
@Override
protected void onPostExecute(String s) {
super.onPostExecute(s);
}
}
它将创建用户配置文件并将数据更新到 Cloud DB。
第一次开始聊天
我们必须为两个人之间的聊天创建房间 ID。
public void callCreateRoomId(final String userMobileTo, final String userMobileFrom) {
CloudDBHelper.getInstance().openDb(new OnDBZoneOpen() {
@Override
public void isDBZoneOpen(boolean isConnected, CloudDBZone cloudDBZone) {
if (cloudDBZone != null) {
ChatRoomId roomId = new ChatRoomId();
mRoomDataIndex = mRoomDataIndex + 1;
AppLog.logE(TAG, "New ROOM IS WILL BE ===> " + mRoomDataIndex);
roomId.setRoom_id(String.valueOf(mRoomDataIndex));
roomId.setUser_mobile_to(userMobileTo);
roomId.setUser_mobile_from(userMobileFrom);
roomId.setUpdate_shadow_flag(true);
Task<Integer> insertTask = cloudDBZone.executeUpsert(roomId);
insertTask.addOnSuccessListener(insertSuccessListener(roomId))
.addOnFailureListener(new OnFailureListener() {
@Override
public void onFailure(Exception e) {
AppLog.logE(TAG, "Exception in creating room id " + e.getLocalizedMessage());
}
}).addOnCanceledListener(new OnCanceledListener() {
@Override
public void onCanceled() {
AppLog.logE(TAG, "Inside on cancel listener");
}
});
} else {
if (mOnApiError != null) {
mOnApiError.onError("Cloud database zone is null", new Throwable("CloudDBZone is null"));
}
}
}
});
}
从 cloudDB 获取以前的聊天记录
public void getUserChatByRoomID(String roomId, Context context) {
CloudDBZoneQuery<UserChat> query = CloudDBZoneQuery.where(UserChat.class).equalTo(DBConstants.roomId, roomId).orderByAsc(DBConstants.MESSAGE_TIMESTAMP);
getUserChat(query, context);
}
private void getUserChat(CloudDBZoneQuery<UserChat> userQuery, Context context) {
CloudDBHelper.getInstance().openDb((isConnected, cloudDBZone) -> {
Task<CloudDBZoneSnapshot<UserChat>> queryTask = cloudDBZone.executeQuery(userQuery,
CloudDBZoneQuery.CloudDBZoneQueryPolicy.POLICY_QUERY_FROM_CLOUD_ONLY);
queryTask.addOnSuccessListener(userChatCloudDBZoneSnapshot -> {
processSnapShot(userChatCloudDBZoneSnapshot.getSnapshotObjects(), context);
});
});
}
private void processSnapShot(CloudDBZoneObjectList<UserChat> userCloudDBZoneSnapshot, Context context) {
if (userCloudDBZoneSnapshot != null) {
ArrayList<UserChat> users = new ArrayList<>();
while (userCloudDBZoneSnapshot.hasNext()) {
UserChat user = null;
try {
user = userCloudDBZoneSnapshot.next();
users.add(user);
} catch (AGConnectCloudDBException e) {
e.printStackTrace();
CloudDBHelper.getInstance().closeDb(context);
}
}
userChatMutableLiveData.setValue(users);
CloudDBHelper.getInstance().closeDb(context);
}
}
开始发送聊天消息
messageType：用户可以以文本、图像、位置或视频类型发送消息。
private void setMessage(String messageType) {
Util.showProgressBar(MessageActivity.this);
UserChat userChat = new UserChat();
userChat.setRoom_id(roomId);
userChat.setMessage_timestamp(Long.parseLong(Util.getTimeStamp()));
userChat.setChat_id(Util.getRandomNumber());
userChat.setReceiver_name(receiverText);
userChat.setReceiver_phone(receiverPhoneNumber);
userChat.setSender_name(ChitChatSharedPref.getInstance().getString(Constants.USER_NAME, ""));
userChat.setSender_phone(ChitChatSharedPref.getInstance().getString(Constants.PHONE_NUMBER, ""));
userChat.setMessage_type(messageType);
switch (messageType) {
case Constants.MESSAGE_TYPE_TEXT:
userChat.setMessage_data(textSend.getText().toString());
messageViewModel.saveUserChat(userChat);
messageViewModel.userUpdatedSuccessfully.observe(MessageActivity.this, aBoolean -> {
if (aBoolean) {
Util.stopProgressBar();
getChatList();
} else {
Util.stopProgressBar();
}
});
break;
}
messageViewModel.queryForToken(receiverPhoneNumber, MessageActivity.this);
}
它将用户数据保存到云端 dB
public void saveUserChat(UserChat userChat) {
CloudDBHelper.getInstance().openDb((isConnected, cloudDBZone) -> {
if (cloudDBZone != null) {
Task<Integer> insertTask = cloudDBZone.executeUpsert(userChat);
insertTask
.addOnSuccessListener(integer ->
userUpdatedSuccessfully.setValue(true))
.addOnFailureListener(e -> {
userUpdatedSuccessfully.setValue(false);
AppLog.logE(TAG, e.getMessage());
});
} else {
userUpdatedSuccessfully.setValue(false);
}
});
}
是时候发送推送通知了
public void queryForToken(String phoneNumber, Context context) {
CloudDBZoneQuery<User> query = CloudDBZoneQuery.where(User.class).equalTo(DBConstants.userNumber, phoneNumber);
processNumberCheck(query, context);
}
messageViewModel.tokenMutableLiveData.observe(MessageActivity.this, s -> {
PushApis pushApis = new PushApis(MessageActivity.this);
if (messageType.equalsIgnoreCase(Constants.MESSAGE_TYPE_TEXT)) {
pushApis.sendPushNotification(roomId, messageType, "104739093", MessageActivity.this.textSend.getText().toString(), s);
textSend.setText("");
}
});
设置推送消息 API
public class PushApis {
private Context context;
public PushApis(Context context) {
this.context = context;
}
public void sendPushNotification(String chatId, String message, String appId, String messageData, String userPushTokens) {
try {
StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
StrictMode.setThreadPolicy(policy);
String response = "";
URL url = new URL(Constants.TOKEN_URL);
HttpURLConnection connection = (HttpURLConnection) url.openConnection();
connection.setDoOutput(true);
connection.setInstanceFollowRedirects(false);
connection.setRequestMethod("POST");
connection.setRequestProperty("Content-Type", "application/x-www-form-urlencoded");
connection.setRequestProperty("POST", "/oauth2/v3/token HTTP/1.1");
connection.setRequestProperty("Host", "oauth-login.cloud.huawei.com");
HashMap<String, String> params = new HashMap<>();
params.put("grant_type", "client_credentials");
params.put("client_secret", Constants.CLIENT_SECRET);
params.put("client_id", Constants.CLIENT_ID);
String postDataLength = getDataString(params);
OutputStream os = connection.getOutputStream();
BufferedWriter writer = new BufferedWriter(
new OutputStreamWriter(os, "UTF-8"));
writer.write(postDataLength);
writer.flush();
writer.close();
os.close();
int responseCode = connection.getResponseCode();
if (responseCode == HttpsURLConnection.HTTP_OK) {
String line;
BufferedReader br = new BufferedReader(new InputStreamReader(connection.getInputStream()));
while ((line = br.readLine()) != null) {
response += line;
}
} else {
response = "";
}
AppLog.logE("Response", response);
Gson gson = new Gson();
BearerRequest bearerRequest = gson.fromJson(response, BearerRequest.class);
triggerPush(bearerRequest.getAccess_token(), appId, chatId, message, messageData, userPushTokens);
} catch (Exception e) {
e.printStackTrace();
}
}
private String getDataString(HashMap<String, String> params) throws UnsupportedEncodingException {
StringBuilder result = new StringBuilder();
boolean first = true;
for (Map.Entry<String, String> entry : params.entrySet()) {
if (first)
first = false;
else
result.append("&");
result.append(URLEncoder.encode(entry.getKey(), "UTF-8"));
result.append("=");
result.append(URLEncoder.encode(entry.getValue(), "UTF-8"));
}
return result.toString();
}
private void triggerPush(String bearer, String appId, String chatId, String messageType, String messageData, String userPushTokens) {
try {
StrictMode.ThreadPolicy policy = new StrictMode.ThreadPolicy.Builder().permitAll().build();
StrictMode.setThreadPolicy(policy);
String response = null;
URL url = new URL("https://push-api.cloud.huawei.com/v1/" + appId + "/messages:send");
HttpURLConnection connection = (HttpURLConnection) url.openConnection();
connection.setDoOutput(true);
connection.setInstanceFollowRedirects(false);
connection.setRequestMethod("POST");
connection.setDoOutput(true);
connection.setRequestProperty("Content-Type", "application/x-www-form-urlencoded");
connection.setRequestProperty("Authorization", "Bearer " + bearer);
connection.setRequestProperty("Host", "oauth-login.cloud.huawei.com");
connection.setRequestProperty("POST", "/oauth2/v2/token HTTP/1.1");
OutputStream os = connection.getOutputStream();
Data data = new Data();
data.message = messageType;
data.roomId = chatId;
data.messageData = messageData;
data.sender_name = senderName;
data.sender_phone = senderPhone;
data.title = context.getResources().getString(R.string.app_name);
ArrayList<String> token = new ArrayList<>();
token.add(userPushTokens);
Message message = new Message();
message.tokens = token;
message.data = data.toString();
PushMessageRequest pushMessageRequest = new PushMessageRequest();
pushMessageRequest.message = message;
pushMessageRequest.validate_only = false;
BufferedWriter writer = new BufferedWriter(
new OutputStreamWriter(os, "UTF-8"));
Gson gson = new Gson();
JSONObject jsonObject = new JSONObject(gson.toJson(pushMessageRequest, PushMessageRequest.class));
writer.write(jsonObject.toString());
writer.flush();
writer.close();
os.close();
int responseCode = connection.getResponseCode();
String line = null;
BufferedReader br = new BufferedReader(new InputStreamReader(connection.getInputStream()));
while ((line = br.readLine()) != null) {
response += line;
}
AppLog.logE("Response", response);
} catch (Exception e) {
e.getStackTrace();
}
}
}
结论:
在本文中，我们了解了如何使用 Cloud dB、身份验证服务和推送工具包创建简单的消息传递应用程序。我们还可以使用云存储来存储个人资料图片、位置、文档或音频和视频文件。
来自 “ ITPUB博客 ” ，链接：https://blog.itpub.net/70017920/viewspace-2894979/ ，如需转载，请注明出处，否则将追究法律责任。
上一篇：
没有了~
下一篇：
没有了~
请登录后发表评论
登录
全部评论
