为什么使用 Loki

它有哪些优点：

• 支持的客户端，如 Promtail，Fluentbit，Fluentd，Vector，Logstash 和 Grafana Agent

• 代理 Promtail，可以多来源提取日志，包括本地日志文件，systemd，Windows 事件日志，Docker 日志记录驱动程序等

• 没有日志格式要求，包括 JSON，XML，CSV，logfmt，非结构化文本

• 使用与查询指标相同的语法查询日志

• 日志查询时允许动态筛选和转换日志行

• 可以轻松地计算日志中的需要的指标

• 引入时的最小索引意味着您可以在查询时动态地对日志进行切片和切块，以便在出现新问题时回答它们

• 云原生支持，使用 Prometheus 形式抓取数据

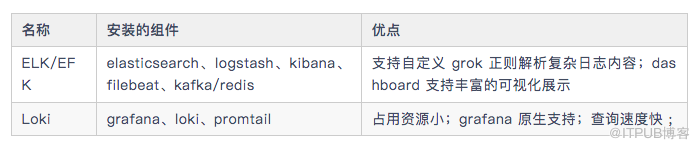

各日志收集组件简单对比：

Loki 的工作方式

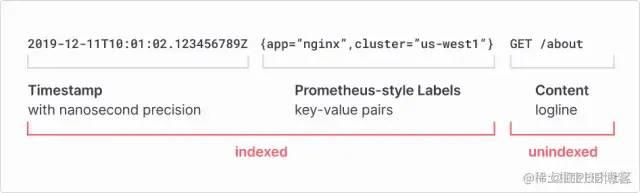

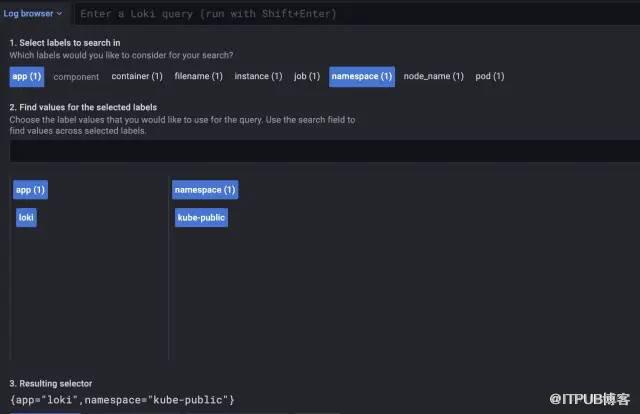

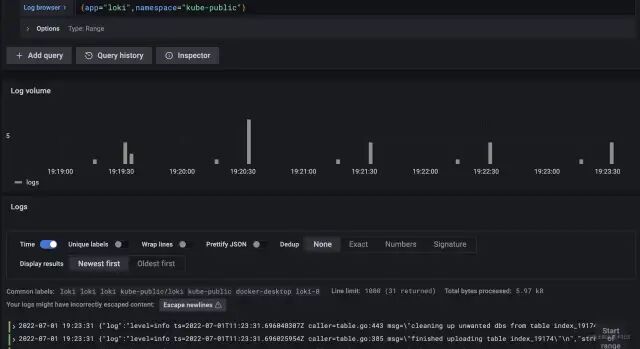

从上面的图中我们可以看到，它在解析日志的时候是以  index  为主的，index 包括时间戳和 pod 的部分 label（其他 label 为 filename、containers 等），其余的是日志内容。具体查询效果如下：

{app=”loki”,namespace=”kube-public”}  为索引。

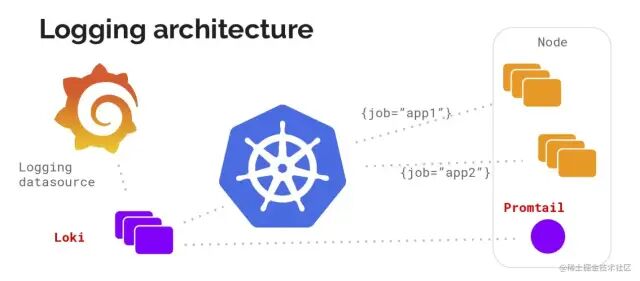

日志搜集架构

在使用过程中，官方推荐使用 promtail 做为 agent 以 DaemonSet 方式部署在 kubernetes 的 worker 节点上搜集日志。另外也可以用上面提到的其他日志收集工具来收取，这篇文章在结尾处会附上其他工具的配置方式。

Loki 部署模式有哪些

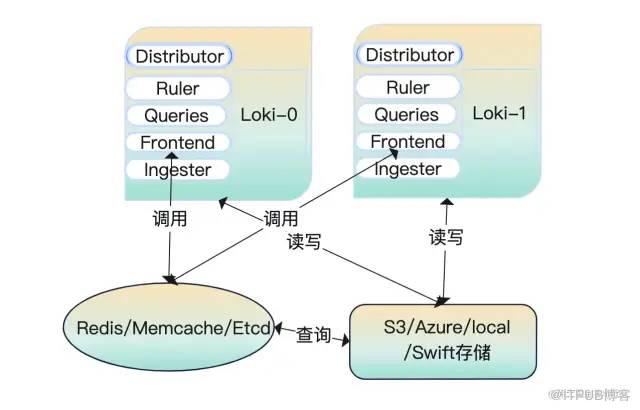

• all（读写模式）

• read/write（读写分离模式）

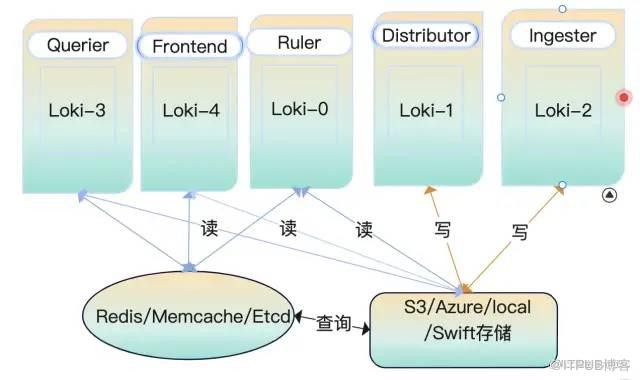

• 微服务模式运行

大显身手之服务端部署

• AllInOne 部署模式

k8s部署

auth_enabled:
false


target:
all


ballast_bytes:
20480


server:


grpc_listen_port:
9095


http_listen_port:
3100


graceful_shutdown_timeout:
20s


grpc_listen_address:
"0.0.0.0"


grpc_listen_network:
"tcp"


grpc_server_max_concurrent_streams:
100


grpc_server_max_recv_msg_size:
4194304


grpc_server_max_send_msg_size:
4194304


http_server_idle_timeout:
2m


http_listen_address:
"0.0.0.0"


http_listen_network:
"tcp"


http_server_read_timeout:
30s


http_server_write_timeout:
20s


log_source_ips_enabled:
true


  ## http_path_prefix如果需要更改，在推送日志的时候前缀都需要加指定的内容


  ## http_path_prefix: "/"


register_instrumentation:
true


log_format:
json


log_level:
info


distributor:


ring:


heartbeat_timeout:
3s


kvstore:


prefix:
collectors/


store:
memberlist


      ## 需要提前创建好consul集群


    ##   consul:


    ##     http_client_timeout: 20s


    ##     consistent_reads: true


    ##     host: 127.0.0.1:8500


    ##     watch_burst_size: 2


    ##     watch_rate_limit: 2


querier:


engine:


max_look_back_period:
20s


timeout:
3m0s


extra_query_delay:
100ms


max_concurrent:
10


multi_tenant_queries_enabled:
true


query_ingester_only:
false


query_ingesters_within:
3h0m0s


query_store_only:
false


query_timeout:
5m0s


tail_max_duration:
1h0s


query_scheduler:


max_outstanding_requests_per_tenant:
2048


grpc_client_config:


max_recv_msg_size:
104857600


max_send_msg_size:
16777216


grpc_compression:
gzip


rate_limit:
0


rate_limit_burst:
0


backoff_on_ratelimits:
false


backoff_config:


min_period:
50ms


max_period:
15s


max_retries:
5


use_scheduler_ring:
true


scheduler_ring:


kvstore:


store:
memberlist


prefix:
"collectors/"


heartbeat_period:
30s


heartbeat_timeout:
1m0s


    ## 默认第一个网卡的名称


    ## instance_interface_names


    ## instance_addr: 127.0.0.1


    ## 默认server.grpc-listen-port


instance_port:
9095


frontend:


max_outstanding_per_tenant:
4096


querier_forget_delay:
1h0s


compress_responses:
true


log_queries_longer_than:
2m0s


max_body_size:
104857600


query_stats_enabled:
true


scheduler_dns_lookup_period:
10s


scheduler_worker_concurrency:
15


query_range:


align_queries_with_step:
true


cache_results:
true


parallelise_shardable_queries:
true


max_retries:
3


results_cache:


cache:


enable_fifocache:
false


default_validity:
30s


background:


writeback_buffer:
10000


redis:


endpoint:
127.0.0.1:6379


timeout:
1s


expiration:
0s


db:
9


pool_size:
128


password:
1521Qyx6^


tls_enabled:
false


tls_insecure_skip_verify:
true


idle_timeout:
10s


max_connection_age:
8h


ruler:


enable_api:
true


enable_sharding:
true


alertmanager_refresh_interval:
1m


disable_rule_group_label:
false


evaluation_interval:
1m0s


flush_period:
3m0s


for_grace_period:
20m0s


for_outage_tolerance:
1h0s


notification_queue_capacity:
10000


notification_timeout:
4s


poll_interval:
10m0s


query_stats_enabled:
true


remote_write:


config_refresh_period:
10s


enabled:
false


resend_delay:
2m0s


rule_path:
/rulers


search_pending_for:
5m0s


storage:


local:


directory:
/data/loki/rulers


type:
configdb


sharding_strategy:
default


wal_cleaner:


period:
240h


min_age:
12h0m0s


wal:


dir:
/data/loki/ruler_wal


max_age:
4h0m0s


min_age:
5m0s


truncate_frequency:
1h0m0s


ring:


kvstore:


store:
memberlist


prefix:
"collectors/"


heartbeat_period:
5s


heartbeat_timeout:
1m0s


    ## instance_addr: "127.0.0.1"


    ## instance_id: "miyamoto.en0"


    ## instance_interface_names: ["en0","lo0"]


instance_port:
9500


num_tokens:
100


ingester_client:


pool_config:


health_check_ingesters:
false


client_cleanup_period:
10s


remote_timeout:
3s


remote_timeout:
5s


ingester:


autoforget_unhealthy:
true


chunk_encoding:
gzip


chunk_target_size:
1572864


max_transfer_retries:
0


sync_min_utilization:
3.5


sync_period:
20s


flush_check_period:
30s


flush_op_timeout:
10m0s


chunk_retain_period:
1m30s


chunk_block_size:
262144


chunk_idle_period:
1h0s


max_returned_stream_errors:
20


concurrent_flushes:
3


index_shards:
32


max_chunk_age:
2h0m0s


query_store_max_look_back_period:
3h30m30s


wal:


enabled:
true


dir:
/data/loki/wal


flush_on_shutdown:
true


checkpoint_duration:
15m


replay_memory_ceiling:
2GB


lifecycler:


ring:


kvstore:


store:
memberlist


prefix:
"collectors/"


heartbeat_timeout:
30s


replication_factor:
1


num_tokens:
128


heartbeat_period:
5s


join_after:
5s


observe_period:
1m0s


    ## interface_names: ["en0","lo0"]


final_sleep:
10s


min_ready_duration:
15s


storage_config:


boltdb:


directory:
/data/loki/boltdb


boltdb_shipper:


active_index_directory:
/data/loki/active_index


build_per_tenant_index:
true


cache_location:
/data/loki/cache


cache_ttl:
48h


resync_interval:
5m


query_ready_num_days:
5


index_gateway_client:


grpc_client_config:


filesystem:


directory:
/data/loki/chunks


chunk_store_config:


chunk_cache_config:


enable_fifocache:
true


default_validity:
30s


background:


writeback_buffer:
10000


redis:


endpoint:
192.168.3.56:6379


timeout:
1s


expiration:
0s


db:
8


pool_size:
128


password:
1521Qyx6^


tls_enabled:
false


tls_insecure_skip_verify:
true


idle_timeout:
10s


max_connection_age:
8h


fifocache:


ttl:
1h


validity:
30m0s


max_size_items:
2000


max_size_bytes:
500MB


write_dedupe_cache_config:


enable_fifocache:
true


default_validity:
30s


background:


writeback_buffer:
10000


redis:


endpoint:
127.0.0.1:6379


timeout:
1s


expiration:
0s


db:
7


pool_size:
128


password:
1521Qyx6^


tls_enabled:
false


tls_insecure_skip_verify:
true


idle_timeout:
10s


max_connection_age:
8h


fifocache:


ttl:
1h


validity:
30m0s


max_size_items:
2000


max_size_bytes:
500MB


cache_lookups_older_than:
10s


## 压缩碎片索引


compactor:


shared_store:
filesystem


shared_store_key_prefix:
index/


working_directory:
/data/loki/compactor


compaction_interval:
10m0s


retention_enabled:
true


retention_delete_delay:
2h0m0s


retention_delete_worker_count:
150


delete_request_cancel_period:
24h0m0s


max_compaction_parallelism:
2


  ## compactor_ring:


frontend_worker:


match_max_concurrent:
true


parallelism:
10


dns_lookup_duration:
5s


## runtime_config 这里没有配置任何信息


## runtime_config:


common:


storage:


filesystem:


chunks_directory:
/data/loki/chunks


fules_directory:
/data/loki/rulers


replication_factor:
3


persist_tokens:
false


  ## instance_interface_names: ["en0","eth0","ens33"]


analytics:


reporting_enabled:
false


limits_config:


ingestion_rate_strategy:
global


ingestion_rate_mb:
100


ingestion_burst_size_mb:
18


max_label_name_length:
2096


max_label_value_length:
2048


max_label_names_per_series:
60


enforce_metric_name:
true


max_entries_limit_per_query:
5000


reject_old_samples:
true


reject_old_samples_max_age:
168h


creation_grace_period:
20m0s


max_global_streams_per_user:
5000


unordered_writes:
true


max_chunks_per_query:
200000


max_query_length:
721h


max_query_parallelism:
64


max_query_series:
700


cardinality_limit:
100000


max_streams_matchers_per_query:
1000


max_concurrent_tail_requests:
10


ruler_evaluation_delay_duration:
3s


ruler_max_rules_per_rule_group:
0


ruler_max_rule_groups_per_tenant:
0


retention_period:
700h


per_tenant_override_period:
20s


max_cache_freshness_per_query:
2m0s


max_queriers_per_tenant:
0


per_stream_rate_limit:
6MB


per_stream_rate_limit_burst:
50MB


max_query_lookback:
0


ruler_remote_write_disabled:
false


min_sharding_lookback:
0s


split_queries_by_interval:
10m0s


max_line_size:
30mb


max_line_size_truncate:
false


max_streams_per_user:
0






## memberlist_conig模块配置gossip用于在分发服务器、摄取器和查询器之间发现和连接。


## 所有三个组件的配置都是的，以确保单个共享环。


## 至少定义了1个join_members配置后，将自动为分发服务器、摄取器和ring 配置memberlist类型的kvstore


memberlist:


randomize_node_name:
true


stream_timeout:
5s


retransmit_factor:
4


join_members:


-
'loki-memberlist'


abort_if_cluster_join_fails:
true


advertise_addr:
0.0.0.0


advertise_port:
7946


bind_addr:
["0.0.0.0"]


bind_port:
7946


compression_enabled:
true


dead_node_reclaim_time:
30s


gossip_interval:
100ms


gossip_nodes:
3


gossip_to_dead_nodes_time:
3


  ## join:


leave_timeout:
15s


left_ingesters_timeout:
3m0s


max_join_backoff:
1m0s


max_join_retries:
5


message_history_buffer_bytes:
4096


min_join_backoff:
2s


  ## node_name: miyamoto


packet_dial_timeout:
5s


packet_write_timeout:
5s


pull_push_interval:
100ms


rejoin_interval:
10s


tls_enabled:
false


tls_insecure_skip_verify:
true


schema_config:


configs:


-
from: "2020-10-24"


index:


period:
24h


prefix:
index_


object_store:
filesystem


schema:
v11


store:
boltdb-shipper


chunks:


period:
168h


row_shards:
32


table_manager:


retention_deletes_enabled:
false


retention_period:
0s


throughput_updates_disabled:
false


poll_interval:
3m0s


creation_grace_period:
20m


index_tables_provisioning:


provisioned_write_throughput:
1000


provisioned_read_throughput:
500


inactive_write_throughput:
4


inactive_read_throughput:
300


inactive_write_scale_lastn:
50


enable_inactive_throughput_on_demand_mode:
true


enable_ondemand_throughput_mode:
true


inactive_read_scale_lastn:
10


write_scale:


enabled:
true


target:
80


      ## role_arn:


out_cooldown:
1800


min_capacity:
3000


max_capacity:
6000


in_cooldown:
1800


inactive_write_scale:


enabled:
true


target:
80


out_cooldown:
1800


min_capacity:
3000


max_capacity:
6000


in_cooldown:
1800


read_scale:


enabled:
true


target:
80


out_cooldown:
1800


min_capacity:
3000


max_capacity:
6000


in_cooldown:
1800


inactive_read_scale:


enabled:
true


target:
80


out_cooldown:
1800


min_capacity:
3000


max_capacity:
6000


in_cooldown:
1800


chunk_tables_provisioning:


enable_inactive_throughput_on_demand_mode:
true


enable_ondemand_throughput_mode:
true


provisioned_write_throughput:
1000


provisioned_read_throughput:
300


inactive_write_throughput:
1


inactive_write_scale_lastn:
50


inactive_read_throughput:
300


inactive_read_scale_lastn:
10


write_scale:


enabled:
true


target:
80


out_cooldown:
1800


min_capacity:
3000


max_capacity:
6000


in_cooldown:
1800


inactive_write_scale:


enabled:
true


target:
80


out_cooldown:
1800


min_capacity:
3000


max_capacity:
6000


in_cooldown:
1800


read_scale:


enabled:
true


target:
80


out_cooldown:
1800


min_capacity:
3000


max_capacity:
6000


in_cooldown:
1800


inactive_read_scale:


enabled:
true


target:
80


out_cooldown:
1800


min_capacity:
3000


max_capacity:
6000


in_cooldown:
1800


tracing:


enabled:
true

注意 :

• ingester.lifecycler.ring.replication_factor  的值在单实例的情况下为 1
• ingester.lifecycler.min_ready_duration  的值为 15s，在启动后默认会显示 15 秒将状态变为 ready

• memberlist.node_name  的值可以不用设置，默认是当前主机的名称
• memberlist.join_members  是一个列表，在有多个实例的情况下需要添加各个节点的主机名 /IP 地址。
  在 k8s 里面可以设置成一个  service  绑定到 StatefulSets。
• query_range.results_cache.cache.enable_fifocache  建议设置为  false ，我这里设置成了 true
• instance_interface_names  是一个列表，默认的为 ["en0","eth0"] ，可以根据需要设置对应的网卡名称，一般不需要进行特殊设置。

创建 configmap

$ kubectl create configmap --from-file ./loki-all.yaml loki-all

可以通过命令查看到已经创建好的 configmap，具体操作详见下图

创建持久化存储

以下配置文件也特别长：

apiVersion: v1

kind: PersistentVolume

metadata:

  name: loki

  namespace: default

spec:

  hostPath:

    path: /glusterfs/loki

    type: DirectoryOrCreate

  capacity:

    storage: 1Gi

  accessModes:

    - ReadWriteMany

---

apiVersion: v1

kind: PersistentVolumeClaim

metadata:

  name: loki

  namespace: default

spec:

  accessModes:

    - ReadWriteMany

  resources:

    requests:

      storage: 1Gi

  volumeName: loki

创建应用

准备好 k8s 的 StatefulSet 部署文件后就可以直接在集群里面创建应用了。





apiVersion: apps/v1

kind: StatefulSet

metadata:

  labels:

    app: loki

  name: loki

  namespace: default

spec:

  podManagementPolicy: OrderedReady

  replicas: 1

  selector:

    matchLabels:

      app: loki

  template:

    metadata:

      annotations:

        prometheus.io/port: http-metrics

        prometheus.io/scrape: "true"

      labels:

        app: loki

    spec:

      containers:

      - args:

        - -config.file=/etc/loki/loki-all.yaml

        image: grafana/loki:2.5.0

        imagePullPolicy: IfNotPresent

        livenessProbe:

          failureThreshold: 3

          httpGet:

            path: /ready

            port: http-metrics

            scheme: HTTP

          initialDelaySeconds: 45

          periodSeconds: 10

          successThreshold: 1

          timeoutSeconds: 1

        name: loki

        ports:

        - containerPort: 3100

          name: http-metrics

          protocol: TCP

        - containerPort: 9095

          name: grpc

          protocol: TCP

        - containerPort: 7946

          name: memberlist-port

          protocol: TCP

        readinessProbe:

          failureThreshold: 3

          httpGet:

            path: /ready

            port: http-metrics

            scheme: HTTP

          initialDelaySeconds: 45

          periodSeconds: 10

          successThreshold: 1

          timeoutSeconds: 1

        resources:

          requests:

            cpu: 500m

            memory: 500Mi

          limits:

            cpu: 500m

            memory: 500Mi

        securityContext:

          readOnlyRootFilesystem: true

        volumeMounts:

        - mountPath: /etc/loki

          name: config

        - mountPath: /data

          name: storage

      restartPolicy: Always

      securityContext:

        fsGroup: 10001

        runAsGroup: 10001

        runAsNonRoot: true

        runAsUser: 10001

      serviceAccount: loki

      serviceAccountName: loki

      volumes:

      - emptyDir: {}

        name: tmp

      - name: config

        configMap:

          name: loki

      - persistentVolumeClaim:

          claimName: loki

        name: storage

---

kind: Service

apiVersion: v1

metadata:

  name: loki-memberlist

  namespace: default

spec:

  ports:

    - name: loki-memberlist

      protocol: TCP

      port: 7946

      targetPort: 7946

  selector:

    kubepi.org/name: loki

---

kind: Service

apiVersion: v1

metadata:

  name: loki

  namespace: default

spec:

  ports:

    - name: loki

      protocol: TCP

      port: 3100

      targetPort: 3100

  selector:

    kubepi.org/name: loki

验证部署结果

限于篇幅，更多部署方式，就不介绍了。

链接：
