一、概述

Flink核心是一个流式的数据流执行引擎，并且能够基于同一个Flink运行时，提供支持流处理和批处理两种类型应用。其针对数据流的分布式计算提供了数据分布，数据通信及容错机制等功能。

• Flink官网：https://flink.apache.org/
• 不同版本的文档：https://nightlies.apache.org/flink/
• k8s on flink 官方文档：https://nightlies.apache.org/flink/flink-docs-release-1.14/docs/deployment/resource-providers/native_kubernetes/
• GitHub地址：https://github.com/apache/flink/tree/release-1.14.6/

二、Flink 运行模式

官方文档：https://nightlies.apache.org/flink/flink-docs-release-1.15/zh/docs/deployment/overview/

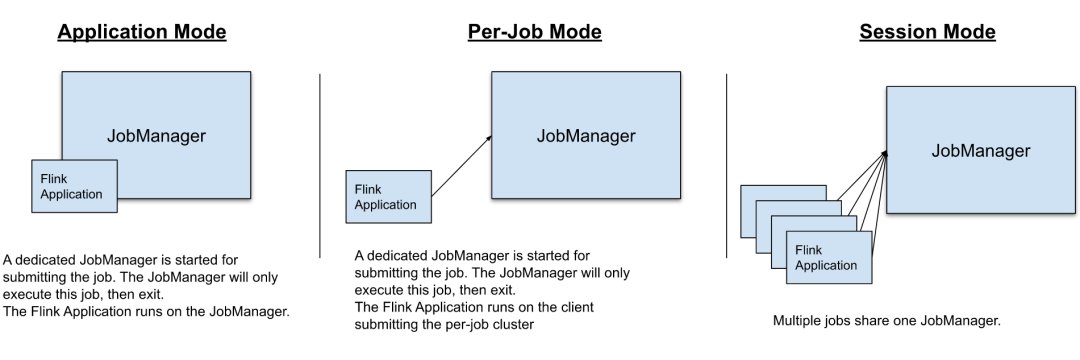

FLink on yarn 有三种运行模式：

• yarn-session模式（Seesion Mode）
• yarn-cluster模式（Per-Job Mode）
• Application模式（Application Mode）

【温馨提示】Per-Job 模式（已弃用），Per-job 模式仅由 YARN 支持，并已在 Flink 1.15 中弃用。它将被丢弃在FLINK-26000中。

三、Flink on k8s实战操作

1）flink下载

下载地址：https://flink.apache.org/downloads.html

wget https://dlcdn.apache.org/flink/flink-1.14.6/flink-1.14.6-bin-scala_2.12.tgz

2）构建基础镜像

docker pull apache/flink:1.14.6-scala_2.12

docker tag apache/flink:1.14.6-scala_2.12 myharbor.com/bigdata/flink:1.14.6-scala_2.12

docker push myharbor.com/bigdata/flink:1.14.6-scala_2.12

3）session模式

Flink Session 集群作为长时间运行的 Kubernetes Deployment 执行。你可以在一个Session 集群上运行多个 Flink 作业。每个作业都需要在集群部署完成后提交到集群。 Kubernetes 中的Flink Session 集群部署至少包含三个组件：

• 运行 JobManager的部署
• TaskManagers池的部署
• 暴露 JobManager 的REST 和 UI 端口的服务

1、Native Kubernetes 模式

参数配置： https://nightlies.apache.org/flink/flink-docs-release-1.14/docs/deployment/config/#kubernetes-namespace

【1】构建镜像Dockerfile

FROM myharbor.com/bigdata/flink:1.14.6-scala_2.12

RUN rm -f /etc/localtime && ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime &&
echo
"Asia/Shanghai" > /etc/timezone

RUN
export LANG=zh_CN.UTF-8

开始构建镜像

docker build -t myharbor.com/bigdata/flink-session:1.14.6-scala_2.12 . --no-cache




# 上传镜像

docker push myharbor.com/bigdata/flink-session:1.14.6-scala_2.12

【2】创建命名空间和serviceaccount

# 创建namespace

kubectl create ns flink


# 创建serviceaccount

kubectl create serviceaccount flink-service-account -n flink


# 用户授权

kubectl create clusterrolebinding flink-role-binding-flink --clusterrole=edit --serviceaccount=flink:flink-service-account

【3】创建flink集群

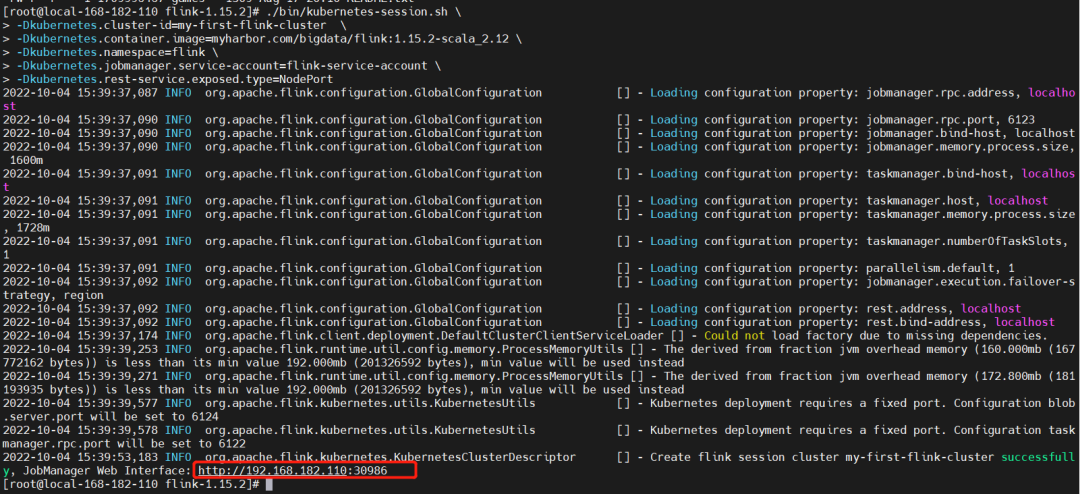

./bin/kubernetes-session.sh \

 -Dkubernetes.cluster-id=my-first-flink-cluster  \

 -Dkubernetes.container.image=myharbor.com/bigdata/flink-session:1.14.6-scala_2.12 \

 -Dkubernetes.namespace=flink \

 -Dkubernetes.jobmanager.service-account=flink-service-account \

 -Dkubernetes.rest-service.exposed.type=NodePort

【4】提交任务

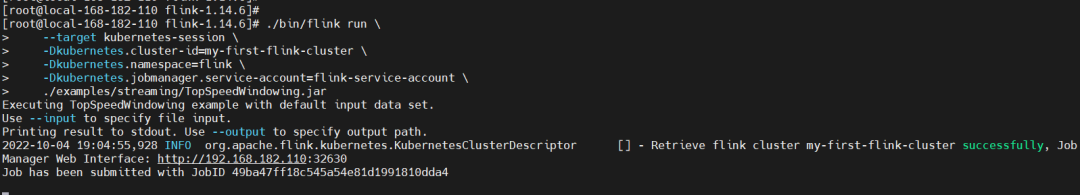

./bin/flink run \

    --target kubernetes-session \

    -Dkubernetes.cluster-id=my-first-flink-cluster \

    -Dkubernetes.namespace=flink \

    -Dkubernetes.jobmanager.service-account=flink-service-account \

    ./examples/streaming/TopSpeedWindowing.jar






#   参数配置

    ./examples/streaming/WordCount.jar

    -Dkubernetes.taskmanager.cpu=2000m \

    -Dexternal-resource.limits.kubernetes.cpu=4000m \

 -Dexternal-resource.limits.kubernetes.memory=10Gi \

 -Dexternal-resource.requests.kubernetes.cpu=2000m \

 -Dexternal-resource.requests.kubernetes.memory=8Gi \

 -Dkubernetes.taskmanager.cpu=2000m \

【温馨提示】注意jdk版本，目前jdk8是正常的。

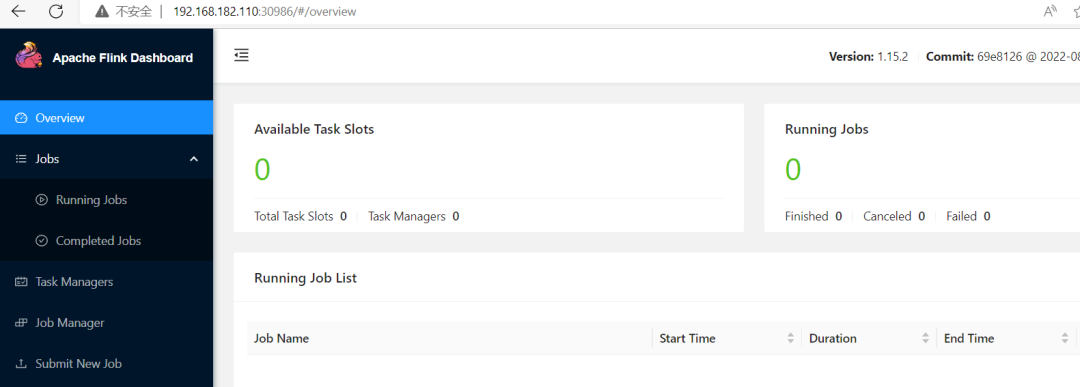

【5】查看

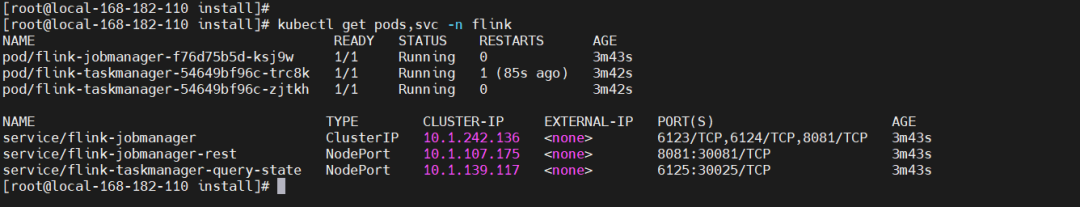

kubectl get pods -n flink

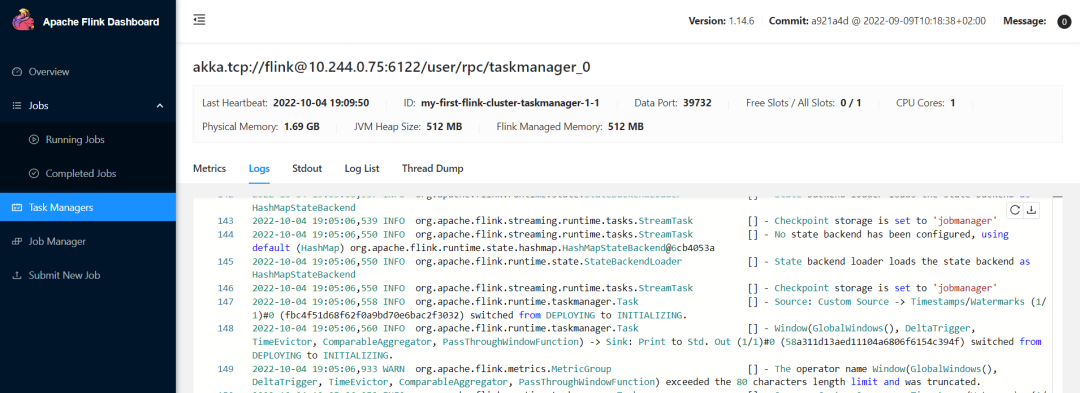

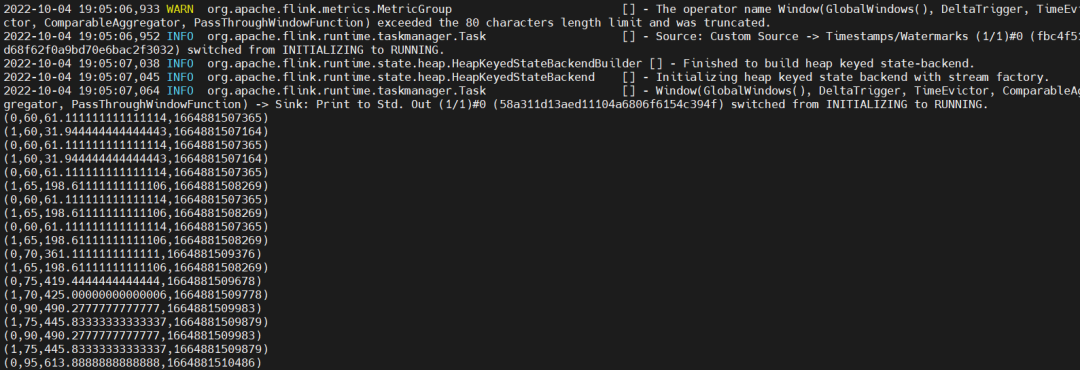

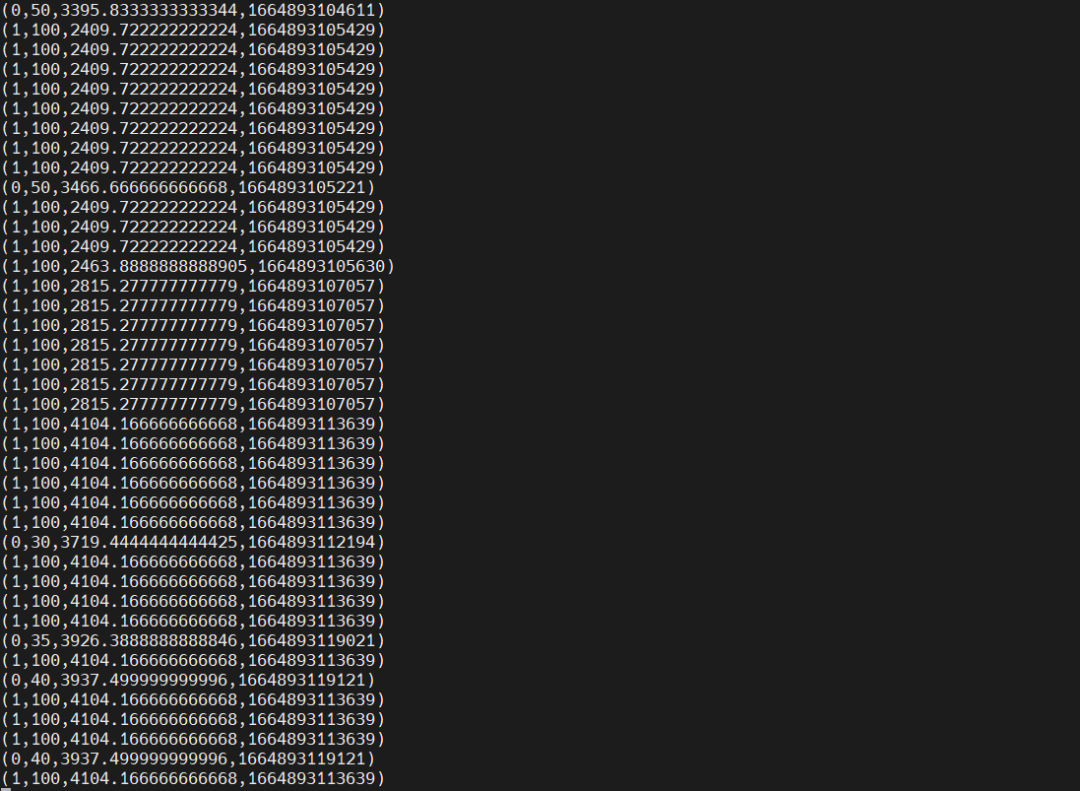

kubectl logs -f my-first-flink-cluster-taskmanager-1-1

【6】删除flink集群

kubectl delete deployment/my-first-flink-cluster -n flink

kubectl delete ns flink --force

2、Standalone模式

【1】构建镜像

默认用户是flink用户，这里我换成admin，根据企业需要更换用户，脚本可以通过上面运行的pod拿到。

启动脚本  docker-entrypoint.sh

#!/usr/bin/env bash




###############################################################################


#  Licensed to the Apache Software Foundation (ASF) under one


#  or more contributor license agreements.  See the NOTICE file


#  distributed with this work for additional information


#  regarding copyright ownership.  The ASF licenses this file


#  to you under the Apache License, Version 2.0 (the


#  "License"); you may not use this file except in compliance


#  with the License.  You may obtain a copy of the License at


#


#      http://www.apache.org/licenses/LICENSE-2.0


#


#  Unless required by applicable law or agreed to in writing, software


#  distributed under the License is distributed on an "AS IS" BASIS,


#  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.


#  See the License for the specific language governing permissions and


# limitations under the License.


###############################################################################



COMMAND_STANDALONE=
"standalone-job"

COMMAND_HISTORY_SERVER=
"history-server"




# If unspecified, the hostname of the container is taken as the JobManager address

JOB_MANAGER_RPC_ADDRESS=
${JOB_MANAGER_RPC_ADDRESS:-$(hostname -f)}

CONF_FILE=
"
${FLINK_HOME}/conf/flink-conf.yaml"





drop_privs_cmd() {


if [ $(id -u) != 0 ];
then


# Don't need to drop privs if EUID != 0


return


elif [ -x /sbin/su-exec ];
then


# Alpine


echo su-exec admin


else


# Others


echo gosu admin


fi

}





copy_plugins_if_required() {


if [ -z
"
$ENABLE_BUILT_IN_PLUGINS" ];
then


return 0


fi




echo
"Enabling required built-in plugins"


for target_plugin
in $(
echo
"
$ENABLE_BUILT_IN_PLUGINS" | tr
';'
' ');
do


echo
"Linking
${target_plugin} to plugin directory"

    plugin_name=
${target_plugin%.jar}



    mkdir -p
"
${FLINK_HOME}/plugins/
${plugin_name}"


if [ ! -e
"
${FLINK_HOME}/opt/
${target_plugin}" ];
then


echo
"Plugin
${target_plugin} does not exist. Exiting."


exit 1


else

      ln -fs
"
${FLINK_HOME}/opt/
${target_plugin}"
"
${FLINK_HOME}/plugins/
${plugin_name}"


echo
"Successfully enabled
${target_plugin}"


fi


done

}





set_config_option() {


local option=
$1


local value=
$2




# escape periods for usage in regular expressions


local escaped_option=$(
echo
${option} | sed -e
"s/\./\\\./g")




# either override an existing entry, or append a new one


if grep -E
"^
${escaped_option}:.*"
"
${CONF_FILE}" > /dev/null;
then

        sed -i -e
"s/
${escaped_option}:.*/
$option:
$value/g"
"
${CONF_FILE}"


else


echo
"
${option}:
${value}" >>
"
${CONF_FILE}"


fi

}





prepare_configuration() {

    set_config_option jobmanager.rpc.address
${JOB_MANAGER_RPC_ADDRESS}

    set_config_option blob.server.port 6124

    set_config_option query.server.port 6125




if [ -n
"
${TASK_MANAGER_NUMBER_OF_TASK_SLOTS}" ];
then

        set_config_option taskmanager.numberOfTaskSlots
${TASK_MANAGER_NUMBER_OF_TASK_SLOTS}


fi




if [ -n
"
${FLINK_PROPERTIES}" ];
then


echo
"
${FLINK_PROPERTIES}" >>
"
${CONF_FILE}"


fi

    envsubst <
"
${CONF_FILE}" >
"
${CONF_FILE}.tmp" && mv
"
${CONF_FILE}.tmp"
"
${CONF_FILE}"

}





maybe_enable_jemalloc() {


if [
"
${DISABLE_JEMALLOC:-false}" ==
"false" ];
then

        JEMALLOC_PATH=
"/usr/lib/
$(uname -m)-linux-gnu/libjemalloc.so"

        JEMALLOC_FALLBACK=
"/usr/lib/x86_64-linux-gnu/libjemalloc.so"


if [ -f
"
$JEMALLOC_PATH" ];
then


export LD_PRELOAD=
$LD_PRELOAD:
$JEMALLOC_PATH


elif [ -f
"
$JEMALLOC_FALLBACK" ];
then


export LD_PRELOAD=
$LD_PRELOAD:
$JEMALLOC_FALLBACK


else


if [
"
$JEMALLOC_PATH" =
"
$JEMALLOC_FALLBACK" ];
then

                MSG_PATH=
$JEMALLOC_PATH


else

                MSG_PATH=
"
$JEMALLOC_PATH and
$JEMALLOC_FALLBACK"


fi


echo
"WARNING: attempted to load jemalloc from
$MSG_PATH but the library couldn't be found. glibc will be used instead."


fi


fi

}



maybe_enable_jemalloc



copy_plugins_if_required



prepare_configuration



args=(
"
$@")


if [
"
$1" =
"help" ];
then


printf
"Usage:
$(basename "$0") (jobmanager|
${COMMAND_STANDALONE}|taskmanager|
${COMMAND_HISTORY_SERVER})\n"


printf
"    Or
$(basename "$0") help\n\n"


printf
"By default, Flink image adopts jemalloc as default memory allocator. This behavior can be disabled by setting the 'DISABLE_JEMALLOC' environment variable to 'true'.\n"


exit 0


elif [
"
$1" =
"jobmanager" ];
then

    args=(
"
${args[@]:1}")




echo
"Starting Job Manager"




exec $(drop_privs_cmd)
"
$FLINK_HOME/bin/jobmanager.sh" start-foreground
"
${args[@]}"


elif [
"
$1" =
${COMMAND_STANDALONE} ];
then

    args=(
"
${args[@]:1}")




echo
"Starting Job Manager"




exec $(drop_privs_cmd)
"
$FLINK_HOME/bin/standalone-job.sh" start-foreground
"
${args[@]}"


elif [
"
$1" =
${COMMAND_HISTORY_SERVER} ];
then

    args=(
"
${args[@]:1}")




echo
"Starting History Server"




exec $(drop_privs_cmd)
"
$FLINK_HOME/bin/historyserver.sh" start-foreground
"
${args[@]}"


elif [
"
$1" =
"taskmanager" ];
then

    args=(
"
${args[@]:1}")




echo
"Starting Task Manager"




exec $(drop_privs_cmd)
"
$FLINK_HOME/bin/taskmanager.sh" start-foreground
"
${args[@]}"


fi



args=(
"
${args[@]}")




# Running command in pass-through mode


exec $(drop_privs_cmd)
"
${args[@]}"

编排Dockerfile

FROM myharbor.com/bigdata/centos:7.9.2009



USER root




# 安装常用工具

RUN yum install -y vim tar wget curl rsync bzip2 iptables tcpdump less telnet net-tools lsof




# 设置时区，默认是UTC时区

RUN rm -f /etc/localtime && ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime &&
echo
"Asia/Shanghai" > /etc/timezone



RUN mkdir -p /opt/apache



ADD jdk-8u212-linux-x64.tar.gz /opt/apache/



ADD flink-1.14.6-bin-scala_2.12.tgz  /opt/apache/



ENV FLINK_HOME /opt/apache/flink-1.14.6

ENV JAVA_HOME /opt/apache/jdk1.8.0_212

ENV PATH
$JAVA_HOME/bin:
$PATH




# 创建用户应用jar目录

RUN mkdir
$FLINK_HOME/usrlib/




#RUN mkdir home

COPY docker-entrypoint.sh /opt/apache/

RUN chmod +x /opt/apache/docker-entrypoint.sh



RUN groupadd --system --gid=9999 admin && useradd --system --home-dir
$FLINK_HOME --uid=9999 --gid=admin admin



RUN chown -R admin:admin /opt/apache




#设置的工作目录

WORKDIR
$FLINK_HOME




# 对外暴露端口

EXPOSE 6123 8081




# 执行脚本，构建镜像时不执行，运行实例才会执行

ENTRYPOINT [
"/opt/apache/docker-entrypoint.sh"]

CMD [
"help"]

开始构建镜像

docker build -t myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12 . --no-cache




# 上传镜像

docker push myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12




# 删除镜像

docker rmi myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12

crictl rmi myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12

【2】创建命名空间和serviceaccount

# 创建namespace

kubectl create ns flink


# 创建serviceaccount

kubectl create serviceaccount flink-service-account -n flink


# 用户授权

kubectl create clusterrolebinding flink-role-binding-flink --clusterrole=edit --serviceaccount=flink:flink-service-account

【3】编排yaml文件

• flink-configuration-configmap.yaml

apiVersion:
v1


kind:
ConfigMap


metadata:


name:
flink-config


labels:


app:
flink


data:


flink-conf.yaml:
|+

    jobmanager.rpc.address: flink-jobmanager

    taskmanager.numberOfTaskSlots: 2

    blob.server.port: 6124

    jobmanager.rpc.port: 6123

    taskmanager.rpc.port: 6122

    queryable-state.proxy.ports: 6125

    jobmanager.memory.process.size: 3200m

    taskmanager.memory.process.size: 2728m

    taskmanager.memory.flink.size: 2280m

    parallelism.default: 2


log4j-console.properties:
|+

    # This affects logging for both user code and Flink

    rootLogger.level = INFO

    rootLogger.appenderRef.console.ref = ConsoleAppender

    rootLogger.appenderRef.rolling.ref = RollingFileAppender




# Uncomment this if you want to _only_ change Flink's logging


#logger.flink.name = org.apache.flink


#logger.flink.level = INFO




# The following lines keep the log level of common libraries/connectors on


# log level INFO. The root logger does not override this. You have to manually


# change the log levels here.


logger.akka.name
=
akka


logger.akka.level
=
INFO


logger.kafka.name=
org.apache.kafka


logger.kafka.level
=
INFO


logger.hadoop.name
=
org.apache.hadoop


logger.hadoop.level
=
INFO


logger.zookeeper.name
=
org.apache.zookeeper


logger.zookeeper.level
=
INFO




# Log all infos to the console


appender.console.name
=
ConsoleAppender


appender.console.type
=
CONSOLE


appender.console.layout.type
=
PatternLayout


appender.console.layout.pattern
=
%d{yyyy-MM-dd
HH:mm:ss,SSS}
%-5p
%-60c
%x
-
%m%n




# Log all infos in the given rolling file


appender.rolling.name
=
RollingFileAppender


appender.rolling.type
=
RollingFile


appender.rolling.append
=
false


appender.rolling.fileName
=
${sys:log.file}


appender.rolling.filePattern
=
${sys:log.file}.%i


appender.rolling.layout.type
=
PatternLayout


appender.rolling.layout.pattern
=
%d{yyyy-MM-dd
HH:mm:ss,SSS}
%-5p
%-60c
%x
-
%m%n


appender.rolling.policies.type
=
Policies


appender.rolling.policies.size.type
=
SizeBasedTriggeringPolicy


appender.rolling.policies.size.size=100MB


appender.rolling.strategy.type
=
DefaultRolloverStrategy


appender.rolling.strategy.max
=
10




# Suppress the irrelevant (wrong) warnings from the Netty channel handler


logger.netty.name
=
org.jboss.netty.channel.DefaultChannelPipeline


logger.netty.level
=
OFF

• jobmanager-service.yaml可选服务，仅非 HA 模式需要。

apiVersion:
v1


kind:
Service


metadata:


name:
flink-jobmanager


spec:


type:
ClusterIP


ports:


-
name:
rpc


port:
6123


-
name:
blob-server


port:
6124


-
name:
webui


port:
8081


selector:


app:
flink


component:
jobmanager

• jobmanager-rest-service.yaml 可选服务，将 jobmanager  rest端口公开为公共 Kubernetes 节点的端口。

apiVersion:
v1


kind:
Service


metadata:


name:
flink-jobmanager-rest


spec:


type:
NodePort


ports:


-
name:
rest


port:
8081


targetPort:
8081


nodePort:
30081


selector:


app:
flink


component:
jobmanager

• taskmanager-query-state-service.yaml 可选服务，公开 TaskManager 端口以访问可查询状态作为公共 Kubernetes 节点的端口。

apiVersion:
v1


kind:
Service


metadata:


name:
flink-taskmanager-query-state


spec:


type:
NodePort


ports:


-
name:
query-state


port:
6125


targetPort:
6125


nodePort:
30025


selector:


app:
flink


component:
taskmanager

以上几个配置文件是公共的

• jobmanager-session-deployment-non-ha.yaml

apiVersion:
apps/v1


kind:
Deployment


metadata:


name:
flink-jobmanager


spec:


replicas:
1


selector:


matchLabels:


app:
flink


component:
jobmanager


template:


metadata:


labels:


app:
flink


component:
jobmanager


spec:


containers:


-
name:
jobmanager


image:
myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12


args:
["jobmanager"]


ports:


-
containerPort:
6123


name:
rpc


-
containerPort:
6124


name:
blob-server


-
containerPort:
8081


name:
webui


livenessProbe:


tcpSocket:


port:
6123


initialDelaySeconds:
30


periodSeconds:
60


volumeMounts:


-
name:
flink-config-volume


mountPath:
/opt/apache/flink-1.14.6/conf/


securityContext:


runAsUser:
9999
# refers to user _flink_ from official flink image, change if necessary


volumes:


-
name:
flink-config-volume


configMap:


name:
flink-config


items:


-
key:
flink-conf.yaml


path:
flink-conf.yaml


-
key:
log4j-console.properties


path:
log4j-console.properties

• taskmanager-session-deployment.yaml

apiVersion:
apps/v1


kind:
Deployment


metadata:


name:
flink-taskmanager


spec:


replicas:
2


selector:


matchLabels:


app:
flink


component:
taskmanager


template:


metadata:


labels:


app:
flink


component:
taskmanager


spec:


containers:


-
name:
taskmanager


image:
myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12


args:
["taskmanager"]


ports:


-
containerPort:
6122


name:
rpc


-
containerPort:
6125


name:
query-state


livenessProbe:


tcpSocket:


port:
6122


initialDelaySeconds:
30


periodSeconds:
60


volumeMounts:


-
name:
flink-config-volume


mountPath:
/opt/apache/flink-1.14.6/conf/


securityContext:


runAsUser:
9999
# refers to user _flink_ from official flink image, change if necessary


volumes:


-
name:
flink-config-volume


configMap:


name:
flink-config


items:


-
key:
flink-conf.yaml


path:
flink-conf.yaml


-
key:
log4j-console.properties


path:
log4j-console.properties

【4】创建flink集群

kubectl
create
ns
flink


# Configuration and service definition


kubectl
create
-f
flink-configuration-configmap.yaml
-n
flink




# service


kubectl
create
-f
jobmanager-service.yaml
-n
flink


kubectl
create
-f
jobmanager-rest-service.yaml
-n
flink


kubectl
create
-f
taskmanager-query-state-service.yaml
-n
flink




# Create the deployments for the cluster


kubectl
create
-f
jobmanager-session-deployment-non-ha.yaml
-n
flink


kubectl
create
-f
taskmanager-session-deployment.yaml
-n
flink

镜像逆向解析dockerfile

alias whaler=
"docker run -t --rm -v /var/run/docker.sock:/var/run/docker.sock:ro pegleg/whaler"

whaler flink:1.14.6-scala_2.12

查看

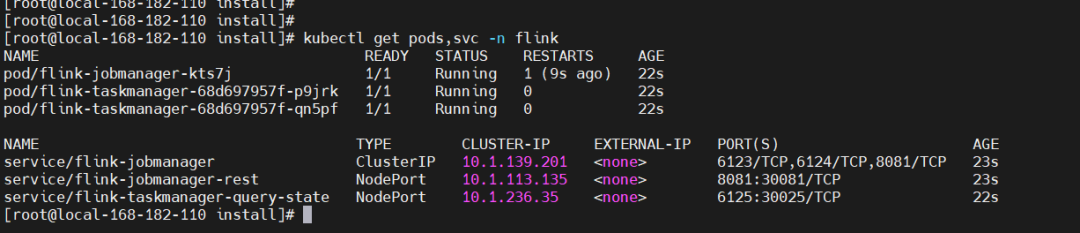

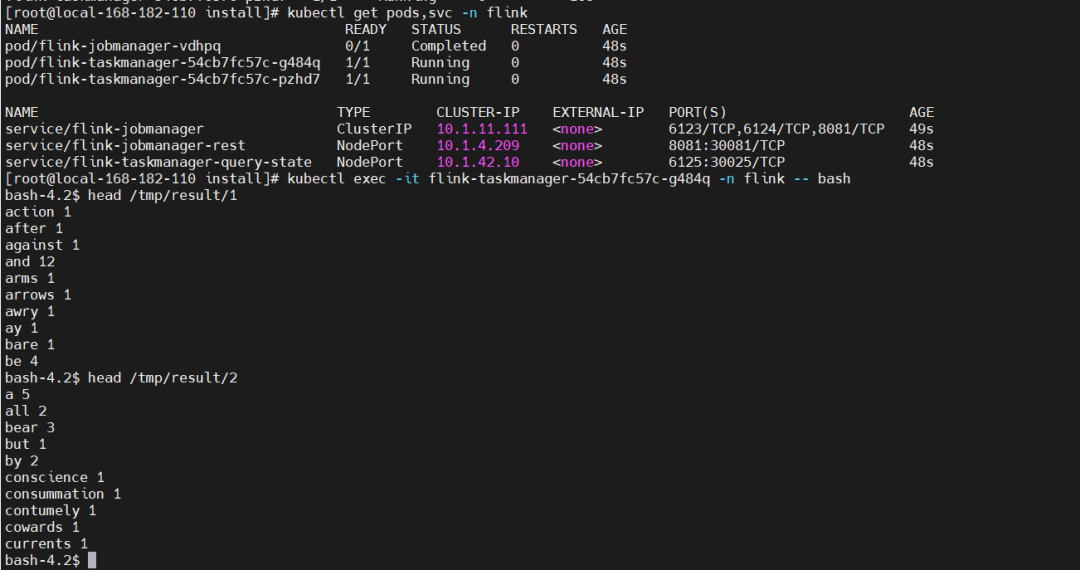

kubectl get pods,svc -n flink -owide

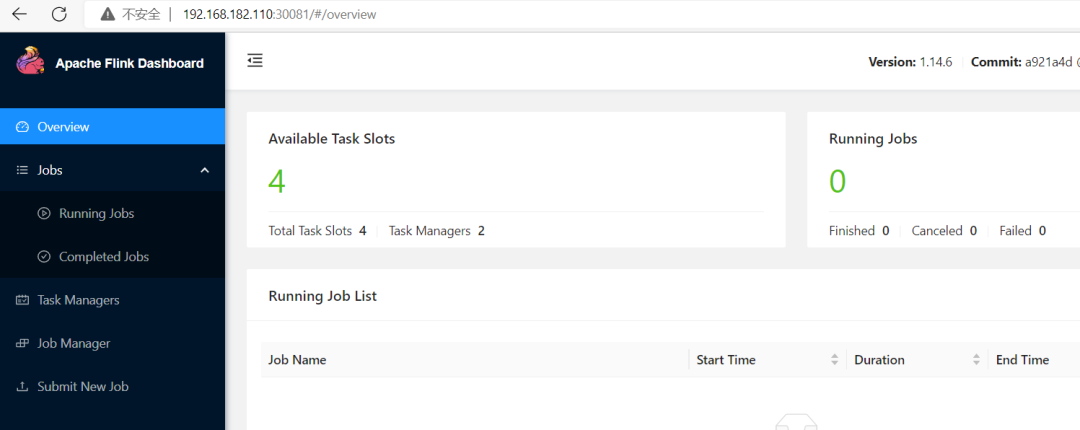

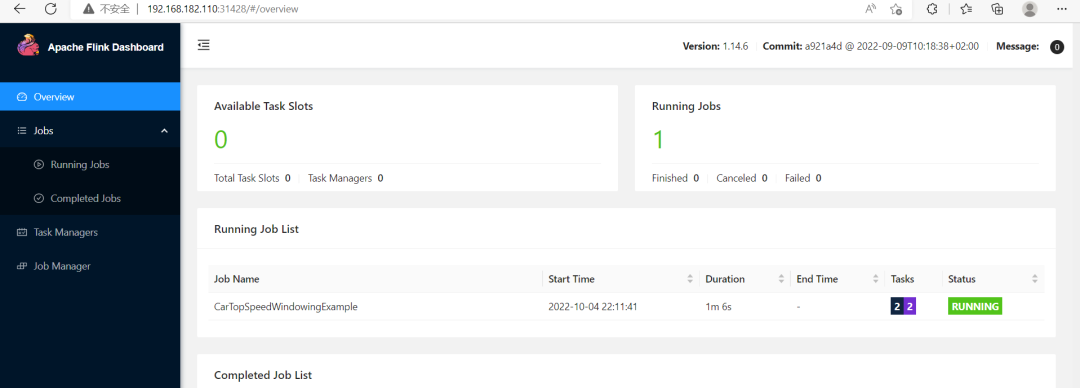

web：http://192.168.182.110:30081/#/overview

【5】提交任务

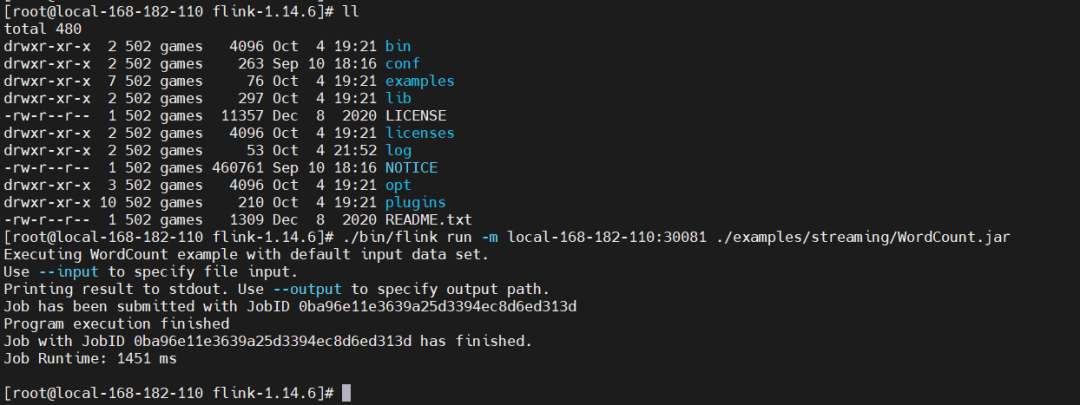

./bin/flink run -m
local-168-182-110:30081 ./examples/streaming/WordCount.jar

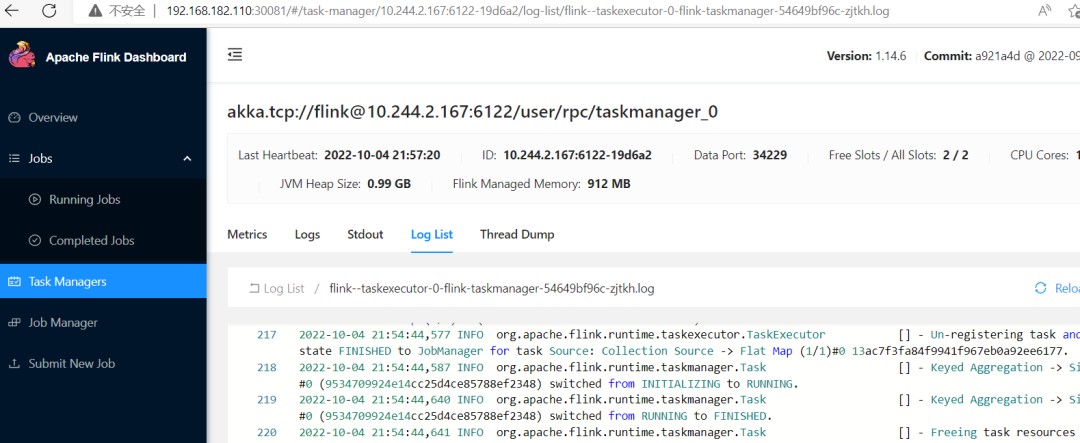

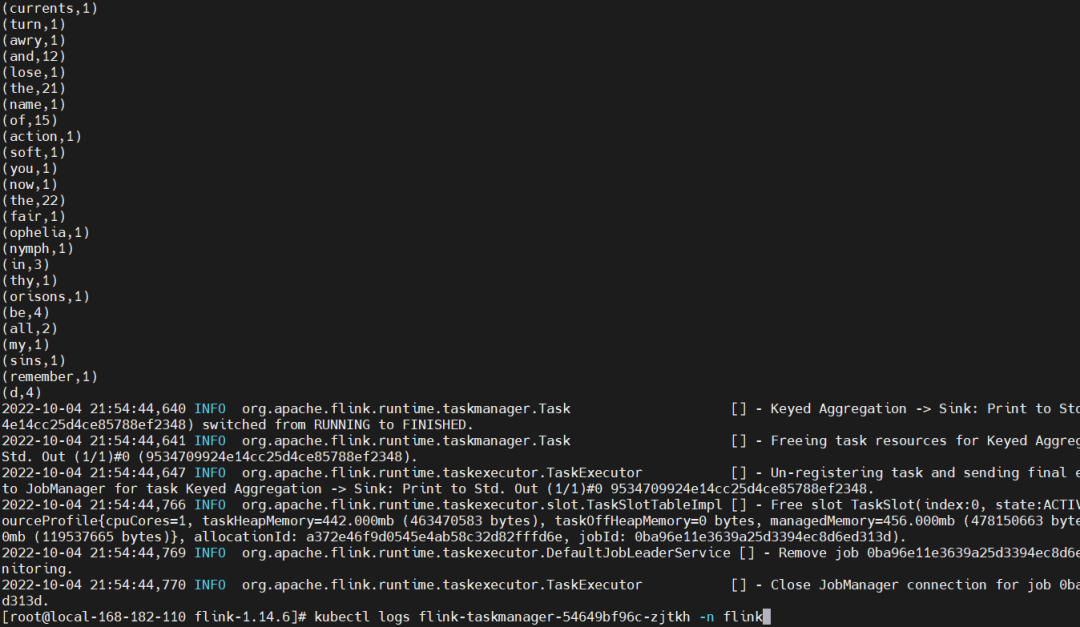

kubectl logs flink-taskmanager-54649bf96c-zjtkh -n flink

【6】删除flink集群

kubectl delete -f jobmanager-service.yaml -n flink

kubectl delete -f flink-configuration-configmap.yaml -n flink

kubectl delete -f taskmanager-session-deployment.yaml -n flink

kubectl delete -f jobmanager-session-deployment.yaml -n flink

kubectl delete ns flink --force

【7】访问flink web

端口就是 jobmanager-rest-service.yaml文件中的NodePort

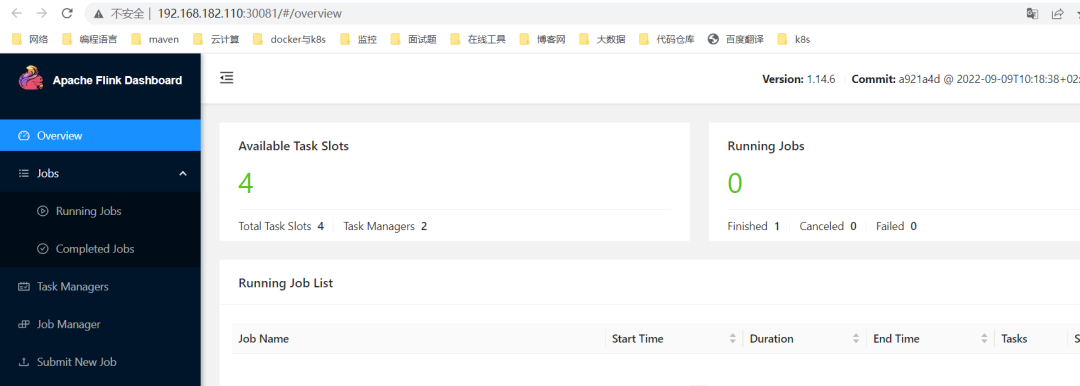

http://192.168.182.110:30081/#/overview

4）application模式（推荐）

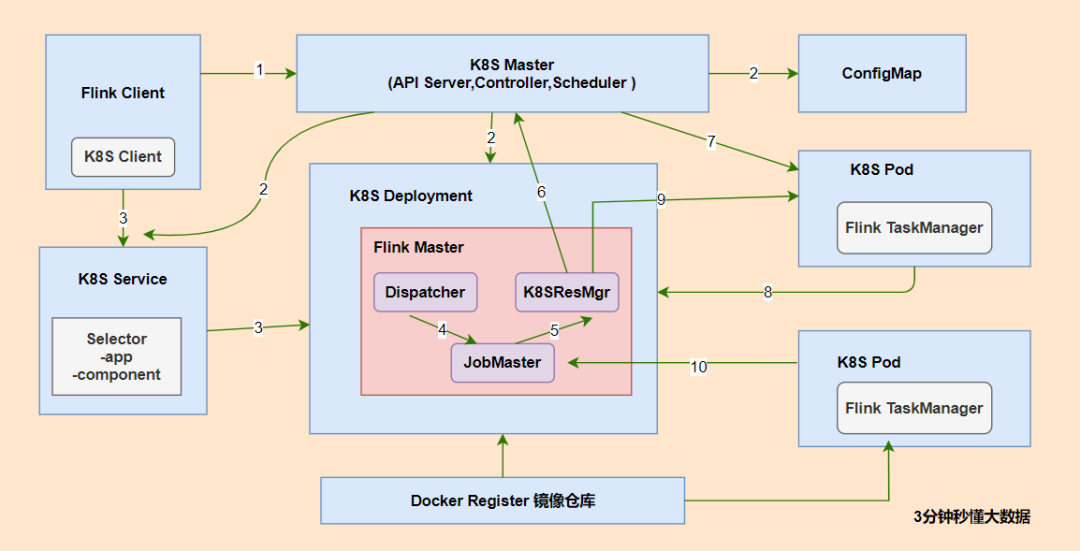

Kubernetes 中一个基本的Flink Application 集群部署包含三个组件：

• 运行 JobManager的应用程序
• TaskManagers池的部署
• 暴露 JobManager 的REST 和 UI 端口的服务

1、Native Kubernetes 模式（常用）

【1】构建镜像Dockerfile

FROM myharbor.com/bigdata/flink:1.14.6-scala_2.12

RUN rm -f /etc/localtime && ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime &&
echo
"Asia/Shanghai" > /etc/timezone

RUN
export LANG=zh_CN.UTF-8

RUN mkdir -p
$FLINK_HOME/usrlib

COPY  TopSpeedWindowing.jar
$FLINK_HOME/usrlib/

开始构建镜像

docker build -t myharbor.com/bigdata/flink-application:1.14.6-scala_2.12 . --no-cache




# 上传镜像

docker push myharbor.com/bigdata/flink-application:1.14.6-scala_2.12




# 删除镜像

docker rmi myharbor.com/bigdata/flink-application:1.14.6-scala_2.12

crictl rmi myharbor.com/bigdata/flink-application:1.14.6-scala_2.12

【2】创建命名空间和serviceacount

# 创建namespace

kubectl create ns flink


# 创建serviceaccount

kubectl create serviceaccount flink-service-account -n flink


# 用户授权

kubectl create clusterrolebinding flink-role-binding-flink --clusterrole=edit --serviceaccount=flink:flink-service-account

【3】创建flink集群并提交任务

./bin/flink run-application \

    --target kubernetes-application \

    -Dkubernetes.cluster-id=my-first-application-cluster  \

 -Dkubernetes.container.image=myharbor.com/bigdata/flink-application:1.14.6-scala_2.12 \

 -Dkubernetes.jobmanager.replicas=1 \

 -Dkubernetes.namespace=flink \

 -Dkubernetes.jobmanager.service-account=flink-service-account \

 -Dexternal-resource.limits.kubernetes.cpu=2000m \

 -Dexternal-resource.limits.kubernetes.memory=2Gi \

 -Dexternal-resource.requests.kubernetes.cpu=1000m \

 -Dexternal-resource.requests.kubernetes.memory=1Gi \

 -Dkubernetes.rest-service.exposed.type=NodePort \


local:///opt/flink/usrlib/TopSpeedWindowing.jar

【注意】  local是应用模式中唯一支持的方案。local代表本地环境，这里即pod或者容器环境，并非宿主机。

查看

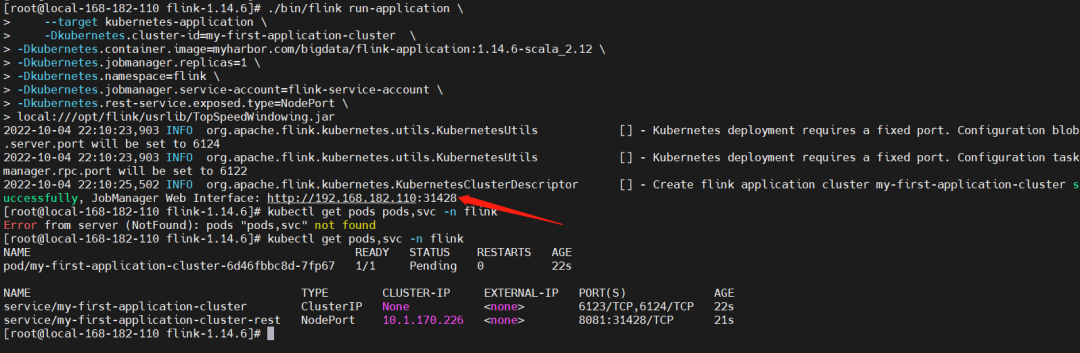

kubectl get pods pods,svc -n flink

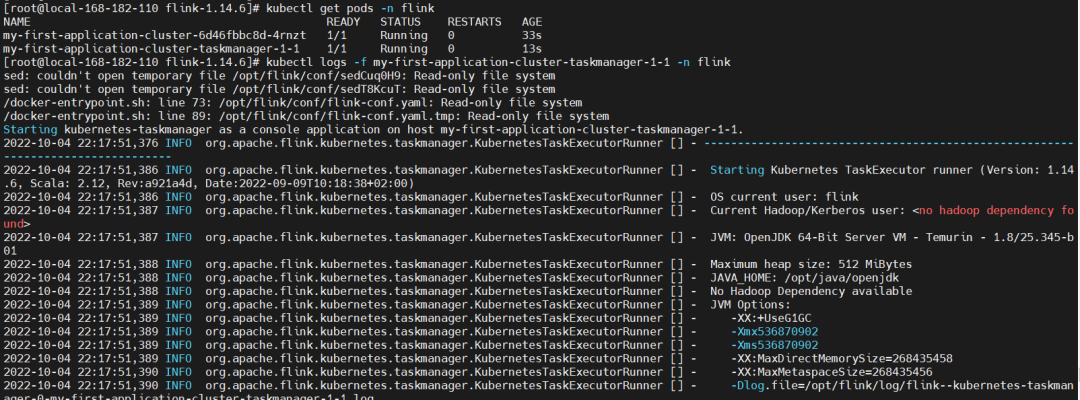

kubectl logs -f my-first-application-cluster-taskmanager-1-1 -n flink

【4】删除flink集群

kubectl delete deployment/my-first-application-cluster -n flink

kubectl delete ns flink --force

2、Standalone模式

【1】构建镜像 Dockerfile

启动脚本  docker-entrypoint.sh

#!/usr/bin/env bash




###############################################################################


#  Licensed to the Apache Software Foundation (ASF) under one


#  or more contributor license agreements.  See the NOTICE file


#  distributed with this work for additional information


#  regarding copyright ownership.  The ASF licenses this file


#  to you under the Apache License, Version 2.0 (the


#  "License"); you may not use this file except in compliance


#  with the License.  You may obtain a copy of the License at


#


#      http://www.apache.org/licenses/LICENSE-2.0


#


#  Unless required by applicable law or agreed to in writing, software


#  distributed under the License is distributed on an "AS IS" BASIS,


#  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.


#  See the License for the specific language governing permissions and


# limitations under the License.


###############################################################################



COMMAND_STANDALONE=
"standalone-job"

COMMAND_HISTORY_SERVER=
"history-server"




# If unspecified, the hostname of the container is taken as the JobManager address

JOB_MANAGER_RPC_ADDRESS=
${JOB_MANAGER_RPC_ADDRESS:-$(hostname -f)}

CONF_FILE=
"
${FLINK_HOME}/conf/flink-conf.yaml"





drop_privs_cmd() {


if [ $(id -u) != 0 ];
then


# Don't need to drop privs if EUID != 0


return


elif [ -x /sbin/su-exec ];
then


# Alpine


echo su-exec admin


else


# Others


echo gosu admin


fi

}





copy_plugins_if_required() {


if [ -z
"
$ENABLE_BUILT_IN_PLUGINS" ];
then


return 0


fi




echo
"Enabling required built-in plugins"


for target_plugin
in $(
echo
"
$ENABLE_BUILT_IN_PLUGINS" | tr
';'
' ');
do


echo
"Linking
${target_plugin} to plugin directory"

    plugin_name=
${target_plugin%.jar}



    mkdir -p
"
${FLINK_HOME}/plugins/
${plugin_name}"


if [ ! -e
"
${FLINK_HOME}/opt/
${target_plugin}" ];
then


echo
"Plugin
${target_plugin} does not exist. Exiting."


exit 1


else

      ln -fs
"
${FLINK_HOME}/opt/
${target_plugin}"
"
${FLINK_HOME}/plugins/
${plugin_name}"


echo
"Successfully enabled
${target_plugin}"


fi


done

}





set_config_option() {


local option=
$1


local value=
$2




# escape periods for usage in regular expressions


local escaped_option=$(
echo
${option} | sed -e
"s/\./\\\./g")




# either override an existing entry, or append a new one


if grep -E
"^
${escaped_option}:.*"
"
${CONF_FILE}" > /dev/null;
then

        sed -i -e
"s/
${escaped_option}:.*/
$option:
$value/g"
"
${CONF_FILE}"


else


echo
"
${option}:
${value}" >>
"
${CONF_FILE}"


fi

}





prepare_configuration() {

    set_config_option jobmanager.rpc.address
${JOB_MANAGER_RPC_ADDRESS}

    set_config_option blob.server.port 6124

    set_config_option query.server.port 6125




if [ -n
"
${TASK_MANAGER_NUMBER_OF_TASK_SLOTS}" ];
then

        set_config_option taskmanager.numberOfTaskSlots
${TASK_MANAGER_NUMBER_OF_TASK_SLOTS}


fi




if [ -n
"
${FLINK_PROPERTIES}" ];
then


echo
"
${FLINK_PROPERTIES}" >>
"
${CONF_FILE}"


fi

    envsubst <
"
${CONF_FILE}" >
"
${CONF_FILE}.tmp" && mv
"
${CONF_FILE}.tmp"
"
${CONF_FILE}"

}





maybe_enable_jemalloc() {


if [
"
${DISABLE_JEMALLOC:-false}" ==
"false" ];
then

        JEMALLOC_PATH=
"/usr/lib/
$(uname -m)-linux-gnu/libjemalloc.so"

        JEMALLOC_FALLBACK=
"/usr/lib/x86_64-linux-gnu/libjemalloc.so"


if [ -f
"
$JEMALLOC_PATH" ];
then


export LD_PRELOAD=
$LD_PRELOAD:
$JEMALLOC_PATH


elif [ -f
"
$JEMALLOC_FALLBACK" ];
then


export LD_PRELOAD=
$LD_PRELOAD:
$JEMALLOC_FALLBACK


else


if [
"
$JEMALLOC_PATH" =
"
$JEMALLOC_FALLBACK" ];
then

                MSG_PATH=
$JEMALLOC_PATH


else

                MSG_PATH=
"
$JEMALLOC_PATH and
$JEMALLOC_FALLBACK"


fi


echo
"WARNING: attempted to load jemalloc from
$MSG_PATH but the library couldn't be found. glibc will be used instead."


fi


fi

}



maybe_enable_jemalloc



copy_plugins_if_required



prepare_configuration



args=(
"
$@")


if [
"
$1" =
"help" ];
then


printf
"Usage:
$(basename "$0") (jobmanager|
${COMMAND_STANDALONE}|taskmanager|
${COMMAND_HISTORY_SERVER})\n"


printf
"    Or
$(basename "$0") help\n\n"


printf
"By default, Flink image adopts jemalloc as default memory allocator. This behavior can be disabled by setting the 'DISABLE_JEMALLOC' environment variable to 'true'.\n"


exit 0


elif [
"
$1" =
"jobmanager" ];
then

    args=(
"
${args[@]:1}")




echo
"Starting Job Manager"




exec $(drop_privs_cmd)
"
$FLINK_HOME/bin/jobmanager.sh" start-foreground
"
${args[@]}"


elif [
"
$1" =
${COMMAND_STANDALONE} ];
then

    args=(
"
${args[@]:1}")




echo
"Starting Job Manager"




exec $(drop_privs_cmd)
"
$FLINK_HOME/bin/standalone-job.sh" start-foreground
"
${args[@]}"


elif [
"
$1" =
${COMMAND_HISTORY_SERVER} ];
then

    args=(
"
${args[@]:1}")




echo
"Starting History Server"




exec $(drop_privs_cmd)
"
$FLINK_HOME/bin/historyserver.sh" start-foreground
"
${args[@]}"


elif [
"
$1" =
"taskmanager" ];
then

    args=(
"
${args[@]:1}")




echo
"Starting Task Manager"




exec $(drop_privs_cmd)
"
$FLINK_HOME/bin/taskmanager.sh" start-foreground
"
${args[@]}"


fi



args=(
"
${args[@]}")




# Running command in pass-through mode


exec $(drop_privs_cmd)
"
${args[@]}"

编排 Dockerfile

FROM myharbor.com/bigdata/centos:7.9.2009



USER root




# 安装常用工具

RUN yum install -y vim tar wget curl rsync bzip2 iptables tcpdump less telnet net-tools lsof




# 设置时区，默认是UTC时区

RUN rm -f /etc/localtime && ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime &&
echo
"Asia/Shanghai" > /etc/timezone



RUN mkdir -p /opt/apache



ADD jdk-8u212-linux-x64.tar.gz /opt/apache/



ADD flink-1.14.6-bin-scala_2.12.tgz  /opt/apache/



ENV FLINK_HOME /opt/apache/flink-1.14.6

ENV JAVA_HOME /opt/apache/jdk1.8.0_212

ENV PATH
$JAVA_HOME/bin:
$PATH




# 创建用户应用jar目录

RUN mkdir
$FLINK_HOME/usrlib/




#RUN mkdir home

COPY docker-entrypoint.sh /opt/apache/



RUN groupadd --system --gid=9999 admin && useradd --system --home-dir
$FLINK_HOME --uid=9999 --gid=admin admin



RUN chown -R admin:admin /opt/apache

RUN chmod +x
${FLINK_HOME}/docker-entrypoint.sh




#设置的工作目录

WORKDIR
$FLINK_HOME




# 对外暴露端口

EXPOSE 6123 8081




# 执行脚本，构建镜像时不执行，运行实例才会执行

ENTRYPOINT [
"/opt/apache/docker-entrypoint.sh"]

CMD [
"help"]

docker build -t myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12 . --no-cache




# 上传镜像

docker push myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12




# 删除镜像

docker rmi myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12

【2】创建命名空间和 serviceacount

# 创建namespace

kubectl create ns flink


# 创建serviceaccount

kubectl create serviceaccount flink-service-account -n flink


# 用户授权

kubectl create clusterrolebinding flink-role-binding-flink --clusterrole=edit --serviceaccount=flink:flink-service-account

【3】编排yaml文件

flink-configuration-configmap.yaml

apiVersion: v1

kind: ConfigMap

metadata:

  name: flink-config

  labels:

    app: flink

data:

  flink-conf.yaml: |+

    jobmanager.rpc.address: flink-jobmanager

    taskmanager.numberOfTaskSlots: 2

    blob.server.port: 6124

    jobmanager.rpc.port: 6123

    taskmanager.rpc.port: 6122

    queryable-state.proxy.ports: 6125

    jobmanager.memory.process.size: 3200m

    taskmanager.memory.process.size: 2728m

    taskmanager.memory.flink.size: 2280m

    parallelism.default: 2

  log4j-console.properties: |+


# This affects logging for both user code and Flink

    rootLogger.level = INFO

    rootLogger.appenderRef.console.ref = ConsoleAppender

    rootLogger.appenderRef.rolling.ref = RollingFileAppender




# Uncomment this if you want to _only_ change Flink's logging


#logger.flink.name = org.apache.flink


#logger.flink.level = INFO




# The following lines keep the log level of common libraries/connectors on


# log level INFO. The root logger does not override this. You have to manually


# change the log levels here.

    logger.akka.name = akka

    logger.akka.level = INFO

    logger.kafka.name= org.apache.kafka

    logger.kafka.level = INFO

    logger.hadoop.name = org.apache.hadoop

    logger.hadoop.level = INFO

    logger.zookeeper.name = org.apache.zookeeper

    logger.zookeeper.level = INFO




# Log all infos to the console

    appender.console.name = ConsoleAppender

    appender.console.type = CONSOLE

    appender.console.layout.type = PatternLayout

    appender.console.layout.pattern = %d{yyyy-MM-dd HH:mm:ss,SSS} %-5p %-60c %x - %m%n




# Log all infos in the given rolling file

    appender.rolling.name = RollingFileAppender

    appender.rolling.type = RollingFile

    appender.rolling.append =
false

    appender.rolling.fileName =
${sys:log.file}

    appender.rolling.filePattern =
${sys:log.file}.%i

    appender.rolling.layout.type = PatternLayout

    appender.rolling.layout.pattern = %d{yyyy-MM-dd HH:mm:ss,SSS} %-5p %-60c %x - %m%n

    appender.rolling.policies.type = Policies

    appender.rolling.policies.size.type = SizeBasedTriggeringPolicy

    appender.rolling.policies.size.size=100MB

    appender.rolling.strategy.type = DefaultRolloverStrategy

    appender.rolling.strategy.max = 10




# Suppress the irrelevant (wrong) warnings from the Netty channel handler

    logger.netty.name = org.jboss.netty.channel.DefaultChannelPipeline

    logger.netty.level = OFF

jobmanager-service.yaml可选服务，仅非 HA 模式需要。

apiVersion:
v1


kind:
Service


metadata:


name:
flink-jobmanager


spec:


type:
ClusterIP


ports:


-
name:
rpc


port:
6123


-
name:
blob-server


port:
6124


-
name:
webui


port:
8081


selector:


app:
flink


component:
jobmanager

jobmanager-rest-service.yaml 可选服务，将 jobmanager  rest端口公开为公共 Kubernetes 节点的端口。

apiVersion:
v1


kind:
Service


metadata:


name:
flink-jobmanager-rest


spec:


type:
NodePort


ports:


-
name:
rest


port:
8081


targetPort:
8081


nodePort:
30081


selector:


app:
flink


component:
jobmanager

taskmanager-query-state-service.yaml 可选服务，公开 TaskManager 端口以访问可查询状态作为公共 Kubernetes 节点的端口。

apiVersion:
v1


kind:
Service


metadata:


name:
flink-taskmanager-query-state


spec:


type:
NodePort


ports:


-
name:
query-state


port:
6125


targetPort:
6125


nodePort:
30025


selector:


app:
flink


component:
taskmanager

jobmanager-application-non-ha.yaml ，非高可用

apiVersion:
batch/v1


kind:
Job


metadata:


name:
flink-jobmanager


spec:


template:


metadata:


labels:


app:
flink


component:
jobmanager


spec:


restartPolicy:
OnFailure


containers:


-
name:
jobmanager


image:
myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12


env:


args:
["standalone-job",
"--job-classname"
,
"org.apache.flink.examples.java.wordcount.WordCount"
,"--output","/tmp/result"]


ports:


-
containerPort:
6123


name:
rpc


-
containerPort:
6124


name:
blob-server


-
containerPort:
8081


name:
webui


livenessProbe:


tcpSocket:


port:
6123


initialDelaySeconds:
30


periodSeconds:
60


volumeMounts:


-
name:
flink-config-volume


mountPath:
/opt/apache/flink-1.14.6/conf


-
name:
job-artifacts-volume


mountPath:
/opt/apache/flink-1.14.6/usrlib


securityContext:


runAsUser:
9999
# refers to user _flink_ from official flink image, change if necessary


volumes:


-
name:
flink-config-volume


configMap:


name:
flink-config


items:


-
key:
flink-conf.yaml


path:
flink-conf.yaml


-
key:
log4j-console.properties


path:
log4j-console.properties


-
name:
job-artifacts-volume


hostPath:


path:
/mnt/nfsdata/flink/application/job-artifacts

【温馨提示】注意这里的挂载 /mnt/bigdata/flink/usrlib，最好这里使用共享目录。

taskmanager-job-deployment.yaml

apiVersion: apps/v1

kind: Deployment

metadata:

  name: flink-taskmanager

spec:

  replicas: 2

  selector:

    matchLabels:

      app: flink

      component: taskmanager

  template:

    metadata:

      labels:

        app: flink

        component: taskmanager

    spec:

      containers:

      - name: taskmanager

        image: myharbor.com/bigdata/flink-centos-admin:1.14.6-scala_2.12

        env:

        args: [
"taskmanager"]

        ports:

        - containerPort: 6122

          name: rpc

        - containerPort: 6125

          name: query-state

        livenessProbe:

          tcpSocket:

            port: 6122

          initialDelaySeconds: 30

          periodSeconds: 60

        volumeMounts:

        - name: flink-config-volume

          mountPath: /opt/apache/flink-1.14.6/conf

        - name: job-artifacts-volume

          mountPath: /opt/apache/flink-1.14.6/usrlib

        securityContext:

          runAsUser: 9999
# refers to user _flink_ from official flink image, change if necessary

      volumes:

      - name: flink-config-volume

        configMap:

          name: flink-config

          items:

          - key: flink-conf.yaml

            path: flink-conf.yaml

          - key: log4j-console.properties

            path: log4j-console.properties

      - name: job-artifacts-volume

        hostPath:

          path: /mnt/nfsdata/flink/application/job-artifacts

【4】创建flink集群并提交任务

kubectl create ns flink


# Configuration and service definition

kubectl create -f flink-configuration-configmap.yaml -n flink




# service

kubectl create -f jobmanager-service.yaml -n flink

kubectl create -f jobmanager-rest-service.yaml -n flink

kubectl create -f taskmanager-query-state-service.yaml -n flink




# Create the deployments for the cluster

kubectl create -f  jobmanager-application-non-ha.yaml -n flink

kubectl create -f  taskmanager-job-deployment.yaml -n flink

查看

kubectl get pods,svc -n flink

【5】删除flink集群

kubectl delete -f flink-configuration-configmap.yaml -n flink

kubectl delete -f jobmanager-service.yaml -n flink

kubectl delete -f jobmanager-rest-service.yaml -n flink

kubectl delete -f taskmanager-query-state-service.yaml -n flink

kubectl delete -f jobmanager-application-non-ha.yaml -n flink

kubectl delete -f taskmanager-job-deployment.yaml -n flink



kubectl delete ns flink --force

【6】查看

kubectl get pods,svc -n flink

kubectl
exec -it flink-taskmanager-54cb7fc57c-g484q -n flink -- bash
