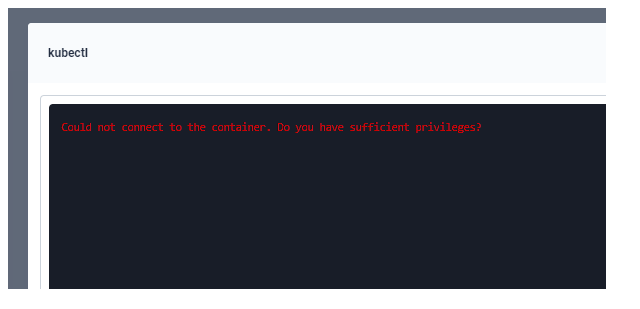

目前 Kubesphere 已经部署成功，但是直接从网页访问 terminal 终端的功能，提示：could not connect to the container。
因为使用nginx 做了反向代理，代理原来地址 http://140.100.150.2:30880 为dns 的地址并且使用80访问。
upstream k8s {
ip_hash;
server 140.100.150.2:30880;
server 140.100.150.3:30880;
server 140.100.150.4:30880;
server 140.100.150.5:30880;
server 140.100.150.6:30880;
server 140.100.150.7:30880;
server 140.100.150.8:30880;
server 140.100.150.9:30880;
}
server {
listen 80;
# include ssl-conf/ssl-full.loadttl.com.conf;
server_name k8s.evstsoft.com;
# access_log /var/log/nginx/access.log json;
# error_log /var/log/nginx/error.log;
index index.html index.htm;
# if ($ssl_protocol = "") { return 301 https://$host$request_uri; }
location / {
proxy_http_version 1.1;
proxy_pass http://k8s;
proxy_redirect off;
proxy_set_header Host $host:$server_port;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 3600s;
proxy_read_timeout 3600s;
proxy_send_timeout 3600s;
send_timeout 3600s;
}
location /api/ {
proxy_http_version 1.1;
proxy_redirect off;
proxy_pass http://k8s;
proxy_set_header Host $host:$server_port;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header Connection "upgrade";
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location /apis/monitoring.coreos.com/ {
proxy_pass http://k8s;
proxy_redirect off;
proxy_set_header Host $host:$server_port;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 3600s;
proxy_read_timeout 3600s;
proxy_send_timeout 3600s;
send_timeout 3600s;
}
location /api/v1/ {
proxy_pass http://k8s;
# proxy_redirect off;
proxy_set_header Host $host:$server_port;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 3600s;
proxy_read_timeout 3600s;
proxy_send_timeout 3600s;
send_timeout 3600s;
}
location /apis/storage.k8s.io {
proxy_pass http://k8s;
proxy_redirect off;
proxy_set_header Host $host:$server_port;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 3600s;
proxy_read_timeout 3600s;
proxy_send_timeout 3600s;
send_timeout 3600s;
}
location /apis/apps/v1/namespaces/ {
proxy_http_version 1.1;
proxy_pass http://k8s;
proxy_redirect off;
proxy_set_header Host $host:$server_port;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 3600s;
proxy_read_timeout 3600s;
proxy_send_timeout 3600s;
send_timeout 3600s;
}
location /kapis/resources.kubesphere.io/v1alpha2/namespaces {
proxy_http_version 1.1;
proxy_pass http://k8s;
proxy_redirect off;
proxy_set_header Host $host:$server_port;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 3600s;
proxy_read_timeout 3600s;
proxy_send_timeout 3600s;
}
location /kapis/resources.kubesphere.io/ {
proxy_http_version 1.1;
proxy_redirect off;
proxy_pass http://k8s;
proxy_set_header Host $host:$server_port;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header Connection "upgrade";
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location /apis/devops.kubesphere.io/ {
proxy_http_version 1.1;
proxy_pass http://k8s;
proxy_redirect off;
proxy_set_header Host $host:$server_port;
proxy_set_header X-Real-IP $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_connect_timeout 3600s;
proxy_read_timeout 3600s;
proxy_send_timeout 3600s;
send_timeout 3600s;
}
location /apis/apps/v1/ {
proxy_http_version 1.1;
proxy_redirect off;
proxy_pass http://k8s;
proxy_set_header Host $host:$server_port;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header Connection "upgrade";
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location /apis/ {
proxy_http_version 1.1;
proxy_redirect off;
proxy_pass http://k8s;
proxy_set_header Host $host:$server_port;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header Connection "upgrade";
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location /api/v1/watch/namespaces {
proxy_pass http://k8s;
proxy_set_header Host $host:$server_port;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header Connection "upgrade";
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
location /kapis/terminal.kubesphere.io/ {
proxy_http_version 1.1;
proxy_redirect off;
proxy_pass http://k8s;
proxy_set_header Host $host:$server_port;
proxy_set_header Upgrade $http_upgrade;
proxy_set_header X-Forwarded-Proto $scheme;
proxy_set_header Connection "upgrade";
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
}
}
以上配置完重启nginx 服务，问题解决。
