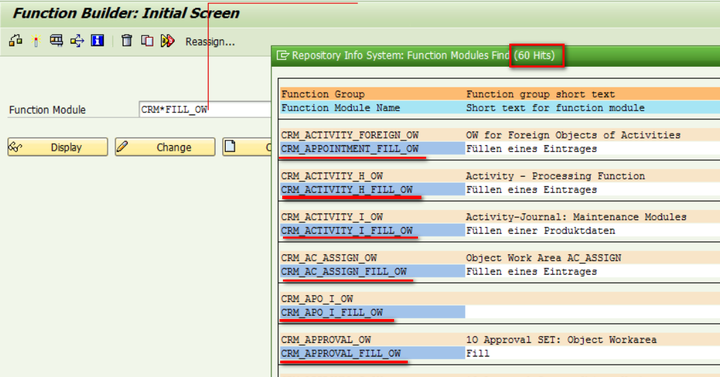

标题：SAP CRM One Order函数CRM_ FILL_OW的设计原理 There are totally 60 function modules in One order with naming convention CRM_FILL_OW:

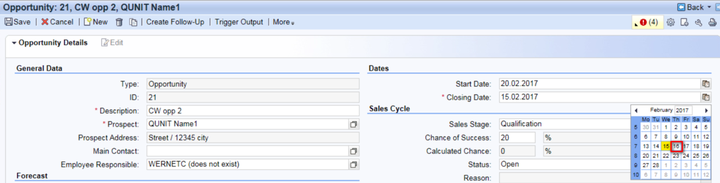

They are NOT used in read scenario but in modify scenario. For example once you change the Closing Date of a given opportunity in WebUI ( from 2017-02-15 to 2017-02-16 )

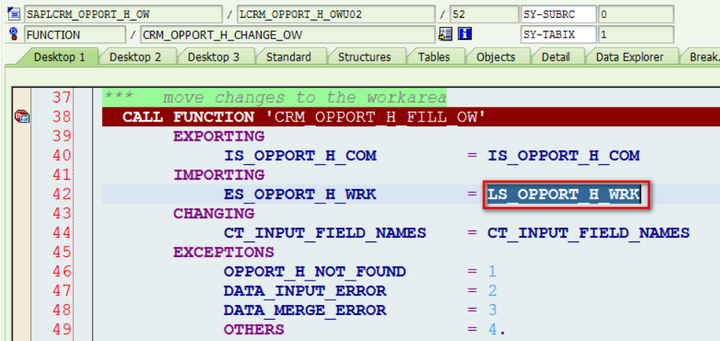

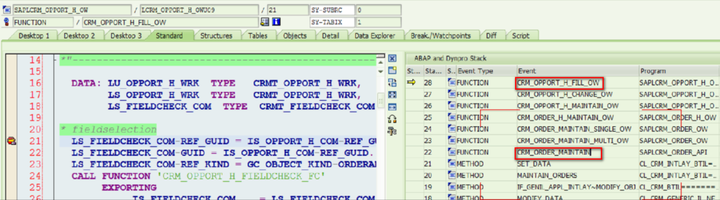

The function module for Opportunity header extension, CRM_ORDERADM_H_FILL_OW, is called with the following callstack:

As its name FILL_OW indicates, it is responsible to FILL the latest input by consumer into so called object work area( OW ) for later use. In order to make the research life easier I write the following report to trigger this FILL_OW function module call from backend:
REPORT zoneorder_modify. CONSTANTS: gv_guid TYPE crmt_object_guid VALUE '6C0B84B759DF1ED6BDF05763B3DC8841'. DATA: lt_opport_h TYPE crmt_opport_h_comt, ls_opport_h LIKE LINE OF lt_opport_h, lt_change TYPE crmt_input_field_tab, ls_change LIKE LINE OF lt_change. ls_opport_h-ref_guid = gv_guid. ls_opport_h-expect_end = '20170216'. ls_change = VALUE #( ref_guid = gv_guid ref_kind = 'A' objectname = 'OPPORT_H' ). APPEND 'EXPECT_END' TO ls_change-field_names. APPEND ls_change TO lt_change. APPEND ls_opport_h TO lt_opport_h. CALL FUNCTION 'CRM_ORDER_MAINTAIN' EXPORTING it_opport_h = lt_opport_h CHANGING ct_input_fields = lt_change EXCEPTIONS error_occurred = 1 document_locked = 2 no_change_allowed = 3 no_authority = 4. WRITE: / sy-subrc.

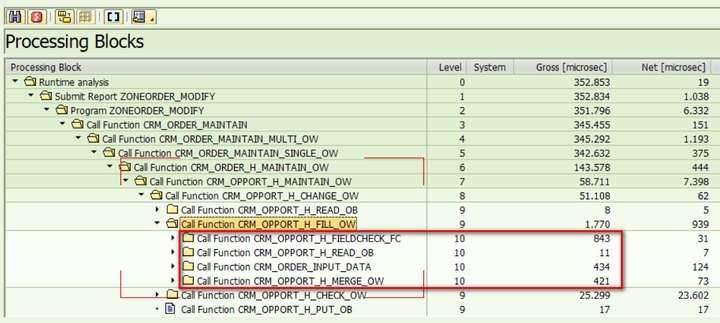

It’s very clear now the logic of this FILL_OW consists of four main parts:

(1) field check done in FM CRM_OPPORT_H_FIELDCHECK_FC
This check function module further calls two function modules: a. CRM_ORDER_GENERAL_CHECKS_FC This check could be switched off by function module CRM_ORDER_SET_ACTIVE_OW. A customer exit if_ex_crm_order_fieldcheck and a new BAdI definition crm_order_fieldcheck_new is allowed for customer to implement their own check logic and called within this check function module. b. CRM_FIELDCHECK_CALL This FM will call dedicated check function module for a given field registered in system table CRMC_FIELDCHECK:

(2) CRM_OPPORT_H_READ_OB The logic of this FM is already explained in blog: Buffer logic in One Order header extension Read.
(3) CRM_ORDER_INPUT_DATA

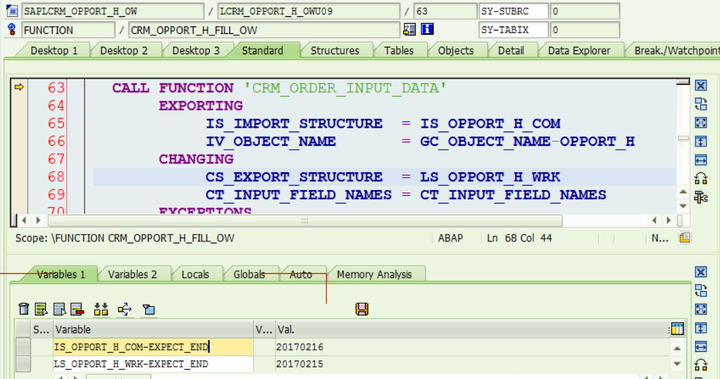

This FM is responsible to move the latest value entered by consumer ( is_opport_h_com in line 65 ) to object work area ( postfix WRK in variable ls_opport_h_wrk in line 68 ). You can observe in the debugger that before this FM is executed, object work area still contains the old value 2017-02-15 read from FM CRM_OPPORT_H_READ_OB in step 2.

Inside this FM there is a check to avoid the field is being changed unnecessarily ( specified new value = old value ) or by mistake ( the field validation fails ). This is a screenshot how ls_opport_h_wrk looks like after this third step is executed:

(4) CRM_OPPORT_H_MERGE_OW
Opportunity header extension specific fields are filled in this FM. The following fields are populated in this FM with related business logic.

probability
phase_since
assistant_phase
exp_weighted_revenue
salescycle

Once all these four steps are done successfully, CRM_OPPORT_H_FILL_OW has now generated a consistent object work area and stored in ls_opport_h_wrk.

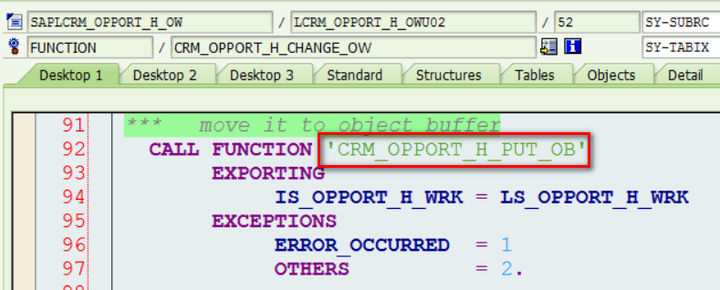

This object work area will be put to object buffer for later save usage via FM CRM_OPPORT_H_PUT_OB.
