SAP Cloud Platform和S/4HANA的互联

原创 IT综合 作者:i042416 时间:2020-03-21 08:30:38 0 删除 编辑

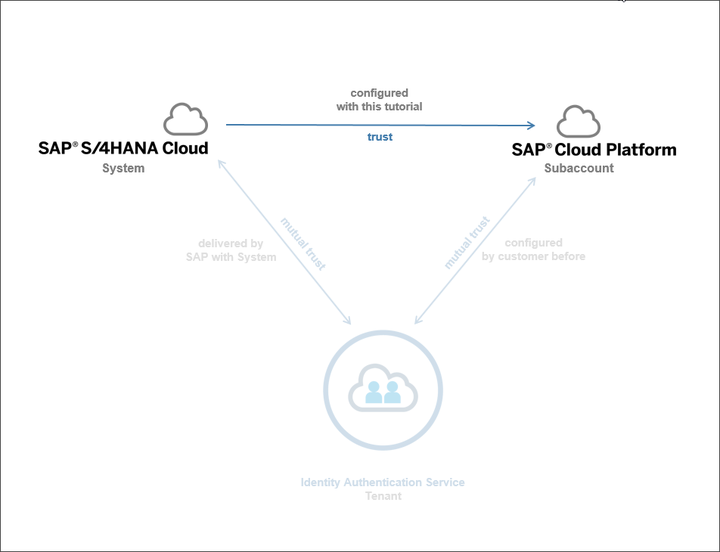

通过两个系统互相连接互相信任的配置,使得:

(1) SAP Cloud Platform subaccount will get a destination which holds data for the connection and OAuth communication with the S/4HANA Cloud system.

(2) That enables its Web IDE to request data from the S/4HANA system during Custom UI development and finally to deploy that UI to the S/4HANA Cloud system. Both processes are so called inbound requests to the S/4HANA Cloud system.

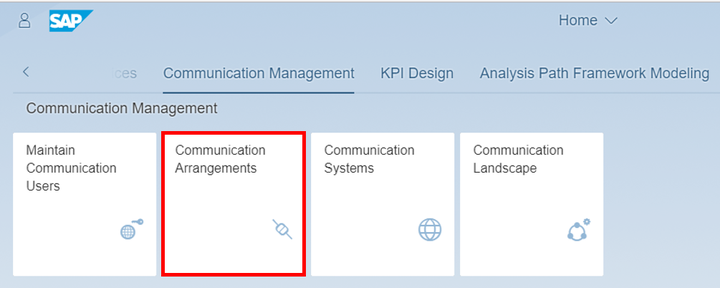

使用一个分配有business catalog Communication Management (ID: SAP_CORE_BC_COM)的business role的用户登录S/4HANA Cloud系统:

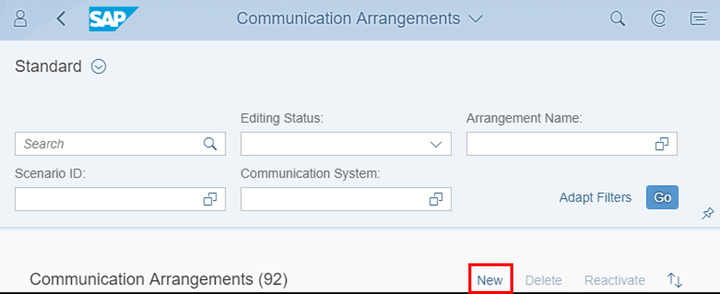

创建一个新的Communication arrangement

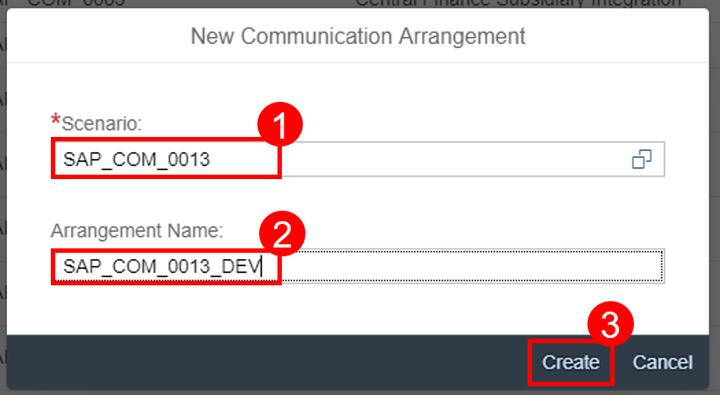

scenario选择SAP_COM_0013,

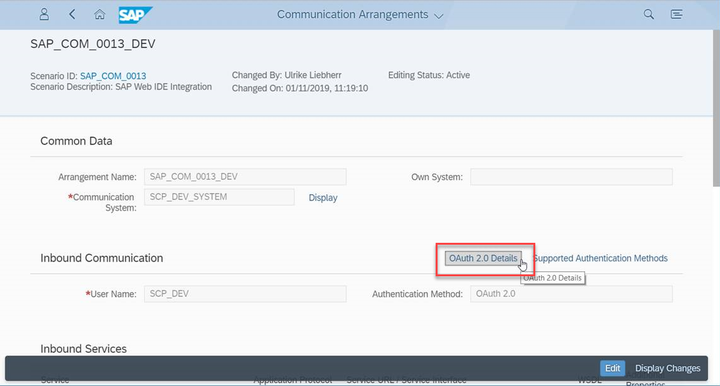

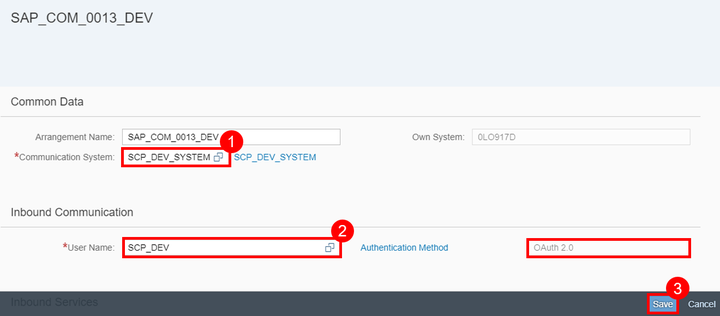

进入创建好的Communication Arrangement,在inbound Communication区域点击OAuth 2.0 Details:

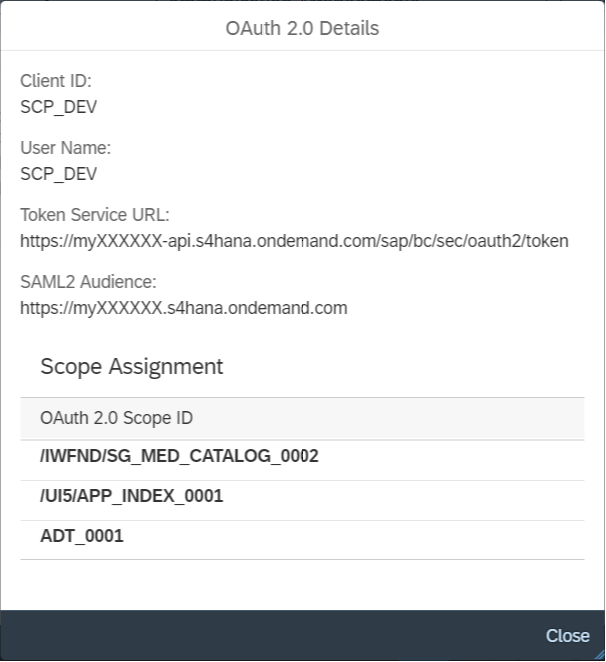

这个弹出窗口的值,我们稍后会维护在SAP云平台的Destination创建页面里:

SAP云平台里新建一个Destination:

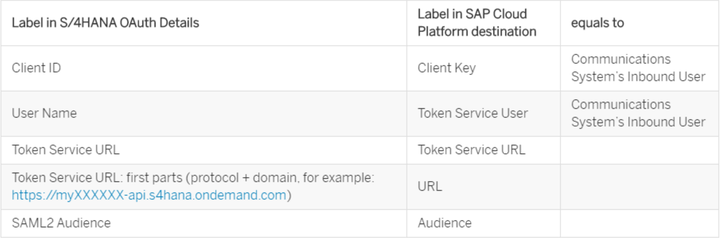

并将之前从S/4HANA cloud系统Communication Arrangement OAuth 2.0明细页面的credential信息拷贝过来。

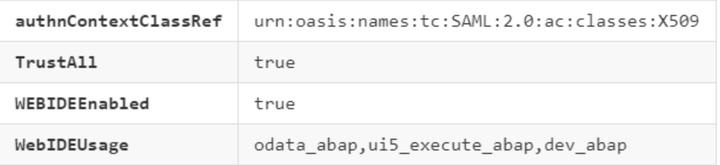

添加下列四个额外的属性:

把这个Destination命名为SCP_DEV_SYSTEM.

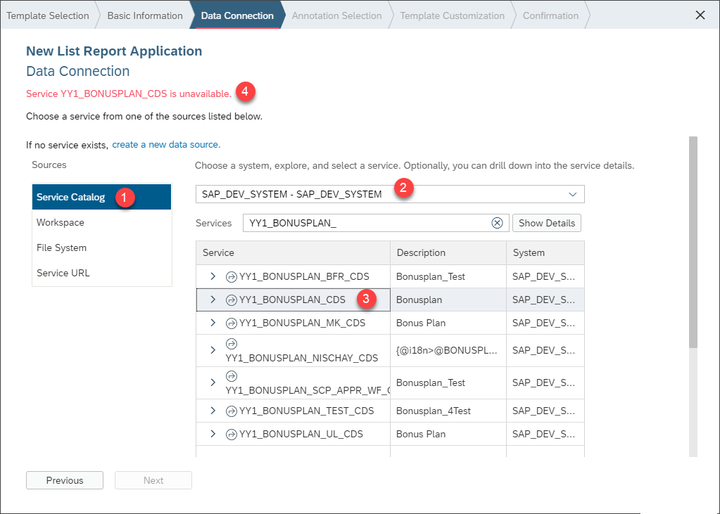

之后在SAP云平台的WebIDE里使用SAP UI5应用创建向导,在Data Connection这一步骤,就能从下拉菜单里看到这个Destination了。然而Destination指向的S/4HANA系统里的OData服务YY1_BONUSPLAN_还没法使用,报错误消息Service XXX is unavailable. 需要后续在S/4HANA系统将其暴露给外部系统才能使用。但是,S/4HANA和SAP Cloud Platform通过Destination的连接已经配置完成了。
