--------------------〉注：oracle 11g R2自带有apex 安装文件
位于
￥ORACLE_HOME/
一、安装需求
浏览器要求支持 JavaScript
、HTML4.0、 CSS 1.0。一般的IE 6.0、
Firefox 1.0都支持。
HTTP服务器需求：
Pl/SQL
gateway 启用
Oracle
HTTP Server and mod_plsql
Oracle XML DB HTTP Server with the embedded PL/SQL gateway
installs
with Oracle Database 11g. It provides the database with a Web
server
and also the necessary infrastructure to create
dynamic
applications.
Oracle Application Express requires the shared_pool_size of
the
target database to be at least 100 MB.
磁盘空间需求：
安装APEX
软件需要 450MB
安装apex
的表空间需要 100MB
SYSTEM表空间需要
85MB
对于一种语言支持，表空间还需要
30MB
二、开始安装apex
我们可以打开 apexins.sql文件查看里边的内容：
例如我的 apex_4.2.1 / apexins.sql 文件里边的注释部分就将的很清楚，应
该怎么安装apex
-------------------------------
[oracle@node20 apex]$ cat
apexins.sql
Rem Copyright (c) Oracle Corporation
1999 - 2012. All Rights
Reserved.
Rem
Rem NAME
Rem apexins.sql
Rem
Rem DESCRIPTION
Rem
Rem NOTES
Rem Assumes
the SYS user is connected. -----〉要求以
Sys用户连接数据库 并且打开数据库实例
Rem
Rem REQUIREMENTS
------〉要安
装这个版本apex，对数据最低要求
Rem -
Oracle Database 10.2.0.3 or later
Rem
Rem Arguments:
------〉（下
边：example）执行apexins.sql 文件是参数描述
Rem Position
1: Name of tablespace for Application
Express
application user -----〉第一个
SYSAUX
Rem Position
2: Name of tablespace for Application Express
files
user -----〉第二个
SYSAUX
Rem Position
3: Name of temporary tablespace or tablespace
group
-----〉指定临时表空间或临时表空间组TEMP
Rem Position
4: Virtual directory for APEX images
-----〉开发用到图片的虚拟目录位置
Rem
Rem Example:
Rem
Rem 1)Local
Rem sqlplus
"sys/syspass as sysdba" @apexins SYSAUX SYSAUX
TEMP
/i/
Rem
Rem 2)With
connect string
Rem sqlplus
"sys/syspass@10g as sysdba" @apexins SYSAUX
SYSAUX
TEMP /i/
Rem
Rem MODIFIED
(MM/DD/YYYY)
Rem jkallman
09/10/2004 - Created
Rem jstraub
10/25/2004 -
Changed the name of the log file to
end in .log and include date/time
Rem jkallman
01/04/2005 - Adjusted APPUN to
FLOWS_020000
Rem jduan
07/07/2005
- Modify for upgrade to 2.0
Rem jkallman
09/14/2005 - Adjusted APPUN to
FLOWS_020100
Rem jkallman
09/22/2005 - Add substitution variable
XE
Rem jkallman
01/23/2006 - Adjusted APPUN to
FLOWS_020200
Rem jkallman
02/28/2006 - Copied from original
htmldbins.sql
Rem jstraub
06/27/2006 - Added
exit logic if XE
Rem jstraub
08/11/2006 -
Changed calling coreins with new
prefix parameter
Rem jkallman
09/29/2006 - Adjusted APPUN to
FLOWS_030000
Rem jkallman
02/15/2007 - Remove XE check
Rem jstraub
02/21/2007 -
Removed 6th positional connect
parameter
Rem jstraub
04/10/2007 - Added
INSTALL_TYPE parameter for use
with dynamically setting WHENEVER SQLERROR exit in
coreins
Rem jkallman
08/02/2007 - Change FLOWS_030000
references to
FLOWS_030100
Rem jstraub
08/16/2007 -
Removed password as positional
parameter and made random
Rem jstraub
09/14/2007 -
Updated comments to reflect correct
number of arguments and updated examples
Rem jstraub
12/19/2007 - Added
logic to exit if not connected
as SYSDBA
Rem jstraub
01/10/2008 - Added
prerequisite checks for XDB
and CONTEXT
Rem jstraub
02/08/2008 - Added
alter session set
nls_length_semantics = byte
Rem jkallman
07/08/2008 - Change FLOWS_030100
references to
FLOWS_040000
Rem jkallman
10/02/2008 - Change FLOWS_040000
references to
APEX_040000
Rem mhichwa
10/15/2008 -
Changed comments, no functional
changes
Rem jstraub
02/18/2009 - Added
version already installed to
prerequisite checks
Rem jstraub
03/24/2009 - Added
spool off, removed from
coreins.sql for catupgrd
Rem jkallman
06/01/2009 - Added DB version check
Rem jkallman
06/08/2009 - Removed DB version
check
Rem jstraub
07/14/2010 - Added
DB version check
Rem jkallman
11/22/2010 - Change APEX_040000 references
to
APEX_040100
Rem jkallman
05/23/2011 - Removed prerequisite check
for
Oracle Text
Rem jstraub
12/05/2011 - Added
checks for tablespace
arguments
Rem pawolf
02/21/2012
- Changed APEX_040100 references to
APEX_040200
Rem jstraub
04/16/2012 -
Changed temporary tablespace check
to include tablespace groups (bug 13857152)
Rem jkallman
06/08/2012 - Change NLS_LENGTH_SEMANTICS =
CHAR
(Feature 770)
Rem vuvarov
06/26/2012 - Call
apxprereq.sql to check
installation prerequisites (bug 14211939)
Rem jstraub
08/09/2012 -
Changed length of rnd_pwd to 60,
causing buffer to small in some instances
Rem jstraub
08/14/2012 -
Removed exit
Rem jstraub
08/16/2012 - Made
exit conditional
Rem jkallman
08/16/2012 - Reverted NLS_LENGTH_SEMANTICS
= CHAR
modifications
Rem jkallman
11/08/2012 - Avoid multiple bind variables
in
same block (Bug 12381658)
-------------------------------
首先创建一个数据库（如果没有实例，但是这个实例不需要任何sample数据，
还需要监听器）
++++++
unzip apex_4.2.1.zip ----->
这个文件夹待会儿有用处，所有应该把这个
文件夹规划好位置；我把这个解压出来的文件直接Mv到了安装oracle的BASE
目录下去了。
++++++
进入解压好的apex目录 cd apex
++++++
链接到数据库实例 sqlplus
/ as sysdba
++++++
启动数据库：startup
++++++
执行脚本程序安装apex ：SQL〉@apexins SYSAUX SYSAUX TEMP /i/
----
注：SYSAUX 为使用的表空间的名字
TEMP
为使用的临时表空间或者临时表空间组的名字
/i/
参数
该脚本估计会有半个小时的运行时间，更具你机器配置而定。
PL/SQL procedure successfully completed.
timing for: Validate Installation
Elapsed: 00:00:01.02
old 1: alter session
set current_schema = ^APPUN
new 1: alter session
set current_schema = APEX_040200
Session altered.
timing for: Complete Installation
Elapsed: 00:25:19.84
PL/SQL procedure successfully completed.
++++++
执行脚本修改密码：给ADMIN（用于登陆APEX）用户的密码
@apxchpwd
Wellcome_2
//----登陆以后密码会强制要求更改
*************
SQL> @apxchpwd
Enter a value below for the password for the Application
Express
ADMIN user.
Enter a password for the ADMIN user
[]
Session altered.
...changing password for ADMIN
PL/SQL procedure successfully completed.
++++++
启用Pl/SQL gateway
我的APEX
是解压在/oapex/apex 的所以我的输入就是：
@apex_epg_config
/oapex
****************
SQL> @apex_epg_config /oapex
PL/SQL procedure successfully completed.
PL/SQL procedure successfully completed.
Directory created.
PL/SQL procedure successfully completed.
Commit complete.
PL/SQL procedure successfully completed.
PL/SQL procedure successfully completed.
timing for: Load Images
Elapsed: 00:02:28.09
Session altered.
PL/SQL procedure successfully completed.
Commit complete.
Session altered.
Directory dropped.
++++++
解锁用户
ALTER
USER ANONYMOUS ACCOUNT UNLOCK;
*************
SQL> ALTER USER ANONYMOUS ACCOUNT UNLOCK;
User altered.
++++++
设置 Oracle XML DB HTTP ServerPort
SELECT
DBMS_XDB.GETHTTPPORT FROM DUAL;
EXEC
DBMS_XDB.SETHTTPPORT(8888);
*********
SQL> SELECT DBMS_XDB.GETHTTPPORT FROM DUAL;
GETHTTPPORT
-----------
0
SQL> EXEC DBMS_XDB.SETHTTPPORT(8888);
PL/SQL
procedure successfully completed.
SQL> SELECT DBMS_XDB.GETHTTPPORT FROM DUAL;
GETHTTPPORT
-----------
8888
++++++
赋予用户相应的权限：
--------------
DECLARE
ACL_PATH
VARCHAR2(4000);
ACL_ID
RAW(16);
BEGIN
-- Look for the
ACL currently assigned to '*' and give
APEX_030200
-- the "connect"
privilege if APEX_030200 does not have
the
privilege yet.
SELECT ACL INTO
ACL_PATH FROM DBA_NETWORK_ACLS
WHERE
HOST = '*' AND LOWER_PORT IS NULL AND UPPER_PORT IS NULL;
-- Before checking
the privilege, ensure that the ACL is valid
-- (for example,
does not contain stale references to
dropped
users).
-- If it does, the
following exception will be raised:
--
--
ORA-20000ORA-29855ORA-44416ORA-06512ORA-44416ORA-06512ORA-
44416ORA-20000ORA-29855ORA-44416ORA-06512ORA-44416ORA-06512ORA-
44416: Invalid ACL: Unresolved principal 'APEX_030200'
-- : at
"XDB.DBMS_XDBZ", line ...
--
SELECT
SYS_OP_R2O(extractValue(P.RES, '/Resource/XMLRef'))
INTO
ACL_ID
FROM
XDB.XDB$ACL A, PATH_VIEW P
WHERE
extractValue(P.RES, '/Resource/XMLRef') = REF(A) AND
EQUALS_PATH(P.RES,
ACL_PATH) = 1;
DBMS_XDBZ.ValidateACL(ACL_ID);
IF
DBMS_NETWORK_ACL_ADMIN.CHECK_PRIVILEGE(ACL_PATH,
'APEX_030200',
'connect')
IS NULL THEN
DBMS_NETWORK_ACL_ADMIN.ADD_PRIVILEGE(ACL_PATH,
'APEX_030200',
TRUE, 'connect');
END IF;
EXCEPTION
-- When no ACL has
been assigned to '*'.
WHEN NO_DATA_FOUND
THEN
DBMS_NETWORK_ACL_ADMIN.CREATE_ACL('power_users.xml',
'ACL
that lets power users to connect to everywhere',
'APEX_030200',
TRUE, 'connect');
DBMS_NETWORK_ACL_ADMIN.ASSIGN_ACL('power_users.xml','*');
END;
/
COMMIT;
--------------
**************************************************
* *********
** 注意一定到等到
Commit complete.
******
****这几个字出现，才算真的完成，不要急于验证。****
****** ***
**************************************************
………………………
好了做到这一步如果没有报任何错误的话，apex就算安装好了，接下来我们就
验证一下吧：
三、验证安装是否成功
安装完之后：
(1)shutdown
Oracle DB: SQL>shutdown immediate
(2)重新启动Oracle
database listener:
cd
$ORACLE_HOME
./lsnrctl
start
(3)启动Oracle
DB SQL>startup

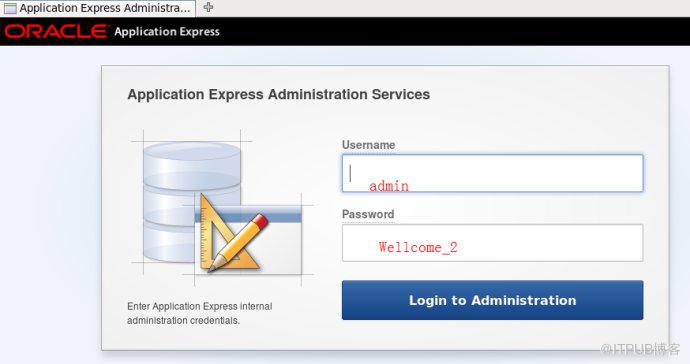

1.管理界面
http://localhost:8888/apex/apex_admin
等近取之后呢， 会要求修改密码。
admin/Welcome_2
----->
Oracle_11g
密码修改了以后这里有个workspace：INTERNAL
输入你刚才的密码，就可以进去管理员界面了。
2.开发界面
http://localhost:8888/apex
——————————————————————
Ok，就到这了，尽情的享受Apex
带来开发web 应用的快感吧。
