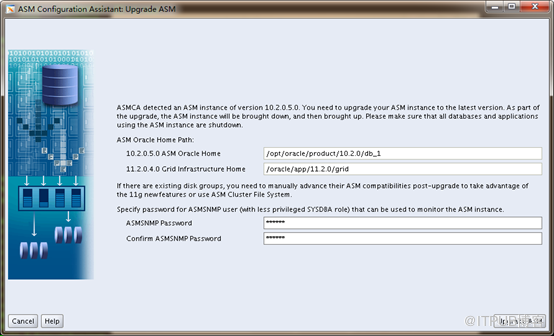

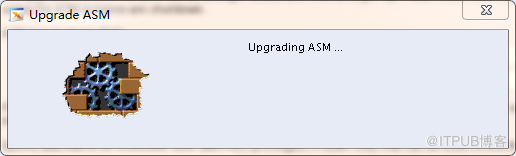

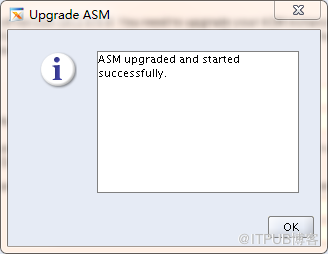

升级ASM，也可以执行asmca命令进行升级(提示升级)

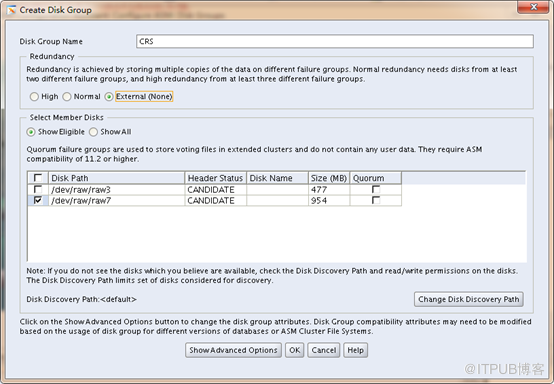

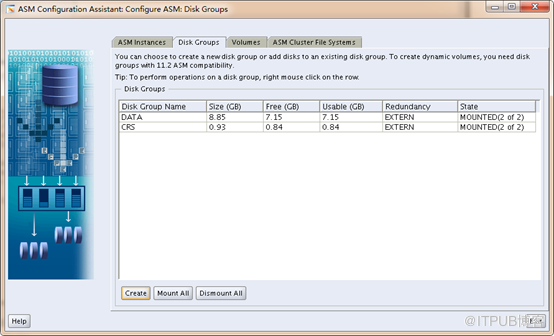

创建CRS 磁盘组

将ocr迁移至ASM（CRS磁盘组）中

[root@soul01 bin]# pwd

/oracle/app/11.2.0/grid/bin

[root@soul01 bin]# ./ocrconfig -add +crs

[root@soul01 bin]# ./ocrconfig -delete /dev/raw/raw1

[root@soul01 bin]# ./ocrc

ocrcheck ocrcheck.bin ocrconfig ocrconfig.bin

[root@soul01 bin]# ./ocrcheck

Status of Oracle Cluster Registry is as follows :

Version : 3

Total space (kbytes) : 485184

Used space (kbytes) : 6224

Available space (kbytes) : 478960

ID : 1368688852

Device/File Name : +crs

Device/File integrity check succeeded

Device/File not configured

Cluster registry integrity check succeeded

Logical corruption check succeeded

[root@soul01 bin]#

将voting迁移至ASM中

[oracle@soul01 ~]$ cd /oracle/app/11.2.0/grid/bin/

[oracle@soul01 bin]$ ./crsctl replace votedisk +crs

CRS-4256: Updating the profile

Successful addition of voting disk 5ff164f617014f16bff6cecbcd70d957.

Successful deletion of voting disk 42e6bb5f5eee7f51bf13f5d7a949aead.

Successfully replaced voting disk group with +crs.

CRS-4256: Updating the profile

CRS-4266: Voting file(s) successfully replaced

[oracle@soul01 bin]$ ./crsctl query css votedisk

## STATE File Universal Id File Name Disk group

-- ----- ----------------- --------- ---------

1. ONLINE 5ff164f617014f16bff6cecbcd70d957 (/dev/raw/raw7) [CRS]

Located 1 voting disk(s).

[oracle@soul01 bin]$
