深入SQL执行计划之CBO查询转换(5)：星型转换（Star Transformation）
编者按：
本文作者系Scott（中文名陈晓辉），现任大连华信资深分析师 ，ORACLE数据库专家，曾就职于甲骨文中国。个人主页：segmentfault.com/u/db_perf ，经其本人授权发布。
【免责声明】本公众号文章仅代表个人观点，与任何公司无关。
今天讲一个小众Case，Oracle数据库的“Star Transformation”。
根据关系数据库的范式理论，表在设计过程中会尽量降低耦合和冗余。
于是，大多数的数据库都是这样设计的。
例：
在一个销售系统中，一般都会涉及到这样几种数据：产品，分类，厂家，卖家，买家等等。
下面是表设计：
产品表：产品ID，产品名，价格。
分类表：分类ID，分类名。
厂家表：厂家ID，厂家名。
卖家表：卖家ID，卖家名。
买家表：买家ID，买家名。
销售记录表：时间，产品ID，分类ID，厂家ID，卖家ID，买家ID，其他。
使用上面的数据库设计，基本可以满足销售数据的快速记录，更新等日常处理。
但是，随着销售记录的增加，做下面的销售汇总报表的时候就会非常慢，因为报表是需要把销售记录的各种ID转换成实际名字给人看的。
Select 产品名, sum(价格)
from 销售记录表 t1, 产品表 t2, 分类表 t3, 厂家表 t4, 卖家表 t5, 买家表 t6
where t1.产品ID = t2.产品ID
and t1.分类ID = t3.分类ID
and t1.厂家ID = t4.厂家ID
and t1.卖家ID = t5.卖家ID
and t1.买家ID = t6.买家ID
and t2.产品名 = <aaaa>
and t3.分类名 = <bbbb>
and t4.厂家名 = <cccc>
and t5.卖家名 = <dddd>
and t6.买家名 = <eeee>;
如何解决这个问题呢？
聪明的ORACLE工程师设计了“Star Schema”和“Star Transformation”。
首先，什么是“Star Schema”呢？

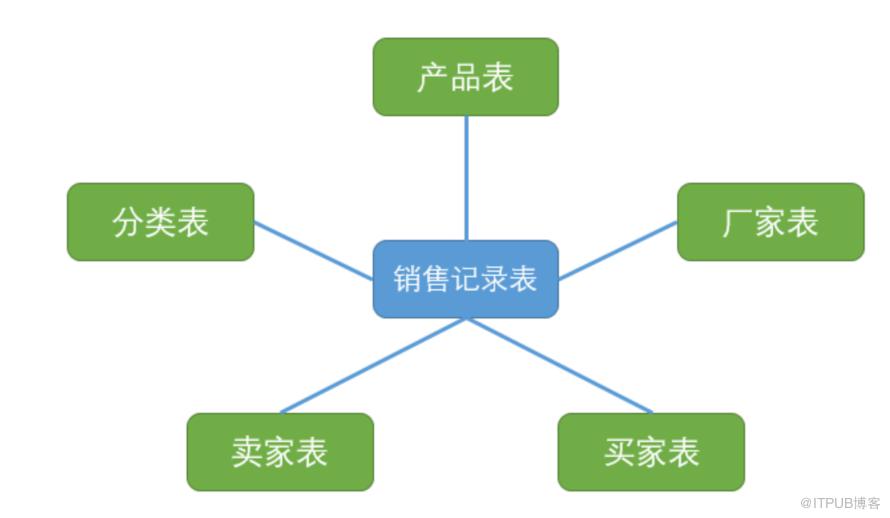

上面的例子里，我们可以发现在所有的表中，只有“销售记录表”一个“事实表”（Fact Table）。其他的表都只是"参照表"（Dimension Table）。结构可以用下面的图表示。
这就是一个典型的“Star Schema”。
那什么又是“Star Transformation”呢？
“Star Transformation”是ORACLE为了解决上面问题，结合ORACLE数据库特有的“Bitmap”索引而作出的优化。
“Star Transformation”是如何实现的呢？
在“Fact Table”的检索列上建立Bitmap索引。
通过检索列上的Bitmap索引操作（ BITMAP AND/OR）拿到“Fact Table”的RowID，从而避免”FULL SCAN“。
现在我用”Example Schemas“的几个表来演示一下。
-
取得”Star Transformation“没有启用时的执行计划。
SQL> show parameter star_transformation_enabled
NAME TYPE VALUE
------------------------------------ --------------------------------- ------------------------------
star_transformation_enabled string FALSE
SQL> set autot on
SQL> set autot traceonly exp
SQL> set lin 180 pages 9999
SQL> r
1 SELECT c.cust_city,
2 t.calendar_quarter_desc,
3 SUM(s.amount_sold) sales_amount
4 FROM sh.sales s,
5 sh.times t,
6 sh.customers c,
7 sh.channels ch
8 WHERE s.time_id = t.time_id
9 AND s.cust_id = c.cust_id
10 AND s.channel_id = ch.channel_id
11 AND c.cust_state_province = 'CA'
12 AND ch.channel_desc = 'Internet'
13 AND t.calendar_quarter_desc IN ('1999-01','1999-02')
14* GROUP BY c.cust_city, t.calendar_quarter_desc
実行計画
----------------------------------------------------------
Plan hash value: 1865285285
------------------------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | Pstart| Pstop | ------------------------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 405 | 30780 | 955 (2)| 00:00:12 | | |
| 1 | HASH GROUP BY | | 405 | 30780 | 955 (2)| 00:00:12 | | |
|* 2 | HASH JOIN | | 1558 | 115K| 954 (2)| 00:00:12 | | |
| 3 | PART JOIN FILTER CREATE | :BF0000 | 183 | 2928 | 18 (0)| 00:00:01 | | |
|* 4 | TABLE ACCESS FULL | TIMES | 183 | 2928 | 18 (0)| 00:00:01 | | |
|* 5 | HASH JOIN | | 12456 | 729K| 935 (2)| 00:00:12 | | |
| 6 | MERGE JOIN CARTESIAN | | 383 | 14937 | 408 (1)| 00:00:05 | | |
|* 7 | TABLE ACCESS FULL | CHANNELS | 1 | 13 | 3 (0)| 00:00:01 | | |
| 8 | BUFFER SORT | | 383 | 9958 | 405 (1)| 00:00:05 | | |
|* 9 | TABLE ACCESS FULL | CUSTOMERS | 383 | 9958 | 405 (1)| 00:00:05 | | |
| 10 | PARTITION RANGE JOIN-FILTER| | 918K| 18M| 525 (2)| 00:00:07 |:BF0000|:BF0000|
| 11 | TABLE ACCESS FULL | SALES | 918K| 18M| 525 (2)| 00:00:07 |:BF0000|:BF0000|
------------------------------------------------------------------------------------------------------------ -
取得”Star Transformation“启用时的执行计划。
SQL> alter session set star_transformation_enabled='true';
セッションが変更されました。
SQL> SELECT c.cust_city,
t.calendar_quarter_desc,
SUM(s.amount_sold) sales_amount
FROM sh.sales s,
sh.times t,
sh.customers c,
sh.channels ch
WHERE s.time_id = t.time_id
AND s.cust_id = c.cust_id
AND s.channel_id = ch.channel_id
AND c.cust_state_province = 'CA'
AND ch.channel_desc = 'Internet'
AND t.calendar_quarter_desc IN ('1999-01','1999-02')
GROUP BY c.cust_city, t.calendar_quarter_desc;
実行計画
----------------------------------------------------------
Plan hash value: 2164696140
--------------------------------------------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | Pstart| Pstop |
--------------------------------------------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 542 | 30894 | 533 (1)| 00:00:07 | | |
| 1 | TEMP TABLE TRANSFORMATION | | | | | | | |
| 2 | LOAD AS SELECT | SYS_TEMP_0FD9D6609_340EC8 | | | | | | |
|* 3 | TABLE ACCESS FULL | CUSTOMERS | 383 | 9958 | 405 (1)| 00:00:05 | | |
| 4 | HASH GROUP BY | | 542 | 30894 | 128 (1)| 00:00:02 | | |
|* 5 | HASH JOIN | | 1949 | 108K| 127 (0)| 00:00:02 | | |
| 6 | TABLE ACCESS FULL | SYS_TEMP_0FD9D6609_340EC8 | 383 | 5745 | 2 (0)| 00:00:01 | | |
|* 7 | HASH JOIN | | 1949 | 81858 | 125 (0)| 00:00:02 | | |
|* 8 | TABLE ACCESS FULL | TIMES | 183 | 2928 | 18 (0)| 00:00:01 | | |
| 9 | VIEW | VW_ST_A3F94988 | 1953 | 50778 | 107 (0)| 00:00:02 | | |
| 10 | NESTED LOOPS | | 1953 | 108K| 84 (0)| 00:00:02 | | |
| 11 | PARTITION RANGE SUBQUERY | | 1952 | 54676 | 54 (0)| 00:00:01 |KEY(SQ)|KEY(SQ)|
| 12 | BITMAP CONVERSION TO ROWIDS| | 1952 | 54676 | 54 (0)| 00:00:01 | | |
| 13 | BITMAP AND | | | | | | | |
| 14 | BITMAP MERGE | | | | | | | |
| 15 | BITMAP KEY ITERATION | | | | | | | |
| 16 | BUFFER SORT | | | | | | | |
|* 17 | TABLE ACCESS FULL | CHANNELS | 1 | 13 | 3 (0)| 00:00:01 | | |
|* 18 | BITMAP INDEX RANGE SCAN| SALES_CHANNEL_BIX | | | | |KEY(SQ)|KEY(SQ)|
| 19 | BITMAP MERGE | | | | | | | |
| 20 | BITMAP KEY ITERATION | | | | | | | |
| 21 | BUFFER SORT | | | | | | | |
|* 22 | TABLE ACCESS FULL | TIMES | 183 | 2928 | 18 (0)| 00:00:01 | | |
|* 23 | BITMAP INDEX RANGE SCAN| SALES_TIME_BIX | | | | |KEY(SQ)|KEY(SQ)|
| 24 | BITMAP MERGE | | | | | | | |
| 25 | BITMAP KEY ITERATION | | | | | | | |
| 26 | BUFFER SORT | | | | | | | |
| 27 | TABLE ACCESS FULL | SYS_TEMP_0FD9D6609_340EC8 | 383 | 1915 | 2 (0)| 00:00:01 | | |
|* 28 | BITMAP INDEX RANGE SCAN| SALES_CUST_BIX | | | | |KEY(SQ)|KEY(SQ)|
| 29 | TABLE ACCESS BY USER ROWID | SALES | 1 | 29 | 53 (0)| 00:00:01 | ROWID | ROWID |
简单的比较一下上面两个执行计划就可以发现”Star Transformation“启用后，Access的记录数和COST都大幅降低了。
在看一下CBO的动作，我们可以看到启用”Star Transformation“后，上面的SQL文被转换成了下面的SQL文：
SELECT
"T1" . "C1" "CUST_CITY"
,"T" . "CALENDAR_QUARTER_DESC" "CALENDAR_QUARTER_DESC"
,SUM (
"VW_ST_A3F94988" . "ITEM_3"
) "SALES_AMOUNT"
FROM
(
SELECT
/*+ ORDERED USE_NL ("SYS_CP_S") NOPARALLEL ("S") */ "SYS_CP_S" . "CUST_ID" "ITEM_1"
,"SYS_CP_S" . "TIME_ID" "ITEM_2"
,"SYS_CP_S" . "AMOUNT_SOLD" "ITEM_3"
FROM
"SH" . "SALES" "S"
,"SH" . "SALES" "SYS_CP_S"
WHERE
"S" . ROWID = "SYS_CP_S" . ROWID
AND "S" . "CUST_ID" = ANY (
SELECT
/*+ SEMIJOIN_DRIVER CACHE_TEMP_TABLE ("T1") */ "T1" . "C0" "C0"
FROM
"SYS" . "SYS_TEMP_0FD9D660B_340EC8" "T1"
)
AND "S" . "CHANNEL_ID" = ANY (
SELECT
/*+ SEMIJOIN_DRIVER */ "CH" . "CHANNEL_ID" "ITEM_1"
FROM
"SH" . "CHANNELS" "CH"
WHERE
"CH" . "CHANNEL_DESC" = 'Internet'
)
AND "S" . "TIME_ID" = ANY (
SELECT
/*+ SEMIJOIN_DRIVER */ "T" . "TIME_ID" "ITEM_1"
FROM
"SH" . "TIMES" "T"
WHERE
"T" . "CALENDAR_QUARTER_DESC" = '1999-01'
OR "T" . "CALENDAR_QUARTER_DESC" = '1999-02'
)
) "VW_ST_A3F94988"
,"SH" . "TIMES" "T"
,"SYS" . "SYS_TEMP_0FD9D660B_340EC8" "T1"
WHERE
"VW_ST_A3F94988" . "ITEM_2" = "T" . "TIME_ID"
AND "VW_ST_A3F94988" . "ITEM_1" = "T1" . "C0"
AND (
"T" . "CALENDAR_QUARTER_DESC" = '1999-01'
OR "T" . "CALENDAR_QUARTER_DESC" = '1999-02'
)
GROUP BY
"T1" . "C1"
,"T" . "CALENDAR_QUARTER_DESC"
大家是否注意到了有一个临时表“SYS_TEMP_0FD9D660B_340EC8”被使用了呢？
这个转换我们上面没有提到，实际这是一个”Star Transformation“的附加功能，他把属于“c.cust_state_province = 'CA'”的“customers” 缓存到一个临时表中，避免了在和“sales”表数据结合是再次对”TABLE ACCESS FULL CUSTOMERS“
我们看看如果不使用临时表的情况。
SQL> alter session set star_transformation_enabled='temp_disable';
セッションが変更されました。
SQL> SELECT c.cust_city,
t.calendar_quarter_desc,
SUM(s.amount_sold) sales_amount
2 3 4 FROM sh.sales s,
5 sh.times t,
6 sh.customers c,
7 sh.channels ch
WHERE s.time_id = t.time_id
AND s.cust_id = c.cust_id
AND s.channel_id = ch.channel_id
AND c.cust_state_province = 'CA'
AND ch.channel_desc = 'Internet'
AND t.calendar_quarter_desc IN ('1999-01','1999-02')
GROUP BY c.cust_city, t.calendar_quarter_desc;
8 9 10 11 12 13 14
実行計画
----------------------------------------------------------
Plan hash value: 2346071880
-----------------------------------------------------------------------------------------------------------------------
| Id | Operation | Name | Rows | Bytes | Cost (%CPU)| Time | Pstart| Pstop |
-----------------------------------------------------------------------------------------------------------------------
| 0 | SELECT STATEMENT | | 405 | 27540 | 1337 (1)| 00:00:17 | | |
| 1 | HASH GROUP BY | | 405 | 27540 | 1337 (1)| 00:00:17 | | |
|* 2 | HASH JOIN | | 1948 | 129K| 1336 (1)| 00:00:17 | | |
|* 3 | TABLE ACCESS FULL | CUSTOMERS | 383 | 9958 | 405 (1)| 00:00:05 | | |
|* 4 | HASH JOIN | | 1949 | 81858 | 931 (1)| 00:00:12 | | |
|* 5 | TABLE ACCESS FULL | TIMES | 183 | 2928 | 18 (0)| 00:00:01 | | |
| 6 | VIEW | VW_ST_B1772830 | 1953 | 50778 | 913 (1)| 00:00:11 | | |
| 7 | NESTED LOOPS | | 1953 | 108K| 487 (1)| 00:00:06 | | |
| 8 | PARTITION RANGE SUBQUERY | | 1952 | 54676 | 457 (1)| 00:00:06 |KEY(SQ)|KEY(SQ)|
| 9 | BITMAP CONVERSION TO ROWIDS| | 1952 | 54676 | 457 (1)| 00:00:06 | | |
| 10 | BITMAP AND | | | | | | | |
| 11 | BITMAP MERGE | | | | | | | |
| 12 | BITMAP KEY ITERATION | | | | | | | |
| 13 | BUFFER SORT | | | | | | | |
|* 14 | TABLE ACCESS FULL | CHANNELS | 1 | 13 | 3 (0)| 00:00:01 | | |
|* 15 | BITMAP INDEX RANGE SCAN| SALES_CHANNEL_BIX | | | | |KEY(SQ)|KEY(SQ)|
| 16 | BITMAP MERGE | | | | | | | |
| 17 | BITMAP KEY ITERATION | | | | | | | |
| 18 | BUFFER SORT | | | | | | | |
|* 19 | TABLE ACCESS FULL | TIMES | 183 | 2928 | 18 (0)| 00:00:01 | | |
|* 20 | BITMAP INDEX RANGE SCAN| SALES_TIME_BIX | | | | |KEY(SQ)|KEY(SQ)|
| 21 | BITMAP MERGE | | | | | | | |
| 22 | BITMAP KEY ITERATION | | | | | | | |
| 23 | BUFFER SORT | | | | | | | |
|* 24 | TABLE ACCESS FULL | CUSTOMERS | 383 | 6128 | 405 (1)| 00:00:05 | | |
|* 25 | BITMAP INDEX RANGE SCAN| SALES_CUST_BIX | | | | |KEY(SQ)|KEY(SQ)|
| 26 | TABLE ACCESS BY USER ROWID | SALES | 1 | 29 | 456 (1)| 00:00:06 | ROWID | ROWID |
-----------------------------------------------------------------------------------------------------------------------
是不是在24行，和“sales”表数据结合是再次对”TABLE ACCESS FULL CUSTOMERS“了呢。
最后，我们来总结一下如何启用”Star Transformation“。
1. 参数“star_transformation_enabled”设成“True”或“temp_disable”。
2. "Fact Table"的检索列上有Bitmap索引。
后续文章更加精彩，欢迎关注本公众号或访问【阅读原文】。
