sudo yum -y install iscsi-initiator-utilssudo systemctl start iscsidsudo systemctl status iscsid

[root@server065 obproxy-master]# systemctl status iscsid? iscsid.service - Open-iSCSI   Loaded: loaded (/usr/lib/systemd/system/iscsid.service; disabled; vendor preset: disabled)   Active: active (running) since Mon 2023-06-12 14:21:54 CST; 4s ago     Docs: man:iscsid(8)           man:iscsiuio(8)           man:iscsiadm(8) Main PID: 28743 (iscsid)   Status: "Ready to process requests"    Tasks: 1   Memory: 1.6M   CGroup: /system.slice/iscsid.service           └─28743 /sbin/iscsid -f

Jun 12 14:21:54 server065 systemd[1]: Starting Open-iSCSI...Jun 12 14:21:54 server065 systemd[1]: Started Open-iSCSI.

vi /etc/iscsi/iscsid.conf

node.session.auth.authmethod = CHAPnode.session.auth.username = usernamenode.session.auth.password = password

iscsiadm -m discovery -t st -p 10.0.0.205:3260

[root@server065 obproxy-master]# iscsiadm -m discovery -t st -p 10.0.0.205:326010.0.0.205:3260,1 iqn.2000-01.com.synology:DS918.default-target.392e48dbfa5[fe80::211:32ff:fec5:b34f]:3260,1 iqn.2000-01.com.synology:DS918.default-target.392e48dbfa5

iscsiadm -m node -T iqn.2000-01.com.synology:DS918.default-target.392e48dbfa5 -p 10.0.0.205:3260 -l

[root@server065 obproxy-master]# iscsiadm -m node -T iqn.2000-01.com.synology:DS918.default-target.392e48dbfa5 -p 10.0.0.205 -lLogging in to [iface: default, target: iqn.2000-01.com.synology:DS918.default-target.392e48dbfa5, portal: 10.0.0.205,3260] (multiple)Login to [iface: default, target: iqn.2000-01.com.synology:DS918.default-target.392e48dbfa5, portal: 10.0.0.205,3260] successful.

[root@server065 obproxy-master]# ls -lrth /dev/sd* |tail -n 1brw-rw----. 1 root disk 8, 32 Jun 12 14:26 /dev/sdc[root@server065 obproxy-master]# lsblk /dev/sdcNAME MAJ:MIN RM  SIZE RO TYPE MOUNTPOINTsdc    8:32   0  200G  0 disk

mkfs.ext4 /dev/sdcmkdir -p /backupmount -t noatime,nodealloc,nodiratime,default /dev/sdc /backup

iscsiadm -m node -T iqn.2000-01.com.synology:DS918.default-target.392e48dbfa5 -p 10.0.0.205:3260 -u

[root@server061 ~]# iscsiadm -m node -T iqn.2000-01.com.synology:DS918.default-target.392e48dbfa5 -p 10.0.0.205:3260 -uLogging out of session [sid: 1, target: iqn.2000-01.com.synology:DS918.default-target.392e48dbfa5, portal: 10.0.0.205,3260]Logout of [sid: 1, target: iqn.2000-01.com.synology:DS918.default-target.392e48dbfa5, portal: 10.0.0.205,3260] successful.

sudo yum -y install nfs-utils rpcbind

sudo vim /etc/exports/backup  10.0.0.65/16(rw,sync,all_squash)

sudo chown nfsnobody:nfsnobody -R /backup

sudo vim /etc/sysconfig/nfsRPCNFSDARGS="-N 2 -N 3 -U"RPCNFSDCOUNT=16NFSD_V4_GRACE=90NFSD_V4_LEASE=90

sudo systemctl restart nfs-configsudo systemctl restart nfs-server

vim + /etc/sysctl.confsunrpc.tcp_max_slot_table_entries=128

[root@server065 ~]# sysctl -psysctl: cannot stat /proc/sys/sunrpc/tcp_max_slot_table_entries: No such file or directory[root@server065 ~]# modprobe sunrpc[root@server065 ~]# lsmod|grep rpcsunrpc                366617  0[root@server065 ~]# sysctl -psunrpc.tcp_max_slot_table_entries = 128

vim + /etc/ansible/hosts

[dbservers]10.0.0.6110.0.0.6210.0.0.63

ansible dbservers -m shell -a "sudo yum -y install nfs-utils "

ansible dbservers -m shell -a "modprobe sunrpc"ansible dbservers -m shell -a "sysctl -w sunrpc.tcp_max_slot_table_entries=128"ansible dbservers -m shell -a "sudo sysctl -a 2>/dev/null |grep sunrpc.tcp_max_slot_table_entries "ansible dbservers -m shell -a "echo 'sunrpc.tcp_max_slot_table_entries=128'

[root@server065 ~]# ansible dbservers -m shell -a "showmount -e 10.0.0.65"10.0.0.62 | CHANGED | rc=0 >>Export list for 10.0.0.65:/backup 10.0.0.65/1610.0.0.63 | CHANGED | rc=0 >>Export list for 10.0.0.65:/backup 10.0.0.65/1610.0.0.61 | CHANGED | rc=0 >>Export list for 10.0.0.65:/backup 10.0.0.65/16[root@server065 ~]#

ansible dbservers -m shell -a "mkdir -p /backup"ansible dbservers -m shell -a "sudo mount -tnfs4 -o rw,nfsvers=4.1,sync,lookupcache=positive,hard,timeo=600,wsize=1048576,rsize=1048576,namlen=255 10.0.0.65:/backup /backup"ansible dbservers -m shell -a "mount |grep backup"

date > /tmp/tmpfileansible dbservers -m copy -a "src=/tmp/tmpfile dest=/backup/"ansible dbservers -m shell -a "ls -lrth /backup/ && cat /backup/tmpfile"

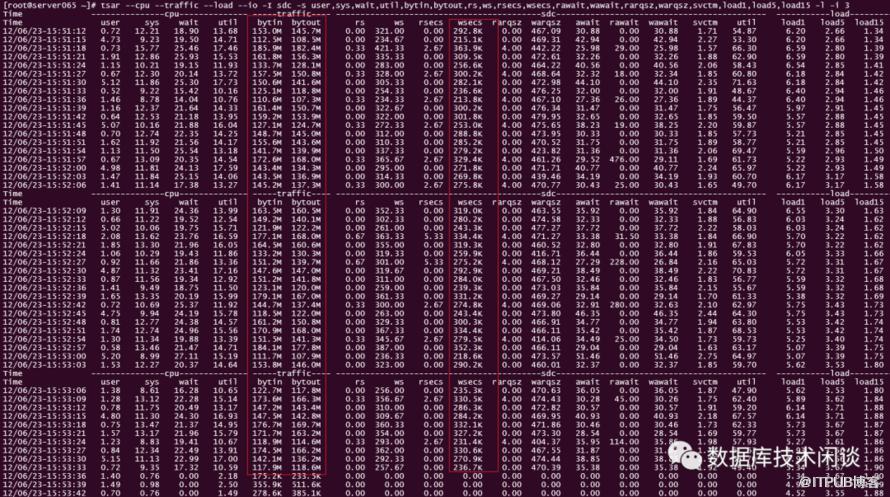

fio -filename=/backup/fio-file.test -direct=1  -rw=randwrite -bs=2048K -size=100G  -runtime=300 -group_reporting -name=mytest  -ioengine=libaio -numjobs=1 -iodepth=64 -iodepth_batch=8 -iodepth_low=8 -iodepth_batch_complete=8

[root@server061 ~]# fio -filename=/backup/fio-file.test -direct=1  -rw=randwrite -bs=2048K -size=100G  -runtime=300 -group_reporting -name=mytest  -ioengine=libaio -numjobs=1 -iodepth=64 -iodepth_batch=8 -iodepth_low=8 -iodepth_batch_complete=8mytest: (g=0): rw=randwrite, bs=(R) 2048KiB-2048KiB, (W) 2048KiB-2048KiB, (T) 2048KiB-2048KiB, ioengine=libaio, iodepth=64fio-3.13Starting 1 processmytest: Laying out IO file (1 file / 102400MiB)Jobs: 1 (f=1): [w(1)][100.0%][w=140MiB/s][w=70 IOPS][eta 00m:00s]mytest: (groupid=0, jobs=1): err= 0: pid=25490: Mon Jun 12 15:53:33 2023  write: IOPS=71, BW=143MiB/s (150MB/s)(42.0GiB/300168msec)    slat (usec): min=1273, max=84113, avg=4363.27, stdev=4352.55    clat (msec): min=114, max=1445, avg=537.07, stdev=231.09     lat (msec): min=117, max=1447, avg=541.43, stdev=231.36    clat percentiles (msec):     |  1.00th=[  150],  5.00th=[  180], 10.00th=[  220], 20.00th=[  326],     | 30.00th=[  384], 40.00th=[  468], 50.00th=[  535], 60.00th=[  600],     | 70.00th=[  659], 80.00th=[  726], 90.00th=[  835], 95.00th=[  927],     | 99.00th=[ 1133], 99.50th=[ 1200], 99.90th=[ 1401], 99.95th=[ 1435],     | 99.99th=[ 1452]   bw (  KiB/s): min=32702, max=229376, per=99.68%, avg=146303.09, stdev=37605.19, samples=600   iops        : min=   15, max=  112, avg=71.10, stdev=18.42, samples=600  lat (msec)   : 250=12.37%, 500=32.01%, 750=38.43%, 1000=14.33%, 2000=2.87%  cpu          : usr=1.32%, sys=2.35%, ctx=8653, majf=0, minf=131171  IO depths    : 1=0.0%, 2=0.0%, 4=0.0%, 8=0.1%, 16=28.6%, 32=57.1%, >=64=14.3%     submit    : 0=0.0%, 4=0.0%, 8=100.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%     complete  : 0=0.0%, 4=0.0%, 8=100.0%, 16=0.0%, 32=0.0%, 64=0.0%, >=64=0.0%     issued rwts: total=0,21512,0,0 short=0,0,0,0 dropped=0,0,0,0     latency   : target=0, window=0, percentile=100.00%, depth=64

Run status group 0 (all jobs):  WRITE: bw=143MiB/s (150MB/s), 143MiB/s-143MiB/s (150MB/s-150MB/s), io=42.

ALTER SYSTEM SET backup_dest='file:///backup/obbackup';show parameters like 'backup_dest';

(root@10.0.0.61:2883) [oceanbase]> ALTER SYSTEM SET backup_dest='file:///backup/obbackup';Query OK, 0 rows affected (0.09 sec)

(root@10.0.0.61:2883) [oceanbase]> show parameters like 'backup_dest';+-------+----------+-----------+----------+-------------+-----------+-------------------------+-------------+----------+---------+---------+-------------------+| zone  | svr_type | svr_ip    | svr_port | name        | data_type | value                   | info        | section  | scope   | source  | edit_level        |+-------+----------+-----------+----------+-------------+-----------+-------------------------+-------------+----------+---------+---------+-------------------+| ZONE3 | observer | 10.0.0.63 |     2882 | backup_dest | NULL      | file:///backup/obbackup | backup dest | OBSERVER | CLUSTER | DEFAULT | DYNAMIC_EFFECTIVE || ZONE2 | observer | 10.0.0.62 |     2882 | backup_dest | NULL      | file:///backup/obbackup | backup dest | OBSERVER | CLUSTER | DEFAULT | DYNAMIC_EFFECTIVE || zone1 | observer | 10.0.0.61 |     2882 | backup_dest | NULL      | file:///backup/obbackup | backup dest | OBSERVER | CLUSTER | DEFAULT | DYNAMIC_EFFECTIVE |+-------+----------+-----------+----------+-------------+-----------+-------------------------+-------------+----------+---------+---------+-------------------+3 rows in set (0.05 sec)

ALTER SYSTEM SET backup_dest_option='log_archive_checkpoint_interval=2m&recovery_window=7d&auto_delete_obsolete_backup=true&log_archive_piece_switch_interval=1d&backup_copies=0';show parameters like 'backup_dest_option';

ALTER SYSTEM SET backup_log_archive_option = 'optional compression= enable';

ALTER SYSTEM SET backup_log_archive_option='optional compression= zstd_1.3.8';

ALTER SYSTEM ARCHIVELOG;

SELECT INCARNATION , LOG_ARCHIVE_ROUND , TENANT_ID , STATUS , START_PIECE_ID , BACKUP_PIECE_ID , MIN_FIRST_TIME    FROM CDB_OB_BACKUP_ARCHIVELOG;

SELECT INCARNATION , TENANT_ID ,ROUND_ID ,BACKUP_PIECE_ID ,COPY_ID ,CREATE_DATE ,START_TS ,CHECKPOINT_TS ,STATUS ,FILE_STATUS ,START_PIECE_ID   FROM CDB_OB_BACKUP_PIECE_FILES;

SET ENCRYPTION ON IDENTIFIED BY 'aaAA11__' ONLY;

ALTER SYSTEM BACKUP DATABASE;

SELECT INCARNATION , BS_KEY , BACKUP_TYPE , TENANT_ID , PARTITION_COUNT , MACRO_BLOCK_COUNT ,FINISH_PARTITION_COUNT ,FINISH_MACRO_BLOCK_COUNT , INPUT_BYTES ,OUTPUT_BYTES , START_TIME , COMPLETION_TIME ,status    FROM oceanbase.CDB_OB_BACKUP_PROGRESS;

SELECT BS_KEY, INCARNATION , TENANT_ID , COPY_ID , BACKUP_TYPE , ENCRYPTION_MODE ,STATUS ,FILE_STATUS ,START_TIME , COMPLETION_TIME , ELAPSED_SECONDES , COMPRESSED , OUTPUT_BYTES , COMPRESSION_RATIO , OUTPUT_RATE_BYTES_DISPLAY FROM oceanbase.CDB_OB_BACKUP_SET_FILESORDER BY BS_KEY DESC, TENANT_ID  ;

ALTER SYSTEM BACKUP INCREMENTAL DATABASE;

ALTER SYSTEM VALIDATE DATABASE;

(root@10.0.0.61:2883) [oceanbase]> ALTER SYSTEM VALIDATE DATABASE;Query OK, 0 rows affected (0.04 sec)

SELECT job_id, tenant_id, TENANT_NAME, INCARNATION , BACKUP_SET_ID , PROGRESS_PERCENT , STATUS ,VALIDATE_TYPE ,BACKUP_DEST ,START_TIME ,END_TIME ,`RESULT` , COMMENT  FROM CDB_OB_BACKUP_VALIDATION_JOB;SELECT job_id, tenant_id, TENANT_NAME, INCARNATION , BACKUP_SET_ID , PROGRESS_PERCENT , STATUS ,VALIDATE_TYPE ,BACKUP_DEST ,START_TIME ,END_TIME ,`RESULT` , COMMENT    FROM CDB_OB_BACKUP_VALIDATION_JOB_HISTORY;

SELECT job_id, task_id, TENANT_ID , INCARNATION , BACKUP_SET_ID ,VALIDATE_TYPE ,STATUS ,BACKUP_DEST , START_TIME ,END_TIME ,TOTAL_PG_COUNT ,FINISH_PG_COUNT , TOTAL_PARTITION_COUNT ,FINISH_PARTITION_COUNT ,RESULT, COMMENT   FROM CDB_OB_TENANT_BACKUP_VALIDATION_TASKORDER BY START_TIME  DESC ;SELECT job_id, task_id, TENANT_ID , INCARNATION , BACKUP_SET_ID ,VALIDATE_TYPE ,STATUS ,BACKUP_DEST , START_TIME ,END_TIME ,TOTAL_PG_COUNT ,FINISH_PG_COUNT , TOTAL_PARTITION_COUNT ,FINISH_PARTITION_COUNT ,RESULT, COMMENT   FROM CDB_OB_BACKUP_VALIDATION_TASK_HISTORYORDER BY START_TIME  DESC ;

ALTER SYSTEM VALIDATE BACKUPSET 4 ;ALTER SYSTEM VALIDATE BACKUPPIECE 1;

create table t_backup(id bigint not null auto_increment primary key, c1 varchar(100) , c2 timestamp default current_timestamp );insert into t_backup(c1) values('test backup and restore');

insert into t_backup(c1) values('test backup and restore 2. ');

(root@10.0.0.61:2883) [test]> select * from t_backup;+----+-----------------------------+---------------------+| id | c1                          | c2                  |+----+-----------------------------+---------------------+|  1 | test backup and restore     | 2023-06-12 17:42:01 ||  2 | test backup and restore 2.  | 2023-06-12 17:42:26 |+----+-----------------------------+---------------------+2 rows in set (0.02 sec)

select a.zone,concat(a.svr_ip,':',a.svr_port) observer, cpu_total, (cpu_total-cpu_assigned) cpu_free, round(mem_total/1024/1024/1024) mem_total_gb, round((mem_total-mem_assigned)/1024/1024/1024,2) mem_free_gb, round(disk_total/1024/1024/1024) disk_total_gb, round((disk_total-disk_assigned)/1024/1024/1024) disk_free_gbfrom __all_virtual_server_stat a join __all_server b on (a.svr_ip=b.svr_ip and a.svr_port=b.svr_port)order by a.zone, a.svr_ip;

CREATE RESOURCE UNIT b_4c2g max_cpu 4, max_memory '2g', max_iops 10240, max_disk_size 53687091200, max_session_num 64, MIN_CPU=4, MIN_MEMORY='2g', MIN_IOPS=10240;

CREATE RESOURCE POOL restore_pool unit = 'b_4c2g', unit_num = 1, zone_list = ('ZONE3');

SET @kms_encrypt_info = 'aaAA11__';

ALTER SYSTEM SET restore_concurrency = 4;ALTER SYSTEM SET _restore_idle_time = '30s';SET DECRYPTION IDENTIFIED BY 'aaAA11__';

ALTER SYSTEM RESTORE restored_obmysql FROM obmysql at 'file:///backup/obbackup' until '2023-06-12 17:42:15' with 'backup_cluster_name=obdemo&backup_cluster_id=1680747946&pool_list=restore_pool';

(root@10.0.0.61:2883) [oceanbase]> ALTER SYSTEM RESTORE restored_obmysql FROM obmysql at 'file:///backup/obbackup' until '2023-06-12 17:42:15' with 'backup_cluster_name=obdemo&backup_cluster_id=1680747946&pool_list=restore_pool';Query OK, 0 rows affected (0.14 sec)

SELECT JOB_ID, TENANT_ID , TENANT_NAME, BACKUP_TENANT_ID ,BACKUP_TENANT_NAME ,BACKUP_CLUSTER_ID ,BACKUP_CLUSTER_NAME ,STATUS , START_TIME ,COMPLETION_TIME , PARTITION_COUNT , MACRO_BLOCK_COUNT , FINISH_PARTITION_COUNT , FINISH_MACRO_BLOCK_COUNT ,RESTORE_START_TIMESTAMP , RESTORE_FINISH_TIMESTAMP , BACKUP_SET_LIST , BACKUP_PIECE_LIST ,infoFROM oceanbase.CDB_OB_RESTORE_PROGRESS;

SELECT JOB_ID, TENANT_ID , TENANT_NAME, BACKUP_TENANT_ID ,BACKUP_TENANT_NAME ,BACKUP_CLUSTER_ID ,BACKUP_CLUSTER_NAME ,STATUS , START_TIME ,COMPLETION_TIME , PARTITION_COUNT , MACRO_BLOCK_COUNT , FINISH_PARTITION_COUNT , FINISH_MACRO_BLOCK_COUNT ,RESTORE_START_TIMESTAMP , RESTORE_FINISH_TIMESTAMP , BACKUP_SET_LIST , BACKUP_PIECE_LIST ,info FROM oceanbase.CDB_OB_RESTORE_HISTORY;

[root@server065 ~]# mysql -h10.0.0.61 -uroot@restored_obmysql#obdemo -P2883 -paaAA11__ -c -A testmysql: [Warning] Using a password on the command line interface can be insecure.Welcome to the MySQL monitor.  Commands end with ; or \g.Your MySQL connection id is 4706Server version: 5.6.25 OceanBase 3.2.4.1 (r101000052023010822-346aa35c32e99d1b82d713f75f0072c45bdf7aab) (Built Jan  8 2023 22:52:43)

Copyright (c) 2000, 2021, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or itsaffiliates. Other names may be trademarks of their respectiveowners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

(root@10.0.0.61:2883) [test]> select * from t_backup;+----+-------------------------+---------------------+| id | c1                      | c2                  |+----+-------------------------+---------------------+|  1 | test backup and restore | 2023-06-12 17:42:01 |+----+-------------------------+---------------------+1 row in set (0.54 sec)

(root@10.0.0.61:2883) [test]>

(root@10.0.0.61:2883) [test]> SELECT unit_id, unit_config_name, resource_pool_name, ZONE, tenant_id,tenant_name,svr_ip,max_cpu,min_cpu,round(max_memory/1024/1024/1024) max_mem_gb    -> FROM oceanbase.gv$unit ;+---------+------------------+--------------------+-------+-----------+------------------+-----------+---------+---------+------------+| unit_id | unit_config_name | resource_pool_name | ZONE  | tenant_id | tenant_name      | svr_ip    | max_cpu | min_cpu | max_mem_gb |+---------+------------------+--------------------+-------+-----------+------------------+-----------+---------+---------+------------+|    1010 | b_4c2g           | restore_pool       | ZONE3 |      1005 | restored_obmysql | 10.0.0.63 |       4 |       4 |          2 |+---------+------------------+--------------------+-------+-----------+------------------+-----------+---------+---------+------------+1 row in set (0.08 sec)

(root@10.0.0.61:2883) [oceanbase]> drop tenant obmysql;Query OK, 0 rows affected (0.07 sec)

(root@10.0.0.61:2883) [oceanbase]> alter tenant restored_obmysql rename global_name to obmysql;Query OK, 0 rows affected (0.04 sec)

(root@10.0.0.61:2883) [oceanbase]> select tenant_id, tenant_name , locality from __all_tenant;+-----------+-----------------------------------------+---------------------------------------------+| tenant_id | tenant_name                             | locality                                    |+-----------+-----------------------------------------+---------------------------------------------+|         1 | sys                                     | FULL{1}@zone1                               ||      1001 | oboracle                                | FULL{1}@zone1                               ||      1002 | __recycle_$_1680747946_1686204048874496 | FULL{1}@ZONE2, FULL{1}@ZONE3, FULL{1}@zone1 ||      1005 | obmysql                                 | FULL{1}@ZONE3                               |+-----------+-----------------------------------------+---------------------------------------------+4 rows in set (0.01 sec)
