#接口调用@FeignClient("demo-service"）public interface DemoServiceFeginClient {}# 开启feign@EnableFeignClients(basePackages = {"com.yxkong.api"})public class ApiStarter {}

FeignClient和EnableFeignClients  位于Maven:     org.springframework.cloud    spring-cloud-openfeign-core    2.2.8.RELEASE

@Retention(RetentionPolicy.RUNTIME)@Target(ElementType.TYPE)@Documented//关键点,利用spring的动态注册bean的机制，在 Configuration配置加载分析 中已经详细解说@Import(FeignClientsRegistrar.class)public @interface EnableFeignClients {class FeignClientsRegistrar implements ImportBeanDefinitionRegistrar, ResourceLoaderAware, EnvironmentAware   @Override    public void registerBeanDefinitions(AnnotationMetadata metadata, BeanDefinitionRegistry registry)     //如果有配置defaultConfiguration 则注册到ioc    registerDefaultConfiguration(metadata, registry);    //根据配置扫描的feignClient，生成bean并注册到registry        registerFeignClients(metadata, registry);  }      public void registerFeignClients(AnnotationMetadata metadata,BeanDefinitionRegistry registry) {
    LinkedHashSet<BeanDefinition> candidateComponents = new LinkedHashSet<>();    Map<String, Object> attrs = metadata.getAnnotationAttributes(EnableFeignClients.class.getName());    //从EnableFeignClients查找配置的clients    final Class<?>[] clients = attrs == null ? null: (Class<?>[]) attrs.get("clients");    if (clients == null || clients.length == 0) {      ClassPathScanningCandidateComponentProvider scanner = getScanner();      scanner.setResourceLoader(this.resourceLoader);      //设置过滤条件FeignClient      scanner.addIncludeFilter(new AnnotationTypeFilter(FeignClient.class));      //在getBasePackages将所有的路径聚合      Set<String> basePackages = getBasePackages(metadata);      for (String basePackage : basePackages) {        //将扫描到的所有FeignClient放入candidateComponents        candidateComponents.addAll(scanner.findCandidateComponents(basePackage));      }    }    for (BeanDefinition candidateComponent : candidateComponents) {      if (candidateComponent instanceof AnnotatedBeanDefinition) {          //构建FeignClientFactoryBean注入ioc中        registerFeignClient(registry, annotationMetadata, attributes);      }    }  }    private void registerFeignClient(BeanDefinitionRegistry registry,      AnnotationMetadata annotationMetadata, Map<String, Object> attributes) {    String className = annotationMetadata.getClassName();    Class clazz = ClassUtils.resolveClassName(className, null);    ConfigurableBeanFactory beanFactory = registry instanceof ConfigurableBeanFactory        ? (ConfigurableBeanFactory) registry : null;    String contextId = getContextId(beanFactory, attributes);    String name = getName(attributes);    //真正的是这块，构建一个FeignClientFactoryBean并注入到ioc中    FeignClientFactoryBean factoryBean = new FeignClientFactoryBean();    factoryBean.setBeanFactory(beanFactory);    // 注入对象的名称是配置的或者spring自动生成    factoryBean.setName(name);    factoryBean.setContextId(contextId);    //对象类型就是FeignClient标注的对象本身（如此通过@Autowird能快速获取到对应的对象）    factoryBean.setType(clazz);    BeanDefinitionBuilder definition = BeanDefinitionBuilder        .genericBeanDefinition(clazz, () -> {          factoryBean.setUrl(getUrl(beanFactory, attributes));          factoryBean.setPath(getPath(beanFactory, attributes));          factoryBean.setDecode404(Boolean              .parseBoolean(String.valueOf(attributes.get("decode404"))));          Object fallback = attributes.get("fallback");          if (fallback != null) {            factoryBean.setFallback(fallback instanceof Class                ? (Class<?>) fallback                : ClassUtils.resolveClassName(fallback.toString(), null));          }          Object fallbackFactory = attributes.get("fallbackFactory");          if (fallbackFactory != null) {            factoryBean.setFallbackFactory(fallbackFactory instanceof Class                ? (Class<?>) fallbackFactory                : ClassUtils.resolveClassName(fallbackFactory.toString(),                    null));          }          //从FeignClientFactoryBean中获取构建的Feign对象          return factoryBean.getObject();        });
    BeanDefinitionHolder holder = new BeanDefinitionHolder(beanDefinition, className,        qualifiers);    //最终将Feign对象注入到IOC中    BeanDefinitionReaderUtils.registerBeanDefinition(holder, registry);  }}

public class FeignClientFactoryBean implements FactoryBean<Object>, InitializingBean,    ApplicationContextAware, BeanFactoryAware {  @Override  public Object getObject() {    return getTarget();  }  <T> T getTarget() {    FeignContext context = beanFactory != null? beanFactory.getBean(FeignContext.class): applicationContext.getBean(FeignContext.class);    // 这块是关键，构建了一个Feign对象，在这里设置feign具备哪些功能    Feign.Builder builder = feign(context);    //没有配置url的时候走下面的流程    if (!StringUtils.hasText(url)) {      if (!name.startsWith("http")) {        url = "http://" + name;      }      else {        url = name;      }      url += cleanPath();                  return (T) loadBalance(builder, context,new HardCodedTarget<>(type, name, url));    }    if (StringUtils.hasText(url) && !url.startsWith("http")) {      url = "http://" + url;    }    String url = this.url + cleanPath();    Client client = getOptional(context, Client.class);    if (client != null) {      if (client instanceof LoadBalancerFeignClient) {        // not load balancing because we have a url,        // but ribbon is on the classpath, so unwrap        client = ((LoadBalancerFeignClient) client).getDelegate();      }      if (client instanceof FeignBlockingLoadBalancerClient) {        // not load balancing because we have a url,        // but Spring Cloud LoadBalancer is on the classpath, so unwrap        client = ((FeignBlockingLoadBalancerClient) client).getDelegate();      }      if (client instanceof RetryableFeignBlockingLoadBalancerClient) {        // not load balancing because we have a url,        // but Spring Cloud LoadBalancer is on the classpath, so unwrap        client = ((RetryableFeignBlockingLoadBalancerClient) client)            .getDelegate();      }      builder.client(client);    }    Targeter targeter = get(context, Targeter.class);    return (T) targeter.target(this, builder, context,        new HardCodedTarget<>(type, name, url));  }  protected Feign.Builder feign(FeignContext context) {    FeignLoggerFactory loggerFactory = get(context, FeignLoggerFactory.class);    Logger logger = loggerFactory.create(type);
    // @formatter:off    Feign.Builder builder = get(context, Feign.Builder.class)        // required values        .logger(logger)        .encoder(get(context, Encoder.class))        .decoder(get(context, Decoder.class))        .contract(get(context, Contract.class));    // @formatter:on    // 关键点      configureFeign(context, builder);    applyBuildCustomizers(context, builder);
    return builder;  }  protected void configureFeign(FeignContext context, Feign.Builder builder) {      //配置Feign      configureUsingConfiguration(context, builder);      //从属性中获取配feign的属性      configureUsingProperties(properties.getConfig().get(properties.getDefaultConfig()),builder);      configureUsingProperties(properties.getConfig().get(contextId), builder);  }  protected void configureUsingConfiguration(FeignContext context,      Feign.Builder builder) {      主要包含：      1，日志级别      2，Retryer      3，ErrorDecoder      4，Request.Options      5，RequestInterceptor      6，QueryMapEncoder      7，ExceptionPropagationPolicy 异常策略  }  protected <T> T loadBalance(Feign.Builder builder, FeignContext context,      HardCodedTarget<T> target) {    Client client = getOptional(context, Client.class);    if (client != null) {      builder.client(client);      //Targeter是HystrixTargeter      Targeter targeter = get(context, Targeter.class);      //具体看HystrixTargeter.target 方法      return targeter.target(this, builder, context, target);    }    //看这个自定义异常就能发现Client是spring-cloud-starter-netflix-ribbon or spring-cloud-starter-loadbalancer这两个里面的    throw new IllegalStateException(        "No Feign Client for loadBalancing defined. Did you forget to include spring-cloud-starter-netflix-ribbon or spring-cloud-starter-loadbalancer?");  }  }class HystrixTargeter implements Targeter {  public <T> T target(FeignClientFactoryBean factory, Feign.Builder feign,      FeignContext context, Target.HardCodedTarget<T> target) {        return feign.target(target);      }}public abstract class Feign {  //构建了Feign的默认参数  public static class Builder {      private InvocationHandlerFactory invocationHandlerFactory =        new InvocationHandlerFactory.Default();  }  public <T> T target(Target<T> target) {     return build().newInstance(target);  }  public Feign build() {     SynchronousMethodHandler.Factory synchronousMethodHandlerFactory =          new SynchronousMethodHandler.Factory(client, retryer, requestInterceptors, logger,              logLevel, decode404, closeAfterDecode, propagationPolicy, forceDecoding);      ParseHandlersByName handlersByName =          new ParseHandlersByName(contract, options, encoder, decoder, queryMapEncoder,              errorDecoder, synchronousMethodHandlerFactory);     //invocationHandlerFactory 在Builder中构建了默认InvocationHandlerFactory.Default()     return new ReflectiveFeign(handlersByName, invocationHandlerFactory, queryMapEncoder);  }}public class ReflectiveFeign extends Feign {  public <T> T newInstance(Target<T> target) {     // targetToHandlersByName内构建了SynchronousMethodHandler和BuildTemplateByResolvingArgs     Map<String, MethodHandler> nameToHandler = targetToHandlersByName.apply(target);     // factory 就是在Feign.build传入的，是Feign.Builder初始化的     //在此create的时候ReflectiveFeign.FeignInvocationHandler(target, dispatch);     InvocationHandler handler = factory.create(target, methodToHandler);     //最后代理的handler是FeignInvocationHandler     T proxy = (T) Proxy.newProxyInstance(target.type().getClassLoader(),        new Class<?>[] {target.type()}, handler);     return proxy;  }  static class FeignInvocationHandler implements InvocationHandler {    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {    }  }}//FeignClient 没有配置url，只有一个服务名@FeignClient("demo-service")public interface DemoServiceFeignClient {    @RequestMapping(value = "/demo/hello",method = {RequestMethod.GET})    ResultBean hello();
}

  protected <T> T loadBalance(Feign.Builder builder, FeignContext context,      HardCodedTarget<T> target) {    //从spring的context中获取指定类型Client的实例    Client client = getOptional(context, Client.class);    if (client != null) {      builder.client(client);      //从spring的context中获取指定类型Targeter的实例      //Targeter是HystrixTargeter      Targeter targeter = get(context, Targeter.class);      return targeter.target(this, builder, context, target);    }    //看这个自定义异常就能发现Client是spring-cloud-starter-netflix-ribbon or spring-cloud-starter-loadbalancer这两个里面的    throw new IllegalStateException(        "No Feign Client for loadBalancing defined. Did you forget to include spring-cloud-starter-netflix-ribbon or spring-cloud-starter-loadbalancer?");  }

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\org.springframework.cloud.openfeign.ribbon.FeignRibbonClientAutoConfiguration,\org.springframework.cloud.openfeign.hateoas.FeignHalAutoConfiguration,\org.springframework.cloud.openfeign.FeignAutoConfiguration,\org.springframework.cloud.openfeign.encoding.FeignAcceptGzipEncodingAutoConfiguration,\org.springframework.cloud.openfeign.encoding.FeignContentGzipEncodingAutoConfiguration,\org.springframework.cloud.openfeign.loadbalancer.FeignLoadBalancerAutoConfiguration

//第一个就是HttpClientFeignLoadBalancedConfiguration@Import({ HttpClientFeignLoadBalancedConfiguration.class,    OkHttpFeignLoadBalancedConfiguration.class,    HttpClient5FeignLoadBalancedConfiguration.class,    DefaultFeignLoadBalancedConfiguration.class })public class FeignRibbonClientAutoConfiguration {}

@Configuration(proxyBeanMethods = false)//没引入这个类，不执行@ConditionalOnClass(ApacheHttpClient.class)@ConditionalOnProperty(value = "feign.httpclient.enabled", matchIfMissing = true)@Conditional(HttpClient5DisabledConditions.class)//这里又导入了HttpClient@Import(HttpClientFeignConfiguration.class)class HttpClientFeignLoadBalancedConfiguration {}@Configuration(proxyBeanMethods = false)//这个也没引入，不执行@ConditionalOnClass(OkHttpClient.class)@ConditionalOnProperty("feign.okhttp.enabled")@Import(OkHttpFeignConfiguration.class)class OkHttpFeignLoadBalancedConfiguration {}@Configuration(proxyBeanMethods = false)//这个没引入，不执行@ConditionalOnClass(ApacheHttp5Client.class)@ConditionalOnProperty(value = "feign.httpclient.hc5.enabled", havingValue = "true")@Import(HttpClient5FeignConfiguration.class)class HttpClient5FeignLoadBalancedConfiguration {}

@Configuration(proxyBeanMethods = false)class DefaultFeignLoadBalancedConfiguration {
  @Bean  @ConditionalOnMissingBean  public Client feignClient(CachingSpringLoadBalancerFactory cachingFactory,      SpringClientFactory clientFactory) {    return new LoadBalancerFeignClient(new Client.Default(null, null), cachingFactory,        clientFactory);  }}

@Configuration(proxyBeanMethods = false)@ConditionalOnClass(Feign.class)@EnableConfigurationProperties({ FeignClientProperties.class,    FeignHttpClientProperties.class, FeignEncoderProperties.class })@Import(DefaultGzipDecoderConfiguration.class)public class FeignAutoConfiguration {  @Configuration(proxyBeanMethods = false)  @Conditional(DefaultFeignTargeterConditions.class)  protected static class DefaultFeignTargeterConfiguration {
    @Bean    @ConditionalOnMissingBean    public Targeter feignTargeter() {      return new DefaultTargeter();    }
  }
  @Configuration(proxyBeanMethods = false)  @Conditional(FeignCircuitBreakerDisabledConditions.class)  @ConditionalOnClass(name = "feign.hystrix.HystrixFeign")  //优先使用这个  @ConditionalOnProperty(value = "feign.hystrix.enabled", havingValue = "true",      matchIfMissing = true)  protected static class HystrixFeignTargeterConfiguration {
    @Bean    @ConditionalOnMissingBean    public Targeter feignTargeter() {      return new HystrixTargeter();    }
  }
  @Configuration(proxyBeanMethods = false)  @ConditionalOnClass(CircuitBreaker.class)  @ConditionalOnProperty(value = "feign.circuitbreaker.enabled", havingValue = "true")  protected static class CircuitBreakerPresentFeignTargeterConfiguration {
    @Bean    @ConditionalOnMissingBean    @ConditionalOnBean(CircuitBreakerFactory.class)    public Targeter circuitBreakerFeignTargeter(        CircuitBreakerFactory circuitBreakerFactory) {      return new FeignCircuitBreakerTargeter(circuitBreakerFactory);    }
  }}

 protected <T> T loadBalance(Feign.Builder builder, FeignContext context,      HardCodedTarget<T> target) {    Client client = getOptional(context, Client.class);    if (client != null) {      builder.client(client);      Targeter targeter = get(context, Targeter.class);      //最后返回的是targeter.target      return targeter.target(this, builder, context, target);    }    //看这个自定义异常就能发现Client是spring-cloud-starter-netflix-ribbon or spring-cloud-starter-loadbalancer这两个里面的    throw new IllegalStateException(        "No Feign Client for loadBalancing defined. Did you forget to include spring-cloud-starter-netflix-ribbon or spring-cloud-starter-loadbalancer?");  }  //具体实现class HystrixTargeter implements Targeter {
  @Override  public <T> T target(FeignClientFactoryBean factory, Feign.Builder feign,      FeignContext context, Target.HardCodedTarget<T> target) {       //最终走的是feign.target()    return feign.target(target);  }}public abstract class Feign {    public <T> T target(Target<T> target) {      //build()构建了一个ReflectiveFeign，然后执行newInstance      return build().newInstance(target);    }    public Feign build() {      return new ReflectiveFeign(handlersByName, invocationHandlerFactory, queryMapEncoder);    }}public class ReflectiveFeign extends Feign {    public <T> T newInstance(Target<T> target) {      InvocationHandler handler = factory.create(target, methodToHandler);      T proxy = (T) Proxy.newProxyInstance(target.type().getClassLoader(),          new Class<?>[] {target.type()}, handler);        for (DefaultMethodHandler defaultMethodHandler : defaultMethodHandlers) {        defaultMethodHandler.bindTo(proxy);      }      return proxy;    }}

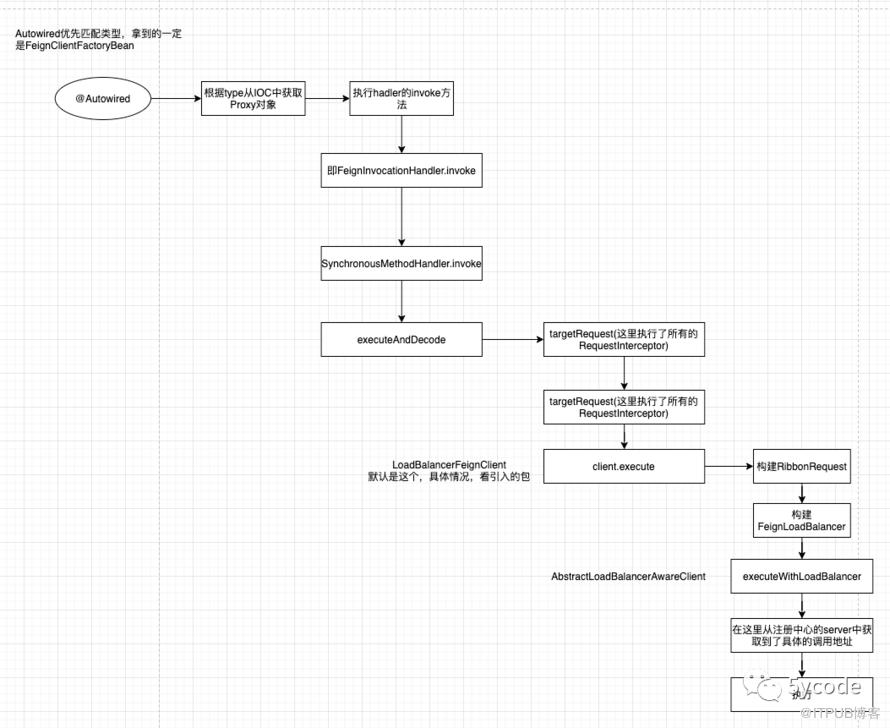

    @Autowired    private DemoServiceFeignClient demoServiceFeginClient;    @GetMapping("hello")    public ResultBean hello(){        String msg = "api进入的版本号是："+version;        log.info(msg);        return demoServiceFeginClient.hello();    }

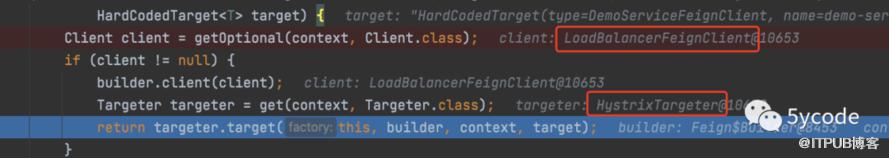

Feign使用的是： ReflectiveFeignProxy的源也是： ReflectiveFeignProxy的handler是: ReflectiveFeign.FeignInvocationHandlerhandler 持有的dispatch是：SynchronousMethodHandlertarget是：HardCodedTargetclient是：LoadBalancerFeignClient

static class FeignInvocationHandler implements InvocationHandler {    //要执行的对象    private final Target target;    //方法和SynchronousMethodHandler的映射集合    private final Map<Method, MethodHandler> dispatch;    @Override    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {       //具体执行的的是dispatch的invoke       return dispatch.get(method).invoke(args);    }}final class SynchronousMethodHandler implements MethodHandler {  public Object invoke(Object[] argv) throws Throwable {    //构建一个RequestTemplate由ReflectiveFeign.BuildEncodedTemplateFromArgs,主要是解析    RequestTemplate template = buildTemplateFromArgs.create(argv);    //超时时间，链接时间配置获取，没有就走默认    Options options = findOptions(argv);    Retryer retryer = this.retryer.clone();    while (true) {      try {        //关键在这里        return executeAndDecode(template, options);      } catch (RetryableException e) {        try {          retryer.continueOrPropagate(e);        } catch (RetryableException th) {        }        continue;      }    }  }  Object executeAndDecode(RequestTemplate template, Options options) throws Throwable {    //执行所有RequestInterceptor并构建一个Request对象    Request request = targetRequest(template);    Response response;    long start = System.nanoTime();    try {      //client是LoadBalancerFeignClient，我们看下源码      response = client.execute(request, options);      // ensure the request is set. TODO: remove in Feign 12      response = response.toBuilder()          .request(request)          .requestTemplate(template)          .build();    } catch (IOException e) {      throw errorExecuting(request, e);    }    long elapsedTime = TimeUnit.NANOSECONDS.toMillis(System.nanoTime() - start);
    CompletableFuture<Object> resultFuture = new CompletableFuture<>();    asyncResponseHandler.handleResponse(resultFuture, metadata.configKey(), response,        metadata.returnType(),elapsedTime);    return resultFuture.join();  }  Request targetRequest(RequestTemplate template) {    //遍历所有的拦截器并执行    for (RequestInterceptor interceptor : requestInterceptors) {      interceptor.apply(template);    }    //最终在return Request.create(this.method, this.url(), this.headers(), this.body, this);    return target.apply(template);  }}public final class RequestTemplate implements Serializable {  public Request request() {    if (!this.resolved) {      throw new IllegalStateException("template has not been resolved.");    }    return Request.create(this.method, this.url(), this.headers(), this.body, this);  }}public class LoadBalancerFeignClient implements Client {  public Response execute(Request request, Request.Options options) throws IOException {    try {      URI asUri = URI.create(request.url());      String clientName = asUri.getHost();      URI uriWithoutHost = cleanUrl(request.url(), clientName);      //构建RibbonRequest      FeignLoadBalancer.RibbonRequest ribbonRequest = new FeignLoadBalancer.RibbonRequest(          this.delegate, request, uriWithoutHost);      // 获取配置信息      IClientConfig requestConfig = getClientConfig(options, clientName);      //找到      return lbClient(clientName).executeWithLoadBalancer(ribbonRequest, requestConfig).toResponse();    }  }  private FeignLoadBalancer lbClient(String clientName) {    return this.lbClientFactory.create(clientName);  }}
public class CachingSpringLoadBalancerFactory {  public FeignLoadBalancer create(String clientName) {    // 缓存有直接返回    FeignLoadBalancer client = this.cache.get(clientName);    if (client != null) {      return client;    }    IClientConfig config = this.factory.getClientConfig(clientName);    //获取ILoadBalancer实例    ILoadBalancer lb = this.factory.getLoadBalancer(clientName);    ServerIntrospector serverIntrospector = this.factory.getInstance(clientName,        ServerIntrospector.class);    //构建一个FeignLoadBalancer    client = this.loadBalancedRetryFactory != null        ? new RetryableFeignLoadBalancer(lb, config, serverIntrospector,            this.loadBalancedRetryFactory)        : new FeignLoadBalancer(lb, config, serverIntrospector);    //缓存起来    this.cache.put(clientName, client);    return client;  }}
FeignLoadBalancer 继承了AbstractLoadBalancerAwareClient，最终executeWithLoadBalancer
public abstract class AbstractLoadBalancerAwareClient<S extends ClientRequest, T extends IResponse> extends LoadBalancerContext implements IClient<S, T>, IClientConfigAware {    public T executeWithLoadBalancer(final S request, final IClientConfig requestConfig) throws ClientException {        LoadBalancerCommand<T> command = buildLoadBalancerCommand(request, requestConfig);        try {            return command.submit(                new ServerOperation<T>() {                    @Override                    public Observable<T> call(Server server) {                        // 这个时候从注册中心里获取到了真实的调用url                        URI finalUri = reconstructURIWithServer(server, request.getUri());                        S requestForServer = (S) request.replaceUri(finalUri);                        try {                             //执行调用                            return Observable.just(AbstractLoadBalancerAwareClient.this.execute(requestForServer, requestConfig));                        }                         catch (Exception e) {                            return Observable.error(e);                        }                    }                })                .toBlocking()                .single();        } catch (Exception e) {            Throwable t = e.getCause();            if (t instanceof ClientException) {                throw (ClientException) t;            } else {                throw new ClientException(e);            }        }    }}
