1

Op与Kernel的注册

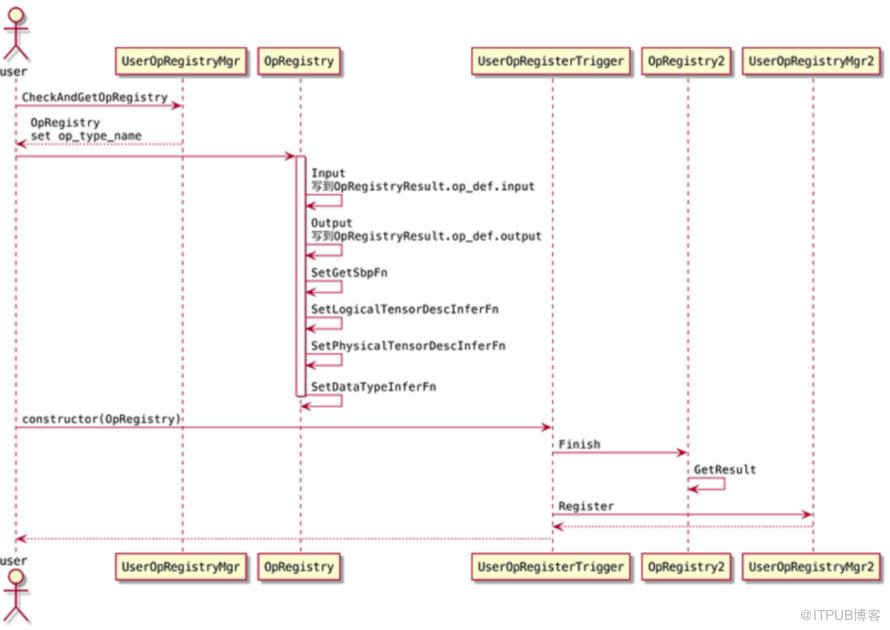

1.1 ReluOp的注册

• class定义:
  build/oneflow/core/framework/op_generated.h
• 注册op、op的部分实现:
  build/oneflow/core/framework/op_generated.cpp
• 主要实现:
  oneflow/oneflow/user/ops/relu_op.cpp

static UserOpRegisterTrigger<OpRegistry> g_register_trigger715 =  ::oneflow::user_op::UserOpRegistryMgr::Get()  .CheckAndGetOpRegistry("relu")  .Input("x")  .Output("y")  .SetGetSbpFn(&ReluOp::GetSbp)  .SetLogicalTensorDescInferFn(&ReluOp::InferLogicalTensorDesc)  .SetPhysicalTensorDescInferFn(&ReluOp::InferPhysicalTensorDesc)  .SetDataTypeInferFn(&ReluOp::InferDataType);

1.2 ReluKernel的注册

static UserOpRegisterTrigger<OpKernelRegistry> g_register_trigger0 =  UserOpRegistryMgr::Get().    CheckAndGetOpKernelRegistry("relu").    .SetCreateFn(...)    .SetIsMatchedHob(UnaryPrimitiveExists(ep::primitive::UnaryOp::kRelu, "y", "x"))    .SetInplaceProposalFn([](const user_op::InferContext&,                             const user_op::AddInplaceArgPair& AddInplaceArgPairFn) -> Maybe<void> {      OF_RETURN_IF_ERROR(AddInplaceArgPairFn("y", 0, "x", 0, true));      return Maybe<void>::Ok();    });

[]() {    return user_op::NewOpKernel<UnaryPrimitiveKernel>(        "y", "x", [](user_op::KernelComputeContext* ctx) {            const user_op::TensorDesc* src = ctx->TensorDesc4ArgNameAndIndex("x", 0);            const user_op::TensorDesc* dst = ctx->TensorDesc4ArgNameAndIndex("y", 0);            return ep::primitive::NewPrimitive<ep::primitive::ElementwiseUnaryFactory>(                ctx->device_type(), ep::primitive::UnaryOp::kRelu, src->data_type(),                dst->data_type());        });}

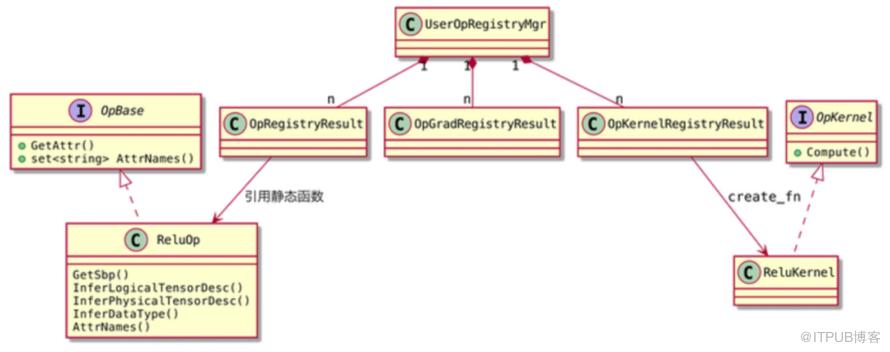

1.3 Op和Kernel注册相关的类关系图

class ReluFunctor { public:  ReluFunctor() { op_ = CHECK_JUST(one::OpBuilder("relu").Input("x", 1).Output("y", 1).Build()); }  Maybe<Tensor> operator()(const std::shared_ptr<Tensor>& x, bool inplace) const {    // 忽略inplace相关逻辑    return OpInterpUtil::Dispatch<Tensor>(*op_, {x});  } private:  std::shared_ptr<OpExpr> op_;};

• base_attrs_
• tensor_desc_infer_fn_
• dtype_infer_fn_
• device_and_stream_infer_fn_



3

Functor的执行

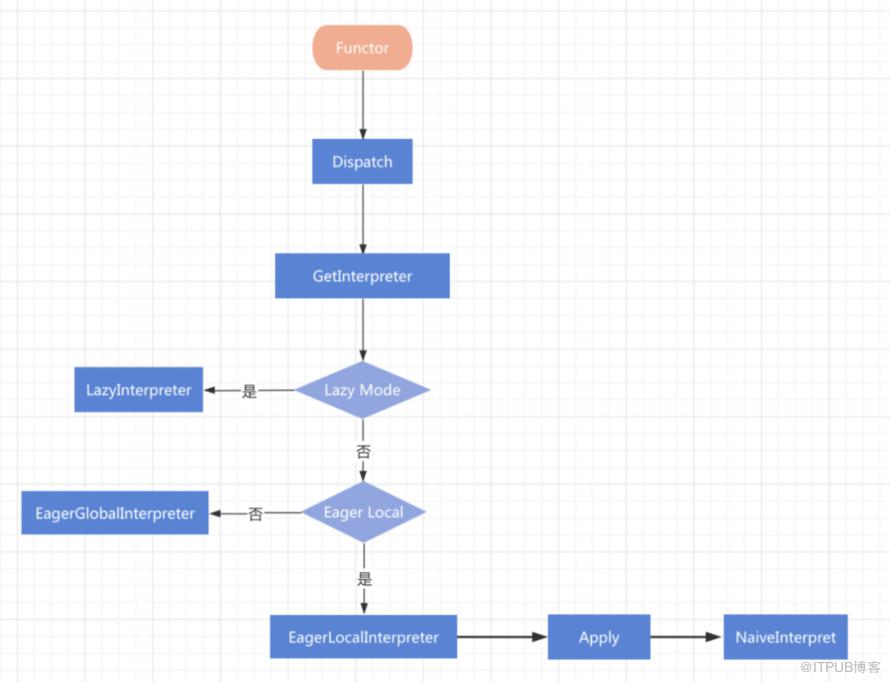

3.1 根据环境和输入选择解释器

• LazyInterpreter: 用于lazy mode下的分布式静态图执行模式
• EagerLocalInterpreter: 用于eager local mode本地单卡执行模式（和pytorch单卡或DDP对齐）
• EagerGlobalInterpreter: 用于eager global mode，的分布式动态图执行模式



3.2 Apply

Maybe<void> EagerInterpreter::Apply(const OpExpr& op_expr, const TensorTuple& inputs,                                    TensorTuple* outputs, const OpExprInterpContext& ctx) const {#define APPLY_IF(op_type)                                              \  if (const auto* op = dynamic_cast<const op_type##Expr*>(&op_expr)) { \    return ApplyImpl(*op, inputs, outputs, ctx);                       \  }  APPLY_IF(UserOp);  APPLY_IF(VariableOp);  APPLY_IF(CastToLocalOp);  APPLY_IF(CastFromLocalOp);  APPLY_IF(GlobalToGlobalOp);  APPLY_IF(CastToGlobalOp);  APPLY_IF(CastFromGlobalOp);  APPLY_IF(DistributeSplitOp);  APPLY_IF(DistributeCloneOp);  APPLY_IF(DistributeConcatOp);  APPLY_IF(DistributeAddOp);  APPLY_IF(FunctionOp);  APPLY_IF(SelectTopNOp)#undef APPLY_IF  OF_UNIMPLEMENTED() << "The type " << op_expr.op_type_name()                     << " has not been supported in EagerInterpreter::Apply.";}

if (const auto* op = dynamic_cast<const UserOpExpr*>(&op_expr)) {    return ApplyImpl(*op, inputs, outputs, ctx);}

Maybe<void> EagerLocalInterpreter::ApplyImpl(const UserOpExpr& op_expr, const TensorTuple& inputs,                                             TensorTuple* outputs,                                             const OpExprInterpContext& ctx) const {  return NaiveInterpret(op_expr, inputs, outputs, ctx);}

3.3 NaiveInterpret

• check input tensor的device是否一致
• 生成output tensor
• 为output tensor推导和检查shape/stride/dtype
• 构建op执行指令，并派发至vm

Maybe<void> NaiveInterpret(const UserOpExpr& user_op_expr, const TensorTuple& inputs,                           const Symbol<Device>& default_device, TensorTuple* outputs,                           const OpExprInterpContext& ctx) {  const auto& attrs = ctx.attrs;  // 检查input tensor是否位于相同device上  ...  // 推导outout tensor的设备类型  // Infer devices  if (!user_op_expr.has_device_and_stream_infer_fn()) {    stream = JUST(GetDefaultStreamByDevice(default_device));    for (int i = 0; i < outputs->size(); i++) {      auto* tensor_impl = JUST(TensorImpl4Tensor(outputs->at(i)));      *JUST(tensor_impl->mut_device()) = default_device;    }  } else {    need_check_mem_case = false;    stream = JUST(user_op_expr.InferDeviceAndStream(attrs, inputs, outputs));  }  // 推导outout tensor的形状、数据类型  // Infer shapes and dtypes  const auto& device_tag = stream->device()->type();  JUST(user_op_expr.InferPhysicalTensorDesc(      attrs, device_tag,      [&](int32_t i) -> const TensorMeta* {        return CHECK_JUST(TensorImpl4Tensor(inputs[i]))->mut_tensor_meta();      },      [&](int32_t i) -> TensorMeta* {        // using thread_local TensorMeta pointer if inplace.        // using tensor_impl TensorMeta pointer if not inplace.        return output_tensor_metas->at(i);      }));  // 为output tensor初始化eager_blob_object  for (int i = 0; i < output_eager_blob_objects->size(); i++) {    auto* tensor_impl = JUST(TensorImpl4Tensor(outputs->at(i)));    if (!output_eager_blob_objects->at(i)) {      if (!JUST(user_op_expr.SupportNonContiguous())) {        std::shared_ptr<Stride> stride(new Stride(*tensor_impl->shape()));        tensor_impl->mut_tensor_meta()->set_stride(stride);      }      const auto& dep_object = NewLocalDepObject();      JUST(tensor_impl->InitEagerBlobObject(dep_object));      output_eager_blob_objects->at(i) = JUST(tensor_impl->eager_blob_object());    } else {      // output i is inplaced.      // check thread_local TensorMeta and tensor_impl TensorMeta.      CHECK_OR_RETURN(tensor_impl->tensor_meta()->shape() == output_tensor_metas->at(i)->shape());      CHECK_OR_RETURN(tensor_impl->tensor_meta()->dtype() == output_tensor_metas->at(i)->dtype());    }  }  // 从user_op_expr中取出kernel  const auto& kernel = JUST(user_op_expr.MutKernel4Stream(stream));  kernel->set_need_check_mem_case(need_check_mem_case);  for (int64_t index : kernel->output_tuple_indexes4mut2_obns()) {    output_eager_blob_objects->at(index)->set_is_shape_synced(false);  }  // kernel dispatch至VM，等待后续实际的调度执行  JUST(PhysicalRun([&](InstructionsBuilder* builder) -> Maybe<void> {    return builder->Call(kernel, input_eager_blob_objects, output_eager_blob_objects, ctx, stream);  }));  return Maybe<void>::Ok();}

参考资料

• OneFlow学习笔记：Op注册
• （https://mp.weixin.qq.com/s/eF-c2irraxnH4iAesURy0Q）
• 从Functor到OpExprInterpreter
• https://github.com/Oneflow-Inc/oneflow/tree/v0.8.1
• https://zhuanlan.zhihu.com/p/523884650
