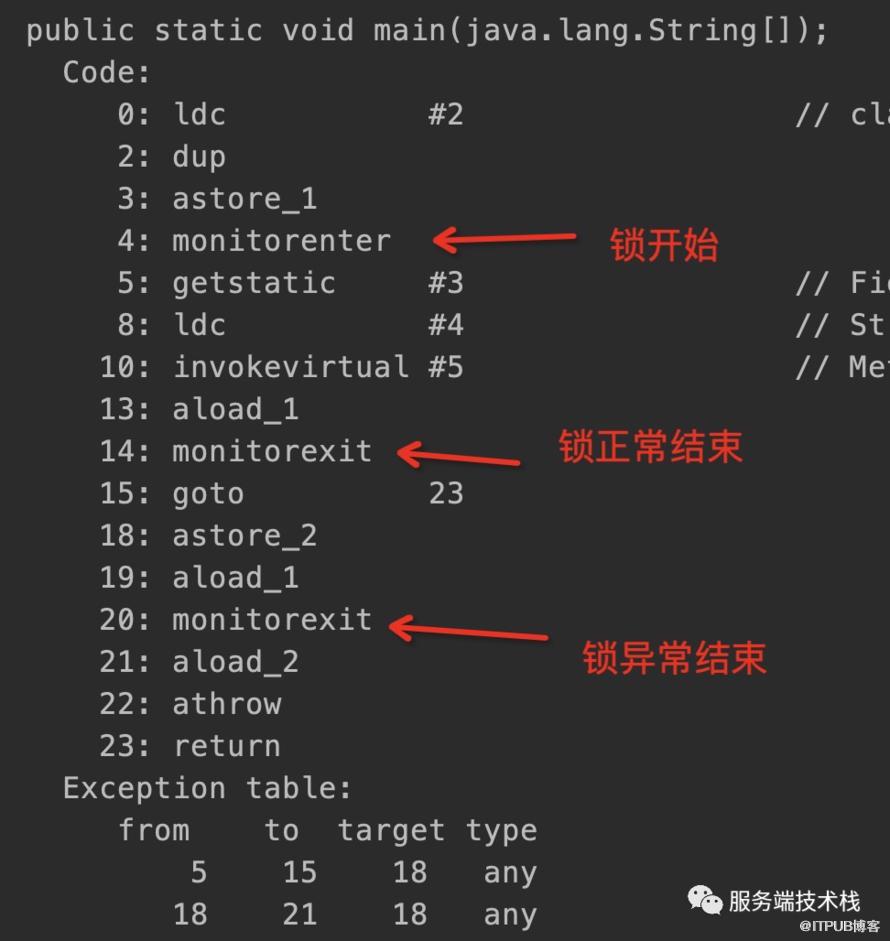

public static void main(String[] args) {
        synchronized (TestLock.class) {            System.out.println("1");        }    }

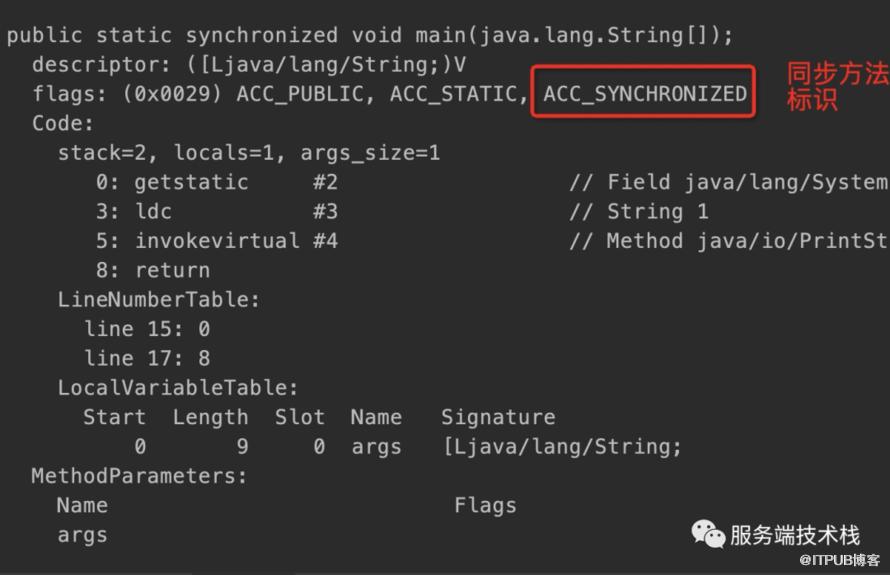

public synchronized static void main(String[] args) {
            System.out.println("1");
    }

void BiasedLocking::revoke(Handle obj, TRAPS) {  assert(!SafepointSynchronize::is_at_safepoint(), "must not be called while at safepoint");
  while (true) {    // We can revoke the biases of anonymously-biased objects    // efficiently enough that we should not cause these revocations to    // update the heuristics because doing so may cause unwanted bulk    // revocations (which are expensive) to occur.

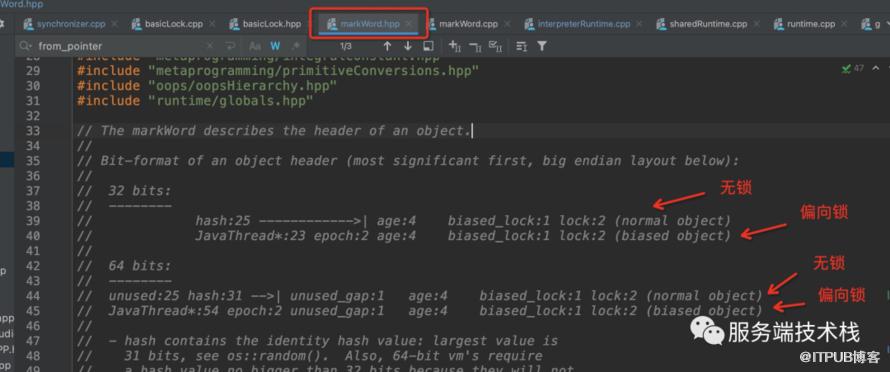

    //获取markword    markWord mark = obj->mark();
    //是否有偏向锁字段    if (!mark.has_bias_pattern()) {      return;    }
    if (mark.is_biased_anonymously()) {      // We are probably trying to revoke the bias of this object due to      // an identity hash code computation. Try to revoke the bias      // without a safepoint. This is possible if we can successfully      // compare-and-exchange an unbiased header into the mark word of      // the object, meaning that no other thread has raced to acquire      // the bias of the object.      markWord biased_value       = mark;      markWord unbiased_prototype = markWord::prototype().set_age(mark.age());
      //cas设置偏向锁标志      markWord res_mark = obj->cas_set_mark(unbiased_prototype, mark);      if (res_mark == biased_value) {        return;      }      mark = res_mark;  // Refresh mark with the latest value.    } else {      Klass* k = obj->klass();      markWord prototype_header = k->prototype_header();      if (!prototype_header.has_bias_pattern()) {        // This object has a stale bias from before the bulk revocation        // for this data type occurred. It's pointless to update the        // heuristics at this point so simply update the header with a        // CAS. If we fail this race, the object's bias has been revoked        // by another thread so we simply return and let the caller deal        // with it.        obj->cas_set_mark(prototype_header.set_age(mark.age()), mark);        assert(!obj->mark().has_bias_pattern(), "even if we raced, should still be revoked");        return;      } else if (prototype_header.bias_epoch() != mark.bias_epoch()) {        // The epoch of this biasing has expired indicating that the        // object is effectively unbiased. We can revoke the bias of this        // object efficiently enough with a CAS that we shouldn't update the        // heuristics. This is normally done in the assembly code but we        // can reach this point due to various points in the runtime        // needing to revoke biases.        markWord res_mark;        markWord biased_value       = mark;        markWord unbiased_prototype = markWord::prototype().set_age(mark.age());        res_mark = obj->cas_set_mark(unbiased_prototype, mark);        if (res_mark == biased_value) {          return;        }        mark = res_mark;  // Refresh mark with the latest value.      }    }
    HeuristicsResult heuristics = update_heuristics(obj());    if (heuristics == HR_NOT_BIASED) {      return;    } else if (heuristics == HR_SINGLE_REVOKE) {      JavaThread *blt = mark.biased_locker();      assert(blt != NULL, "invariant");      if (blt == THREAD) {        // A thread is trying to revoke the bias of an object biased        // toward it, again likely due to an identity hash code        // computation. We can again avoid a safepoint/handshake in this case        // since we are only going to walk our own stack. There are no        // races with revocations occurring in other threads because we        // reach no safepoints in the revocation path.        EventBiasedLockSelfRevocation event;        ResourceMark rm;        walk_stack_and_revoke(obj(), blt);        blt->set_cached_monitor_info(NULL);        assert(!obj->mark().has_bias_pattern(), "invariant");        if (event.should_commit()) {          post_self_revocation_event(&event, obj->klass());        }        return;      } else {        BiasedLocking::Condition cond = single_revoke_with_handshake(obj, (JavaThread*)THREAD, blt);        if (cond != NOT_REVOKED) {          return;        }      }    } else {      assert((heuristics == HR_BULK_REVOKE) ||         (heuristics == HR_BULK_REBIAS), "?");      EventBiasedLockClassRevocation event;      VM_BulkRevokeBias bulk_revoke(&obj, (JavaThread*)THREAD,                                    (heuristics == HR_BULK_REBIAS));      VMThread::execute(&bulk_revoke);      if (event.should_commit()) {        post_class_revocation_event(&event, obj->klass(), &bulk_revoke);      }      return;    }  }}

void ObjectMonitor::enter(TRAPS) {  // The following code is ordered to check the most common cases first  // and to reduce RTS->RTO cache line upgrades on SPARC and IA32 processors.
  //获取当前线程  Thread * const Self = THREAD;
  //cas设置 owner的值 为当前线程  void * cur = Atomic::cmpxchg(&_owner, (void*)NULL, Self);
  //之前没有线程 设置当前线程成功  if (cur == NULL) {  //设置重入次数0 _recursions = 0    assert(_recursions == 0, "invariant");    return;  }
  //之前加锁的线程 就是当前线程  if (cur == Self) {    // TODO-FIXME: check for integer overflow!  BUGID 6557169.
    //重试次数自增    _recursions++;    return;  }

  if (Self->is_lock_owned((address)cur)) {    assert(_recursions == 0, "internal state error");
    //重入次数设置为1    _recursions = 1;    // Commute owner from a thread-specific on-stack BasicLockObject address to    // a full-fledged "Thread *".
    //更新owner为当前线程    _owner = Self;    return;  }
//开始竞争锁  // We've encountered genuine contention.  assert(Self->_Stalled == 0, "invariant");  Self->_Stalled = intptr_t(this);//在入队列之前  尝试自旋  // Try one round of spinning *before* enqueueing Self  // and before going through the awkward and expensive state  // transitions.  The following spin is strictly optional ...  // Note that if we acquire the monitor from an initial spin  // we forgo posting JVMTI events and firing DTRACE probes.  if (TrySpin(Self) > 0) {    assert(_owner == Self, "must be Self: owner=" INTPTR_FORMAT, p2i(_owner));    assert(_recursions == 0, "must be 0: recursions=" INTX_FORMAT, _recursions);    assert(((oop)object())->mark() == markWord::encode(this),           "object mark must match encoded this: mark=" INTPTR_FORMAT           ", encoded this=" INTPTR_FORMAT, ((oop)object())->mark().value(),           markWord::encode(this).value());    Self->_Stalled = 0;    return;  }// 前面自旋 没有成功 开始进入重量级锁  assert(_owner != Self, "invariant");  assert(_succ != Self, "invariant");  assert(Self->is_Java_thread(), "invariant");  JavaThread * jt = (JavaThread *) Self;  assert(!SafepointSynchronize::is_at_safepoint(), "invariant");  assert(jt->thread_state() != _thread_blocked, "invariant");  assert(this->object() != NULL, "invariant");  assert(_contentions >= 0, "invariant");
  // Prevent deflation at STW-time.  See deflate_idle_monitors() and is_busy().  // Ensure the object-monitor relationship remains stable while there's contention.
  // _contentions 争用次数自增  Atomic::inc(&_contentions);
  JFR_ONLY(JfrConditionalFlushWithStacktrace<EventJavaMonitorEnter> flush(jt);)  EventJavaMonitorEnter event;  if (event.should_commit()) {  // 设置类型指针    event.set_monitorClass(((oop)this->object())->klass());    //设置对象内存地址    event.set_address((uintptr_t)(this->object_addr()));  }//更改Java线程状态以指示在监视器进入时被阻止。  { // Change java thread status to indicate blocked on monitor enter.
  //修改当前线程为阻塞状态    JavaThreadBlockedOnMonitorEnterState jtbmes(jt, this);
    Self->set_current_pending_monitor(this);
    DTRACE_MONITOR_PROBE(contended__enter, this, object(), jt);    if (JvmtiExport::should_post_monitor_contended_enter()) {      JvmtiExport::post_monitor_contended_enter(jt, this);
//当前线程还没在队列里      // The current thread does not yet own the monitor and does not      // yet appear on any queues that would get it made the successor.      // This means that the JVMTI_EVENT_MONITOR_CONTENDED_ENTER event      // handler cannot accidentally consume an unpark() meant for the      // ParkEvent associated with this ObjectMonitor.    }
    OSThreadContendState osts(Self->osthread());    ThreadBlockInVM tbivm(jt);
    // TODO-FIXME: change the following for(;;) loop to straight-line code.    for (;;) {      jt->set_suspend_equivalent();      // cleared by handle_special_suspend_equivalent_condition()      // or java_suspend_self()

//开始获取重量级别锁      EnterI(THREAD);
      if (!ExitSuspendEquivalent(jt)) break;
//我们已经获得了有竞争力的监视器，但是当我们等待另一个线程暂停我们时//我们不想在挂起时进入监视器，因为这会使挂起我们的线程感到惊讶。      // We have acquired the contended monitor, but while we were      // waiting another thread suspended us. We don't want to enter      // the monitor while suspended because that would surprise the      // thread that suspended us.      //      _recursions = 0;      _succ = NULL;      exit(false, Self);
      jt->java_suspend_self();    }    Self->set_current_pending_monitor(NULL);
    // We cleared the pending monitor info since we've just gotten past    // the enter-check-for-suspend dance and we now own the monitor free    // and clear, i.e., it is no longer pending. The ThreadBlockInVM    // destructor can go to a safepoint at the end of this block. If we    // do a thread dump during that safepoint, then this thread will show    // as having "-locked" the monitor, but the OS and java.lang.Thread    // states will still report that the thread is blocked trying to    // acquire it.  }
  Atomic::dec(&_contentions);  assert(_contentions >= 0, "invariant");  Self->_Stalled = 0;
  // Must either set _recursions = 0 or ASSERT _recursions == 0.  assert(_recursions == 0, "invariant");  assert(_owner == Self, "invariant");  assert(_succ != Self, "invariant");
  assert(((oop)(object()))->mark() == markWord::encode(this), "invariant");
  // The thread -- now the owner -- is back in vm mode.  // Report the glorious news via TI,DTrace and jvmstat.  // The probe effect is non-trivial.  All the reportage occurs  // while we hold the monitor, increasing the length of the critical  // section.  Amdahl's parallel speedup law comes vividly into play.  //  // Another option might be to aggregate the events (thread local or  // per-monitor aggregation) and defer reporting until a more opportune  // time -- such as next time some thread encounters contention but has  // yet to acquire the lock.  While spinning that thread could  // spinning we could increment JVMStat counters, etc.
  DTRACE_MONITOR_PROBE(contended__entered, this, object(), jt);  if (JvmtiExport::should_post_monitor_contended_entered()) {    JvmtiExport::post_monitor_contended_entered(jt, this);
    // The current thread already owns the monitor and is not going to    // call park() for the remainder of the monitor enter protocol. So    // it doesn't matter if the JVMTI_EVENT_MONITOR_CONTENDED_ENTERED    // event handler consumed an unpark() issued by the thread that    // just exited the monitor.  }  if (event.should_commit()) {    event.set_previousOwner((uintptr_t)_previous_owner_tid);    event.commit();  }  OM_PERFDATA_OP(ContendedLockAttempts, inc());}

//获取重量级别锁void ObjectMonitor::EnterI(TRAPS) {
//当前线程  Thread * const Self = THREAD;  assert(Self->is_Java_thread(), "invariant");  assert(((JavaThread *) Self)->thread_state() == _thread_blocked, "invariant");
  // Try the lock - TATAS  //尝试获取一次锁  if (TryLock (Self) > 0) {    assert(_succ != Self, "invariant");    assert(_owner == Self, "invariant");    assert(_Responsible != Self, "invariant");    return;  }
  assert(InitDone, "Unexpectedly not initialized");
  // We try one round of spinning *before* enqueueing Self.  //  // If the _owner is ready but OFFPROC we could use a YieldTo()  // operation to donate the remainder of this thread's quantum  // to the owner.  This has subtle but beneficial affinity  // effects.//尝试自旋  if (TrySpin(Self) > 0) {    assert(_owner == Self, "invariant");    assert(_succ != Self, "invariant");    assert(_Responsible != Self, "invariant");    return;  }
  // The Spin failed -- Enqueue and park the thread ...  assert(_succ != Self, "invariant");  assert(_owner != Self, "invariant");  assert(_Responsible != Self, "invariant");
  // Enqueue "Self" on ObjectMonitor's _cxq.  // Node acts as a proxy for Self.  // As an aside, if were to ever rewrite the synchronization code mostly  // in Java, WaitNodes, ObjectMonitors, and Events would become 1st-class  // Java objects.  This would avoid awkward lifecycle and liveness issues,  // as well as eliminate a subset of ABA issues.  // TODO: eliminate ObjectWaiter and enqueue either Threads or Events.// 使当前线程 进入ObjectMonitor的_cxq。  ObjectWaiter node(Self);  Self->_ParkEvent->reset();  node._prev   = (ObjectWaiter *) 0xBAD;
  //修改线程状态  node.TState  = ObjectWaiter::TS_CXQ;
  // Push "Self" onto the front of the _cxq.  // Once on cxq/EntryList, Self stays on-queue until it acquires the lock.  // Note that spinning tends to reduce the rate at which threads  // enqueue and dequeue on EntryList|cxq.  ObjectWaiter * nxt;  //自旋  for (;;) {  //当前线程 放队头    node._next = nxt = _cxq;    // cas 设置队头 为当前线程    if (Atomic::cmpxchg(&_cxq, nxt, &node) == nxt) break;
    //cxq队头改变了，可能其它线程释放了锁，再尝试获取一次锁    // Interference - the CAS failed because _cxq changed.  Just retry.    // As an optional optimization we retry the lock.    if (TryLock (Self) > 0) {      assert(_succ != Self, "invariant");      assert(_owner == Self, "invariant");      assert(_Responsible != Self, "invariant");      return;    }  }  //检查cxq | EntryList边缘过渡到非null。这表明竞争的开始。当争用持续存在时，  //退出线程将使用ST：MEMBAR：LD 1-1退出协议。当竞争减弱时，  //退出操作将恢复为更快的1-0模式。该进入操作可能会交织（竞赛）一个并发的1-0退出操作，  //从而导致搁浅，因此我们安排其中一个竞争线程使用定时的park（）操作来检测比赛并从比赛中恢复过来。   //（搁浅是进度失败的一种形式，其中监视器已解锁，但所有竞争线程仍处于驻留状态）。   //也就是说，至少有一个竞争线程会定期轮询_owner。竞争线程之一将成为指定的“负责任”线程。   //负责线程使用定时驻留而不是常规的不确定驻留操作-它定期唤醒并检查1-0退出操作所允许的潜在搁浅并从中恢复。   //在任何给定时刻，每个监视器最多需要一个负责任的线程。仅cxq | EntryList上的线程可以负责监视。
  // Check for cxq|EntryList edge transition to non-null.  This indicates  // the onset of contention.  While contention persists exiting threads  // will use a ST:MEMBAR:LD 1-1 exit protocol.  When contention abates exit  // operations revert to the faster 1-0 mode.  This enter operation may interleave  // (race) a concurrent 1-0 exit operation, resulting in stranding, so we  // arrange for one of the contending thread to use a timed park() operations  // to detect and recover from the race.  (Stranding is form of progress failure  // where the monitor is unlocked but all the contending threads remain parked).  // That is, at least one of the contended threads will periodically poll _owner.  // One of the contending threads will become the designated "Responsible" thread.  // The Responsible thread uses a timed park instead of a normal indefinite park  // operation -- it periodically wakes and checks for and recovers from potential  // strandings admitted by 1-0 exit operations.   We need at most one Responsible  // thread per-monitor at any given moment.  Only threads on cxq|EntryList may  // be responsible for a monitor.  //当前，竞争的线程之一承担了“负责任”的附加角色。一种可行的替代方法是使用专用的“绞线检查器”线程，  //该线程会定期在所有存在绞线风险的线程（或活动监视器）和未停放的后继线程上进行迭代。  //这将有助于消除我们在某些平台上看到的计时器可伸缩性问题，  //因为我们只有一个线程（检查程序）驻留在计时器上。  // Currently, one of the contended threads takes on the added role of "Responsible".  // A viable alternative would be to use a dedicated "stranding checker" thread  // that periodically iterated over all the threads (or active monitors) and unparked  // successors where there was risk of stranding.  This would help eliminate the  // timer scalability issues we see on some platforms as we'd only have one thread  // -- the checker -- parked on a timer.

//如果两个队列都是空的 尝试设置负责的线程为 当前线程  if (nxt == NULL && _EntryList == NULL) {    // Try to assume the role of responsible thread for the monitor.    // CONSIDER:  ST vs CAS vs { if (Responsible==null) Responsible=Self }    Atomic::replace_if_null(&_Responsible, Self);  }
  // The lock might have been released while this thread was occupied queueing  // itself onto _cxq.  To close the race and avoid "stranding" and  // progress-liveness failure we must resample-retry _owner before parking.  // Note the Dekker/Lamport duality: ST cxq; MEMBAR; LD Owner.  // In this case the ST-MEMBAR is accomplished with CAS().
  int nWakeups = 0;  int recheckInterval = 1;//自旋  for (;;) {//尝试获取锁    if (TryLock(Self) > 0) break;    assert(_owner != Self, "invariant");
    // park self    if (_Responsible == Self) {    //阻塞指定的时间      Self->_ParkEvent->park((jlong) recheckInterval);      // Increase the recheckInterval, but clamp the value.      recheckInterval *= 8;      if (recheckInterval > MAX_RECHECK_INTERVAL) {        recheckInterval = MAX_RECHECK_INTERVAL;      }    } else {
    //阻塞自己  这里是操作系统重量级锁      Self->_ParkEvent->park();    }
//尝试获取锁    if (TryLock(Self) > 0) break;
    // The lock is still contested.    // Keep a tally of the # of futile wakeups.    // Note that the counter is not protected by a lock or updated by atomics.    // That is by design - we trade "lossy" counters which are exposed to    // races during updates for a lower probe effect.
    // This PerfData object can be used in parallel with a safepoint.    // See the work around in PerfDataManager::destroy().    OM_PERFDATA_OP(FutileWakeups, inc());
    //被唤醒的数量自增    ++nWakeups;
    // Assuming this is not a spurious wakeup we'll normally find _succ == Self.    // We can defer clearing _succ until after the spin completes    // TrySpin() must tolerate being called with _succ == Self.    // Try yet another round of adaptive spinning.
    //尝试自旋转    if (TrySpin(Self) > 0) break;
    // We can find that we were unpark()ed and redesignated _succ while    // we were spinning.  That's harmless.  If we iterate and call park(),    // park() will consume the event and return immediately and we'll    // just spin again.  This pattern can repeat, leaving _succ to simply    // spin on a CPU.
    if (_succ == Self) _succ = NULL;
    // Invariant: after clearing _succ a thread *must* retry _owner before parking.
    //    OrderAccess::fence();  }
  // Egress :  // Self has acquired the lock -- Unlink Self from the cxq or EntryList.  // Normally we'll find Self on the EntryList .  // From the perspective of the lock owner (this thread), the  // EntryList is stable and cxq is prepend-only.  // The head of cxq is volatile but the interior is stable.  // In addition, Self.TState is stable.
  assert(_owner == Self, "invariant");  assert(object() != NULL, "invariant");  // I'd like to write:  //   guarantee (((oop)(object()))->mark() == markWord::encode(this), "invariant") ;  // but as we're at a safepoint that's not safe.

//当前线程 出队列 cxq  UnlinkAfterAcquire(Self, &node);  if (_succ == Self) _succ = NULL;
  assert(_succ != Self, "invariant");  if (_Responsible == Self) {    _Responsible = NULL;    OrderAccess::fence(); // Dekker pivot-point
    // We may leave threads on cxq|EntryList without a designated    // "Responsible" thread.  This is benign.  When this thread subsequently    // exits the monitor it can "see" such preexisting "old" threads --    // threads that arrived on the cxq|EntryList before the fence, above --    // by LDing cxq|EntryList.  Newly arrived threads -- that is, threads    // that arrive on cxq after the ST:MEMBAR, above -- will set Responsible    // non-null and elect a new "Responsible" timer thread.    //    // This thread executes:    //    ST Responsible=null; MEMBAR    (in enter epilogue - here)    //    LD cxq|EntryList               (in subsequent exit)    //    // Entering threads in the slow/contended path execute:    //    ST cxq=nonnull; MEMBAR; LD Responsible (in enter prolog)    //    The (ST cxq; MEMBAR) is accomplished with CAS().    //    // The MEMBAR, above, prevents the LD of cxq|EntryList in the subsequent    // exit operation from floating above the ST Responsible=null.  }
  // We've acquired ownership with CAS().  // CAS is serializing -- it has MEMBAR/FENCE-equivalent semantics.  // But since the CAS() this thread may have also stored into _succ,  // EntryList, cxq or Responsible.  These meta-data updates must be  // visible __before this thread subsequently drops the lock.  // Consider what could occur if we didn't enforce this constraint --  // STs to monitor meta-data and user-data could reorder with (become  // visible after) the ST in exit that drops ownership of the lock.  // Some other thread could then acquire the lock, but observe inconsistent  // or old monitor meta-data and heap data.  That violates the JMM.  // To that end, the 1-0 exit() operation must have at least STST|LDST  // "release" barrier semantics.  Specifically, there must be at least a  // STST|LDST barrier in exit() before the ST of null into _owner that drops  // the lock.   The barrier ensures that changes to monitor meta-data and data  // protected by the lock will be visible before we release the lock, and  // therefore before some other thread (CPU) has a chance to acquire the lock.  // See also: http://gee.cs.oswego.edu/dl/jmm/cookbook.html.  //  // Critically, any prior STs to _succ or EntryList must be visible before  // the ST of null into _owner in the *subsequent* (following) corresponding  // monitorexit.  Recall too, that in 1-0 mode monitorexit does not necessarily  // execute a serializing instruction.
  return;}

void ObjectMonitor::exit(bool not_suspended, TRAPS) {  Thread * const Self = THREAD;  //检查锁状态  if (THREAD != _owner) {    if (THREAD->is_lock_owned((address) _owner)) {      // Transmute _owner from a BasicLock pointer to a Thread address.      // We don't need to hold _mutex for this transition.      // Non-null to Non-null is safe as long as all readers can      // tolerate either flavor.      assert(_recursions == 0, "invariant");      _owner = THREAD;      _recursions = 0;    } else {      // Apparent unbalanced locking ...      // Naively we'd like to throw IllegalMonitorStateException.      // As a practical matter we can neither allocate nor throw an      // exception as ::exit() can be called from leaf routines.      // see x86_32.ad Fast_Unlock() and the I1 and I2 properties.      // Upon deeper reflection, however, in a properly run JVM the only      // way we should encounter this situation is in the presence of      // unbalanced JNI locking. TODO: CheckJNICalls.      // See also: CR4414101#ifdef ASSERT      LogStreamHandle(Error, monitorinflation) lsh;      lsh.print_cr("ERROR: ObjectMonitor::exit(): thread=" INTPTR_FORMAT                    " is exiting an ObjectMonitor it does not own.", p2i(THREAD));      lsh.print_cr("The imbalance is possibly caused by JNI locking.");      print_debug_style_on(&lsh);#endif      assert(false, "Non-balanced monitor enter/exit!");      return;    }  }
//重入次数 减少1  if (_recursions != 0) {    _recursions--;        // this is simple recursive enter    return;  }
  // Invariant: after setting Responsible=null an thread must execute  // a MEMBAR or other serializing instruction before fetching EntryList|cxq.  _Responsible = NULL;
#if INCLUDE_JFR  // get the owner's thread id for the MonitorEnter event  // if it is enabled and the thread isn't suspended  if (not_suspended && EventJavaMonitorEnter::is_enabled()) {  //设置上一次获取锁的线程    _previous_owner_tid = JFR_THREAD_ID(Self);  }#endif
  for (;;) {    assert(THREAD == _owner, "invariant");
    // release semantics: prior loads and stores from within the critical section    // must not float (reorder) past the following store that drops the lock.
    //将 _owner 设置为Null    Atomic::release_store(&_owner, (void*)NULL);   // drop the lock
    //内存屏障 后面的读 可以读取到同步代码之前所有的修改    OrderAccess::storeload();    //看看我们是否需要唤醒后继者    // See if we need to wake a successor    if ((intptr_t(_EntryList)|intptr_t(_cxq)) == 0 || _succ != NULL) {      return;    }    // Other threads are blocked trying to acquire the lock.//通常情况下，退出线程负责确保继承， 确定下一个要唤醒的线程    // Normally the exiting thread is responsible for ensuring succession,    // 可能其它线程正在自旋进入    //但是如果其他继任者准备就绪或其他进入线程正在旋转，    //则此线程可以简单地将NULL存储到_owner中并退出而无需唤醒继任者    // but if other successors are ready or other entering threads are spinning    // then this thread can simply store NULL into _owner and exit without    // waking a successor.  The existence of spinners or ready successors    // guarantees proper succession (liveness).  Responsibility passes to the    // ready or running successors.  The exiting thread delegates the duty.    // More precisely, if a successor already exists this thread is absolved    // of the responsibility of waking (unparking) one.    //    // The _succ variable is critical to reducing futile wakeup frequency.    // _succ identifies the "heir presumptive" thread that has been made    // ready (unparked) but that has not yet run.  We need only one such    // successor thread to guarantee progress.    // See http://www.usenix.org/events/jvm01/full_papers/dice/dice.pdf    // section 3.3 "Futile Wakeup Throttling" for details.    //    // Note that spinners in Enter() also set _succ non-null.    // In the current implementation spinners opportunistically set    // _succ so that exiting threads might avoid waking a successor.    // Another less appealing alternative would be for the exiting thread    // to drop the lock and then spin briefly to see if a spinner managed    // to acquire the lock.  If so, the exiting thread could exit    // immediately without waking a successor, otherwise the exiting    // thread would need to dequeue and wake a successor.    // (Note that we'd need to make the post-drop spin short, but no    // shorter than the worst-case round-trip cache-line migration time.    // The dropped lock needs to become visible to the spinner, and then    // the acquisition of the lock by the spinner must become visible to    // the exiting thread).
    // It appears that an heir-presumptive (successor) must be made ready.    // Only the current lock owner can manipulate the EntryList or    // drain _cxq, so we need to reacquire the lock.  If we fail    // to reacquire the lock the responsibility for ensuring succession    // falls to the new owner.    //
    //替换为空失败 其它线程已经在抢占锁了    if (!Atomic::replace_if_null(&_owner, THREAD)) {      return;    }
    guarantee(_owner == THREAD, "invariant");
    ObjectWaiter * w = NULL;
    w = _EntryList;    if (w != NULL) {      // I'd like to write: guarantee (w->_thread != Self).      // But in practice an exiting thread may find itself on the EntryList.      // Let's say thread T1 calls O.wait().  Wait() enqueues T1 on O's waitset and      // then calls exit().  Exit release the lock by setting O._owner to NULL.      // Let's say T1 then stalls.  T2 acquires O and calls O.notify().  The      // notify() operation moves T1 from O's waitset to O's EntryList. T2 then      // release the lock "O".  T2 resumes immediately after the ST of null into      // _owner, above.  T2 notices that the EntryList is populated, so it      // reacquires the lock and then finds itself on the EntryList.      // Given all that, we have to tolerate the circumstance where "w" is      // associated with Self.      assert(w->TState == ObjectWaiter::TS_ENTER, "invariant");      ExitEpilog(Self, w);      return;    }
    // If we find that both _cxq and EntryList are null then just    // re-run the exit protocol from the top.    w = _cxq;    if (w == NULL) continue;
    // Drain _cxq into EntryList - bulk transfer.    // First, detach _cxq.    // The following loop is tantamount to: w = swap(&cxq, NULL)    for (;;) {      assert(w != NULL, "Invariant");      ObjectWaiter * u = Atomic::cmpxchg(&_cxq, w, (ObjectWaiter*)NULL);      if (u == w) break;      w = u;    }
    assert(w != NULL, "invariant");    assert(_EntryList == NULL, "invariant");
    // Convert the LIFO SLL anchored by _cxq into a DLL.    // The list reorganization step operates in O(LENGTH(w)) time.    // It's critical that this step operate quickly as    // "Self" still holds the outer-lock, restricting parallelism    // and effectively lengthening the critical section.    // Invariant: s chases t chases u.    // TODO-FIXME: consider changing EntryList from a DLL to a CDLL so    // we have faster access to the tail.
    _EntryList = w;    ObjectWaiter * q = NULL;    ObjectWaiter * p;    for (p = w; p != NULL; p = p->_next) {      guarantee(p->TState == ObjectWaiter::TS_CXQ, "Invariant");      p->TState = ObjectWaiter::TS_ENTER;      p->_prev = q;      q = p;    }
    // In 1-0 mode we need: ST EntryList; MEMBAR #storestore; ST _owner = NULL    // The MEMBAR is satisfied by the release_store() operation in ExitEpilog().
    // See if we can abdicate to a spinner instead of waking a thread.    // A primary goal of the implementation is to reduce the    // context-switch rate.    if (_succ != NULL) continue;
    w = _EntryList;    if (w != NULL) {      guarantee(w->TState == ObjectWaiter::TS_ENTER, "invariant");      ExitEpilog(Self, w);      return;    }  }}
