服务发布和注册是Dubbo非常核心的能力之一，也是Rpc技术非常关键的一步。本文将从源码层面掌握Dubbo的服务发布和注册。

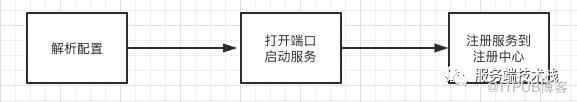

先看下整体步骤

我们接着看下源码是不是按这个流程来处理的。

暴露服务的源码入口

com.alibaba.dubbo.config.spring.ServiceBean#onApplicationEvent spring容器启动完成后触发ContextRefreshedEvent事件。

public class ServiceBean<T> extends ServiceConfig<T> implements InitializingBean, DisposableBean,        ApplicationContextAware, ApplicationListener<ContextRefreshedEvent>, BeanNameAware,        ApplicationEventPublisherAware {     @Override    public void onApplicationEvent(ContextRefreshedEvent event) {        if (!isExported() && !isUnexported()) {            if (logger.isInfoEnabled()) {                logger.info("The service ready on spring started. service: " + getInterface());            }            //执行发布            export();        }    }}

多协议发布

private void doExportUrls() {        List<URL> registryURLs = loadRegistries(true);        //遍历协议列表，分开发布服务        for (ProtocolConfig protocolConfig : protocols) {            String pathKey = URL.buildKey(getContextPath(protocolConfig).map(p -> p + "/" + path).orElse(path), group, version);            ProviderModel providerModel = new ProviderModel(pathKey, ref, interfaceClass);            ApplicationModel.initProviderModel(pathKey, providerModel);            doExportUrlsFor1Protocol(protocolConfig, registryURLs);        }    }

组织Url,需要说明的是Dubbo是根据组装的URL来驱动发布注册的。Url信息如下：

public class URL implements Serializable {
    private static final long serialVersionUID = -1985165475234910535L;
    private final String protocol;
    private final String username;
    private final String password;
    // by default, host to registry    private final String host;
    // by default, port to registry    private final int port;
    private final String path;
    private final Map<String, String> parameters;}

构建Invoker

public class JavassistProxyFactory extends AbstractProxyFactory {
    @Override    @SuppressWarnings("unchecked")    public <T> T getProxy(Invoker<T> invoker, Class<?>[] interfaces) {        return (T) Proxy.getProxy(interfaces).newInstance(new InvokerInvocationHandler(invoker));    }
    @Override    public <T> Invoker<T> getInvoker(T proxy, Class<T> type, URL url) {        // TODO Wrapper cannot handle this scenario correctly: the classname contains '$'        final Wrapper wrapper = Wrapper.getWrapper(proxy.getClass().getName().indexOf('$') < 0 ? proxy.getClass() : type);        return new AbstractProxyInvoker<T>(proxy, type, url) {            @Override            protected Object doInvoke(T proxy, String methodName,                                      Class<?>[] parameterTypes,                                      Object[] arguments) throws Throwable {                return wrapper.invokeMethod(proxy, methodName, parameterTypes, arguments);            }        };    }
}

发布本地tcp端口

@Override    public <T> Exporter<T> export(Invoker<T> invoker) throws RpcException {        URL url = invoker.getUrl();
        // export service.        String key = serviceKey(url);        DubboExporter<T> exporter = new DubboExporter<T>(invoker, key, exporterMap);        exporterMap.put(key, exporter);
        //export an stub service for dispatching event        Boolean isStubSupportEvent = url.getParameter(STUB_EVENT_KEY, DEFAULT_STUB_EVENT);        Boolean isCallbackservice = url.getParameter(IS_CALLBACK_SERVICE, false);        if (isStubSupportEvent && !isCallbackservice) {            String stubServiceMethods = url.getParameter(STUB_EVENT_METHODS_KEY);            if (stubServiceMethods == null || stubServiceMethods.length() == 0) {                if (logger.isWarnEnabled()) {                    logger.warn(new IllegalStateException("consumer [" + url.getParameter(INTERFACE_KEY) +                            "], has set stubproxy support event ,but no stub methods founded."));                }
            } else {                stubServiceMethodsMap.put(url.getServiceKey(), stubServiceMethods);            }        }
        openServer(url);        optimizeSerialization(url);
        return exporter;    }

public class HeaderExchanger implements Exchanger {
    public static final String NAME = "header";
    @Override    public ExchangeClient connect(URL url, ExchangeHandler handler) throws RemotingException {        return new HeaderExchangeClient(Transporters.connect(url, new DecodeHandler(new HeaderExchangeHandler(handler))), true);    }
    @Override    public ExchangeServer bind(URL url, ExchangeHandler handler) throws RemotingException {        return new HeaderExchangeServer(Transporters.bind(url, new DecodeHandler(new HeaderExchangeHandler(handler))));    }
}

org.apache.dubbo.remoting.transport.netty4#doOpen 开启端口

并绑定请求处理器

@Override    protected void doOpen() throws Throwable {        bootstrap = new ServerBootstrap();
        bossGroup = new NioEventLoopGroup(1, new DefaultThreadFactory("NettyServerBoss", true));        workerGroup = new NioEventLoopGroup(getUrl().getPositiveParameter(IO_THREADS_KEY, Constants.DEFAULT_IO_THREADS),                new DefaultThreadFactory("NettyServerWorker", true));
        final NettyServerHandler nettyServerHandler = new NettyServerHandler(getUrl(), this);        channels = nettyServerHandler.getChannels();
        bootstrap.group(bossGroup, workerGroup)                .channel(NioServerSocketChannel.class)                .childOption(ChannelOption.TCP_NODELAY, Boolean.TRUE)                .childOption(ChannelOption.SO_REUSEADDR, Boolean.TRUE)                .childOption(ChannelOption.ALLOCATOR, PooledByteBufAllocator.DEFAULT)                .childHandler(new ChannelInitializer<NioSocketChannel>() {                    @Override                    protected void initChannel(NioSocketChannel ch) throws Exception {                        // FIXME: should we use getTimeout()?                        int idleTimeout = UrlUtils.getIdleTimeout(getUrl());                        NettyCodecAdapter adapter = new NettyCodecAdapter(getCodec(), getUrl(), NettyServer.this);                        ch.pipeline()//.addLast("logging",new LoggingHandler(LogLevel.INFO))//for debug                                .addLast("decoder", adapter.getDecoder())                                .addLast("encoder", adapter.getEncoder())                                .addLast("server-idle-handler", new IdleStateHandler(0, 0, idleTimeout, MILLISECONDS))                                .addLast("handler", nettyServerHandler);                    }                });        // bind        ChannelFuture channelFuture = bootstrap.bind(getBindAddress());        channelFuture.syncUninterruptibly();        channel = channelFuture.channel();
    }

注册到注册中心,将url注册到zk上路径是/dubbo/服务名/providers

@Override    public void doRegister(URL url) {        try {            zkClient.create(toUrlPath(url), url.getParameter(DYNAMIC_KEY, true));        } catch (Throwable e) {            throw new RpcException("Failed to register " + url + " to zookeeper " + getUrl() + ", cause: " + e.getMessage(), e);        }    }

看完源码，服务发布和注册流程确实是按如下图，可以debug再验证下。
