前言

Spring’s Inversion of Control (IoC) container 简称IoC容器，也称为dependency injection (DI) 依赖注入，是Spring最核心的关键技术之一。

一、对Spring Ioc的理解

Spring IoC是对Bean的全生命周期管理的容器，包括bean创建，依赖注入，销毁。他是Spring技术生态的底座，所有的Spring技术在Ioc容器之上进行扩展实现。

beans和context包是ioc容器的基础，BeanFactory支持配置任意类型的对象。ApplicationContext是BeanFactory的子接口，它更易于集成aop,支持国际化，事件发布，以及应用层特定的上下文，如用于web应用程序的WebApplicationContext。

二、Spring IoC需要提供的功能

1、获取不同来源bean的资源

2、加载读取bean资源

3、解析资源bean的定义信息

4、根据bean的定义信息进行实例化，并存储

三、Spring IoC启动流程

在AbstractApplicationContext类中，Spring使用了模版模式来将Spring Ioc容器初始化流程进行了定义串连。

public abstract class AbstractApplicationContext extends DefaultResourceLoader        implements ConfigurableApplicationContext {        // ...@Override    public void refresh() throws BeansException, IllegalStateException {        synchronized (this.startupShutdownMonitor) {            // Prepare this context for refreshing.            prepareRefresh();
            // Tell the subclass to refresh the internal bean factory.            ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
            // Prepare the bean factory for use in this context.            prepareBeanFactory(beanFactory);
            try {                // Allows post-processing of the bean factory in context subclasses.                postProcessBeanFactory(beanFactory);
                // Invoke factory processors registered as beans in the context.                invokeBeanFactoryPostProcessors(beanFactory);
                // Register bean processors that intercept bean creation.                registerBeanPostProcessors(beanFactory);
                // Initialize message source for this context.                initMessageSource();
                // Initialize event multicaster for this context.                initApplicationEventMulticaster();
                // Initialize other special beans in specific context subclasses.                onRefresh();
                // Check for listener beans and register them.                registerListeners();
                // Instantiate all remaining (non-lazy-init) singletons.                finishBeanFactoryInitialization(beanFactory);
                // Last step: publish corresponding event.                finishRefresh();            }
            catch (BeansException ex) {                if (logger.isWarnEnabled()) {                    logger.warn("Exception encountered during context initialization - " +                            "cancelling refresh attempt: " + ex);                }
                // Destroy already created singletons to avoid dangling resources.                destroyBeans();
                // Reset 'active' flag.                cancelRefresh(ex);
                // Propagate exception to caller.                throw ex;            }
            finally {                // Reset common introspection caches in Spring's core, since we                // might not ever need metadata for singleton beans anymore...                resetCommonCaches();            }        }    } // ...    }

详细流程说明：

首先是资源定位：ioc容器需要统一创建对象，创建对象的类信息，属性信息需要从不同配置文件中解析出来，所以需要查找类的配置文件。这就是资源定位。

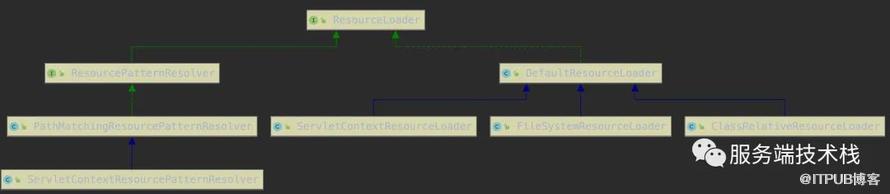

spring设计了如下接口和类用来定位资源路径，通过一个字符串路径获取资源加载器。字符串路径可以是类路径下的文件，网络Url,文件系统等等。其中PathMatchingResourcePatternResolver通过持有ResourceLoader的引用，可以根据不同的资源加载器加载不同位置的资源。

//资源加载处理器 **此处使用了策略模式** 持有了ResourceResolver的引用，根据不同类型的ResourceResolver来实现加载不同位置的资源public class PathMatchingResourcePatternResolver implements ResourcePatternResolver {
//通过构造函数持有ResourceLoader引用public PathMatchingResourcePatternResolver(ResourceLoader resourceLoader) {    Assert.notNull(resourceLoader, "ResourceLoader must not be null");    this.resourceLoader = resourceLoader;  }            //通过不同的ResourceLoader来加载资源    @Override  public Resource[] getResources(String locationPattern) throws IOException {    Assert.notNull(locationPattern, "Location pattern must not be null");    if (locationPattern.startsWith(CLASSPATH_ALL_URL_PREFIX)) {      // a class path resource (multiple resources for same name possible)      if (getPathMatcher().isPattern(locationPattern.substring(CLASSPATH_ALL_URL_PREFIX.length()))) {        // a class path resource pattern        return findPathMatchingResources(locationPattern);      }      else {        // all class path resources with the given name        return findAllClassPathResources(locationPattern.substring(CLASSPATH_ALL_URL_PREFIX.length()));      }    }    else {      // Generally only look for a pattern after a prefix here,      // and on Tomcat only after the "*/" separator for its "war:" protocol.      int prefixEnd = (locationPattern.startsWith("war:") ? locationPattern.indexOf("*/") + 1 :          locationPattern.indexOf(':') + 1);      if (getPathMatcher().isPattern(locationPattern.substring(prefixEnd))) {        // a file pattern        return findPathMatchingResources(locationPattern);      }      else {        // a single resource with the given name        return new Resource[] {getResourceLoader().getResource(locationPattern)};      }    }  }
}

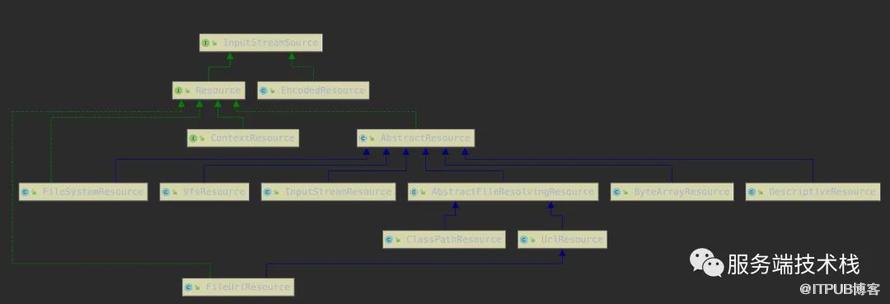

不同资源类继承图

第2点是资源加载，读取到了资源文件，需要将资源文件转换成BeanDefinition,

1、先获取类信息资源字节流对象

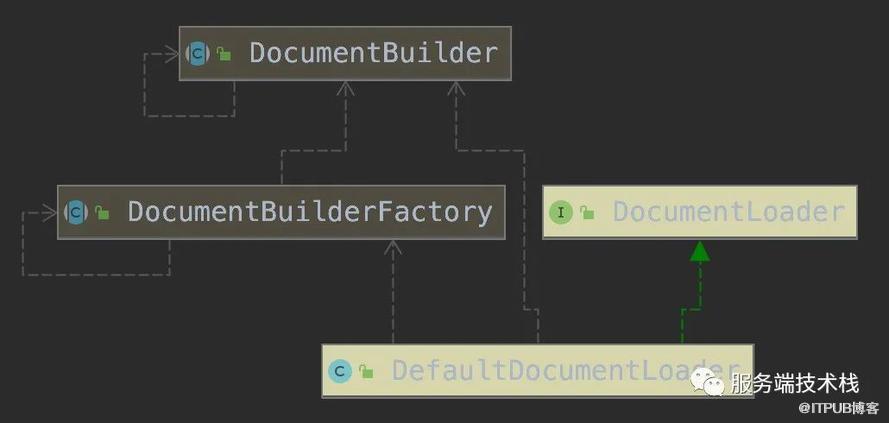

2、加载资源字节流对象成org.w3c.dom.Document对象，在Spring中通过jdk的SAX的xml解析技术，类图如下

3、在DefaultBeanDefinitionDocumentReader类中，读取Document对象里所有xml节点，委派给BeanDefinitionParserDelegate类进行解析，使用了委派设计模式

public class DefaultBeanDefinitionDocumentReader implements BeanDefinitionDocumentReader {    protected void doRegisterBeanDefinitions(Element root) {    BeanDefinitionParserDelegate parent = this.delegate;    this.delegate = createDelegate(getReaderContext(), root, parent);        // ....        //解析前处理    preProcessXml(root);       //解析bean定义    parseBeanDefinitions(root, this.delegate);        //解析后处理    postProcessXml(root);        //解析    this.delegate = parent;  }}

4、parseBeanDefinitions()方法进行具体解析

先解析bean标签属性，如name,id,class,参数等等，然后构造GenericBeanDefinition对象，并填充属性，这就是bean实例化的原始配方。解析主要有两种情况：

第一种是spring默认支持的标签。

//构造GenericBeanDefinition定义public static AbstractBeanDefinition createBeanDefinition(      @Nullable String parentName, @Nullable String className, @Nullable ClassLoader classLoader) throws ClassNotFoundException {
    GenericBeanDefinition bd = new GenericBeanDefinition();    bd.setParentName(parentName);    if (className != null) {      if (classLoader != null) {        bd.setBeanClass(ClassUtils.forName(className, classLoader));      }      else {        bd.setBeanClassName(className);      }    }    return bd;  }

第二种是应用程序自定义的标签

对于应用程序自定义的标签，Spring支持灵活定制，方便集成其他组件到spring中。用户可以将自己的解析器注册器放到META-INF/spring.handlers文件中，同时用户还需要自定义xsd文件和META-INF/spring.schemas文件，在tx模块和dubbo中都用到了该扩展点。在加载自定义标签的时候，spring将会加载到具体解析器。具体解析过程中，通过org.springframework.beans.factory.xml.BeanDefinitionParserDelegate#parseCustomElement()方法进行管理解析流程。委派给NamespaceHandlerSupport进行解析，NamespaceHandlerSupport类持有了所有的解析器，由它委派给具体的解析器进行解析。

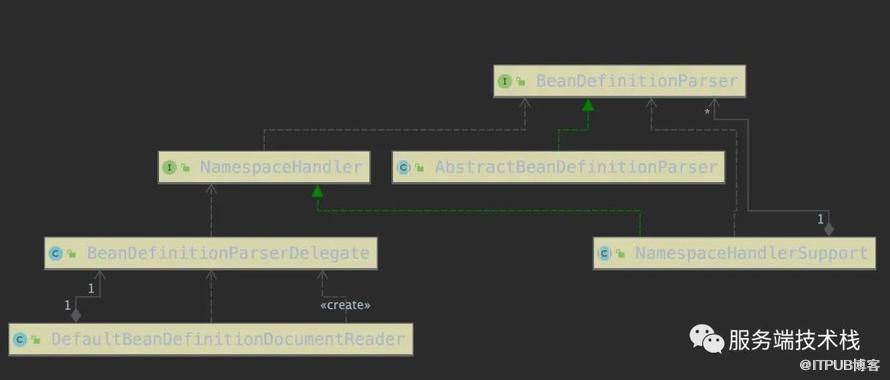

下面是自定义标签解析器相关类图。

解析标签流程图

5、第5步，将生成的GenericBeanDefinition对象，注册到容器中

public abstract class BeanDefinitionReaderUtils {    public static void registerBeanDefinition(      BeanDefinitionHolder definitionHolder, BeanDefinitionRegistry registry)      throws BeanDefinitionStoreException {
    // Register bean definition under primary name.        //主要名称    String beanName = definitionHolder.getBeanName();    registry.registerBeanDefinition(beanName, definitionHolder.getBeanDefinition());        //注册别名    // Register aliases for bean name, if any.    String[] aliases = definitionHolder.getAliases();    if (aliases != null) {      for (String alias : aliases) {        registry.registerAlias(beanName, alias);      }    }  }}

注册beandefinition具体过程包括,校验，判断是否可以覆盖，保存。

public class DefaultListableBeanFactory extends AbstractAutowireCapableBeanFactory    implements ConfigurableListableBeanFactory, BeanDefinitionRegistry, Serializable {    @Override  public void registerBeanDefinition(String beanName, BeanDefinition beanDefinition)      throws BeanDefinitionStoreException {
    Assert.hasText(beanName, "Bean name must not be empty");    Assert.notNull(beanDefinition, "BeanDefinition must not be null");
    if (beanDefinition instanceof AbstractBeanDefinition) {      try {        ((AbstractBeanDefinition) beanDefinition).validate();      }      catch (BeanDefinitionValidationException ex) {        throw new BeanDefinitionStoreException(beanDefinition.getResourceDescription(), beanName,            "Validation of bean definition failed", ex);      }    }
    BeanDefinition existingDefinition = this.beanDefinitionMap.get(beanName);    if (existingDefinition != null) {      if (!isAllowBeanDefinitionOverriding()) {        throw new BeanDefinitionOverrideException(beanName, beanDefinition, existingDefinition);      }      else if (existingDefinition.getRole() < beanDefinition.getRole()) {        // e.g. was ROLE_APPLICATION, now overriding with ROLE_SUPPORT or ROLE_INFRASTRUCTURE        if (logger.isInfoEnabled()) {          logger.info("Overriding user-defined bean definition for bean '" + beanName +              "' with a framework-generated bean definition: replacing [" +              existingDefinition + "] with [" + beanDefinition + "]");        }      }      else if (!beanDefinition.equals(existingDefinition)) {        if (logger.isDebugEnabled()) {          logger.debug("Overriding bean definition for bean '" + beanName +              "' with a different definition: replacing [" + existingDefinition +              "] with [" + beanDefinition + "]");        }      }      else {        if (logger.isTraceEnabled()) {          logger.trace("Overriding bean definition for bean '" + beanName +              "' with an equivalent definition: replacing [" + existingDefinition +              "] with [" + beanDefinition + "]");        }      }      this.beanDefinitionMap.put(beanName, beanDefinition);    }    else {      if (hasBeanCreationStarted()) {        // Cannot modify startup-time collection elements anymore (for stable iteration)        synchronized (this.beanDefinitionMap) {          this.beanDefinitionMap.put(beanName, beanDefinition);          List<String> updatedDefinitions = new ArrayList<>(this.beanDefinitionNames.size() + 1);          updatedDefinitions.addAll(this.beanDefinitionNames);          updatedDefinitions.add(beanName);          this.beanDefinitionNames = updatedDefinitions;          removeManualSingletonName(beanName);        }      }      else {        // Still in startup registration phase        this.beanDefinitionMap.put(beanName, beanDefinition);        this.beanDefinitionNames.add(beanName);        removeManualSingletonName(beanName);      }      this.frozenBeanDefinitionNames = null;    }
    if (existingDefinition != null || containsSingleton(beanName)) {      resetBeanDefinition(beanName);    }  }}

6、看的上面,beanDefinition就解析好了。

接下来spring初始化了一系列bean,这些bean比较特殊，他是Spring的bean工厂级别的，比如Environment，ClassLoader， post-processors

public abstract class AbstractApplicationContext extends DefaultResourceLoader    implements ConfigurableApplicationContext {/**   * Configure the factory's standard context characteristics,   * such as the context's ClassLoader and post-processors.   * @param beanFactory the BeanFactory to configure   */  protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {    // Tell the internal bean factory to use the context's class loader etc.    beanFactory.setBeanClassLoader(getClassLoader());    beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));    beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));
    // Configure the bean factory with context callbacks.        //这个地方是注册容器本身的ApplicationContextAwareProcessor，他的作用是为实现了**Aware接口的bean进行回调赋值。    beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));    beanFactory.ignoreDependencyInterface(EnvironmentAware.class);    beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);    beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);    beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);    beanFactory.ignoreDependencyInterface(MessageSourceAware.class);    beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);
    // BeanFactory interface not registered as resolvable type in a plain factory.    // MessageSource registered (and found for autowiring) as a bean.    beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);    beanFactory.registerResolvableDependency(ResourceLoader.class, this);    beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);    beanFactory.registerResolvableDependency(ApplicationContext.class, this);
    // Register early post-processor for detecting inner beans as ApplicationListeners. 检测实现了ApplicationListener接口的bean,并存储下来    beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));
    // Detect a LoadTimeWeaver and prepare for weaving, if found.    if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {      beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));      // Set a temporary ClassLoader for type matching.      beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));    }
    // Register default environment beans.环境对象，里面包含系统环境配置    if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {      beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());    }    if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {        //注册系统属性对象      beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());    }    if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {    //注册系统环境对象   beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());    }  }    }

7、上一步初始化了内置的bean,接下来执行postProcessBeanFactory(beanFactory);方法方便不同容器对BeanFactory进行定制。

8、调用invokeBeanFactoryPostProcessors(beanFactory);执行所有的BeanFactoryPostProcessor。对beandefinition进行修改，这个是spring提供的扩展点，用来自定义修改beandefinition的。比如mybatis(将mapper的class统一修改成MapperFactoryBean,将mapper的class作为它的构造参数),dubbo,都使用这个技术来和spring进行集成。

9、实例化并注册所有bean的后置处理器，用于拦截bean创建。Register bean processors that intercep registerBeanPostProcessors(beanFactory);

10、initMessageSource(); 国际化支持

11、initApplicationEventMulticaster(); 初始化事件多播器

12、onRefresh(); 子类使用，初始化其他资源

13、registerListeners(); 注册事件监听器

在spring容器中，提供了一种Event机制，实现Spring容器里的Bean实例之间进行通信。

14、finishBeanFactoryInitialization(beanFactory); 初始化bean,并完成依赖注入

15、finishRefresh();完成容器初始化函数

16、最后回收资源，清除缓存，结束初始化

总结

Spring IoC容器启动流程是非常复杂的，里面不仅涉及到解析内置的bean资源，而且涉及到解析第三方框架定制化的bean资源，但是Spring统一了第三方对接姿势，这是非常巧妙的设计之一，因为这个扩展点让Spring被称为万能胶和粘合剂，他可以让其他框架无缝集成。
