再说企业内网环境使用Azure Data Factory Self-hosted Integration Runtime
今天有同事问一个关于ADF（Azure Data Factory）从公司内部搬数据到Azure Data Lake Gen2的问题。其实就是怎么在公司内部服务器上配置Azure Data Factory Self-hosted Integration Runtime
之前写过一篇文章：Azure Data Factory Self-hosted Integration Runtime Tips 里面有详细的介绍。
重点就是企业防火墙要对相关Azure Data Factory服务放行，参考下面这个表格：
| Domain names | Outbound ports | Description |
|---|---|---|
*.servicebus.windows.net |
443 | Required by the self-hosted integration runtime for interactive authoring. |
{datafactory}.{region}.datafactory.azure.netor *.frontend.clouddatahub.net
|
443 | Required by the self-hosted integration runtime to connect to the Data Factory service. For new created Data Factory, please find the FQDN from your Self-hosted Integration Runtime key which is in format {datafactory}.{region}.datafactory.azure.net. For old Data factory, if you don't see the FQDN in your Self-hosted Integration key, please use *.frontend.clouddatahub.net instead. |
download.microsoft.com |
443 | Required by the self-hosted integration runtime for downloading the updates. If you have disabled auto-update, you can skip configuring this domain. |
*.core.windows.net |
443 | Used by the self-hosted integration runtime to connect to the Azure storage account when you use the staged copy feature. |
*.database.windows.net |
1433 | Required only when you copy from or to Azure SQL Database or Azure Synapse Analytics and optional otherwise. Use the staged-copy feature to copy data to SQL Database or Azure Synapse Analytics without opening port 1433. |
*.azuredatalakestore.netlogin.microsoftonline.com/<tenant>/oauth2/token
|
443 | Required only when you copy from or to Azure Data Lake Store and optional otherwise. |
上面表格里第2条，你使用的Data factory instance FQDN，下面这个格式，这个信息在哪里获取？
{datafactory}.{region}.datafactory.azure.net表格里描述说了：
Required by the self-hosted integration runtime to connect to the Data Factory service.For new created Data Factory, please find the FQDN from yourSelf-hosted Integration Runtime key which is in format{datafactory}.{region}.datafactory.azure.net.For old Data factory, if you don't see the FQDN in yourSelf-hosted Integration key, please use *.frontend.clouddatahub.net instead.

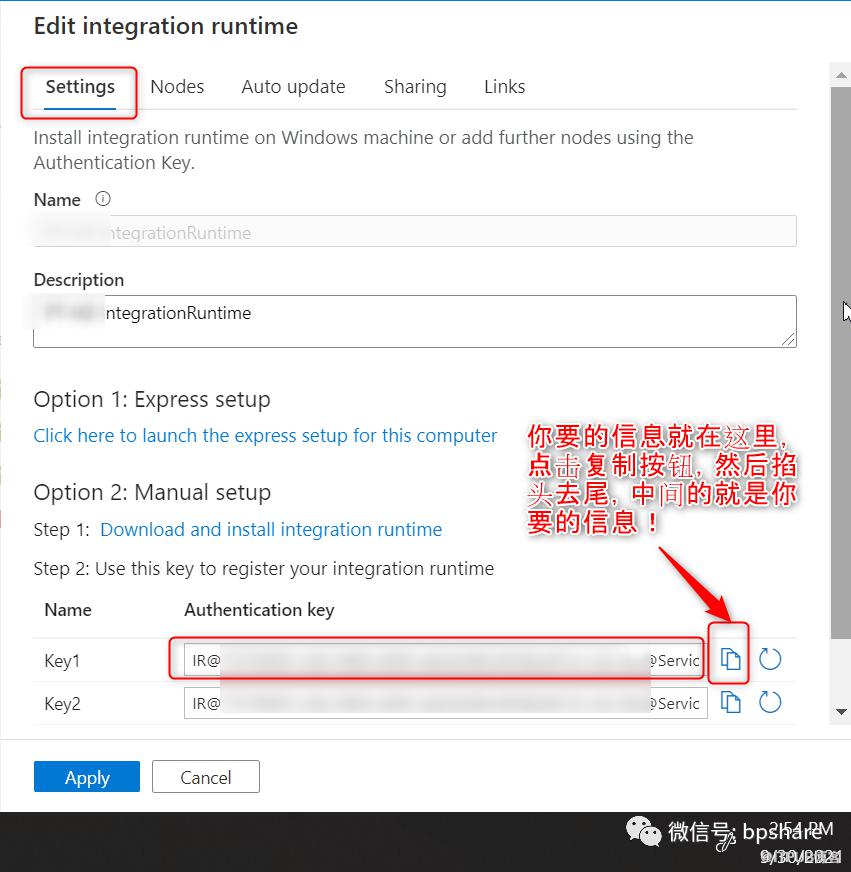

啰里啰唆的说了一大推，还是来张图说明，更简单：
借这个机会想分享的是另外一个信息，就是对于那些同时使用Azure Global版和Azure China版的企业用户，一定要注意Azure所有服务的FQDN，他们的后缀是不同的，今天在帮同事解答这个问题的时候，找到一个比较有用的文档，里面有Azure Global和Azure China相关服务的FQDN详细信息，见下表。希望对你有所帮助。
| Service category | Azure Global | Azure in China |
|---|---|---|
| Azure (in general) | *.windows.net | *.chinacloudapi.cn |
| Microsoft Entra ID | https://login.microsoftonline.com |
https://login.chinacloudapi.cn |
| Azure App Configuration | *.azconfig.io | *.azconfig.azure.cn |
| Azure compute | *.cloudapp.net | *.chinacloudapp.cn |
| Azure data | https://{location}.experiments.azureml.net |
https://{location}.experiments.ml.azure.cn
|
| Azure storage | *.blob.core.windows.net *.queue.core.windows.net *.table.core.windows.net *.dfs.core.windows.net | *.blob.core.chinacloudapi.cn *.queue.core.chinacloudapi.cn *.table.core.chinacloudapi.cn *.dfs.core.chinacloudapi.cn |
| Azure management | https://management.azure.com/ |
https://management.chinacloudapi.cn/ |
| Azure service management | https://management.core.windows.net | https://management.core.chinacloudapi.cn |
| Azure Resource Manager | https://management.azure.com |
https://management.chinacloudapi.cn |
| Azure portal | https://portal.azure.com | https://portal.azure.cn |
| SQL Database | *.database.windows.net | *.database.chinacloudapi.cn |
| SQL Azure DB management API | https://management.database.windows.net |
https://management.database.chinacloudapi.cn |
| Azure Service Bus | *.servicebus.windows.net | *.servicebus.chinacloudapi.cn |
| Azure SignalR Service | *.service.signalr.net | *.signalr.azure.cn |
| Azure Time Series Insights | *.timeseries.azure.com *.insights.timeseries.azure.cn | *.timeseries.azure.cn *.insights.timeseries.azure.cn |
| Azure Access Control Service | *.accesscontrol.windows.net | *.accesscontrol.chinacloudapi.cn |
| Azure HDInsight | *.azurehdinsight.net | *.azurehdinsight.cn |
| SQL DB import/export service endpoint |
1. China East https://sh1prod-dacsvc.chinacloudapp.cn/dacwebservice.svc 2. China North https://bj1prod-dacsvc.chinacloudapp.cn/dacwebservice.svc
|
|
| MySQL PaaS | *.mysqldb.chinacloudapi.cn | |
| Azure Service Fabric cluster | *.cloudapp.azure.com | *.chinaeast.chinacloudapp.cn |
| Azure Spring Cloud | *.azuremicroservices.io | *.microservices.azure.cn |
| Microsoft Entra ID | *.onmicrosoft.com | *.partner.onmschina.cn |
| Microsoft Entra logon | https://login.microsoftonline.com | https://login.partner.microsoftonline.cn |
| Microsoft Graph | https://graph.microsoft.com | https://microsoftgraph.chinacloudapi.cn |
| Azure AI services | https://api.projectoxford.ai/face/v1.0 |
https://api.cognitive.azure.cn/face/v1.0 |
| Azure Bot Services | <*.botframework.com> | <*.botframework.azure.cn> |
| Azure Key Vault API | *.vault.azure.net | *.vault.azure.cn |
| Azure Container Apps Default Domain | *.azurecontainerapps.io | No default domain is provided for external environment. The custom domain is required. |
| Azure Container Apps Event Stream Endpoint | \<region\>.azurecontainerapps.dev |
`<region>.chinanorth3.azurecontainerapps-dev.cn`` |
https://learn.microsoft.com/en-us/azure/reliability/sovereign-cloud-china#azure-in-china-rest-endpoints
