MySQL8.0后续版本中主推使用MySQL Shell进行相关日常管理及维护操作，如果后续移除了mysqldump等命令后，如何进行数据库备份等相关操作呢？本文开始进行数据库备份的操作。

1. MySQL Shell 安装

1.1 下载

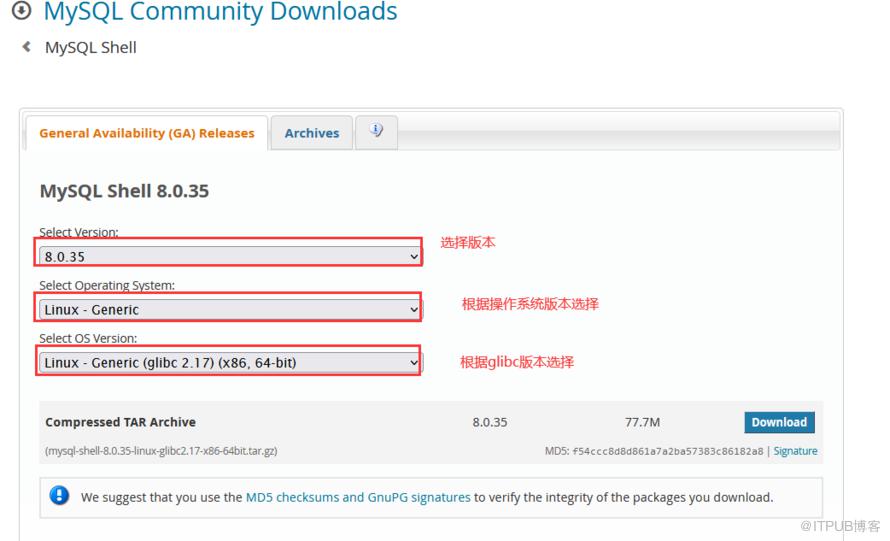

可以在MySQL官网进行下载，地址https://dev.mysql.com/downloads/shell/

需要根据操作系统类型、版本及glibc版本选择对应的文件下载，例如：

[root@VM-4-14-centos ~]# uname  -a Linux VM-4-14-centos 3.10.0-1160.99.1.el7.x86_64 #1 SMP Wed Sep 13 14:19:20 UTC 2023 x86_64 x86_64 x86_64 GNU/Linux[root@VM-4-14-centos ~]# ldd --versionldd (GNU libc) 2.17Copyright (C) 2012 Free Software Foundation, Inc.This is free software; see the source for copying conditions.  There is NOwarranty; not even for MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.Written by Roland McGrath and Ulrich Drepper.

因此可以选择如下版本下载

1.2 部署

上传文件至目标目录后解压文件

解压后建议配置软链接

tar -zxvf mysql-shell-8.0.35-linux-glibc2.17-x86-64bit.tar.gz

可以看到对应的工具了

 ln -s mysql-shell-8.0.35-linux-glibc2.17-x86-64bit mysql-shell

建议再配置一下环境变量

将“/usr/local/mysql-shell/bin"追加至/etc/profile中

在其他位置直接运行mysqlsh命令，即可得到如下结果：

此时，完成了mysql shell部署。

2. 进行数据库备份

2.1 登录数据库

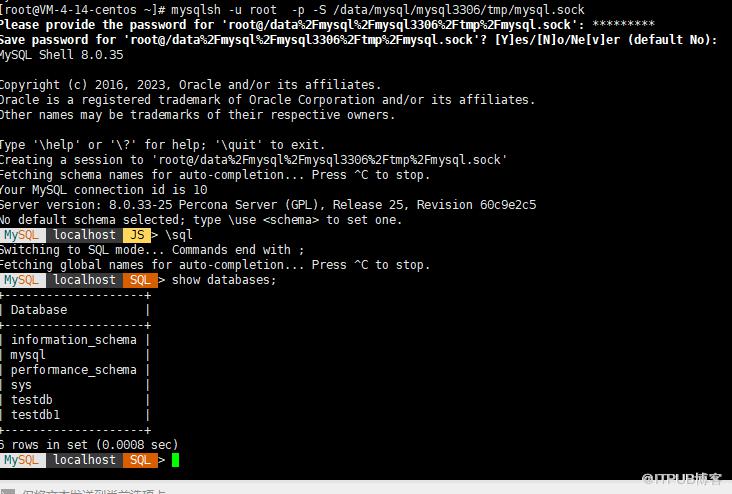

使用mysqlsh登录数据库，并列出库名，例如：

[root@VM-4-14-centos ~]# mysqlsh -u root  -p -S /data/mysql/mysql3306/tmp/mysql.sockPlease provide the password for 'root@/data%2Fmysql%2Fmysql3306%2Ftmp%2Fmysql.sock': *********Save password for 'root@/data%2Fmysql%2Fmysql3306%2Ftmp%2Fmysql.sock'? [Y]es/[N]o/Ne[v]er (default No): MySQL Shell 8.0.35
Copyright (c) 2016, 2023, Oracle and/or its affiliates.Oracle is a registered trademark of Oracle Corporation and/or its affiliates.Other names may be trademarks of their respective owners.
Type '\help' or '\?' for help; '\quit' to exit.Creating a session to 'root@/data%2Fmysql%2Fmysql3306%2Ftmp%2Fmysql.sock'Fetching schema names for auto-completion... Press ^C to stop.Your MySQL connection id is 10Server version: 8.0.33-25 Percona Server (GPL), Release 25, Revision 60c9e2c5No default schema selected; type \use <schema> to set one. MySQL  localhost  JS > \sqlSwitching to SQL mode... Commands end with ;Fetching global names for auto-completion... Press ^C to stop. MySQL  localhost  SQL > show databases;+--------------------+| Database           |+--------------------+| information_schema || mysql              || performance_schema || sys                || testdb             || testdb1            |+--------------------+6 rows in set (0.0008 sec) MySQL  localhost  SQL >

其中登录语法为：

mysqlsh -u root  -p -S /data/mysql/mysql3306/tmp/mysql.sock

输入密码后即可登录成功，输入密码后会确认是否保存密码，建议选择No(默认值）。

登录成功后，可以选择\sql ，即SQL命令模式。

2.2 备份整个实例

创建备份目录

mkdir -p /data/backup

登录数据库

 mysqlsh -u root  -p -S /data/mysql/mysql3306/tmp/mysql.sock

登录后是在js模式下，备份数据是在JS模式下进行，因此不用切换。

备份整个实例

MySQL  localhost  JS > util.dumpInstance("/data/backup")Acquiring global read lockGlobal read lock acquiredInitializing - done 2 out of 6 schemas will be dumped and within them 12 tables, 0 views.2 out of 5 users will be dumped.Gathering information - done All transactions have been startedLocking instance for backupGlobal read lock has been releasedWriting global DDL filesWriting users DDLRunning data dump using 4 threads.NOTE: Progress information uses estimated values and may not be accurate.Writing schema metadata - done       Writing DDL - done         Writing table metadata - done         Starting data dump129% (870 rows / ~670 rows), 0.00 rows/s, 0.00 B/s uncompressed, 0.00 B/s compressedDump duration: 00:00:00s                                                            Total duration: 00:00:00s                                                           Schemas dumped: 2                                                                   Tables dumped: 12                                                                   Uncompressed data size: 14.06 MB                                                    Compressed data size: 4.88 MB                                                       Compression ratio: 2.9                                                              Rows written: 870                                                                   Bytes written: 4.88 MB                                                              Average uncompressed throughput: 14.06 MB/s                                         Average compressed throughput: 4.88 MB/s                                            MySQL  localhost  JS >

如无异常，即完成了实例备份。可见，备份效率比较高（4线程处理）。

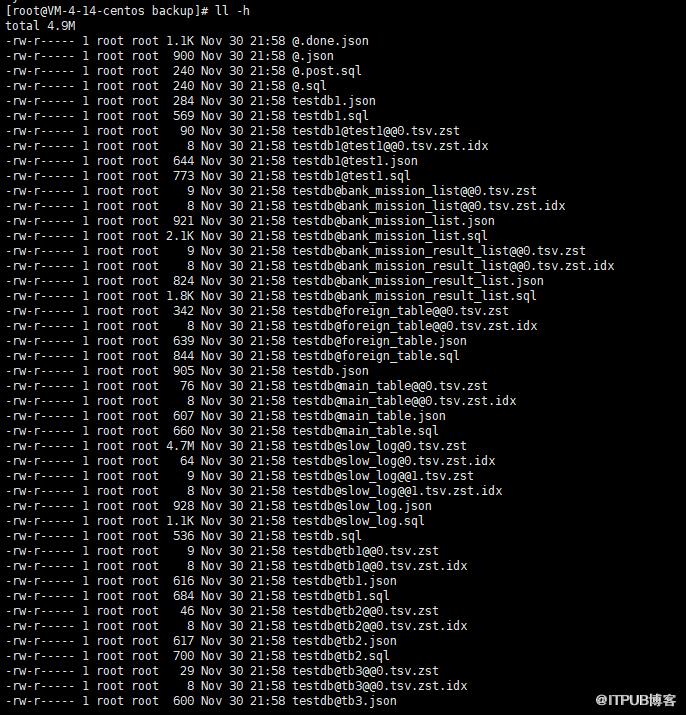

备份后，备份目录结果里可以查看结果如下：

其中的主要文件解释：

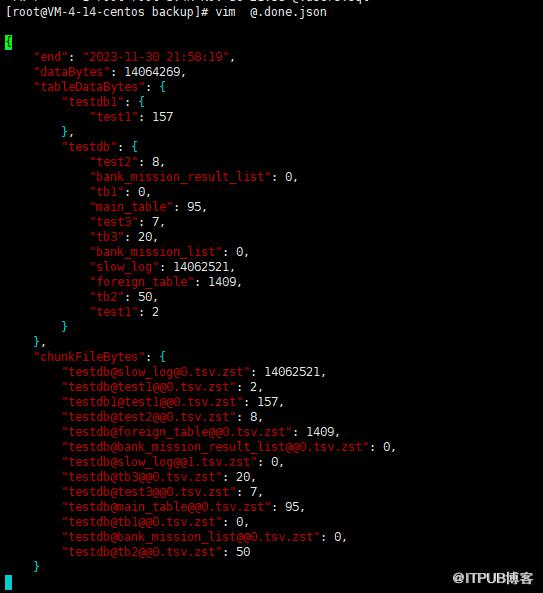

@.done.json： 该文件记录了备份结束时间，每个库下每个表的大小等信息，例如，

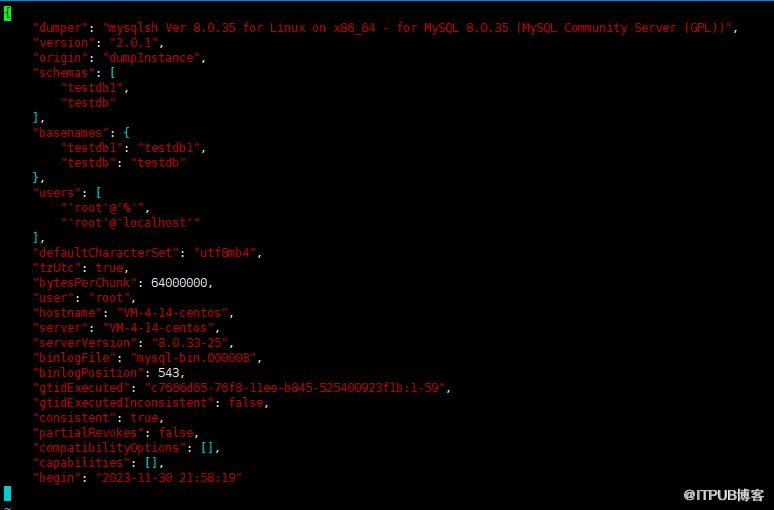

@.json：该文件记录了客户端版本，备份类型（实例、库或表等），元数据信息以及binlog信息（点位及GTID）。例如

@.sql, @.post.sql：这两个文件记录注释信息. 导入数据时, 我们可以通过这两个文件自定义的SQL. 在数据导入前和数据导入后执行，本次为全量备份，因此只有版本等注释信息

库名.json： 记录的是对应库名、表等信息

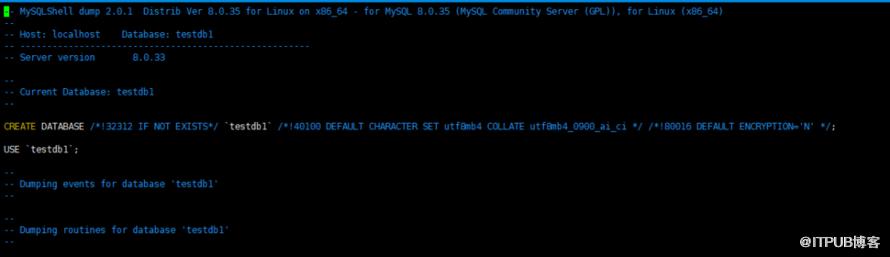

库名.sql: 具体的建库SQL脚本

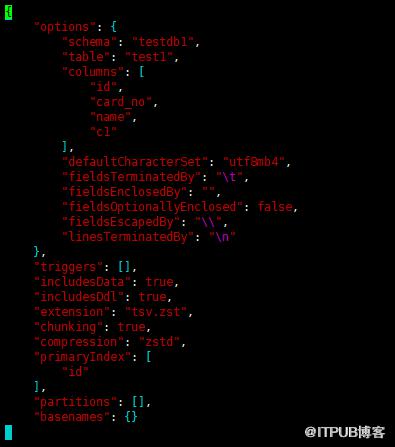

库名@表名.json:记录了对于的表的元数据信息，包括库名，表名，字段名，主键等信息

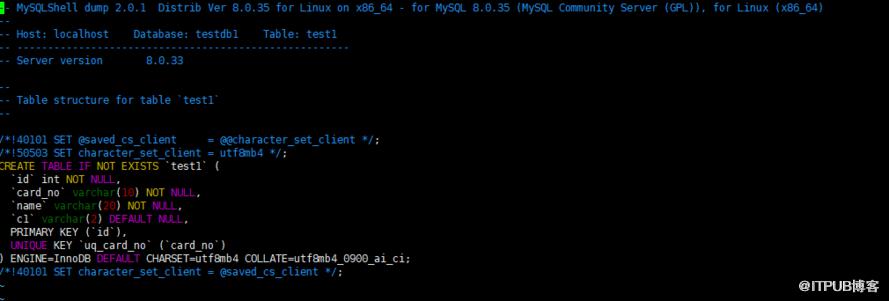

库名@表名.sql: 具体的建表SQL脚本

库名@表名@@*.tsv.zst： 具体数据文件

库名@表名@@*.tsv.zst.idx： 具体索引文件

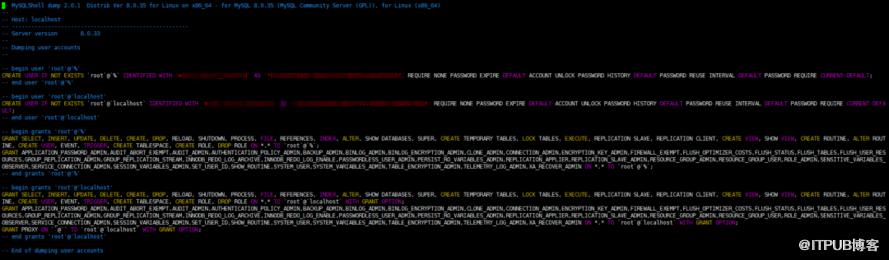

@.users.sql : 数据库用户信息，包含创建用户以及授权的SQL脚本

2.3 备份指定库

创建备份目录：重新创建一个专用于备份指定库的目录

mkdir -p data/backup/backup_schemas

使用shellsh登录数据库，并查看当前有哪些库

# mysqlsh -u root  -p -S /data/mysql/mysql3306/tmp/mysql.sockPlease provide the password for 'root@/data%2Fmysql%2Fmysql3306%2Ftmp%2Fmysql.sock': *********Save password for 'root@/data%2Fmysql%2Fmysql3306%2Ftmp%2Fmysql.sock'? [Y]es/[N]o/Ne[v]er (default No): MySQL Shell 8.0.35
Copyright (c) 2016, 2023, Oracle and/or its affiliates.Oracle is a registered trademark of Oracle Corporation and/or its affiliates.Other names may be trademarks of their respective owners.
Type '\help' or '\?' for help; '\quit' to exit.Creating a session to 'root@/data%2Fmysql%2Fmysql3306%2Ftmp%2Fmysql.sock'Fetching schema names for auto-completion... Press ^C to stop.Your MySQL connection id is 28Server version: 8.0.33-25 Percona Server (GPL), Release 25, Revision 60c9e2c5No default schema selected; type \use <schema> to set one. MySQL  localhost  JS > \sqlSwitching to SQL mode... Commands end with ;Fetching global names for auto-completion... Press ^C to stop. MySQL  localhost  SQL > show databases;+--------------------+| Database           |+--------------------+| information_schema || mysql              || performance_schema || sys                || testdb             || testdb1            |+--------------------+6 rows in set (0.0010 sec)

备份指定的库（schema）,如果多个库，则用逗号分隔

 MySQL  localhost  SQL > \jsSwitching to JavaScript mode... MySQL  localhost  JS > util.dumpSchemas(['testdb'],'/data/backup/backup_schemas')Acquiring global read lockGlobal read lock acquiredInitializing - done 1 schemas will be dumped and within them 11 tables, 0 views.Gathering information - done All transactions have been startedLocking instance for backupGlobal read lock has been releasedWriting global DDL filesRunning data dump using 4 threads.NOTE: Progress information uses estimated values and may not be accurate.Writing schema metadata - done       Writing DDL - done         Writing table metadata - done         Starting data dump130% (862 rows / ~662 rows), 0.00 rows/s, 0.00 B/s uncompressed, 0.00 B/s compressedDump duration: 00:00:00s                                                            Total duration: 00:00:00s                                                           Schemas dumped: 1                                                                   Tables dumped: 11                                                                   Uncompressed data size: 14.06 MB                                                    Compressed data size: 4.88 MB                                                       Compression ratio: 2.9                                                              Rows written: 862                                                                   Bytes written: 4.88 MB                                                              Average uncompressed throughput: 14.06 MB/s                                         Average compressed throughput: 4.88 MB/s                                             MySQL  localhost  JS >

以上则备份完成。

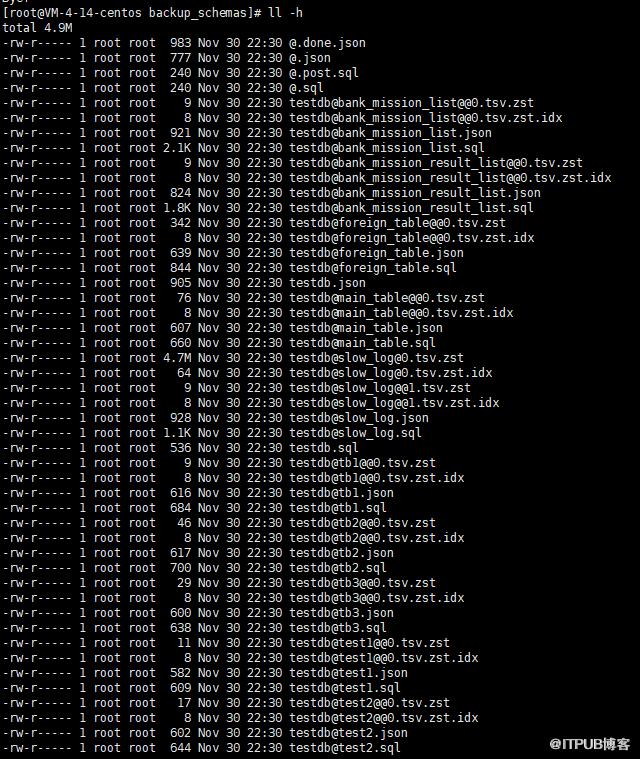

到对于目录下查看备份结果如下：

2.4 备份指定表

再次先创建目录

[root@VM-4-14-centos ~]# mkdir -p /data/backup/backup_tables[root@VM-4-14-centos ~]# cd /data/backup/backup_tables[root@VM-4-14-centos backup_tables]#

登录数据库，并查看库及表名

[root@VM-4-14-centos backup_tables]# mysqlsh -u root  -p -S /data/mysql/mysql3306/tmp/mysql.sockPlease provide the password for 'root@/data%2Fmysql%2Fmysql3306%2Ftmp%2Fmysql.sock': *********Save password for 'root@/data%2Fmysql%2Fmysql3306%2Ftmp%2Fmysql.sock'? [Y]es/[N]o/Ne[v]er (default No): MySQL Shell 8.0.35
Copyright (c) 2016, 2023, Oracle and/or its affiliates.Oracle is a registered trademark of Oracle Corporation and/or its affiliates.Other names may be trademarks of their respective owners.
Type '\help' or '\?' for help; '\quit' to exit.Creating a session to 'root@/data%2Fmysql%2Fmysql3306%2Ftmp%2Fmysql.sock'Fetching schema names for auto-completion... Press ^C to stop.Your MySQL connection id is 35Server version: 8.0.33-25 Percona Server (GPL), Release 25, Revision 60c9e2c5No default schema selected; type \use <schema> to set one. MySQL  localhost  JS > \sqlSwitching to SQL mode... Commands end with ;Fetching global names for auto-completion... Press ^C to stop. MySQL  localhost  SQL > show databases;+--------------------+| Database           |+--------------------+| information_schema || mysql              || performance_schema || sys                || testdb             || testdb1            |+--------------------+6 rows in set (0.0009 sec) MySQL  localhost  SQL > use testdb1Default schema set to `testdb1`.Fetching global names, object names from `testdb1` for auto-completion... Press ^C to stop. MySQL  localhost  testdb1  SQL > show tables;+-------------------+| Tables_in_testdb1 |+-------------------+| test1             |+-------------------+1 row in set (0.0014 sec) MySQL  localhost  testdb1  SQL >

进行指定表的备份，如果多个表，则表名用逗号分隔

 MySQL  localhost  testdb1  JS >  util.dumpTables('testdb1',['test1'],'/data/backup/backup_tables')Acquiring global read lockGlobal read lock acquiredInitializing - done 1 tables and 0 views will be dumped.Gathering information - done All transactions have been startedLocking instance for backupGlobal read lock has been releasedWriting global DDL filesRunning data dump using 4 threads.NOTE: Progress information uses estimated values and may not be accurate.Writing schema metadata - done       Writing DDL - done       Writing table metadata - done       Starting data dump100% (8 rows / ~8 rows), 0.00 rows/s, 0.00 B/s uncompressed, 0.00 B/s compressedDump duration: 00:00:00s                                                        Total duration: 00:00:00s                                                       Schemas dumped: 1                                                               Tables dumped: 1                                                                Uncompressed data size: 157 bytes                                               Compressed data size: 90 bytes                                                  Compression ratio: 1.7                                                          Rows written: 8                                                                 Bytes written: 90 bytes                                                         Average uncompressed throughput: 157.00 B/s                                     Average compressed throughput: 90.00 B/s                                         MySQL  localhost  testdb1  JS >
