当我们写下一条复杂的sql时，不是盲目去执行，选择提前explain分析sql，是一个不错的选择，避免没用到索引或者用到错误的索引导致mysql大量的扫表，造成线上不好的后果。
mysql提供的explain命令可以获取select语句的执行计划，通过explain我们可以知道：表的读取顺序，数据读取操作的类型，哪些索引可以使用，哪些索引实际使用了等等。
mysql> explain select * from user; +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ | 1 | SIMPLE | user | NULL | index | NULL | name | 402 | NULL | 1 | 100.00 | Using index | +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ 1 row in set, 1 warning (0.01 sec)
以下全部基于mysql5.7.32
mysql> select version(); +-----------+ | version() | +-----------+ | 5.7.32 | +-----------+ 1 row in set (0.00 sec)
id
mysql> explain select * from user a left join user_info b on a.id=b.user_id where a.id=1; +----+-------------+-------+------------+-------+---------------+---------+---------+-------+------+----------+-------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+---------+---------+-------+------+----------+-------+ | 1 | SIMPLE | a | NULL | const | PRIMARY | PRIMARY | 8 | const | 1 | 100.00 | NULL | | 1 | SIMPLE | b | NULL | ref | user_id | user_id | 8 | const | 1 | 100.00 | NULL | +----+-------------+-------+------------+-------+---------------+---------+---------+-------+------+----------+-------+
id相同的时候，从上往下顺序执行
mysql> explain select * from user where id = (select user_id from user_info where age=10); +----+-------------+-----------+------------+-------+---------------+---------+---------+-------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+-------+---------------+---------+---------+-------+------+----------+-------------+ | 1 | PRIMARY | user | NULL | const | PRIMARY | PRIMARY | 8 | const | 1 | 100.00 | NULL | | 2 | SUBQUERY | user_info | NULL | ALL | NULL | NULL | NULL | NULL | 1 | 100.00 | Using where | +----+-------------+-----------+------------+-------+---------------+---------+---------+-------+------+----------+-------------+
id不同的时候，越大的id越先执行，对于这种子查询，优先执行子sql拿到结果，才去执行主sql
mysql> explain select * from user union select * from user; +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ | 1 | PRIMARY | user | NULL | index | NULL | name | 402 | NULL | 1 | 100.00 | Using index | | 2 | UNION | user | NULL | index | NULL | name | 402 | NULL | 1 | 100.00 | Using index | | NULL | UNION RESULT | <union1,2> | NULL | ALL | NULL | NULL | NULL | NULL | NULL | NULL | Using temporary | +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ 3 rows in set, 1 warning (0.00 sec)
对于union查询，会创建一个临时表，对应的id是null
select_type
SIMPLE
simple是简单查询，mysql认为比较简单的查询，不包含子查询和union查询都是simple，哪怕简单的join都是simple
mysql> explain select * from user; +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ | 1 | SIMPLE | user | NULL | index | NULL | name | 402 | NULL | 1 | 100.00 | Using index | +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ 1 row in set, 1 warning (0.00 sec)
mysql> explain select * from user a left join user_info b on a.id=b.user_id; +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+------+----------+-------------+ | 1 | SIMPLE | a | NULL | index | NULL | name | 402 | NULL | 1 | 100.00 | Using index | | 1 | SIMPLE | b | NULL | ref | user_id | user_id | 8 | test.a.id | 1 | 100.00 | NULL | +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+------+----------+-------------+ 2 rows in set, 1 warning (0.00 sec)
PRIMARY
查询中若包含任何复杂的子部分，最外层查询则被标记为primary
mysql> explain select * from user where id = (select id from user_info where age=10); +----+-------------+-----------+------------+-------+---------------+---------+---------+-------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+-------+---------------+---------+---------+-------+------+----------+-------------+ | 1 | PRIMARY | user | NULL | const | PRIMARY | PRIMARY | 8 | const | 1 | 100.00 | NULL | | 2 | SUBQUERY | user_info | NULL | ALL | NULL | NULL | NULL | NULL | 1 | 100.00 | Using where | +----+-------------+-----------+------------+-------+---------------+---------+---------+-------+------+----------+-------------+ 2 rows in set, 1 warning (0.00 sec)
mysql> explain select * from user union all select * from user; +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ | 1 | PRIMARY | user | NULL | index | NULL | name | 402 | NULL | 1 | 100.00 | Using index | | 2 | UNION | user | NULL | index | NULL | name | 402 | NULL | 1 | 100.00 | Using index | +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ 2 rows in set, 1 warning (0.00 sec)
SUBQUERY
在SELECT或WHERE列表中包含了子查询的语句
mysql> explain select (select id from user) from user; +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ | 1 | PRIMARY | user | NULL | index | NULL | name | 402 | NULL | 1 | 100.00 | Using index | | 2 | SUBQUERY | user | NULL | index | NULL | name | 402 | NULL | 1 | 100.00 | Using index | +----+-------------+-------+------------+-------+---------------+------+---------+------+------+----------+-------------+ 2 rows in set, 1 warning (0.00 sec)
mysql> explain select * from user where id= (select user_id from user_info where age=10); +----+-------------+-----------+------------+-------+---------------+---------+---------+-------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+-------+---------------+---------+---------+-------+------+----------+-------------+ | 1 | PRIMARY | user | NULL | const | PRIMARY | PRIMARY | 8 | const | 1 | 100.00 | NULL | | 2 | SUBQUERY | user_info | NULL | ALL | NULL | NULL | NULL | NULL | 1 | 100.00 | Using where | +----+-------------+-----------+------------+-------+---------------+---------+---------+-------+------+----------+-------------+ 2 rows in set, 1 warning (0.00 sec)
DERIVED
派生表的select(from子句的子查询)
mysql> explain select * from (select * from user union select * from user) c; +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ | 1 | PRIMARY | <derived2> | NULL | ALL | NULL | NULL | NULL | NULL | 4 | 100.00 | NULL | | 2 | DERIVED | user | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using index | | 3 | UNION | user | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using index | | NULL | UNION RESULT | <union2,3> | NULL | ALL | NULL | NULL | NULL | NULL | NULL | NULL | Using temporary | +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ 4 rows in set, 1 warning (0.00 sec)
UNION
union中后面的select语句
mysql> explain select * from user union select * from user; +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ | 1 | PRIMARY | user | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using index | | 2 | UNION | user | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using index | | NULL | UNION RESULT | <union1,2> | NULL | ALL | NULL | NULL | NULL | NULL | NULL | NULL | Using temporary | +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ 3 rows in set, 1 warning (0.02 sec)
DEPENDENT UNION
出现在union或union all语句中，但是这个查询要受到外部查询的影响
mysql> explain select * from user where id in(select id from user union select id from user); +----+--------------------+------------+------------+--------+---------------+---------+---------+------+------+----------+--------------------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+--------------------+------------+------------+--------+---------------+---------+---------+------+------+----------+--------------------------+ | 1 | PRIMARY | user | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using where; Using index | | 2 | DEPENDENT SUBQUERY | user | NULL | eq_ref | PRIMARY | PRIMARY | 4 | func | 1 | 100.00 | Using index | | 3 | DEPENDENT UNION | user | NULL | eq_ref | PRIMARY | PRIMARY | 4 | func | 1 | 100.00 | Using index | | NULL | UNION RESULT | <union2,3> | NULL | ALL | NULL | NULL | NULL | NULL | NULL | NULL | Using temporary | +----+--------------------+------------+------------+--------+---------------+---------+---------+------+------+----------+--------------------------+ 4 rows in set, 1 warning (0.11 sec)
DEPENDENT SUBQUERY
同DEPENDENT UNION 差不多，包含子查询，且受到外部查询的影响
mysql> explain select * from user where id in(select id from user union select id from user); +----+--------------------+------------+------------+--------+---------------+---------+---------+------+------+----------+--------------------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+--------------------+------------+------------+--------+---------------+---------+---------+------+------+----------+--------------------------+ | 1 | PRIMARY | user | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using where; Using index | | 2 | DEPENDENT SUBQUERY | user | NULL | eq_ref | PRIMARY | PRIMARY | 4 | func | 1 | 100.00 | Using index | | 3 | DEPENDENT UNION | user | NULL | eq_ref | PRIMARY | PRIMARY | 4 | func | 1 | 100.00 | Using index | | NULL | UNION RESULT | <union2,3> | NULL | ALL | NULL | NULL | NULL | NULL | NULL | NULL | Using temporary | +----+--------------------+------------+------------+--------+---------------+---------+---------+------+------+----------+--------------------------+ 4 rows in set, 1 warning (0.11 sec)
UNION RESULT
出现在union或union all中，表示的是一个结果集
mysql> explain select id from user union select id from user; +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ | 1 | PRIMARY | user | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using index | | 2 | UNION | user | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using index | | NULL | UNION RESULT | <union1,2> | NULL | ALL | NULL | NULL | NULL | NULL | NULL | NULL | Using temporary | +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ 3 rows in set, 1 warning (0.00 sec)
table
查询的表名，有时候显示的并不是真正的表名
mysql> explain select * from (select * from user union select * from user) c; +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ | 1 | PRIMARY | <derived2> | NULL | ALL | NULL | NULL | NULL | NULL | 4 | 100.00 | NULL | | 2 | DERIVED | user | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using index | | 3 | UNION | user | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using index | | NULL | UNION RESULT | <union2,3> | NULL | ALL | NULL | NULL | NULL | NULL | NULL | NULL | Using temporary | +----+--------------+------------+------------+-------+---------------+------+---------+------+------+----------+-----------------+ 4 rows in set, 1 warning (0.00 sec)
比如id=1的table是derived2，说明它查的是一个派生表，其中derived
[num],这个num就是第几步执行的结果，这里是2，说明就是id=2的那一步执行的结果。
partitions
查询匹配记录的分区。对于非分区表，值为NULL。
先创建一张分区表
CREATE TABLE users ( id INT NOT NULL , name varchar(100) NOT NULL ) PARTITION BY RANGE (id) ( PARTITION p0 VALUES LESS THAN (10), PARTITION p1 VALUES LESS THAN (20), PARTITION p2 VALUES LESS THAN (30), PARTITION p3 VALUES LESS THAN MAXVALUE );
通过id分了4个区，插入两条数据
mysql> select * from users; +----+-------+ | id | name | +----+-------+ | 1 | Tom | | 11 | jerry | +----+-------+ 2 rows in set (0.00 sec)
mysql> explain select * from users where id=1; +----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+ | 1 | SIMPLE | users | p0 | ALL | NULL | NULL | NULL | NULL | 1 | 100.00 | Using where | +----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+ 1 row in set, 1 warning (0.00 sec)
id=1 分布在p0分区
mysql> explain select * from users where id=11; +----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+ | 1 | SIMPLE | users | p1 | ALL | NULL | NULL | NULL | NULL | 1 | 100.00 | Using where | +----+-------------+-------+------------+------+---------------+------+---------+------+------+----------+-------------+ 1 row in set, 1 warning (0.00 sec)
id=11 分布在p1分区
type
type是非常重要的指标，它表示我们使用什么类型去查数据。下面由好到坏的介绍各个type类型
system
这种类型一般不会出现，官方解释：
The table has only one row (= system table). This is a special case of the const join type.
表只有一行记录，一般是系统表，是一种特殊的const类型
const
表最多有一个匹配行，因为只有一行，所以优化器的其余部分可以将此行中列的值视为常量。const表非常快，因为它们只读取一次。
mysql> explain select * from user where id=1; +----+-------------+-------+------------+-------+---------------+---------+---------+-------+------+----------+-------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+---------+---------+-------+------+----------+-------+ | 1 | SIMPLE | user | NULL | const | PRIMARY | PRIMARY | 4 | const | 1 | 100.00 | NULL | +----+-------------+-------+------------+-------+---------------+---------+---------+-------+------+----------+-------+ 1 row in set, 1 warning (0.01 sec)
const一定是用到primary key或者unique的索引时候才会出现。
mysql> explain select * from user where name="Tom"; +----+-------------+-------+------------+------+---------------+------+---------+-------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+------+---------------+------+---------+-------+------+----------+-------------+ | 1 | SIMPLE | user | NULL | ref | name | name | 1023 | const | 1 | 100.00 | Using index | +----+-------------+-------+------------+------+---------------+------+---------+-------+------+----------+-------------+ 1 row in set, 1 warning (0.01 sec)
虽然通过name也查出一条数据，但是由于name是普通索引，所以不是const
eq_ref
除了system和const 它是最好的。一般出现在连接查询中，且连接的条件是主键索引或者唯一索引时，就会用到它。
mysql> explain select * from user a left join user_info b on a.id=b.user_id; +----+-------------+-------+------------+--------+---------------+---------+---------+-----------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+--------+---------------+---------+---------+-----------+------+----------+-------------+ | 1 | SIMPLE | a | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using index | | 1 | SIMPLE | b | NULL | eq_ref | user_id | user_id | 4 | test.a.id | 1 | 100.00 | NULL | +----+-------------+-------+------------+--------+---------------+---------+---------+-----------+------+----------+-------------+ 2 rows in set, 1 warning (0.00 sec)
a.id是primary key
b.user_id是 unique key
先查a表，a表关联b表通过id和user_id来，因为id是主键索引，而user_id又是唯一索引，那么a表中的每条记录仅会关联b表的一条记录。所以b表的类型就是eq_ref。
ref
和eq_ref相比，不同的就是关联表查询的字段不是唯一或者主键索引，就是匹配到了，还要继续匹配，可能有多条记录。
mysql> explain select b.* from user a left join user_info b on a.id=b.user_id; +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+------+----------+-------------+ | 1 | SIMPLE | a | NULL | index | NULL | name | 402 | NULL | 1 | 100.00 | Using index | | 1 | SIMPLE | b | NULL | ref | user_id | user_id | 8 | test.a.id | 1 | 100.00 | NULL | +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+------+----------+-------------+ 2 rows in set, 1 warning (0.01 sec)
a.id是
primary key
b.user_id是普通的索引
key
a可能关联b的多条记录，但是起码有索引，所以的b的type就是ref。
fulltext
全文索引的话，innodb不支持，随着各种搜索引擎的出现，一般出现需要全文索引的地方，都会用类似es擅长分词的存储。
ref_or_null
这种类型类似于ref，但是MySQL会额外搜索包含空值的行。
mysql> explain select * from user_info where user_id is null or user_id=1; +----+-------------+-----------+------------+-------------+---------------+---------+---------+-------+------+----------+-----------------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+-------------+---------------+---------+---------+-------+------+----------+-----------------------+ | 1 | SIMPLE | user_info | NULL | ref_or_null | user_id | user_id | 9 | const | 108 | 100.00 | Using index condition | +----+-------------+-----------+------------+-------------+---------------+---------+---------+-------+------+----------+-----------------------+ 1 row in set, 1 warning (0.00 sec)
user_id是普通的索引
key，且允许为null。
index_merge
索引合并
mysql> explain select * from user_info where id=1 or user_id=999; +----+-------------+-----------+------------+-------------+-----------------+-----------------+---------+------+------+----------+-------------------------------------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+-------------+-----------------+-----------------+---------+------+------+----------+-------------------------------------------+ | 1 | SIMPLE | user_info | NULL | index_merge | PRIMARY,user_id | PRIMARY,user_id | 8,9 | NULL | 2 | 100.00 | Using union(PRIMARY,user_id); Using where | +----+-------------+-----------+------------+-------------+-----------------+-----------------+---------+------+------+----------+-------------------------------------------+ 1 row in set, 1 warning (0.00 sec)
id是主键索引，user_id是普通索引，结果用了两个索引的合并
unique_subquery
用于where中的in形式子查询，子查询返回不重复值唯一值，可以完全替换子查询，效率更高。 该类型替换了下面形式的IN子查询的ref。
explain select * from user_info where user_id in (select id from user where id>10);
子查询的id为
primary key或者
unique key。
index_subquery
类似于unique_subquery子查询，但是子查询返回的是非唯一索引。
explain select * from user_info where user_id in (select id from user where id>10);
子查询的id不是
primary key和
unique key。
range
索引范围扫描，一般条件使用了 >，<，between，in等运算符的查询。
mysql> explain select * from user where id>=1 and id <=100; +----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+-------------+ | 1 | SIMPLE | user | NULL | range | PRIMARY | PRIMARY | 8 | NULL | 100 | 100.00 | Using where | +----+-------------+-------+------------+-------+---------------+---------+---------+------+------+----------+-------------+ 1 row in set, 1 warning (0.00 sec)
index
和全表扫差不多，但是只有索引树被扫描，这通常比全表扫快，因为索引文件通常比数据文件小。
mysql> explain select user_id from user_info; +----+-------------+-----------+------------+-------+---------------+---------+---------+------+--------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+-------+---------------+---------+---------+------+--------+----------+-------------+ | 1 | SIMPLE | user_info | NULL | index | NULL | user_id | 9 | NULL | 100100 | 100.00 | Using index | +----+-------------+-----------+------------+-------+---------------+---------+---------+------+--------+----------+-------------+ 1 row in set, 1 warning (0.00 sec)
ALL
全表扫描
mysql> explain select * from user_info where age=1; +----+-------------+-----------+------------+------+---------------+------+---------+------+--------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+------+---------------+------+---------+------+--------+----------+-------------+ | 1 | SIMPLE | user_info | NULL | ALL | NULL | NULL | NULL | NULL | 100100 | 10.00 | Using where | +----+-------------+-----------+------------+------+---------------+------+---------+------+--------+----------+-------------+ 1 row in set, 1 warning (0.00 sec)
age没有索引，引擎层做了全表扫。
possible_keys
查询可能使用到的索引。
mysql> explain select * from user_info where id>1 and user_id >2; +----+-------------+-----------+------------+-------+-----------------+---------+---------+------+-------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+-------+-----------------+---------+---------+------+-------+----------+-------------+ | 1 | SIMPLE | user_info | NULL | range | PRIMARY,user_id | PRIMARY | 8 | NULL | 50050 | 50.00 | Using where | +----+-------------+-----------+------------+-------+-----------------+---------+---------+------+-------+----------+-------------+ 1 row in set, 1 warning (0.00 sec)
id和
user_id都有索引
key
执行器最终选择的索引
mysql> explain select * from user_info where id>1 and user_id >2; +----+-------------+-----------+------------+-------+-----------------+---------+---------+------+-------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+-------+-----------------+---------+---------+------+-------+----------+-------------+ | 1 | SIMPLE | user_info | NULL | range | PRIMARY,user_id | PRIMARY | 8 | NULL | 50050 | 50.00 | Using where | +----+-------------+-----------+------------+-------+-----------------+---------+---------+------+-------+----------+-------------+ 1 row in set, 1 warning (0.00 sec)
这里选择了主键索引。
key_len
使用的索引的长度，这里面的情况还是挺复杂的，特别对于一些复合索引。
假设存在这样的表
CREATE TABLE `testlen` ( `id` int(11) unsigned NOT NULL AUTO_INCREMENT, `name1` varchar(10) not null default "", `name2` varchar(10), `num1` int(10) not null default 0, `num2` int(10), PRIMARY KEY (`id`), key(`name1`), key(`name2`), key(`num1`), key(`num2`) ) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_unicode_ci;
1.当字段为定长时，如char，int这些，需要有一个字节来标记是否为空，not null的话就不需要。
mysql> explain select * from testlen where num1=1; +----+-------------+---------+------------+------+---------------+------+---------+-------+------+----------+-------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+---------+------------+------+---------------+------+---------+-------+------+----------+-------+ | 1 | SIMPLE | testlen | NULL | ref | num1 | num1 | 4 | const | 1 | 100.00 | NULL | +----+-------------+---------+------------+------+---------------+------+---------+-------+------+----------+-------+ 1 row in set, 1 warning (0.03 sec)
mysql> explain select * from testlen where num2=1; +----+-------------+---------+------------+------+---------------+------+---------+-------+------+----------+-------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+---------+------------+------+---------------+------+---------+-------+------+----------+-------+ | 1 | SIMPLE | testlen | NULL | ref | num2 | num2 | 5 | const | 1 | 100.00 | NULL | +----+-------------+---------+------------+------+---------------+------+---------+-------+------+----------+-------+ 1 row in set, 1 warning (0.00 sec)
2.当字段为变长的时候，如varchar这些，除了是否需要用一个字节来标记非not null的，还需要额外的两个字节标记长度

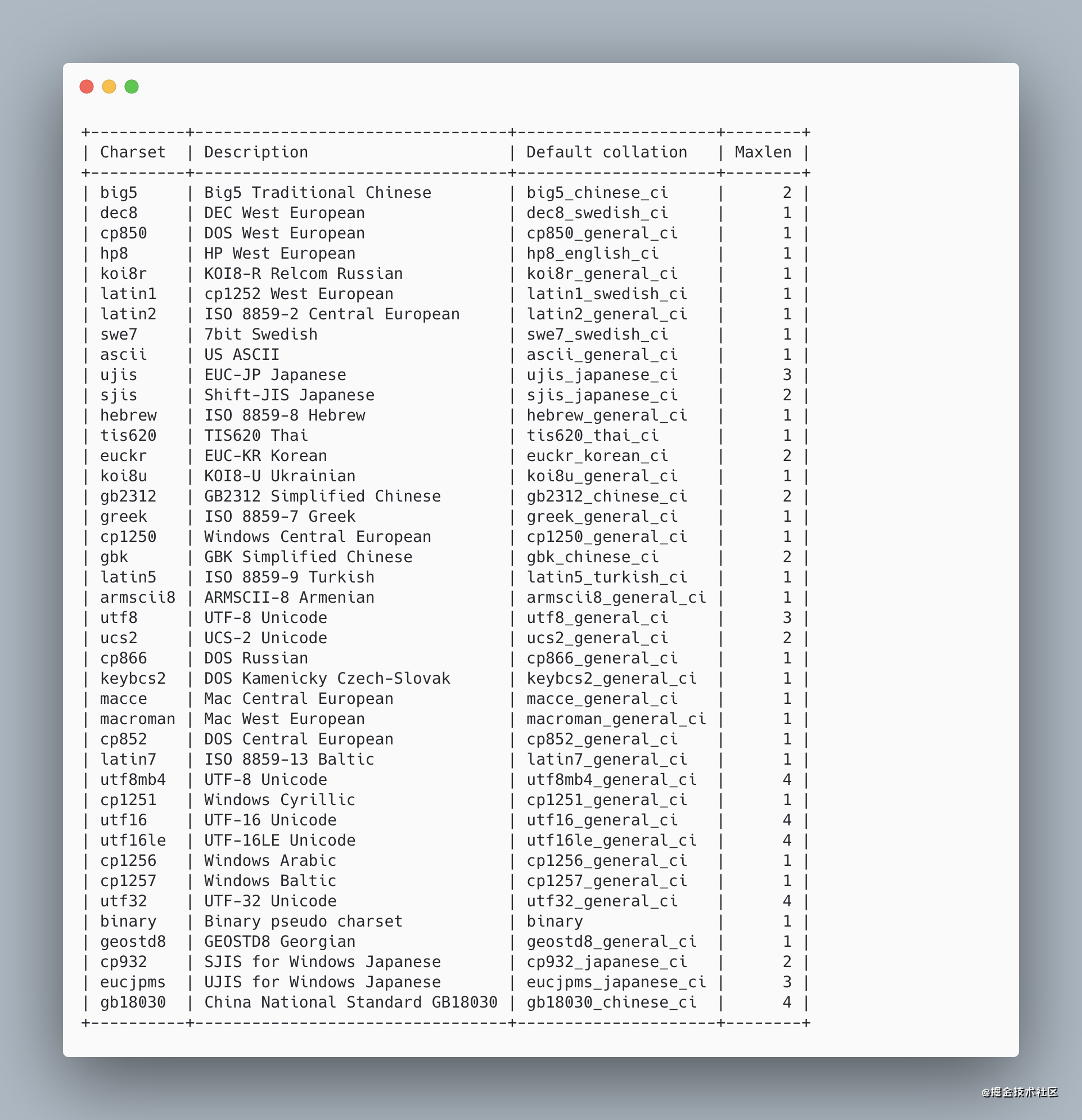

3.对于char、varchar这些，utf8编码的一个字符占用3个字节，utf8mb4一个字符占用4个字节
mysql> explain select * from testlen where name1='1'; +----+-------------+---------+------------+------+---------------+-------+---------+-------+------+----------+-------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+---------+------------+------+---------------+-------+---------+-------+------+----------+-------+ | 1 | SIMPLE | testlen | NULL | ref | name1 | name1 | 42 | const | 1 | 100.00 | NULL | +----+-------------+---------+------------+------+---------------+-------+---------+-------+------+----------+-------+ 1 row in set, 1 warning (0.01 sec)
对于utf8mb4编码的来说，not null的varchar(10) 最终长度=10*4+2 = 42
mysql> explain select * from testlen where name2='1'; +----+-------------+---------+------------+------+---------------+-------+---------+-------+------+----------+-------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+---------+------------+------+---------------+-------+---------+-------+------+----------+-------+ | 1 | SIMPLE | testlen | NULL | ref | name2 | name2 | 43 | const | 1 | 100.00 | NULL | +----+-------------+---------+------------+------+---------------+-------+---------+-------+------+----------+-------+ 1 row in set, 1 warning (0.00 sec)
对于utf8mb4编码的来说，允许为null的varchar(10) 最终长度=10*4+2+1 = 43。
ref
这一列显示了在key列记录的索引中，表查找值所用到的列或常量。
mysql> explain select * from user where id=1; +----+-------------+-------+------------+-------+---------------+---------+---------+-------+------+----------+-------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+---------+---------+-------+------+----------+-------+ | 1 | SIMPLE | user | NULL | const | PRIMARY | PRIMARY | 4 | const | 1 | 100.00 | NULL | +----+-------------+-------+------------+-------+---------------+---------+---------+-------+------+----------+-------+ 1 row in set, 1 warning (0.01 sec)
where 条件是
id=1，那么对应的ref列就是常量const。
mysql> explain select * from user a left join user_info b on a.id=b.user_id; +----+-------------+-------+------------+--------+---------------+---------+---------+-----------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+--------+---------------+---------+---------+-----------+------+----------+-------------+ | 1 | SIMPLE | a | NULL | index | NULL | name | 1023 | NULL | 1 | 100.00 | Using index | | 1 | SIMPLE | b | NULL | eq_ref | user_id | user_id | 4 | test.a.id | 1 | 100.00 | NULL | +----+-------------+-------+------------+--------+---------------+---------+---------+-----------+------+----------+-------------+ 2 rows in set, 1 warning (0.02 sec)
user_info关联user表，关联的条件是user.id，故
ref=test.a.id（test是库名）
rows
扫描出的行数，这个是个估算的值，并不是真正的结果集
filtered
filtered表示返回结果的行数占需读取行数的百分比，filtered列的值依赖于统计信息。
extra
一些额外的信息，主要说明如何找到数据的。
using index
使用覆盖索引的时候就会出现，只查找索引列的值。
mysql> explain select user_id from user_info; +----+-------------+-----------+------------+-------+---------------+---------+---------+------+------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+-------+---------------+---------+---------+------+------+----------+-------------+ | 1 | SIMPLE | user_info | NULL | index | NULL | user_id | 4 | NULL | 2 | 100.00 | Using index | +----+-------------+-----------+------------+-------+---------------+---------+---------+------+------+----------+-------------+ 1 row in set, 1 warning (0.00 sec)
using where
MYSQL服务器层将在存储引擎层返回行以后再应用WHERE过滤条件，一般发生在不能走索引扫描的情况下或者走索引扫描，但是有些查询列不在索引当中的情况下。
mysql> explain select * from user_info where user_id>10; +----+-------------+-----------+------------+------+---------------+------+---------+------+--------+----------+-------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+------+---------------+------+---------+------+--------+----------+-------------+ | 1 | SIMPLE | user_info | NULL | ALL | user_id | NULL | NULL | NULL | 100100 | 50.00 | Using where | +----+-------------+-----------+------------+------+---------------+------+---------+------+--------+----------+-------------+ 1 row in set, 1 warning (0.01 sec)
Using temporary
对于一些order by、group by可能会用到临时表。
mysql> explain select * from user a left join user_info b on a.id=b.user_id where a.id>=1 order by b.user_id; +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+------+----------+----------------------------------------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+------+----------+----------------------------------------------+ | 1 | SIMPLE | a | NULL | range | PRIMARY | PRIMARY | 8 | NULL | 5187 | 100.00 | Using where; Using temporary; Using filesort | | 1 | SIMPLE | b | NULL | ref | user_id | user_id | 9 | test.a.id | 1 | 100.00 | Using where | +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+------+----------+----------------------------------------------+ 2 rows in set, 1 warning (0.01 sec)
Using filesort
一般order by相关的没用到索引，就要文件排序。
mysql> explain select * from user_info order by age desc; +----+-------------+-----------+------------+------+---------------+------+---------+------+--------+----------+----------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-----------+------------+------+---------------+------+---------+------+--------+----------+----------------+ | 1 | SIMPLE | user_info | NULL | ALL | NULL | NULL | NULL | NULL | 100100 | 100.00 | Using filesort | +----+-------------+-----------+------------+------+---------------+------+---------+------+--------+----------+----------------+
Using index condition
相比using where，Using index condition把where条件用到的索引放在引擎层过滤一下，没用到索引的列，在server层再过滤一遍。
mysql> explain select * from user a left join user_info b on a.id=b.user_id where b.user_id>1; +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+-------+----------+-----------------------+ | id | select_type | table | partitions | type | possible_keys | key | key_len | ref | rows | filtered | Extra | +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+-------+----------+-----------------------+ | 1 | SIMPLE | a | NULL | index | PRIMARY | name | 402 | NULL | 10375 | 100.00 | Using index | | 1 | SIMPLE | b | NULL | ref | user_id | user_id | 9 | test.a.id | 1 | 100.00 | Using index condition | +----+-------------+-------+------------+-------+---------------+---------+---------+-----------+-------+----------+-----------------------+ 2 rows in set, 1 warning (0.00 sec)
来自 “ ITPUB博客 ” ，链接：https://blog.itpub.net/70000438/viewspace-2780303/ ，如需转载，请注明出处，否则将追究法律责任。
