本文介绍了如何使用MogDB Operator在Kubernetes上部署MogDB集群自动运维系统，包含MogDB Operator部署，Kubernetes上的MogDB集群创建等。
一、部署MogDB Operator
1.获取Kustomize v3+

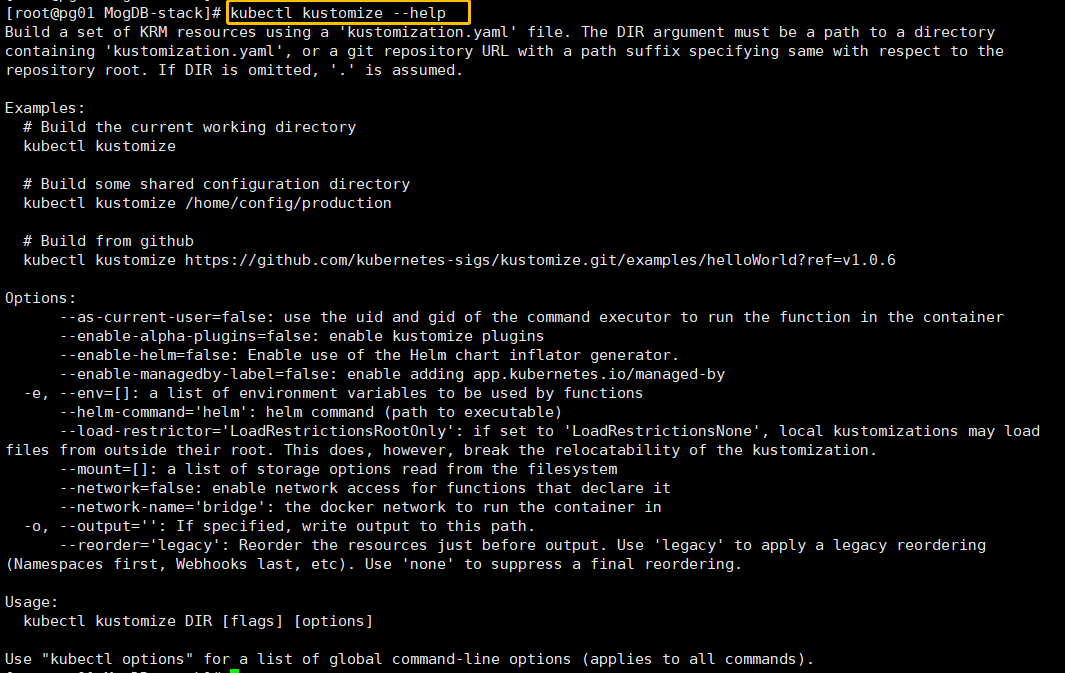

kustomize 是一种安装应用的方案， 是一个通用的工具，它的作用是对描述 Kubernetes 资源的 YAML 文件进行定制，产生新的 YAML 文件，并保持原始的 YAML 文件不变。和包管理工具 Helm不同的是，kustomize 不使用模板，而是直接工作在原始的 YAML 文件上。kustomize 的另外一个优势是集成在 kubectl 中，这就意味着不需要安装额外的工具就可以进行定制。但是，kubectl 自带的 kustomize 的版本比较低，目前仍然需要安装单独的 kustomize 工具。

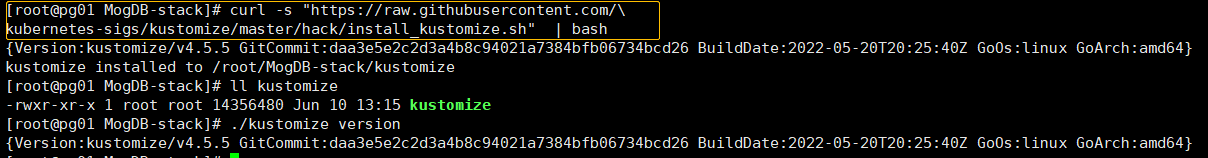

安装Kustomize
curl -s "https://raw.githubusercontent.com/\ kubernetes-sigs/kustomize/master/hack/install_kustomize.sh" | bash
2.安装 MogDB Operator

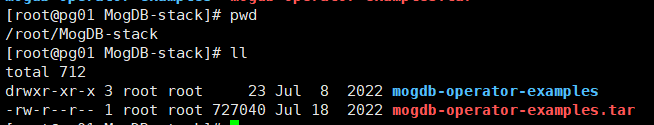

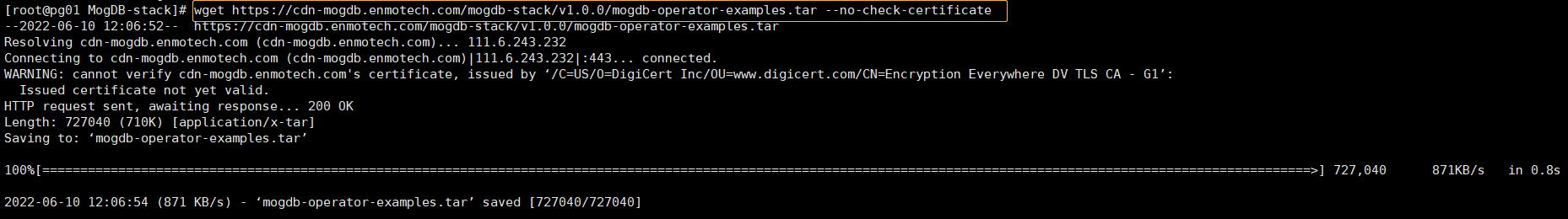

获取压缩包
wget https://cdn-mogdb.enmotech.com/mogdb-stack/v1.0.0/mogdb-operator-examples.tar --no-check-certificate
tar xf mogdb-operator-examples.tar
MogDB Operator安装项目在kustomize/install目录下
要安装的组件
- mogdb-operator-controller-manager
- mogdb-apiserver
- mgo-client
mgo-client运行在物理机下，其余组件都运行在k8s下

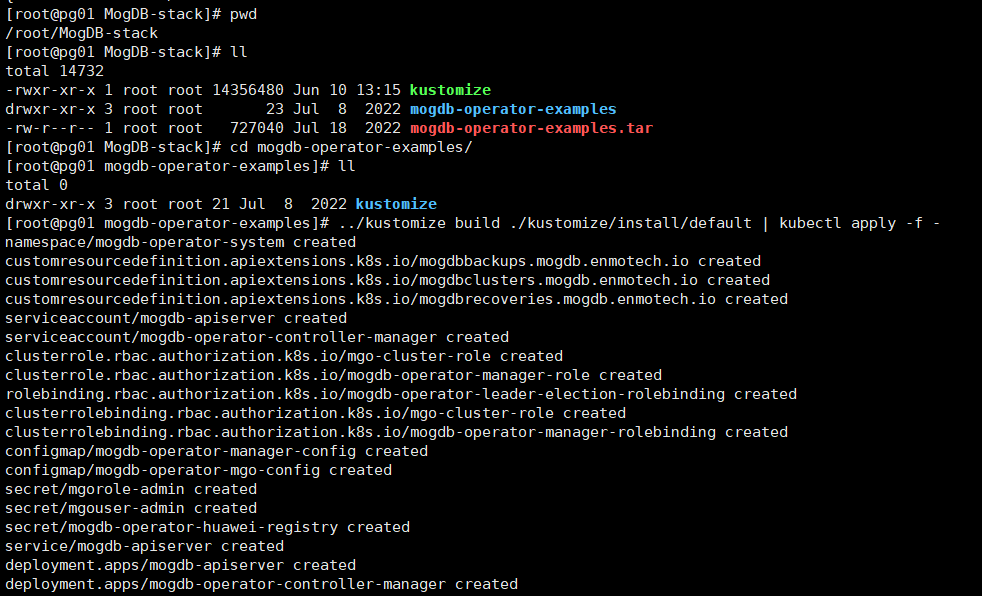

kustomize build ./kustomize/install/default | kubectl apply -f -
查看namespace以及对应的pod
[root@pg01 MogDB-stack]# kubectl get ns NAME STATUS AGE default Active 62d kube-node-lease Active 62d kube-public Active 62d kube-system Active 62d kubernetes-dashboard Active 62d mogdb-operator-system Active 2m41s ns-test Active 62d [root@pg01 MogDB-stack]# kubectl get pods -n mogdb-operator-system NAME READY STATUS RESTARTS AGE mogdb-apiserver-74b8f54cc6-wmkdq 1/1 Running 0 7m30s mogdb-operator-controller-manager-8586c668fd-ghjrn 1/1 Running 0 7m30s
二、安装MogDB集群

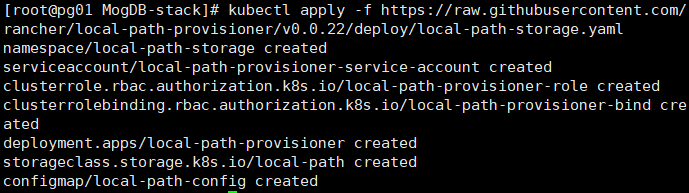

1.安装所需csi
（不安装的话会存在挂在不上pvc的问题，pod处于pending状态）
kubectl apply -f https://raw.githubusercontent.com/rancher/local-path-provisioner/v0.0.22/deploy/local-path-storage.yaml
2.安装集群
kubectl apply -f https://cdn-mogdb.enmotech.com/mogdb-stack/v1.0.0/mogdb-cluster.yaml
3.查看当前pod状态
[root@pg01 MogDB-stack]# kubectl get pods -n mogdb-operator-system NAME READY STATUS RESTARTS AGE cluster1-lh2d4 0/3 Init:0/1 0 3m6s mogdb-apiserver-74b8f54cc6-7qqrx 1/1 Running 0 4m24s mogdb-operator-controller-manager-8586c668fd-c4wpr 1/1 Running 0 4m24s [root@pg01 MogDB-stack]# kubectl get pods -n mogdb-operator-system NAME READY STATUS RESTARTS AGE cluster1-cjtdm 0/3 Init:0/1 0 2m3s cluster1-lh2d4 3/3 Running 0 7m12s mogdb-apiserver-74b8f54cc6-wmkdq 1/1 Running 0 7m30s mogdb-operator-controller-manager-8586c668fd-ghjrn 1/1 Running 0 7m30s

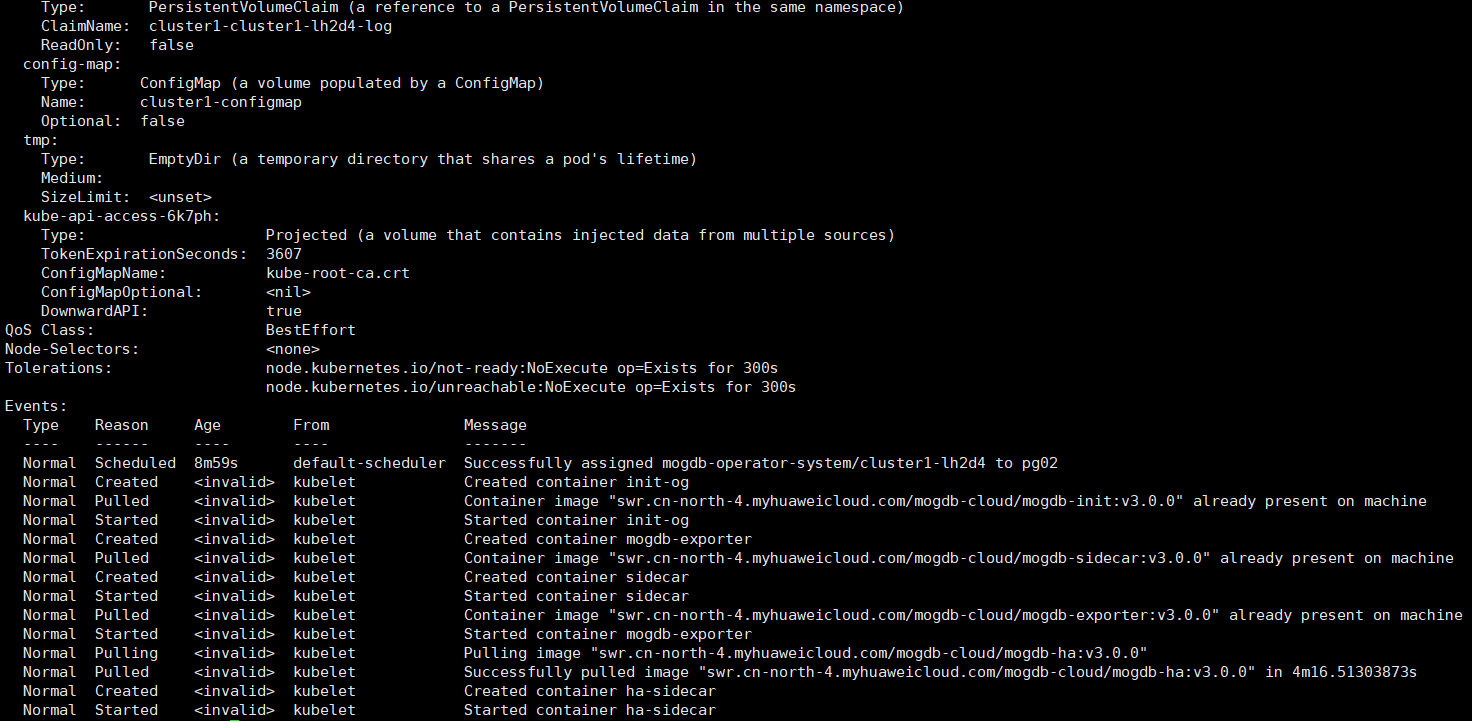

用describe 命令查看状态，进行到哪一步了，发现在拉取镜像
kubectl describe pod cluster1-lh2d4 -n mogdb-operator-system

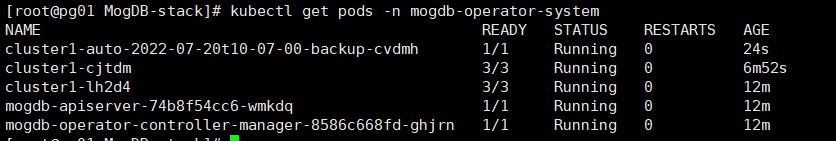

4.最后正常的状态是这样的：
[root@pg01 MogDB-stack]# kubectl get pods -n mogdb-operator-system NAME READY STATUS RESTARTS AGE cluster1-auto-2022-07-20t10-07-00-backup-cvdmh 1/1 Running 0 24s cluster1-cjtdm 3/3 Running 0 6m52s cluster1-lh2d4 3/3 Running 0 12m mogdb-apiserver-74b8f54cc6-wmkdq 1/1 Running 0 12m mogdb-operator-controller-manager-8586c668fd-ghjrn 1/1 Running 0 12m

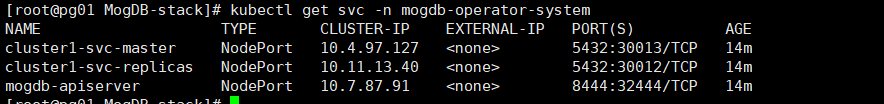

三、查看MogDB服务端口
[root@pg01 MogDB-stack]# kubectl get svc -n mogdb-operator-system NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE cluster1-svc-master NodePort 10.4.97.127 <none> 5432:30013/TCP 14m cluster1-svc-replicas NodePort 10.11.13.40 <none> 5432:30012/TCP 14m mogdb-apiserver NodePort 10.7.87.91 <none> 8444:32444/TCP 14m
k8s集群内部通过5432端口，集群外部通过30013端口访问实际的MogDB集群。
四、连接集群

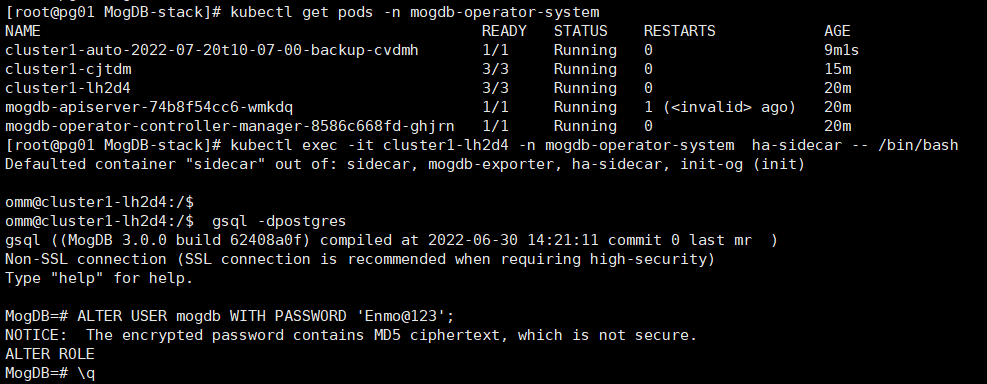

1.修改默认用户的密码
可以通过kubectl命令连接到容器，修改密码
[root@pg01 MogDB-stack]# kubectl get pods -n mogdb-operator-system NAME READY STATUS RESTARTS AGE cluster1-auto-2022-07-20t10-07-00-backup-cvdmh 1/1 Running 0 9m1s cluster1-cjtdm 3/3 Running 0 15m cluster1-lh2d4 3/3 Running 0 20m mogdb-apiserver-74b8f54cc6-wmkdq 1/1 Running 1 (<invalid> ago) 20m mogdb-operator-controller-manager-8586c668fd-ghjrn 1/1 Running 0 20m [root@pg01 MogDB-stack]# kubectl exec -it cluster1-lh2d4 -n mogdb-operator-system ha-sidecar -- /bin/bash Defaulted container "sidecar" out of: sidecar, mogdb-exporter, ha-sidecar, init-og (init) omm@cluster1-lh2d4:/$ gsql -dpostgres gsql ((MogDB 3.0.0 build 62408a0f) compiled at 2022-06-30 14:21:11 commit 0 last mr ) Non-SSL connection (SSL connection is recommended when requiring high-security) Type "help" for help. MogDB=# ALTER USER mogdb WITH PASSWORD 'Enmo@123'; NOTICE: The encrypted password contains MD5 ciphertext, which is not secure. ALTER ROLE MogDB=# \q
2.本地通过容器访问
[root@pg01 MogDB-stack]# kubectl exec -it cluster1-lh2d4 -n mogdb-operator-system ha-sidecar -- /bin/bash Defaulted container "sidecar" out of: sidecar, mogdb-exporter, ha-sidecar, init-og (init) omm@cluster1-lh2d4:/$ gsql -h 172.20.10.6 -d postgres -p 30013 -U mogdb -W Enmo@123 gsql ((MogDB 3.0.0 build 62408a0f) compiled at 2022-06-30 14:21:11 commit 0 last mr ) Non-SSL connection (SSL connection is recommended when requiring high-security) Type "help" for help. MogDB=> select version(); version -------------------------------------------------------------------------------------------------------------------------------------------------- (MogDB 3.0.0 build 62408a0f) compiled at 2022-06-30 14:21:11 commit 0 last mr on x86_64-unknown-linux-gnu, compiled by g++ (GCC) 7.3.0, 64-bit (1 row)

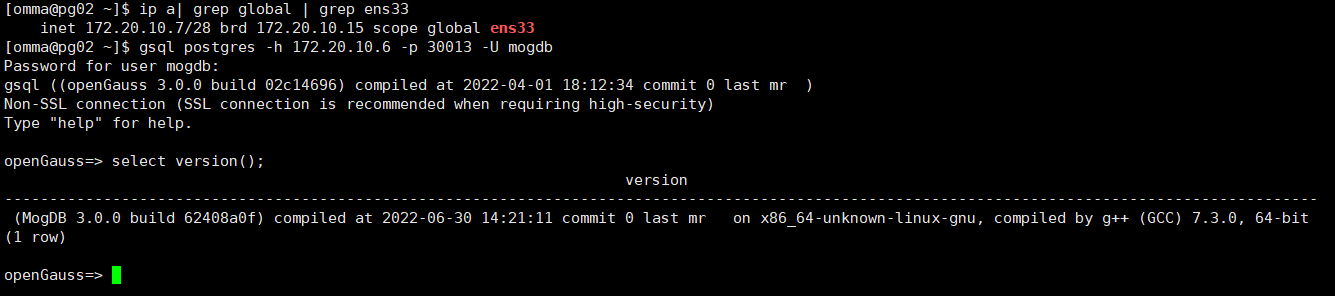

3.不通过容器，通过终端访问暴露的端口
在另一个服务器，远程访问该节点的Kubernetes上的MogDB数据库，我这里当前节点为172.20.10.6。远程使用的节点为172.20.10.7
[omma@pg02 ~]$ ip a| grep global | grep ens33 inet 172.20.10.7/28 brd 172.20.10.15 scope global ens33 [omma@pg02 ~]$ gsql postgres -h 172.20.10.6 -p 30013 -U mogdb Password for user mogdb: gsql ((openGauss 3.0.0 build 02c14696) compiled at 2022-04-01 18:12:34 commit 0 last mr ) Non-SSL connection (SSL connection is recommended when requiring high-security) Type "help" for help. openGauss=> select version(); version -------------------------------------------------------------------------------------------------------------------------------------------------- (MogDB 3.0.0 build 62408a0f) compiled at 2022-06-30 14:21:11 commit 0 last mr on x86_64-unknown-linux-gnu, compiled by g++ (GCC) 7.3.0, 64-bit (1 row)
