var app; // App对象
var car; // 挂载数据的叉车
// 引入样式文件
THING.Utils.dynamicLoad([
'https://www.thingjs.com/static/lib/stomp.min.js',
'/guide/examples/css/measure/panel.css'
], function() {
app = new THING.App({
url: 'https://www.thingjs.com/static/models/storehouse'
});
app.on('load', function() {
// 设置摄像机位置和目标点
app.camera.position = [44.38316010361372, 22.256383671664036, 37.42310488848945];
app.camera.target = [19.488379488180318, 0.17527928595920675, 5.827049588512047];
car = app.query('car01')[0];
// 物体身上创建monitorData对象 用于存储动态监控数据
car.monitorData = {
'温度': ''
};
var mqclass = new MQConnection(); // 创建mq服务类
new THING.widget.Button('开启链接', function() {
mqclass.initConnection();
});
new THING.widget.Button('关闭连接', function() {
mqclass.disconnection();
});
createHtml();

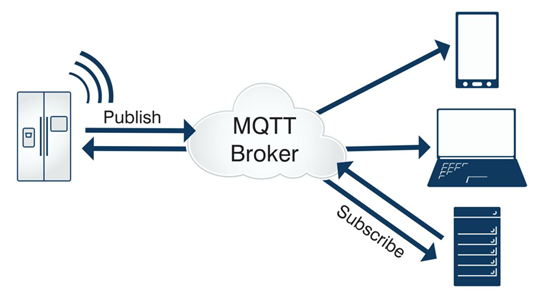

initThingJsTip("MQTT 是一个轻量级协议,使用 MQTT 协议的中心是 broker(服务器/代理),客户端通过订阅消息和发布消息进行数据交互。<br>点击【开启读取】进行数据读取,读取到的数据将在数据详情面板进行显示,当温度值大于30℃时,车辆设置红色效果,点击【关闭读取】停止数据读取!");
})
})
class MQConnection {
/**
* 构造器
*/
constructor() {
this.init();
}
/**
* 初始化
*/
init() {
// 数据推送的url,可修改为自己的服务地址
this.socketUrl = 'wss://
// 连接
this.stompClient = null;
// this.initConnection();
}
/**
* 初始化连接
*/
initConnection() {
var _this = this;
if (_this.stompClient != null) return;
_this.stompClient = Stomp.client(_this.socketUrl);
var success = function() {
_this.successCallback();
}
var error = function(error) {
_this.errorCallback(error);
}
_this.stompClient.connect({}, success, error);
_this.stompClient.debug = null; // 如果需要Stomp日志打印,注释此行代码
}
/**
* 连接成功后的回调,订阅主题
*/
successCallback(data) {
var _this = this;
console.log('连接成功,订阅话题!');
_this.stompClient.subscribe('/topic/monitor/temperature/one', function(message) {
if (message.body) {
let data = message.body;
console.log('接收温度数据:' + data);
updateState(data);
} else {
console.log('无数据推送!');
}
});
}
/**
* 关闭连接
*/
disconnection() {
console.log('连接已关闭!');
this.stompClient.disconnect();
}
/**
* 连接失败后的回调
*/
errorCallback(error) {
console.log('连接失败!');
console.log(error);
}
}
/**
* 接收推送数据后更新状态
*/
function updateState(data) {
car.setAttribute("monitorData/温度", data);
nowDatetime();
if (($('.empty').length)) {
$('.empty').remove();
}
if (!($('.tj-group').length)) {
let tbody = `<tbody class="tj-group" id="tb-line"></tbody>`;
$('.tj-table').prepend(tbody);
}
let tr =
`<tr class="tj-group-content">
<td class="tj-key">` + dateString + `</td>
<td class="tj-value">` + data + `℃</td>
</tr>`;
$('.tj-group').prepend(tr);
changeColor(car);
}
/**
* 获取系统日期
*/
function nowDatetime() {
var date = new Date();
var hours = (date.getHours()) > 9 ? (date.getHours()) : "0" + (date.getHours());
var minutes = (date.getMinutes()) > 9 ? (date.getMinutes()) : "0" + (date.getMinutes());
var seconds = (date.getSeconds()) > 9 ? (date.getSeconds()) : "0" + (date.getSeconds());
dateString =
hours + ":" +
minutes + ":" +
seconds;
return dateString;
}
/**
* 当车辆的温度值超过20时,更改小车颜色
*/
function changeColor(obj) {
var temper = obj.getAttribute("monitorData/温度");
var value = temper;
if (value > 30) {
obj.style.color = 'rgb(255,0,0)';
} else {
obj.style.color = null;
}
}
// 创建html界面
function createHtml() {
// 数据详情界面
let dataDetails =
`<div id="dataDetails" class="tj-panel property-panel tj-has-title tj-sizable tj-property-panel tj-pinned" style="position: absolute; right: 10px; top: 220px; width: 315px; height: 416px; transform: none;">
<div class="tj-close"></div>
<div class="tj-title" style="cursor: move; user-select: none;">数据详情</div>
<div class="tj-panel-body" style="padding-top: 0px;">
<div class="tj-panel-container tj-scroll-bar">
<table class="tj-table">
<div class="empty">暂无数据</div>
</table>
</div>
</div>
</div>`;
$('#div2d').append(dataDetails);
// 点击按钮关闭面板
$('#dataDetails .tj-close').on('click', function() {
$('#dataDetails').css('display', 'none');
});
}
