@[TOC](文章目录)

# 前言

>本文通过OceanBase Docker容器，快速的体验 OceanBase 的自动化部署过程，以及了解 OceanBase集群安装成功后的目录特点和使用方法

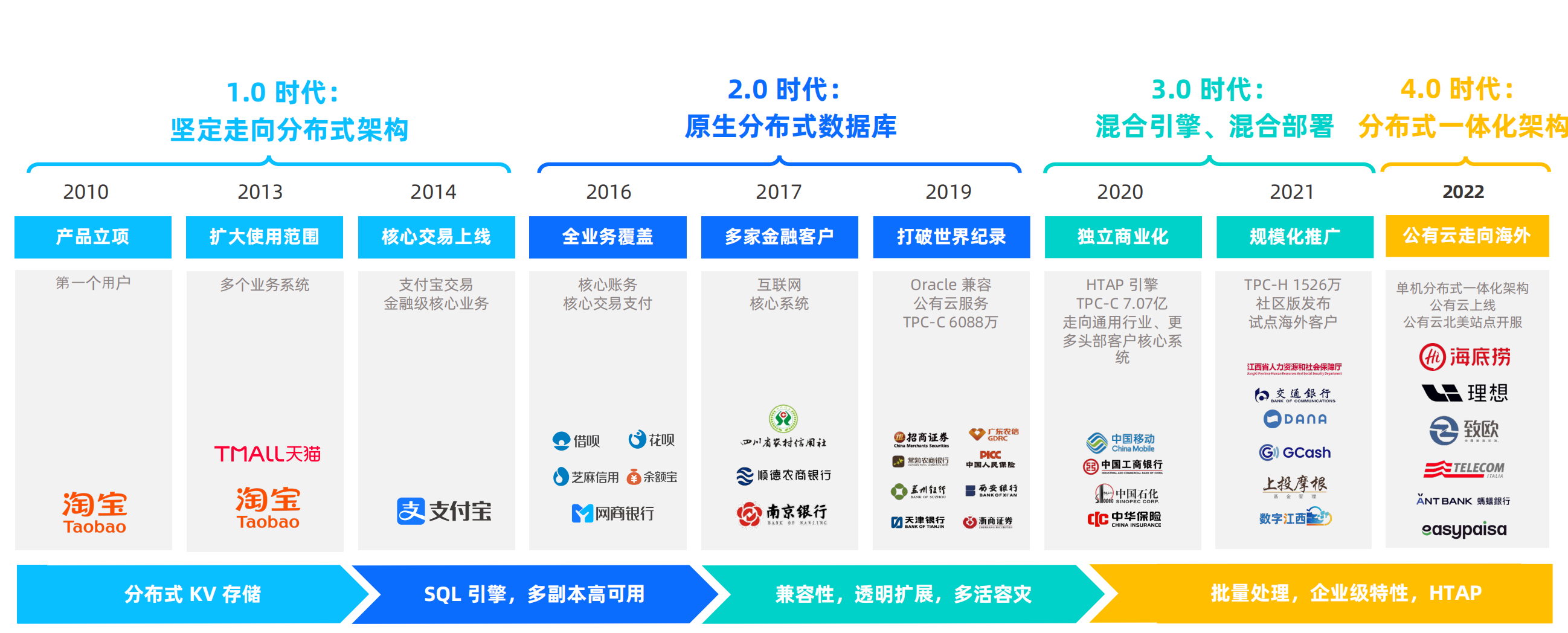

## 1.OceanBase 发展历程

## 2.Docker安装

### 2.1 安装依赖包

```

yum install -y yum-utils device-mapper-persistent-data lvm2

sudo yum-config-manager \

--add-repo \

https://download.docker.com/linux/centos/docker-ce.repo

```

### 2.2 在线安装

```

[root@centos7 ~] yum -y install docker-ce docker-ce-cli containerd.io

```

### 2.3 启动 Docker

```

[root@centos7 ~]# systemctl enable docker

[root@centos7 ~]# systemctl start docker

[root@centos7 ~]# systemctl status docker

[root@centos7 ~]# docker ps --查看容器

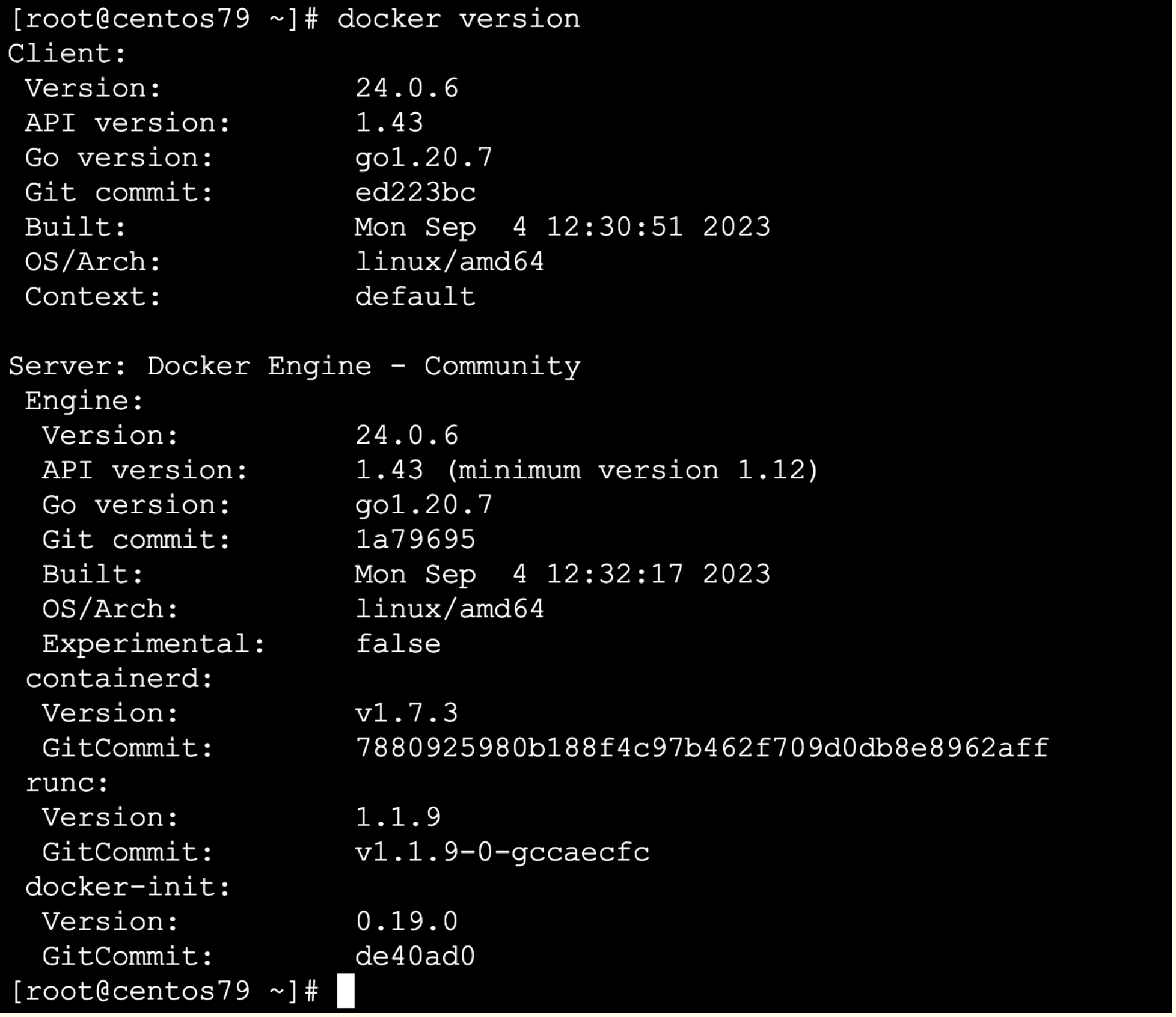

[root@centos7 ~]# docker version --查看版本

[root@centos7 ~]# docker info --查看版本

```

## 3.环境要求

```

1.有笔记本或服务器，内存至少12G 。

2.操作系统不限，能安装 Docker 环境即可。

Docker 官方镜像：

https://hub.docker.com/r/obpilot/oceanbase-ce

```

## 4.部署OB

### 4.1 下载镜像

```

搜索 OceanBase 数据库相关镜像

[root@centos79 ~]# docker search oceanbase

拉取 OceanBase 数据库最新镜像

[root@centos79 ~]# docker pull oceanbase/oceanbase-ce

[root@centos79 ~]# docker images | grep oceanbase

oceanbase/oceanbase-ce latest 92e357628ff3 7 days ago 652MB

```

### 4.2 创建容器

```

1.新容器创建

根据当前容器部署最大规格实例

docker run -p 2881:2881 --name oceanbase-ce -e MINI_MODE=0 -d oceanbase/oceanbase-ce

部署 mini 的独立实例

docker run -p 2881:2881 --name obstandalone -e MINI_MODE=1 -d oceanbase/oceanbase-ce

--以下命令执行后，需要等待3到5分钟

[root@centos79 ~]# docker run -p 2881:2881 --name oceanbase-ce -e MINI_MODE=0 -d oceanbase/oceanbase-ce

f21bf6621e1e6d404eb0dc8e945f6f9ab5a5b37e99b10a9058328ec1a44195ee

执行以下命令，如果返回 boot success!，则表示启动成功

[root@centos79 ~]# docker logs oceanbase-ce | tail -1

boot success!

Start observer ok

observer program health check ok

Connect to observer ok

Initialize oceanbase-ce ok

Start obagent ok

obagent program health check ok

Connect to Obagent ok

Wait for observer init ok

+---------------------------------------------+

| observer |

+-----------+---------+------+-------+--------+

+-----------+---------+------+-------+--------+

| 127.0.0.1 | 4.2.2.0 | 2881 | zone1 | ACTIVE |

+-----------+---------+------+-------+--------+

obclient -h127.0.0.1 -P2881 -uroot -Doceanbase -A

+---------------------------------------------------------------+

| obagent |

+------------+--------------------+--------------------+--------+

+------------+--------------------+--------------------+--------+

| 172.17.0.2 | 8089 | 8088 | active |

+------------+--------------------+--------------------+--------+

obcluster running

Trace ID: 042ba7b6-e06f-11ee-90dd-0242ac110002

If you want to view detailed obd logs, please run: obd display-trace 042ba7b6-e06f-11ee-90dd-0242ac110002

/////////////////////// phase end: 140.273 s ///////////////////////

/////////////////////// STEP 5: Ob-deploy Create Tenant ///////////////////////

Get local repositories and plugins ok

Open ssh connection ok

Connect to observer ok

Create tenant test ok

Trace ID: 57ef343a-e06f-11ee-98aa-0242ac110002

If you want to view detailed obd logs, please run: obd display-trace 57ef343a-e06f-11ee-98aa-0242ac110002

/////////////////////// phase end: 46.506 s ///////////////////////

deploy success!

boot success!

2.进入容器

[root@centos79 ~]# docker exec -it oceanbase-ce bash

[root@f21bf6621e1e ~]# cat /etc/redhat-release

Anolis OS release 8.8

[root@f21bf6621e1e ~]# ls

boot dest ob obagent pkg store

[root@f21bf6621e1e ~]# obclient -uroot@sys -h127.1 -P2881

3.连接OceanBase数据库实例

--使用 root 用户登录集群的 sys 租户

docker exec -it oceanbase-ce ob-mysql sys

--使用 root 用户登录集群的 root 租户

docker exec -it oceanbase-ce ob-mysql root

--使用 root 用户登录集群的 test 租户

docker exec -it oceanbase-ce ob-mysql test

[root@centos79 ~]# docker exec -it oceanbase-ce ob-mysql sys

login as root@sys

Command is: obclient -h127.1 -uroot@sys -A -Doceanbase -P2881

Welcome to the OceanBase. Commands end with ; or \g.

Your OceanBase connection id is 3221506698

Server version: OceanBase_CE 4.2.2.0 (r100010012024022719-c984fe7cb7a4cef85a40323a0d073f0c9b7b8235) (Built Feb 27 2024 19:20:54)

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

obclient [oceanbase]>

--修改用户

ALTER USER root IDENTIFIED BY '123456';

```

![](https://files.mdnice.com/user/16859/c423d464-e0c3-433c-a5a0-4e560e9b81bc.png)

### 4.3 集群管理

```

-- 查看集群列表

[root@centos79 ~]# docker exec -it oceanbase-ce bash

[root@f21bf6621e1e ~]# obd cluster list

+------------------------------------------------------------+

| Cluster List |

+-----------+------------------------------+-----------------+

| Name | Configuration Path | Status (Cached) |

+-----------+------------------------------+-----------------+

| obcluster | /root/.obd/cluster/obcluster | running |

+-----------+------------------------------+-----------------+

Trace ID: 2703e982-e070-11ee-8e4b-0242ac110002

If you want to view detailed obd logs, please run: obd display-trace 2703e982-e070-11ee-8e4b-0242ac110002

配置文件：/root/.obd/cluster/obcluster/config.yaml

[root@f21bf6621e1e ~]# ls /root/.obd/cluster/obcluster/config.yaml

/root/.obd/cluster/obcluster/config.yaml

```

## 5.使用OceanBase

### 5.1 登陆OB

```

1.使用 root 用户登录到集群的 sys 租户

[root@f21bf6621e1e ~]# obclient -uroot@sys -h127.1 -P2881 -p123456 -A

Welcome to the OceanBase. Commands end with ; or \g.

Your OceanBase connection id is 3221545291

Server version: OceanBase_CE 4.2.2.0 (r100010012024022719-c984fe7cb7a4cef85a40323a0d073f0c9b7b8235) (Built Feb 27 2024 19:20:54)

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

obclient [(none)]>

2.进入 oceanbase 数据库。

obclient [(none)]> show databases;

+--------------------+

| Database |

+--------------------+

| information_schema |

| LBACSYS |

| mysql |

| oceanbase |

| ocs |

| ORAAUDITOR |

| SYS |

| test |

+--------------------+

8 rows in set (0.006 sec)

obclient [(none)]> USE oceanbase;

Database changed

```

### 5.2 创建租户

```

OceanBase 数据库支持两种类型的租户，MySQL 兼容模式和 Oracle 兼容模式。创建租户时，您需要指定租户的类型。租户创建后，租户类型无法修改，因此创建租户前请规划好您的租户类型。

1.使用 root 用户登录到集群的 sys 租户。

[root@f21bf6621e1e ~]# obclient -uroot@sys -h127.1 -P2881 -A -p123456

2.进入 oceanbase 数据库。

obclient [(none)]> USE oceanbase;

3.通过 DBA_OB_TENANTS 视图，查看所有的租户信息

obclient [oceanbase]> SELECT * FROM oceanbase.DBA_OB_TENANTS\G

*************************** 1. row ***************************

TENANT_ID: 1

TENANT_NAME: sys

TENANT_TYPE: SYS

CREATE_TIME: 2024-03-12 22:36:36.751973

MODIFY_TIME: 2024-03-12 22:36:36.751973

PRIMARY_ZONE: RANDOM

LOCALITY: FULL{1}@zone1

PREVIOUS_LOCALITY: NULL

COMPATIBILITY_MODE: MYSQL

STATUS: NORMAL

IN_RECYCLEBIN: NO

LOCKED: NO

TENANT_ROLE: PRIMARY

SWITCHOVER_STATUS: NORMAL

SWITCHOVER_EPOCH: 0

SYNC_SCN: NULL

REPLAYABLE_SCN: NULL

READABLE_SCN: NULL

RECOVERY_UNTIL_SCN: NULL

LOG_MODE: NOARCHIVELOG

ARBITRATION_SERVICE_STATUS: DISABLED

UNIT_NUM: 1

COMPATIBLE: 4.2.2.0

MAX_LS_ID: 1

*************************** 2. row ***************************

TENANT_ID: 1001

TENANT_NAME: META$1002

TENANT_TYPE: META

CREATE_TIME: 2024-03-12 22:37:04.034661

MODIFY_TIME: 2024-03-12 22:37:41.629058

PRIMARY_ZONE: RANDOM

LOCALITY: FULL{1}@zone1

PREVIOUS_LOCALITY: NULL

COMPATIBILITY_MODE: MYSQL

STATUS: NORMAL

IN_RECYCLEBIN: NO

LOCKED: NO

TENANT_ROLE: PRIMARY

SWITCHOVER_STATUS: NORMAL

SWITCHOVER_EPOCH: 0

SYNC_SCN: NULL

REPLAYABLE_SCN: NULL

READABLE_SCN: NULL

RECOVERY_UNTIL_SCN: NULL

LOG_MODE: NOARCHIVELOG

ARBITRATION_SERVICE_STATUS: DISABLED

UNIT_NUM: 1

COMPATIBLE: 4.2.2.0

MAX_LS_ID: 1

*************************** 3. row ***************************

TENANT_ID: 1002

TENANT_NAME: test

TENANT_TYPE: USER

CREATE_TIME: 2024-03-12 22:37:04.033335

MODIFY_TIME: 2024-03-12 22:37:41.783779

PRIMARY_ZONE: RANDOM

LOCALITY: FULL{1}@zone1

PREVIOUS_LOCALITY: NULL

COMPATIBILITY_MODE: MYSQL

STATUS: NORMAL

IN_RECYCLEBIN: NO

LOCKED: NO

TENANT_ROLE: PRIMARY

SWITCHOVER_STATUS: NORMAL

SWITCHOVER_EPOCH: 0

SYNC_SCN: 1710254307122913004

REPLAYABLE_SCN: 1710254307122913004

READABLE_SCN: 1710254307122913004

RECOVERY_UNTIL_SCN: 4611686018427387903

LOG_MODE: NOARCHIVELOG

ARBITRATION_SERVICE_STATUS: DISABLED

UNIT_NUM: 1

COMPATIBLE: 4.2.2.0

MAX_LS_ID: 1001

3 rows in set (0.026 sec)

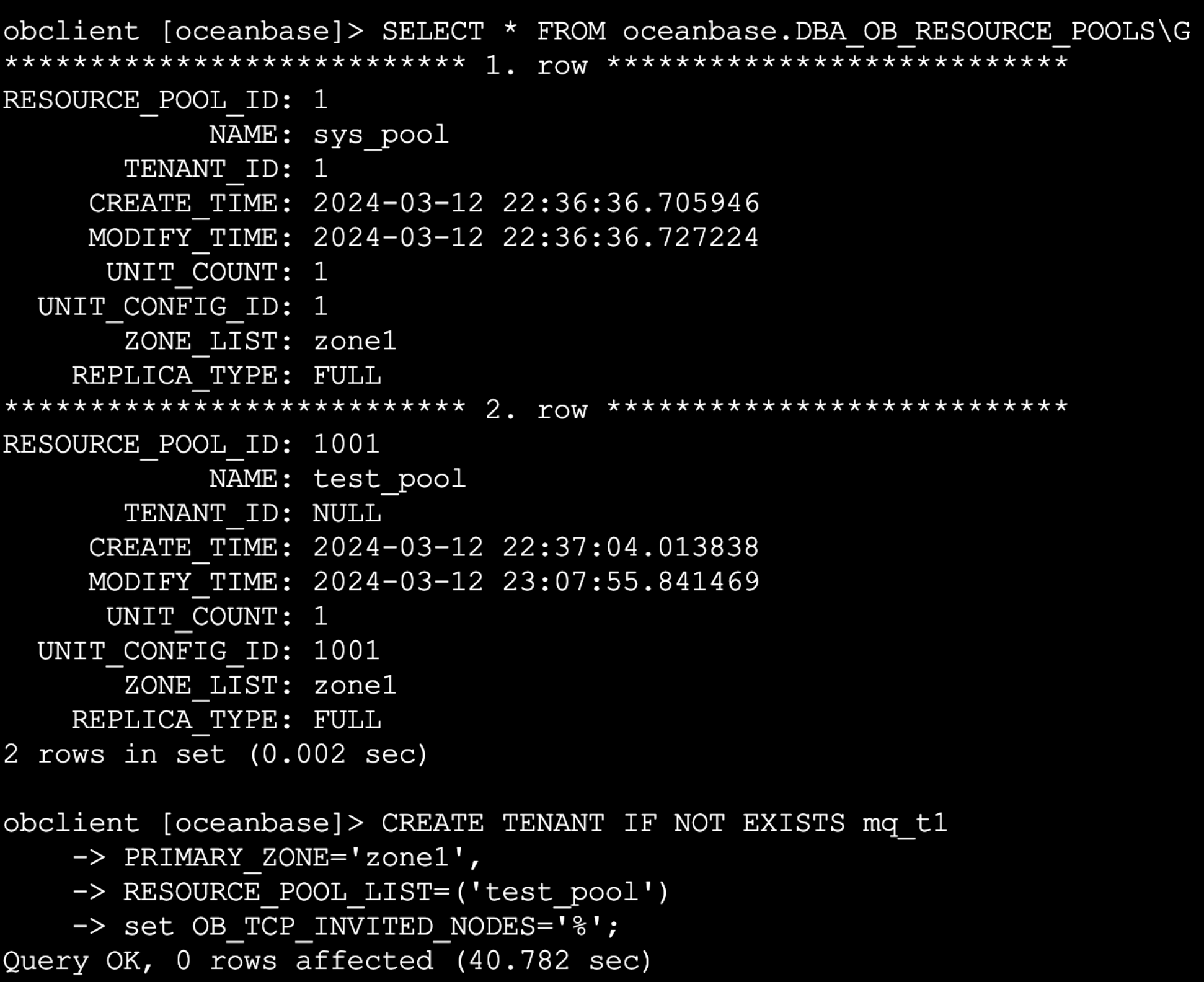

4.通过 CREATE TENANT 语句，创建租户

obclient [oceanbase]> drop TENANT META$1002;

obclient [oceanbase]>

CREATE TENANT IF NOT EXISTS mq_t1

PRIMARY_ZONE='zone1',

RESOURCE_POOL_LIST=('test_pool')

set OB_TCP_INVITED_NODES='%';

```

### 5.4 使用租户

```

租户创建成功后，可以尝试登录租户进行使用

默认管理员用户（MySQL 模式为 root，Oracle 模式为 sys）的密码为空，

您需要及时修改管理员用户的密码。

本次租户是MySQL 兼容模式

--登录 mq_t1 租户的 root 用户。

obclient -uroot@mq_t1 -h127.1 -P2881

--执行以下语句修改 root 用户的密码

obclient [(none)]> ALTER USER root IDENTIFIED BY '123456';

--退出后重新登陆

obclient -uroot@mq_t1 -h127.1 -P2881 -p123456

--创建数据库并指定字符集

CREATE DATABASE testdb DEFAULT CHARACTER SET UTF8;

obclient [(none)]> use testdb

--建表

CREATE TABLE course_tb(

course_id int(10) NOT NULL,

course_name char(10) NOT NULL,

course_datetime char(30) NOT NULL);

INSERT INTO course_tb VALUES(1, 'Python', '2021-12-1 19:00-21:00');

INSERT INTO course_tb VALUES(2, 'SQL', '2021-12-2 19:00-21:00');

INSERT INTO course_tb VALUES(3, 'R', '2021-12-3 19:00-21:00');

obclient [testdb]> desc course_tb

-> ;

+-----------------+----------+------+-----+---------+-------+

+-----------------+----------+------+-----+---------+-------+

| course_id | int(10) | NO | | NULL | |

+-----------------+----------+------+-----+---------+-------+

obclient [testdb]> select * from course_tb;

+-----------+-------------+-----------------------+

| course_id | course_name | course_datetime |

+-----------+-------------+-----------------------+

| 1 | Python | 2021-12-1 19:00-21:00 |

| 2 | SQL | 2021-12-2 19:00-21:00 |

| 3 | R | 2021-12-3 19:00-21:00 |

+-----------+-------------+-----------------------+

```

## 6.报错处理

```

1.创建资源池的报错

ERROR 4656 (HY000): resource pool unit num is bigger than zone server count

//说明：集群只有一个zone，且zone中只有一台observer ，所以无法创建 unit_num大于1的资源池；

向集群新增 OBServer xxx.xx.xxx.xx1。

obclient> ALTER SYSTEM ADD SERVER '127.0.0.1:2883' ZONE 'zone2';

obclient [oceanbase]> select * from GV$OB_SERVERS

2.ERROR 4012 (HY000): Timeout报错

sql响应超时时间设置太短了，所以当sql执行需要一定时间时就会报错4012

obclient [oceanbase]> show variables like '%timeout%';

+---------------------+------------------+

| Variable_name | Value |

+---------------------+------------------+

| connect_timeout | 10 |

| interactive_timeout | 28800 |

| lock_wait_timeout | 31536000 |

| net_read_timeout | 30 |

| net_write_timeout | 60 |

| ob_pl_block_timeout | 3216672000000000 |

| ob_query_timeout | 10000000 |

| ob_trx_idle_timeout | 86400000000 |

| ob_trx_lock_timeout | -1 |

| ob_trx_timeout | 86400000000 |

| wait_timeout | 28800 |

+---------------------+------------------+

11 rows in set (0.015 sec)

# 租户下设置，防止超时

obclient> set global ob_query_timeout=86400000000000000;

obclient> set global ob_trx_timeout=86400000000000000;

ob_query_timeout用于设置查询超时时间，单位是微秒;

ob_trx_timeout用于设置事务超时时间，单位为微秒。

两个参数有GLOBAL和SESSION两种级别:

global参数的话是对全局session生效，但是不包括本次链接，重新登录生效;

如果不加global，就是仅对本次session生效，退出登录还是原来的值。

3.登陆OB如果遇到以下报错，重启容器即可

ERROR 2014 (HY000): Commands out of sync; you can't run this command now

```

## 7.总结

>通过 OceanBase Docker 容器，快速的体验 OceanBase 的自动化部署过程
