GreatDB参数调整与系统视图（3）

作者：飘絮絮絮丶 时间：2022-03-28 14:38:32 0 删除 编辑

GreatDB系统参数调整

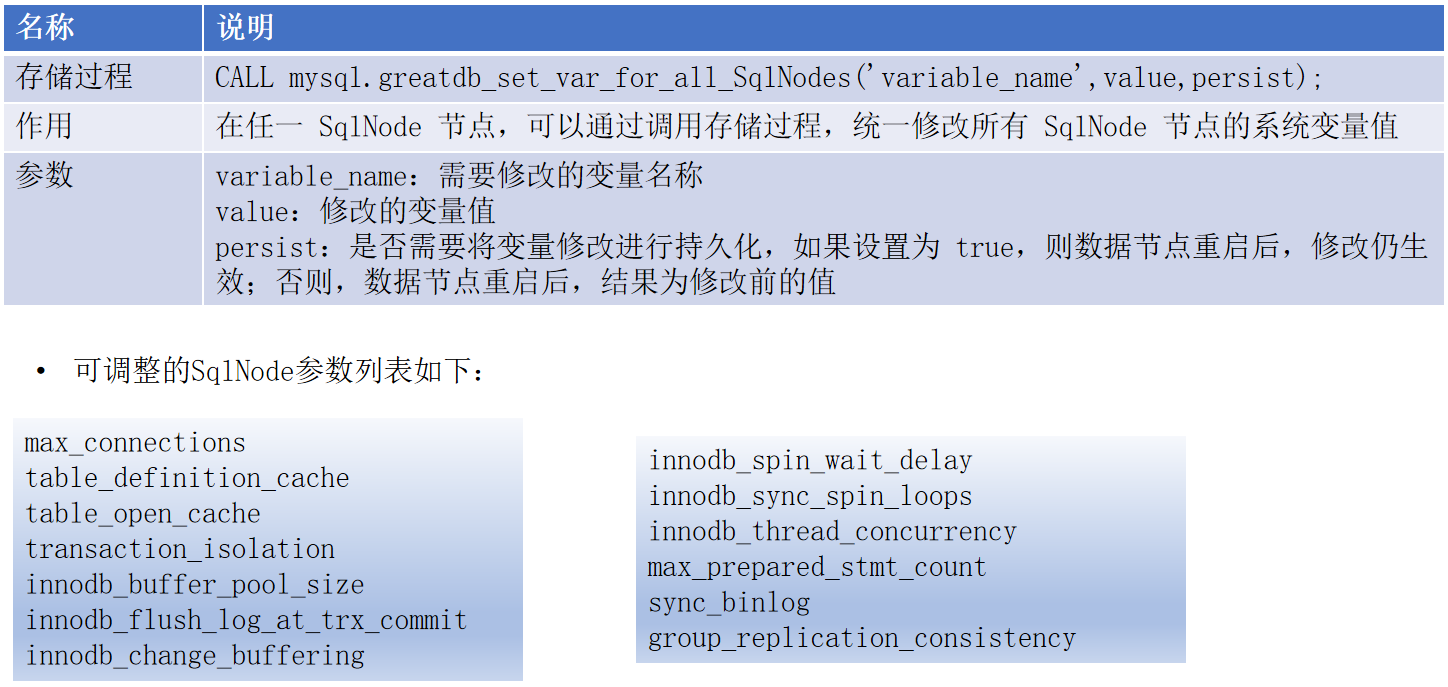

GreatDB SqlNode参数调整


  • 示例，SqlNode 所有节点调整 max_connections 参数值
[root@greatdb1 ~]# greatsql -ugreatdb -pgreatdb -h192.168.0.81 -P3306

GreatDB Cluster[(none)]> select * from information_schema.greatdb_SqlNode_variables where variable_name='max_connections';
+-------------------+-----------------+----------------+
| SQLNODE           | VARIABLE_NAME   | VARIABLE_VALUE |
+-------------------+-----------------+----------------+
| 192.168.0.81:3306 | max_connections | 2000           |
| 192.168.0.82:3306 | max_connections | 2000           |
| 192.168.0.83:3306 | max_connections | 2000           |
+-------------------+-----------------+----------------+
3 rows in set (0.14 sec)

GreatDB Cluster[(none)]> CALL mysql.greatdb_set_var_for_all_SqlNodes('max_connections',1000,true);
Query OK, 1 row affected (0.04 sec)

GreatDB Cluster[(none)]> select * from information_schema.greatdb_SqlNode_variables where variable_name='max_connections';
+-------------------+-----------------+----------------+
| SQLNODE           | VARIABLE_NAME   | VARIABLE_VALUE |
+-------------------+-----------------+----------------+
| 192.168.0.81:3306 | max_connections | 1000           |
| 192.168.0.82:3306 | max_connections | 1000           |
| 192.168.0.83:3306 | max_connections | 1000           |
+-------------------+-----------------+----------------+
3 rows in set (0.14 sec)

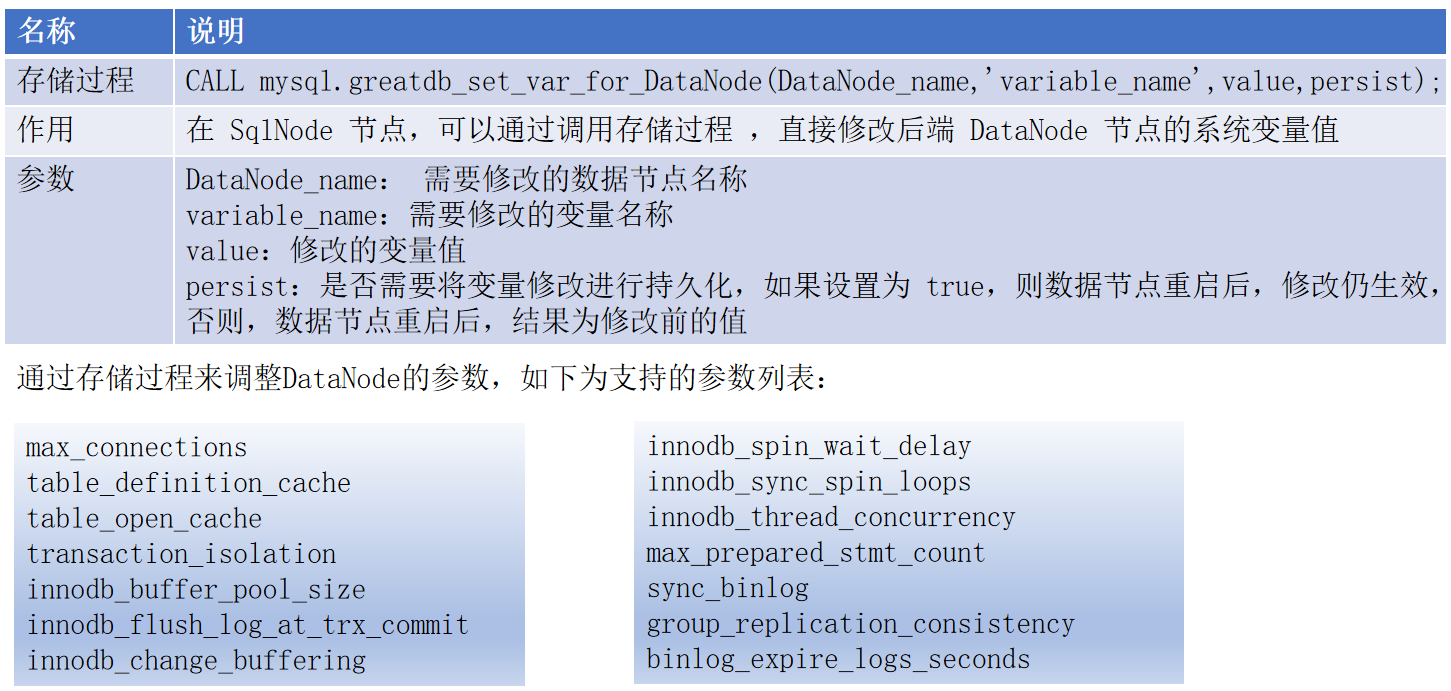

GreatDB DataNode参数调整


  • 示例，调整节点datanode1的 max_connections 参数值
[root@greatdb1 ~]# greatsql -ugreatdb -pgreatdb -h192.168.0.81 -P3306

GreatDB Cluster[(none)]> select * from information_schema.greatdb_DataNode_variables where variable_name='max_connections';
+-----------+-----------------+-------+
| DATANODE  | VARIABLE_NAME   | VALUE |
+-----------+-----------------+-------+
| datanode1 | max_connections | 3000  |
| datanode2 | max_connections | 3000  |
| datanode3 | max_connections | 3000  |
| datanode4 | max_connections | 3000  |
| datanode5 | max_connections | 3000  |
| datanode6 | max_connections | 3000  |
| datanode7 | max_connections | 3000  |
| datanode8 | max_connections | 3000  |
| datanode9 | max_connections | 3000  |
+-----------+-----------------+-------+
9 rows in set (0.40 sec)

GreatDB Cluster[(none)]> call mysql.greatdb_set_var_for_DataNode('datanode1','max_connections',2000,);
Query OK, 1 row affected (0.03 sec)

GreatDB Cluster[(none)]> select * from information_schema.greatdb_DataNode_variables where variable_name='max_connections';
+-----------+-----------------+-------+
| DATANODE  | VARIABLE_NAME   | VALUE |
+-----------+-----------------+-------+
| datanode1 | max_connections | 2000  |
| datanode2 | max_connections | 3000  |
| datanode3 | max_connections | 3000  |
| datanode4 | max_connections | 3000  |
| datanode5 | max_connections | 3000  |
| datanode6 | max_connections | 3000  |
| datanode7 | max_connections | 3000  |
| datanode8 | max_connections | 3000  |
| datanode9 | max_connections | 3000  |
+-----------+-----------------+-------+
9 rows in set (0.14 sec)

[root@greatdb1 ~]# greatsql -ugreatdb -pgreatdb -h192.168.0.81 -P4406
GreatDB Cluster[(none)]> show variables like 'max_connections';
+-----------------+-------+
| Variable_name   | Value |
+-----------------+-------+
| max_connections | 2000  |
+-----------------+-------+
1 row in set (0.00 sec)

GreatDB 参数调整的传统方式

  • 如果需要的调整的参数不在 SqlNode 和 DataNode “可调整的参数列表”中，可以分别连接到每个 SqlNode 节点或每个 DataNode 节点进行修改。
  • 例如 SESSION 级别调整 long_query_time 参数
GreatDB Cluster[(none)]> show variables like 'long_query_time';
+-----------------+----------+
| Variable_name   | Value    |
+-----------------+----------+
| long_query_time | 0.300000 |
+-----------------+----------+
1 row in set (0.01 sec)

GreatDB Cluster[(none)]> set session long_query_time=3;
Query OK, 0 rows affected (0.00 sec)

GreatDB Cluster[(none)]> show variables like 'long_query_time';
+-----------------+----------+
| Variable_name   | Value    |
+-----------------+----------+
| long_query_time | 3.000000 |
+-----------------+----------+
1 row in set (0.01 sec)

GreatDB Cluster[(none)]> select @@session.long_query_time;
+---------------------------+
| @@session.long_query_time |
+---------------------------+
|                  3.000000 |
+---------------------------+
1 row in set (0.00 sec)

GreatDB Cluster[(none)]> select @@global.long_query_time;
+--------------------------+
| @@global.long_query_time |
+--------------------------+
|                 0.300000 |
+--------------------------+
1 row in set (0.00 sec)

SESSION 级别调整的参数只在当前会话中生效，其他会话或其他新连接的会话均不生效。

  • 例如 GLOBAL 级别调整 long_query_time 参数
[root@greatdb1 ~]# greatsql -ugreatdb -pgreatdb -h192.168.0.81 -P3306

GreatDB Cluster[(none)]> show variables like 'long_query_time';
+-----------------+----------+
| Variable_name   | Value    |
+-----------------+----------+
| long_query_time | 0.300000 |
+-----------------+----------+
1 row in set (0.00 sec)

GreatDB Cluster[(none)]> set global long_query_time=3;
Query OK, 0 rows affected (0.00 sec)

GreatDB Cluster[(none)]> show variables like 'long_query_time';
+-----------------+----------+
| Variable_name   | Value    |
+-----------------+----------+
| long_query_time | 0.300000 |
+-----------------+----------+
1 row in set (0.00 sec)

GreatDB Cluster[(none)]> select @@session.long_query_time;
+---------------------------+
| @@session.long_query_time |
+---------------------------+
|                  0.300000 |
+---------------------------+
1 row in set (0.00 sec)

GreatDB Cluster[(none)]> select @@global.long_query_time;
+--------------------------+
| @@global.long_query_time |
+--------------------------+
|                 3.000000 |
+--------------------------+
1 row in set (0.00 sec)

GreatDB Cluster[(none)]> exit
Bye
[root@greatdb1 ~]# greatsql -ugreatdb -pgreatdb -h192.168.0.81 -P3306

GreatDB Cluster[(none)]> show variables like 'long_query_time';
+-----------------+----------+
| Variable_name   | Value    |
+-----------------+----------+
| long_query_time | 3.000000 |
+-----------------+----------+
1 row in set (0.00 sec)

[root@greatdb1 ~]# /greatdb/sh/sqlnode3306.sh restart
[root@greatdb1 ~]# greatsql -ugreatdb -pgreatdb -h192.168.0.81 -P3306

GreatDB Cluster[(none)]> show variables like 'long_query_time';
+-----------------+----------+
| Variable_name   | Value    |
+-----------------+----------+
| long_query_time | 0.300000 |
+-----------------+----------+
1 row in set (0.01 sec)

GLOBAL 级别调整的参数在当前会话中不生效，在其他已连接的会话中也不生效，只在新连接中生效，但是实例重启后不会生效。

  • 使用 persist 选项修改参数会将配置信息加载到配置文件中，下次重启实例会自动读取配置文件使参数生效
[root@greatdb1 ~]# greatsql -ugreatdb -pgreatdb -h192.168.0.81 -P3306

GreatDB Cluster[(none)]> show variables like 'long_query_time';
+-----------------+----------+
| Variable_name   | Value    |
+-----------------+----------+
| long_query_time | 0.300000 |
+-----------------+----------+
1 row in set (0.01 sec)

GreatDB Cluster[(none)]> set persist long_query_time=3;
Query OK, 0 rows affected (0.00 sec)

GreatDB Cluster[(none)]> show variables like 'long_query_time';
+-----------------+----------+
| Variable_name   | Value    |
+-----------------+----------+
| long_query_time | 0.300000 |
+-----------------+----------+
1 row in set (0.00 sec)

GreatDB Cluster[(none)]> exit
Bye
[root@greatdb1 ~]# greatsql -ugreatdb -pgreatdb -h192.168.0.81 -P3306

GreatDB Cluster[(none)]> show variables like 'long_query_time';
+-----------------+----------+
| Variable_name   | Value    |
+-----------------+----------+
| long_query_time | 3.000000 |
+-----------------+----------+
1 row in set (0.00 sec)

GreatDB Cluster[(none)]> exit
Bye
[root@greatdb1 ~]# /greatdb/sh/sqlnode3306.sh restart
[root@greatdb1 ~]# greatsql -ugreatdb -pgreatdb -h192.168.0.81 -P3306

GreatDB Cluster[(none)]> show variables like 'long_query_time';
+-----------------+----------+
| Variable_name   | Value    |
+-----------------+----------+
| long_query_time | 3.000000 |
+-----------------+----------+
1 row in set (0.01 sec)

persist 就相当于 GLOBAL 级别的调整加配置持久化，重启实例后依然生效。

  • 传统方式修改参数需要分别连接到每个 SqlNode 节点或每个 DataNode 节点进行修改
[root@greatdb2 ~]# greatsql -ugreatdb -pgreatdb -h192.168.0.82 -P3306
GreatDB Cluster[(none)]> show variables like 'long_query_time';
+-----------------+----------+
| Variable_name   | Value    |
+-----------------+----------+
| long_query_time | 0.300000 |
+-----------------+----------+
1 row in set (0.01 sec)

这里可以看到，SQLNODE 192.168.0.81 修改的参数，SQLNODE 192.168.0.82 并不会自动同步。

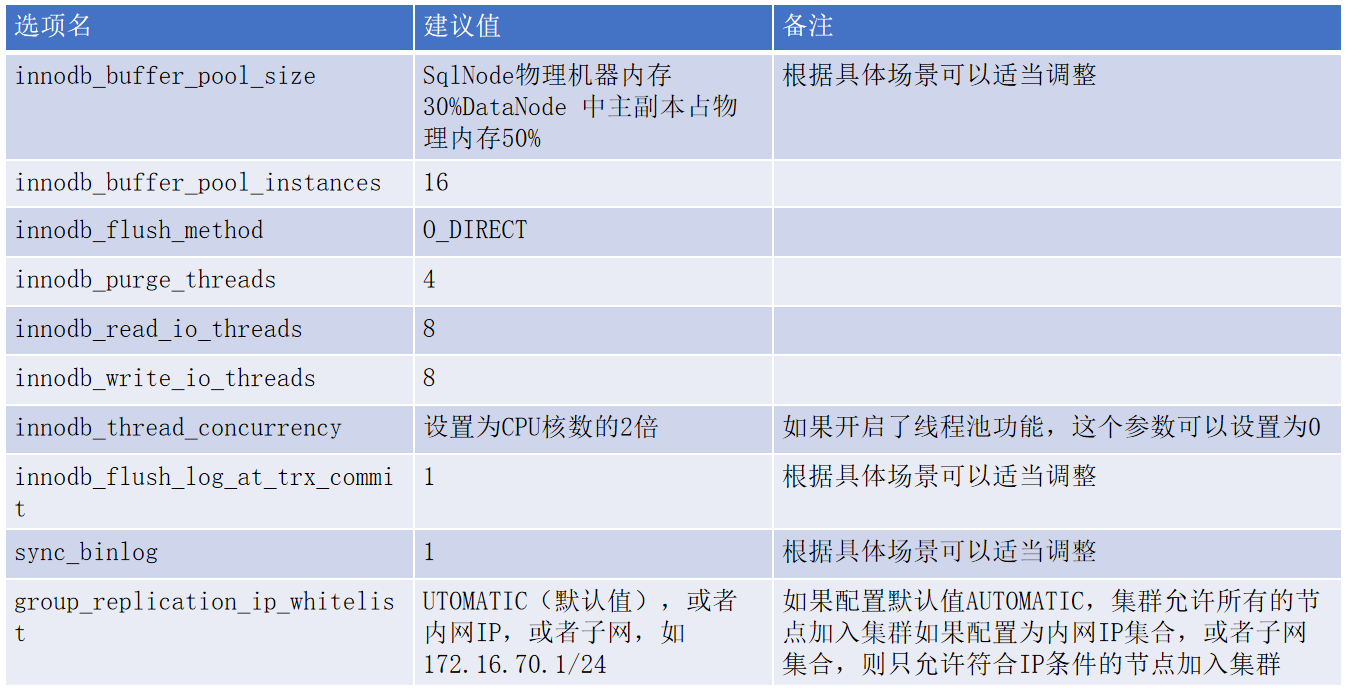

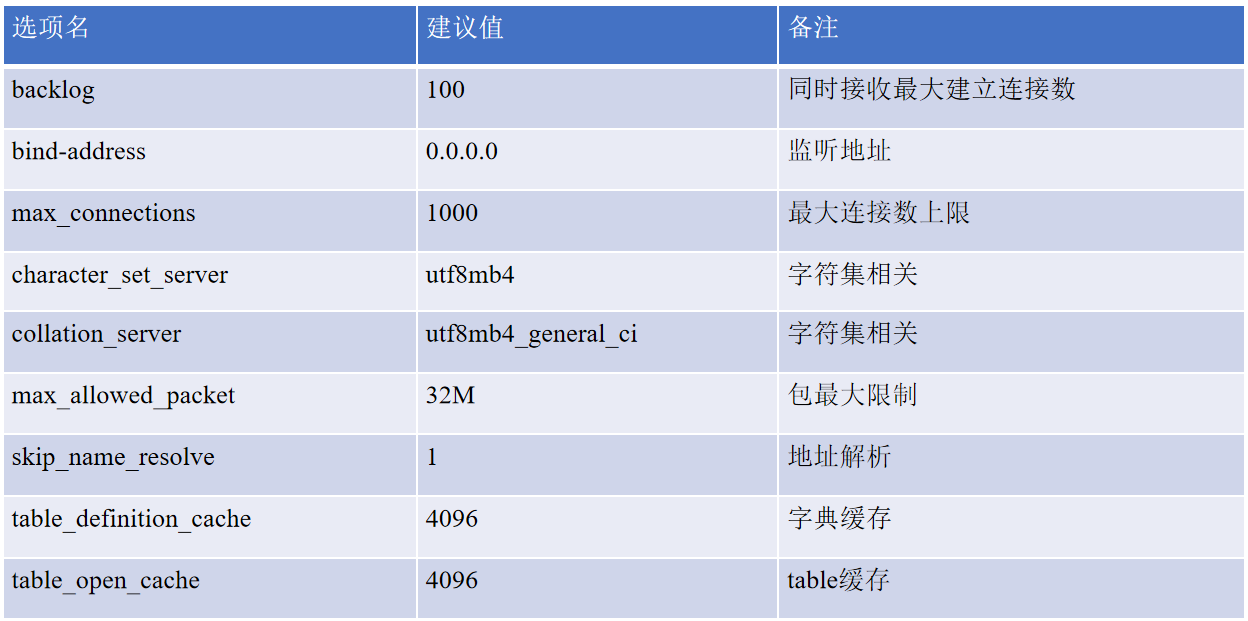

GreatDB 常用参数列表


GreatDB 系统视图

GreatDB 状态属性说明

状态属性说明
greatdb_cluster_initialized标识 SqlNode 上是否已经初始化 GreatDB cluster
greatdb_cluster_name当前集群的名称
greatdb_cluster_user集群各节点间创建连接使用的用户名
greatdb_read_only_mode当为 true 时表示集群当前处于只读模式
[root@greatdb1 ~]# greatsql -ugreatdb -pgreatdb -h192.168.0.81 -P3306

GreatDB Cluster[(none)]> show status like 'greatdb_cluster_initialized';
+-----------------------------+-------+
| Variable_name               | Value |
+-----------------------------+-------+
| greatdb_cluster_initialized | ON    |
+-----------------------------+-------+
1 row in set (0.00 sec)

GreatDB Cluster[(none)]> show status like 'greatdb_cluster_name';
+----------------------+-----------------+
| Variable_name        | Value           |
+----------------------+-----------------+
| greatdb_cluster_name | greatdb_cluster |
+----------------------+-----------------+
1 row in set (0.01 sec)

GreatDB Cluster[(none)]> show status like 'greatdb_cluster_user';
+----------------------+---------+
| Variable_name        | Value   |
+----------------------+---------+
| greatdb_cluster_user | greatdb |
+----------------------+---------+
1 row in set (0.00 sec)

GreatDB Cluster[(none)]> show status like 'greatdb_read_only_mode';
+------------------------+-------+
| Variable_name          | Value |
+------------------------+-------+
| greatdb_read_only_mode | OFF   |
+------------------------+-------+
1 row in set (0.00 sec)

GreatDB 获取集群信息

GreatDB Cluster[(none)]> show status like 'greatdb_cluster_initialized';
+-----------------------------+-------+
| Variable_name               | Value |
+-----------------------------+-------+
| greatdb_cluster_initialized | ON    |
+-----------------------------+-------+
1 row in set (0.00 sec)

GreatDB Cluster[(none)]> \s
--------------
greatsql  Ver 8.0.25-15-greatdbcluster5.0.7-GA for Linux on x86_64 (GreatDB Cluster, Release GA, Revision fbb08fbed60)

Connection id:          38
Current database:
Current user:           greatdb@192.168.0.81
SSL:                    Cipher in use is ECDHE-RSA-AES128-GCM-SHA256
Current pager:          stdout
Using outfile:          ''
Using delimiter:        ;
Server version:         8.0.25-15-greatdbcluster5.0.7-GA GreatDB Cluster, Release GA, Revision fbb08fbed60
Protocol version:       10
Connection:             192.168.0.81 via TCP/IP
Server characterset:    utf8mb4
Db     characterset:    utf8mb4
Client characterset:    utf8mb4
Conn.  characterset:    utf8mb4
TCP port:               3306
Binary data as:         Hexadecimal
Uptime:                 36 min 40 sec

Threads: 14  Questions: 1362  Slow queries:   Opens: 207  Flush tables: 3  Open tables: 115  Queries per second avg: 0.619
--------------

GreatDB 日常节点巡检视图

视图名称说明
GREATDB_SHARDS集群中的 Shard 及其状态
GREATDB_TABLE_DISTRIBUTION表类型、在后端 Shard 的分布情况以及后端表引擎类型
GREATDB_SQLNODES集群中的 SqlNode 及其状态
GREATDB_DCSTATS当前 SqlNode 中字典缓存使用情况
GREATDB_SQLNODE_STATUS各个 SqlNode 部分 status 的值
GREATDB_SQLNODE_VARIABLES各个 SqlNode 部分 variables 的值
GREATDB_DATANODES集群中的 DataNode 及其状态
GREATDB_DATANODE_STATUS各个 DataNode 部分 status 属性值
GREATDB_DATANODE_VARIABLES各个 DataNode 部分 variables 的值
GREATDB_CONNECTION_POOLSqlNode 到 DataNode 连接池状态
GreatDB Cluster[(none)]> select * from information_schema.GREATDB_SHARDS;
+----------+------------+--------------+---------+
| SHARD_ID | SHARD_NAME | SHARD_STATE  | SUSPEND |
+----------+------------+--------------+---------+
|       36 | shard1     | SHARD_ONLINE | OFF     |
|       64 | shard2     | SHARD_ONLINE | OFF     |
|       92 | shard3     | SHARD_ONLINE | OFF     |
+----------+------------+--------------+---------+
3 rows in set (0.00 sec)

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_TABLE_DISTRIBUTION;
+-------------+------------+----------------+-----------------+------------+----------------+--------------+
| SCHEMA_NAME | TABLE_NAME | BACKEND_ENGINE | DISTRIBUTE_MODE | SHARD_NAME | PARTITION_NAME | PARTITION_ID |
+-------------+------------+----------------+-----------------+------------+----------------+--------------+
| test        | t_normal   | InnoDB         | NORMAL          | shard1     |                |            0 |
| test        | t_global   | InnoDB         | GLOBAL          | shard1     |                |            0 |
| test        | t_global   | InnoDB         | GLOBAL          | shard2     |                |            0 |
| test        | t_global   | InnoDB         | GLOBAL          | shard3     |                |            0 |
| test        | t_hash     | InnoDB         | PARTITION       | shard1     | p0             |            0 |
| test        | t_hash     | InnoDB         | PARTITION       | shard2     | p1             |            1 |
| test        | t_hash     | InnoDB         | PARTITION       | shard3     | p2             |            2 |
| test        | t_hash     | InnoDB         | PARTITION       | shard2     | p3             |            3 |
| test        | t_hash     | InnoDB         | PARTITION       | shard1     | p4             |            4 |
| test        | t_hash     | InnoDB         | PARTITION       | shard2     | p5             |            5 |
| test        | t_hash     | InnoDB         | PARTITION       | shard3     | p6             |            6 |
| test        | t_hash     | InnoDB         | PARTITION       | shard2     | p7             |            7 |
| test        | t_range    | InnoDB         | PARTITION       | shard1     | p0             |            0 |
| test        | t_range    | InnoDB         | PARTITION       | shard2     | p1             |            1 |
| test        | t_range    | InnoDB         | PARTITION       | shard3     | p4             |            2 |
| test        | t_list     | InnoDB         | PARTITION       | shard1     | beijing        |            0 |
| test        | t_list     | InnoDB         | PARTITION       | shard2     | shanghai       |            1 |
+-------------+------------+----------------+-----------------+------------+----------------+--------------+
17 rows in set (0.01 sec)

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_SQLNODES;
+--------------------------------------+--------------+------+--------+---------------+--------------------------+
| UUID                                 | HOST         | PORT | STATUS | EXECUTED_GTID | Received_transaction_set |
+--------------------------------------+--------------+------+--------+---------------+--------------------------+
| 588107ec-77d0-11eb-95a1-000c290f05e6 | 192.168.0.82 | 3306 | ONLINE |               |                          |
| 58d09346-77d0-11eb-815f-000c293f8a6a | 192.168.0.83 | 3306 | ONLINE |               |                          |
| 5aa2cd7d-77d0-11eb-a8ff-000c29d936e4 | 192.168.0.81 | 3306 | ONLINE |               |                          |
+--------------------------------------+--------------+------+--------+---------------+--------------------------+
3 rows in set (0.02 sec)

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_DCSTATS;
+------------+------------+-------------------+-----------------+--------------+
| CACHE_NAME | CACHE_SIZE | CACHE_INSTANCE_NO | CACHED_ELEMENTS | LRU_ELEMENTS |
+------------+------------+-------------------+-----------------+--------------+
| SQLNODE    |          0 |                 1 |               3 |            0 |
| SHARD      |          0 |                 1 |               3 |            0 |
| DATANODE   |          0 |                 1 |               9 |            0 |
| TABLE      |      20480 |                 8 |               0 |            0 |
+------------+------------+-------------------+-----------------+--------------+
4 rows in set (0.00 sec)

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_SQLNODE_STATUS where VARIABLE_NAME='greatdb_cluster_initialized';
+-------------------+-----------------------------+----------------+
| SQLNODE           | VARIABLE_NAME               | VARIABLE_VALUE |
+-------------------+-----------------------------+----------------+
| 192.168.0.81:3306 | greatdb_cluster_initialized | ON             |
| 192.168.0.82:3306 | greatdb_cluster_initialized | ON             |
| 192.168.0.83:3306 | greatdb_cluster_initialized | ON             |
+-------------------+-----------------------------+----------------+
3 rows in set (0.03 sec)

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_SQLNODE_VARIABLES where VARIABLE_NAME='long_query_time';
+-------------------+-----------------+----------------+
| SQLNODE           | VARIABLE_NAME   | VARIABLE_VALUE |
+-------------------+-----------------+----------------+
| 192.168.0.81:3306 | long_query_time | 3.000000       |
| 192.168.0.82:3306 | long_query_time | 3.000000       |
| 192.168.0.83:3306 | long_query_time | 0.300000       |
+-------------------+-----------------+----------------+
3 rows in set (0.06 sec)

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_DATANODES;
+---------+-----------+----------+------------+--------------+------+-----------+---------------+-----------------------------------------------------------+-----------------------------------------------------------+
| NODE_ID | NODE_NAME | SHARD_ID | SHARD_NAME | HOST         | PORT | NODE_TYPE | NODE_STATE    | EXECUTED_GTID                                             | RECEIVED_TRANSACTION_SET                                  |
+---------+-----------+----------+------------+--------------+------+-----------+---------------+-----------------------------------------------------------+-----------------------------------------------------------+
|      36 | datanode1 |       36 | shard1     | 192.168.0.81 | 4406 | NODE_MGR  | STATE_STANDBY | 33360000-0000-0000-0000-000000000000:1-13:1000011-1000021 | 33360000-0000-0000-0000-000000000000:1-13:1000011-1000021 |
|      43 | datanode2 |       36 | shard1     | 192.168.0.82 | 4406 | NODE_MGR  | STATE_ACTIVE  | 33360000-0000-0000-0000-000000000000:1-13:1000011-1000021 | 33360000-0000-0000-0000-000000000000:1-13:1000011-1000021 |
|      50 | datanode3 |       36 | shard1     | 192.168.0.83 | 4406 | NODE_MGR  | STATE_STANDBY | 33360000-0000-0000-0000-000000000000:1-13:1000011-1000021 | 33360000-0000-0000-0000-000000000000:1-13:1000011-1000021 |
|      64 | datanode4 |       64 | shard2     | 192.168.0.81 | 4407 | NODE_MGR  | STATE_ACTIVE  | 36340000-0000-0000-0000-000000000000:1-28                 | 36340000-0000-0000-0000-000000000000:1-28                 |
|      71 | datanode5 |       64 | shard2     | 192.168.0.82 | 4407 | NODE_MGR  | STATE_STANDBY | 36340000-0000-0000-0000-000000000000:1-28                 | 36340000-0000-0000-0000-000000000000:1-28                 |
|      78 | datanode6 |       64 | shard2     | 192.168.0.83 | 4407 | NODE_MGR  | STATE_STANDBY | 36340000-0000-0000-0000-000000000000:1-28                 | 36340000-0000-0000-0000-000000000000:1-28                 |
|      92 | datanode7 |       92 | shard3     | 192.168.0.81 | 4408 | NODE_MGR  | STATE_ACTIVE  | 39320000-0000-0000-0000-000000000000:1-14                 | 39320000-0000-0000-0000-000000000000:1-14                 |
|      99 | datanode8 |       92 | shard3     | 192.168.0.82 | 4408 | NODE_MGR  | STATE_STANDBY | 39320000-0000-0000-0000-000000000000:1-14                 | 39320000-0000-0000-0000-000000000000:1-14                 |
|     106 | datanode9 |       92 | shard3     | 192.168.0.83 | 4408 | NODE_MGR  | STATE_STANDBY | 39320000-0000-0000-0000-000000000000:1-14                 | 39320000-0000-0000-0000-000000000000:1-14                 |
+---------+-----------+----------+------------+--------------+------+-----------+---------------+-----------------------------------------------------------+-----------------------------------------------------------+
9 rows in set (0.01 sec)

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_DATANODE_STATUS where VARIABLE_NAME='Open_tables';
+-----------+---------------+-------+
| DATANODE  | VARIABLE_NAME | VALUE |
+-----------+---------------+-------+
| datanode1 | Open_tables   | 144   |
| datanode2 | Open_tables   | 268   |
| datanode3 | Open_tables   | 189   |
| datanode4 | Open_tables   | 320   |
| datanode5 | Open_tables   | 125   |
| datanode6 | Open_tables   | 177   |
| datanode7 | Open_tables   | 245   |
| datanode8 | Open_tables   | 170   |
| datanode9 | Open_tables   | 126   |
+-----------+---------------+-------+
9 rows in set (0.20 sec)

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_DATANODE_VARIABLES where VARIABLE_NAME='long_query_time';
+-----------+-----------------+----------+
| DATANODE  | VARIABLE_NAME   | VALUE    |
+-----------+-----------------+----------+
| datanode1 | long_query_time | 0.300000 |
| datanode2 | long_query_time | 0.300000 |
| datanode3 | long_query_time | 0.300000 |
| datanode4 | long_query_time | 0.300000 |
| datanode5 | long_query_time | 0.300000 |
| datanode6 | long_query_time | 0.300000 |
| datanode7 | long_query_time | 0.300000 |
| datanode8 | long_query_time | 0.300000 |
| datanode9 | long_query_time | 0.300000 |
+-----------+-----------------+----------+
9 rows in set (0.17 sec)

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_CONNECTION_POOL;
+-----------+-------+------+
| NODE_NAME | TOTAL | IDLE |
+-----------+-------+------+
| datanode1 |   101 |  100 |
| datanode2 |   101 |  100 |
| datanode3 |   101 |  100 |
| datanode4 |   101 |  100 |
| datanode5 |   101 |  100 |
| datanode6 |   101 |  100 |
| datanode7 |   101 |  100 |
| datanode8 |   101 |  100 |
| datanode9 |   101 |  100 |
+-----------+-------+------+
9 rows in set (0.00 sec)

GreatDB 日志任务巡检视图

视图名称说明
GREATDB_ALTER_TABLE_TASK集群中 alter table 任务概览，含各阶段处理情况
GREATDB_ALTER_TABLE_SUBTASK集群中 alter table 子任务及当前阶段进度
GREATDB_BACKUP_NODES集群中用于备份的节点及其状态
GREATDB_BACKUP_TASKS备份任务
GREATDB_BACKUP_TASK_ROUTINE备份任务拓扑路由，各个增量备份依赖的层次及依赖的全量备份
GREATDB_TASK集群中后台任务（alter，migrate，backup）
GREATDB_BINLOG_SERVER_STATUSbinlog server 同步数据的任务状态显示
GREATDB_MIGRATE_TABLE_TASK集群中 migrate table 任务概览，含各阶段处理情况
GREATDB_MIGRATE_TABLE_SUBTASKmigrate table 子任务及当前阶段进度

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_TASK;
+---------+---------------+-------------------------------------+----------+---------------------+---------------------+
| TASK_ID | TASK_TYPE     | INFO                                | STATUS   | OWNER_INSTANCE_HOST | OWNER_INSTANCE_PORT |
+---------+---------------+-------------------------------------+----------+---------------------+---------------------+
|       1 | SHARD_RECOVER | shard recover daemon task           | RUNNING  | 192.168.0.81        |                3306 |
|      43 | MIGRATE_TABLE | test.t_normal from shard2 to shard1 | COMPLETE | 192.168.0.81        |                3306 |
+---------+---------------+-------------------------------------+----------+---------------------+---------------------+
2 rows in set (0.01 sec)

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_MIGRATE_TABLE_TASK;
+---------+---------------+-------------------------------------+----------------+----------------+------------------+-----------------------+---------------------+-------------+
| TASK_ID | OBJECT_NAME   | INFO                                | MIGRATE_STATUS | STAGE_SEQUENCE | STAGE            | COMPLETED_SUBTASK_NUM | UNKNOWN_SUBTASK_NUM | SUBTASK_NUM |
+---------+---------------+-------------------------------------+----------------+----------------+------------------+-----------------------+---------------------+-------------+
|      43 | test.t_normal | test.t_normal from shard2 to shard1 | COMPLETE       |              1 | CREATE TABLE     |                     1 |                    |           1 |
|      43 | test.t_normal | test.t_normal from shard2 to shard1 | COMPLETE       |              2 | COPY REMOTE DATA |                     1 |                    |           1 |
|      43 | test.t_normal | test.t_normal from shard2 to shard1 | COMPLETE       |              3 | APPLY_REMOTE_LOG |                     1 |                    |           1 |
|      43 | test.t_normal | test.t_normal from shard2 to shard1 | COMPLETE       |              4 | CATCH_REMOTE_LOG |                     1 |                    |           1 |
|      43 | test.t_normal | test.t_normal from shard2 to shard1 | COMPLETE       |              5 | CHANGE_TOPOLOGY  |                     1 |                    |           1 |
+---------+---------------+-------------------------------------+----------------+----------------+------------------+-----------------------+---------------------+-------------+
5 rows in set (0.00 sec)

GreatDB Cluster[(none)]> select * from information_schema.GREATDB_MIGRATE_TABLE_SUBTASK;
+---------+-------------+---------------+-----------------+---------------+--------------------+----------+----------+-------+
| TASK_ID | SUB_TASK_ID | OBJECT_NAME   | FROM_SHARD_NAME | TO_SHARD_NAME | BACKEND_TABLE_NAME | STAGE    | PROGRESS | ERROR |
+---------+-------------+---------------+-----------------+---------------+--------------------+----------+----------+-------+
|      43 |           1 | test.t_normal | shard2          | shard1        | `test`.`t_normal`  | COMPLETE | 100%     |       |
+---------+-------------+---------------+-----------------+---------------+--------------------+----------+----------+-------+
1 row in set (0.01 sec)

来自 “ ITPUB博客 ” ，链接：https://blog.itpub.net/69946831/viewspace-3152436/ ，如需转载，请注明出处，否则将追究法律责任。

0
0
上一篇： 张广舟－阿里云－ApsaraDB for Greenplum介绍【PPT】
下一篇： DB-Engines 3月数据库排名：MySQL跳出“同期跌幅榜”，拿下“本月涨幅榜冠军”
请登录后发表评论 登录
全部评论
飘絮絮絮丶

注册时间：2019-09-09

  • 博文量
    2646
  • 访问量
    42472

最新文章

支持我们 作者招募 用户协议 FAQ Contact Us

北京盛拓优讯信息技术有限公司. 版权所有  京ICP备16024965号-8 北京市公安局海淀分局网监中心备案编号：11010802021510 niuxiaotong@pcpop.com 17352615567 未成年人举报专区

广播电视节目制作经营许可证(京) 字第1234号 中国互联网协会会员

违法和不良信息举报电话:18101376593
