矩阵入门教程及文件获取地址

1.首先我们创建canvas标签,为了方便查看效果,我们为canvas添加一下样式,这里图片我使用的是1920*1080的尺寸

 canvas {
            display: block;
            border: 1px solid;
            width: 480px;
            height: 270px;
            margin: 100px auto;
        }

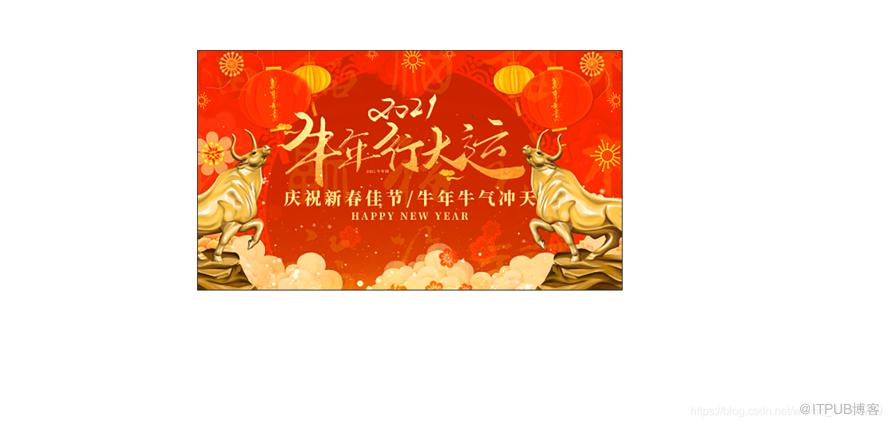

 //不做处理 将图片绘制到画布
 let image = document.createElement("img");
        let context = canvas.getContext("2d");
        image.src = "http://static.atvideo.cc/veleap/templateDemo/2021/04/06/16/30aawseyhgae.png";
        image.onload = function () {
            context.drawImage(
                image,
                0,
                0,
            );
        }

2.引入Affine.js 文件

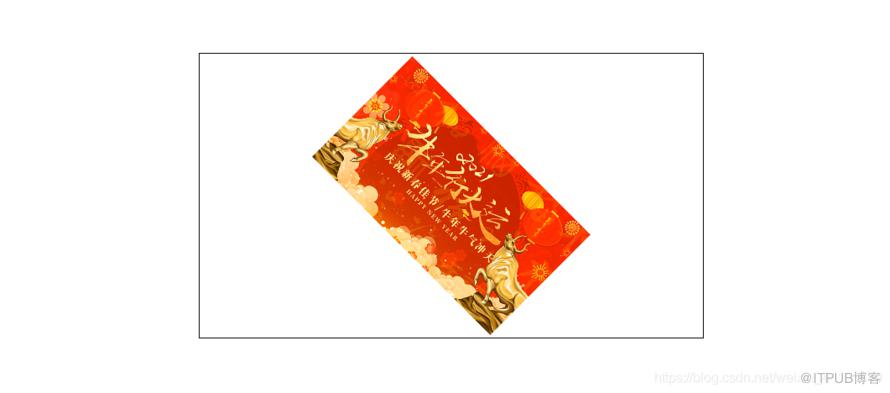

3.使用矩阵中心点旋转缩放

 let image = document.createElement("img");
        let context = canvas.getContext("2d");
        image.src = "http://static.atvideo.cc/veleap/templateDemo/2021/04/06/16/30aawseyhgae.png";
        image.onload = function () {
            const imageWidth = image.width,
                imageHeight = image.height,
                centerPointX = imageWidth / 2,
                centerPointY = imageHeight / 2;
            let a = {
                x: centerPointX,
                y: centerPointY,
            },
                p = {
                    x: centerPointX,
                    y: centerPointY,
                },
                s = {
                    x: 0.5,
                    y: 0.5,
                },
                r = 45;

            let matrix = new Affine();
            matrix.set(a, p, s, r);
            context.setTransform(matrix.mA, matrix.mB, matrix.mC, matrix.mD, matrix.mE, matrix.mF);
            context.drawImage(
                image,
                0,
                0,
            );
        }
