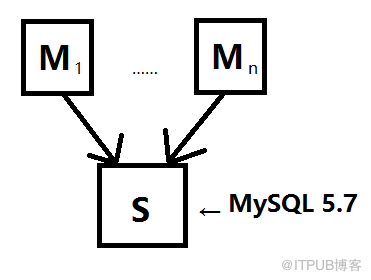

MySQL多源复制支持【多个低版本->MySQL 5.7】的结构
这样就可以让多个实例的schema汇聚在一台实例上，而且无需升级mysql版本并避免未知风险
用户只需要给这些实例安一个MySQL 5.7作为slave就可以了

当然Slave必须为MySQL 5.7

本次实验将使用MySQL 5.6.x作为多“主”。

〇测试环境：
OS：CentOS 6.5
master_1: 192.168.1.185(MySQL 5.6.30)
master_2: 192.168.1.186(MySQL 5.6.30)
slave: 192.168.1.1.187(MySQL 5.7.15)

〇配置：
master_1相关配置：

[mysqld]
server_id = 185
log-bin = master_1
log-bin-index = master_1.index

master_2相关配置：

[mysqld]
server_id = 186
log-bin = master_2
log-bin-index = master_2.index

slave相关配置：

[mysqld]
server_id = 187
relay-log = slave
relay-log-index = slave.index
# 多源复制结构中的slave，官方要求master-info和relay-log-info存放处必须为TABLE.
# 如果为FILE，则在添加多个master时，会失败：ER_SLAVE_NEW_CHANNEL_WRONG_REPOSITORY.
master-info-repository = TABLE
relay-log-info-repository = TABLE

〇为master_1 & master_2上建立复制用户：

GRANT REPLICATION SLAVE ON *.* to repl@'192.168.1.187' IDENTIFIED BY 'repl';
FLUSH PRIVILEGES;

〇测试数据准备：
master_1测试数据：

master_1> FLUSH LOGS;
Query OK, 0 rows affected (0.00 sec)
master_1> SHOW BINARY LOGS; -- 记住当前binlog的name和position
+-----------------+-----------+
| Log_name | File_size |
+-----------------+-----------+
| master_1.000001 | 166 |
| master_1.000002 | 455 |
| master_1.000003 | 120 |
+-----------------+-----------+
3 rows in set (0.00 sec)
master_1> CREATE DATABASE master_1;
Query OK, 1 row affected (0.03 sec)

master_2测试数据：

master_2> FLUSH LOGS;
Query OK, 0 rows affected (0.00 sec)
master_2> SHOW BINARY LOGS; -- 记住当前binlog的name和position
+-----------------+-----------+
| Log_name | File_size |
+-----------------+-----------+
| master_2.000001 | 166 |
| master_2.000002 | 455 |
| master_2.000003 | 120 |
+-----------------+-----------+
3 rows in set (0.00 sec)
master_2> CREATE DATABASE master_2;
Query OK, 1 row affected (0.02 sec)

〇在slave上执行：

salve> CHANGE MASTER TO
-> MASTER_HOST='192.168.1.185',
-> MASTER_USER='repl',
-> MASTER_PORT=3306,
-> MASTER_PASSWORD='repl',
-> MASTER_LOG_FILE='master_1.000003',
-> MASTER_LOG_POS=120
-> FOR CHANNEL 'master_1';
Query OK, 0 rows affected, 2 warnings (0.02 sec) -- 此处产生的warnings是一些安全建议和警告，本实验无视。
salve> CHANGE MASTER TO
-> MASTER_HOST='192.168.1.186',
-> MASTER_USER='repl',
-> MASTER_PORT=3306,
-> MASTER_PASSWORD='repl',
-> MASTER_LOG_FILE='master_2.000003',
-> MASTER_LOG_POS=120
-> FOR CHANNEL 'master_2';
Query OK, 0 rows affected, 2 warnings (0.02 sec)
slave> START SLAVE;
Query OK, 0 rows affected (0.01 sec)
salve> SHOW DATABASES; -- 此时在master_1和master_2上的binlog events已经被正常的apply了
+--------------------+
| Database |
+--------------------+
| information_schema |
| master_1 |
| master_2 |
| mysql |
| performance_schema |
| sys |
+--------------------+
6 rows in set (0.00 sec)

最后通过start slave status即可查到复制状态

slave> SHOW SLAVE STATUS\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.1.185
Master_User: repl
Master_Port: 3306
……………………………………………………
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
……………………………………………………
Master_Server_Id: 185
Master_UUID: ee1f8704-58c4-11e6-95b5-000c297f23b7
Master_Info_File: mysql.slave_master_info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Slave_SQL_Running_State: Slave has read all relay log; waiting for more updates
……………………………………………………
Channel_Name: master_1
Master_TLS_Version:
*************************** 2. row ***************************
Slave_IO_State: Waiting for master to send event
Master_Host: 192.168.1.186
Master_User: repl
Master_Port: 3306
Connect_Retry: 60
……………………………………………………
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
……………………………………………………
Master_Server_Id: 186
Master_UUID: 53774f2d-7e14-11e6-8900-000c298e914c
Master_Info_File: mysql.slave_master_info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Slave_SQL_Running_State: Slave has read all relay log; waiting for more updates
……………………………………………………
Channel_Name: master_2
Master_TLS_Version:
2 rows in set (0.00 sec)

〇测试：
master_1上操作：

master_1> CREATE TABLE master_1.test_table(id int);
Query OK, 0 rows affected (0.05 sec)
master_1> INSERT INTO master_1.test_table SELECT 666666;
Query OK, 1 row affected (0.01 sec)
Records: 1 Duplicates: 0 Warnings: 0

master_2上操作：

master_2> CREATE TABLE master_2.test_table(massage varchar(16));
Query OK, 0 rows affected (0.02 sec)
master_2> INSERT INTO master_2.test_table SELECT '嘿嘿嘿';
Query OK, 1 row affected (0.00 sec)
Records: 1 Duplicates: 0 Warnings: 0
master_2> INSERT INTO master_2.test_table SELECT '三阳之炎';
Query OK, 1 row affected (0.00 sec)
Records: 1 Duplicates: 0 Warnings: 0

slave上操作：

salve> SELECT id FROM master_1.test_table;
+--------+
| id |
+--------+
| 666666 |
+--------+
1 row in set (0.00 sec)
salve> SELECT massage FROM master_2.test_table;
+--------------+
| massage |
+--------------+
| 嘿嘿嘿 |
| 三阳之炎 |
+--------------+
2 rows in set (0.00 sec)

〇其他相关语法：

START/STOP/RESET ALL/RESET SLAVE FOR CHANNEL 'XXX';
SHOW SLAVE STATUS FOR CHANNEL 'XXX';

ps.
与上述传统position方式类似，GTID方式配置起来也类似，开启GTID后，需要注意使用FOR CHANNEL 'xxx'关键字即可，比如：

CHANGE MASTER TO
MASTER_HOST='',
MASTER_USER='repl',
MASTER_PORT=3306,
MASTER_PASSWORD='repl',
MASTER_AUTO_POSITION = 1
FOR CHANNEL 'master_1';

多台主机的schema名字不可以一样，（比如master_1为db_00 ... db_09共10库，master_2为db_10 ... db_19，master_3为db_20 ... db_29 ……）

参考文档：
MySQL 5.7 Reference Manual 14 SQL Statement Syntax - 14.4.2.1 CHANGE MASTER TO Syntax
MySQL 5.7 Reference Manual 18 Replication - 18.1.4 MySQL Multi-Source Replication
