安装 openfiler on vmware
下载地址 http://www.openfiler.com/

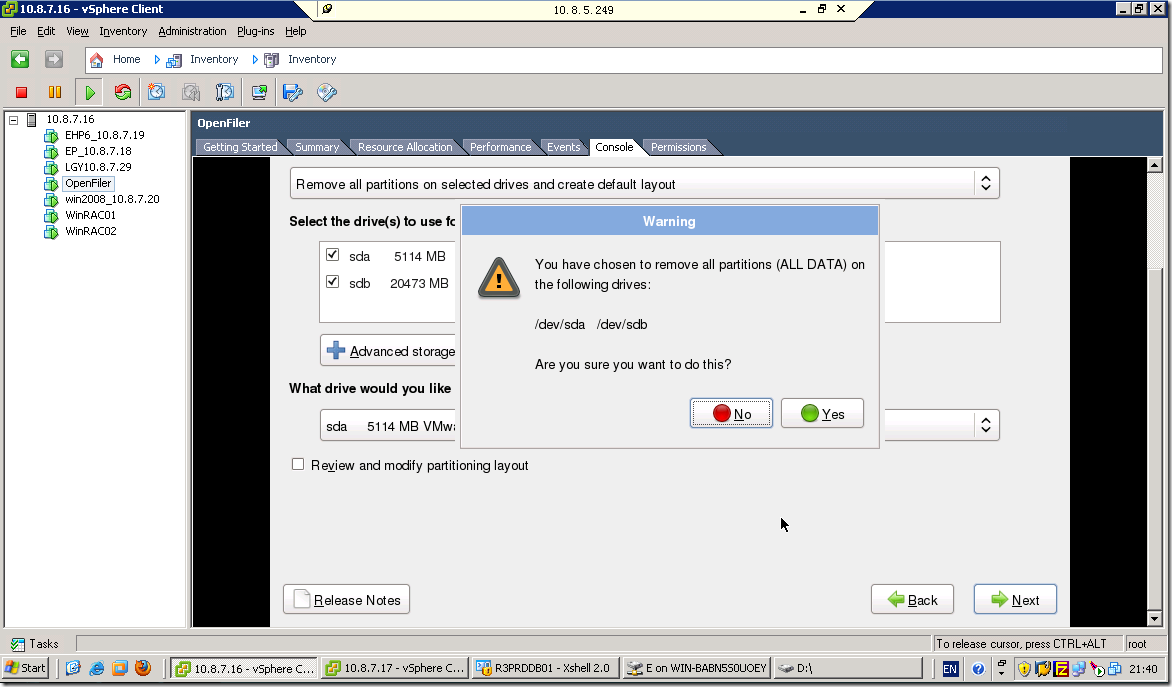

安装，类似于安装操作系统，基本就是下一步
![clip_image002[9]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658493IwAw.png "clip_image002[9]")
![clip_image003[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658493MwP3.png "clip_image003[4]")
![clip_image004[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_140565849428fl.png "clip_image004[4]")
配置网络
![clip_image005[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_14056584948mdj.png "clip_image005[4]")
root/password
![clip_image006[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658495s94j.png "clip_image006[4]")
![clip_image007[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658495q4s4.png "clip_image007[4]")
![clip_image008[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_140565849683AL.png "clip_image008[4]")

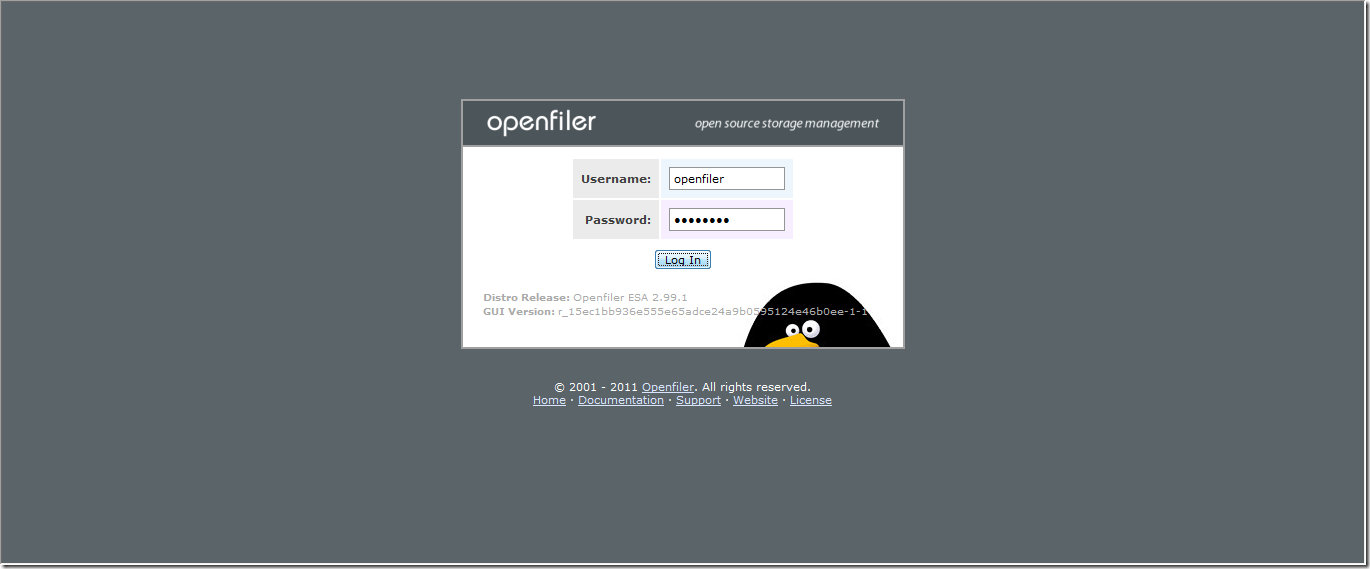

使用以下信息访问
openfiler / password
![clip_image009[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658496w6OH.png "clip_image009[4]")

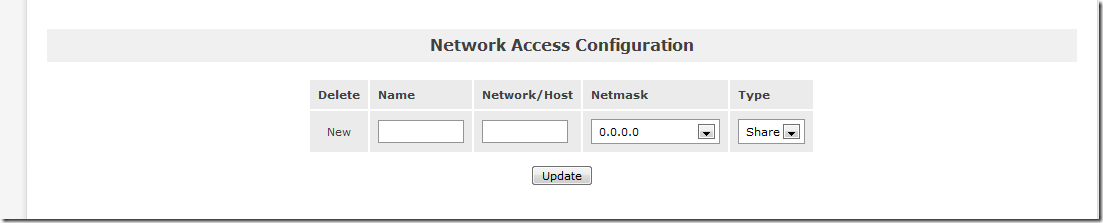

启用以下服务
![clip_image010[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658497SMHm.png "clip_image010[4]")
![clip_image011[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658497o9u5.png "clip_image011[4]")
![clip_image012[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658497uw0s.png "clip_image012[4]")
![clip_image013[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658498ZHbj.png "clip_image013[4]")
![clip_image014[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658498hi00.png "clip_image014[4]")
![clip_image015[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658499CVC5.png "clip_image015[4]")
新建iscsi存储操作
openfiler新增3个10G盘
![clip_image016[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658499QfnC.png "clip_image016[4]")

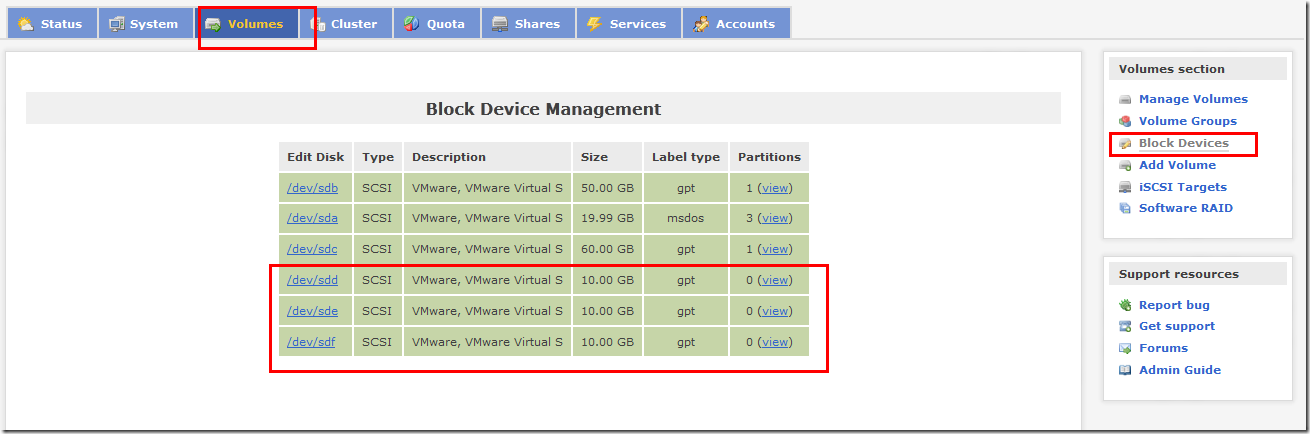

管理界面里可以看到新添加的盘
![clip_image017[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658500jaWj.png "clip_image017[4]")

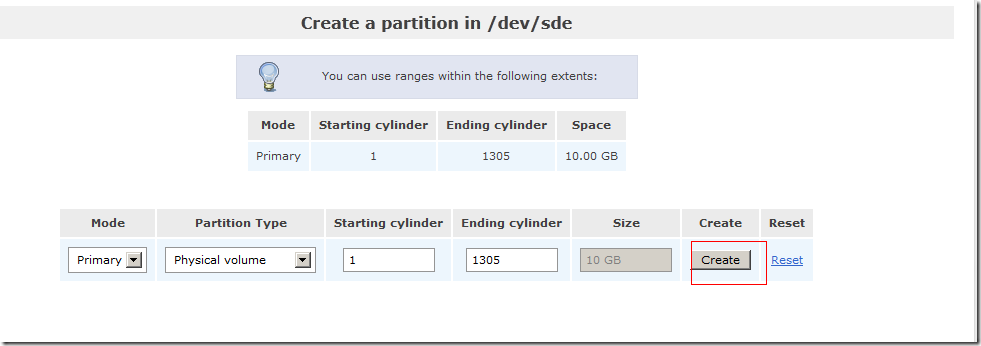

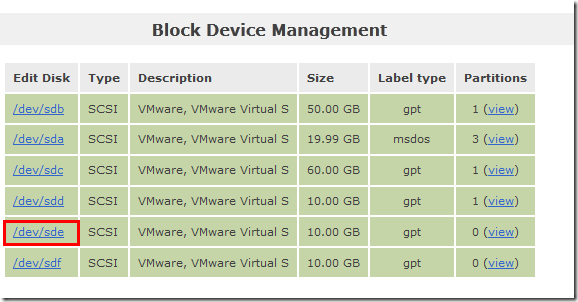

新建物理卷PV
![clip_image018[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658500wWy5.png "clip_image018[4]")
![clip_image019[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658501x33x.png "clip_image019[4]")
新建一个卷组VG
![clip_image020[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_14056585013z11.png "clip_image020[4]")

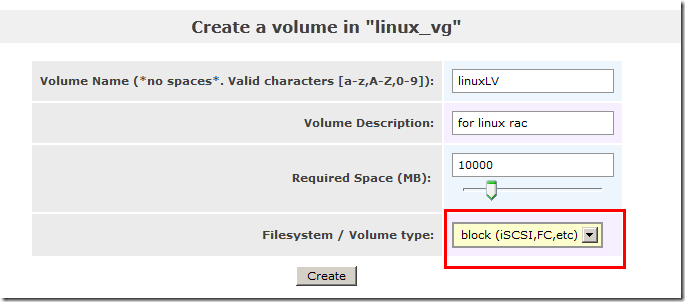

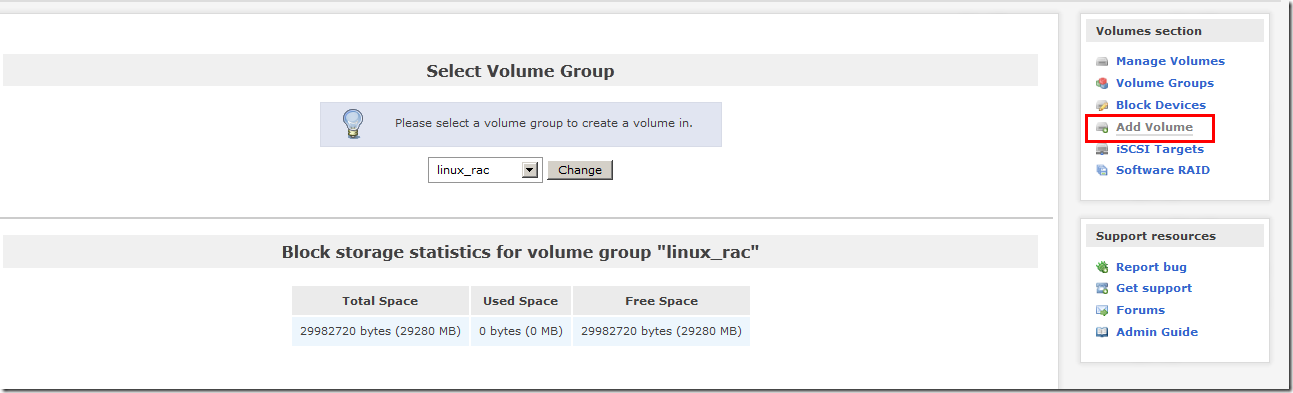

创建逻辑卷LV
![clip_image021[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658502wkwV.png "clip_image021[4]")
![clip_image022[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658502H9h9.png "clip_image022[4]")

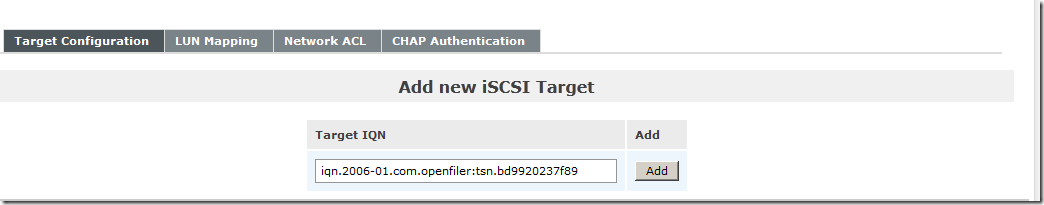

新建一个iscsi target
![clip_image023[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_14056585034KlJ.png "clip_image023[4]")

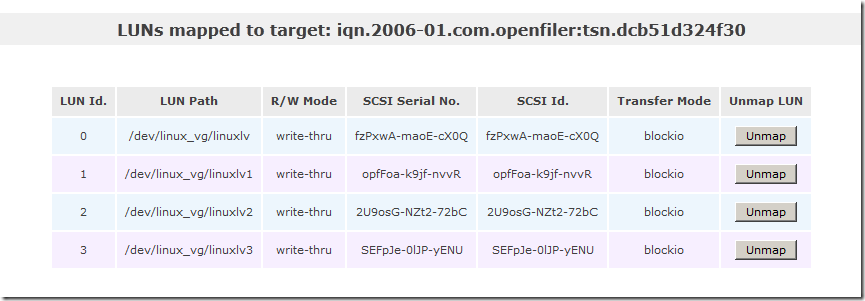

将target和LV映射
![clip_image024[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_1405658503C7d9.png "clip_image024[4]")

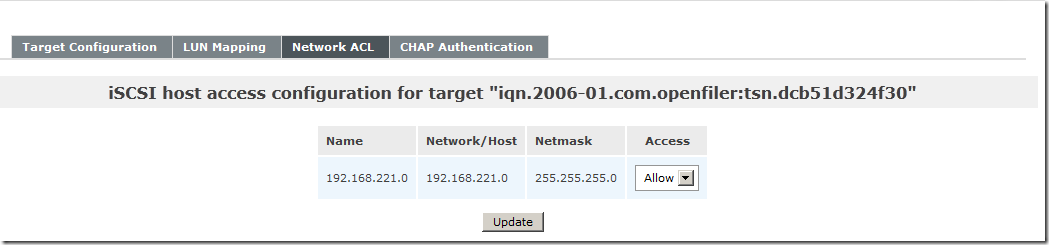

创建访问控制，以下设置是192.168.221.x地址都能访问
![clip_image025[4]](http://img.blog.itpub.net/blog/attachment/201407/18/27771627_140565850359Ll.png "clip_image025[4]")
使用linux 或者windows 添加存储就可以了，具体操作参考下面文章。
linux连接iscsi存储方法
参考链接 http://www.verydemo.com/demo_c128_i24820.html
