锐动IOS带UI视频编辑SDK

IT生活 作者：uzhy 时间：2021-09-09 10:36:20 0 删除 编辑

1 编写目的

预期读者：

有视频编辑开发经验或者无经验的，打算或者正在使用“锐动iOS带UI视频编辑SDK”的相关工程师。

 iOS软件工程师。

 产品经理。

 QA



2 名词解释

       分辨率：用于计算机视频处理的图像，以水平和垂直方向上所能显示的像素数来表示分辨率。常见视频分辨率的有1080P即1920x1080，720P即1080x720，640x480等。

       宽高比：视频分辨率的宽高比，常见的有16:9，4:3，1:1。锐动视频编辑SDK对各宽高比的视频都支持编辑，导出的默认分辨率是1280x720，宽高比是16:9。

       帧率：每秒的帧数(fps)或者说帧率表示图形处理器处理场时每秒钟能够更新的次数。

       码率： 数据传输时单位时间传送的数据位数,一般我们用的单位是kbps即千位每秒。

       素材：来自系统相机，其他App，电脑，网络的照片，音乐，视频等。

       视频分割： 把视频分割为若干个片段，可用于从视频中截取一个或者多个精彩瞬间，或者删除不喜欢的片段，分割后的多个片段也可以用于重新调整顺序，视频合并等。

       视频裁切： 从视频画面中裁切出来仅需要的部分，锐动视频编辑SDK针对手机竖屏拍摄的画面，支持动态调整裁切区域，帮助用户不同时间点选择自己需要的画面。

       视频旋转：对视频进行90°，180°，270°旋转，一般用于矫正用户手机上录制的头像横置的视频。

       视频镜像：对视频左右镜像。

       视频变速：对视频播放速度调整，实现慢镜头或者快镜头效果。

       视频配乐：选取本地或者网络音乐作为视频的背景音乐。

       视频配音：通过micphone对视频配音。

       视频字幕：使用文字标注视频。

       视频滤镜：调整视频的画面颜色效果。

       视频特效：在视频里面增加特效动画或声音

       合并转场：两个视频片段之间的衔接效果。

       主题（模版）： 应用视频的整体效果方案。





3 XCode集成步骤



3.1  运行环境

SDK支持Ios8.0及以上版本的设备，兼容iPhone、iPad、iPod touch



3.2 注册申请AppKey和APPSecret

1、 打开 http://www.rdsdk.com ，在锐动官网首页选择登 录或注册，新用户先注册，老用户直接登录。


2、 登录完成后，进入视频云管理 点击“+新增”，填写您应 用的名称等，点击“提交”，应用创建完成。


3、 创建应用完成后会自动跳转至个人中心页面，此时会获 取到该应用的 AppKey 和 AppSecret。




3.3 下载并导入SDK

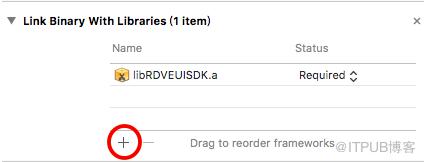

3.3.1  添加静态库libRDVEUISDK.a和头文件

图片描述

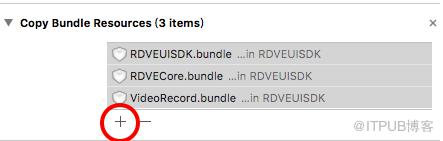

3.3.2  添加RDVEUISDK.bundle、RDVECore.bundle、VideoRecord.bundle

图片描述

3.3.3  工程设置

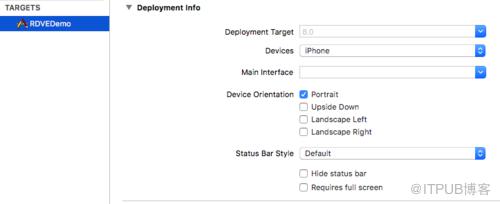

l TARGETS的Deployment Info仅勾选竖屏(Portrait)，横屏(LandscapeLeft、LandscapeRight)不勾选：

 图片描述

l IOS10适配

在 Info.plist 中 添 加 NSCameraUsageDescription 、

NSMicrophoneUsageDescription、NSPhotoLibraryUsageDescription、NSAppleMusicUsageDescription。

图片描述



l HTTP协议适配

在 Info.plist 中 添 加App Transport Security Settings

图片描述

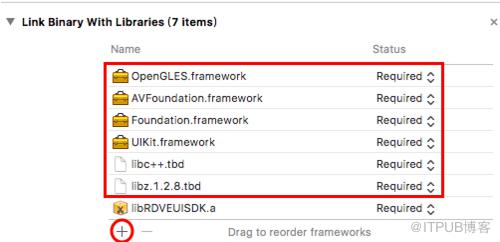

l 添加引用苹果官方库

图片描述

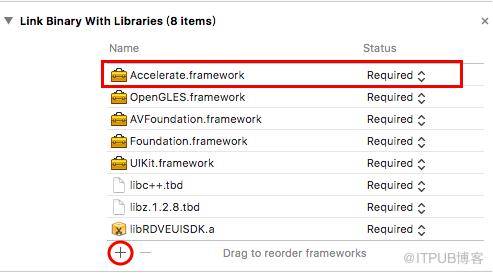

如果录制时使用faceU，还需要引用库Accelerate.framework

图片描述

l 设置 Other Linker Flags


在 TARGETS->Build Settings->Other Linker Flags 中加入-ObjC。

l 设置Enable Bitcode


在 TARGETS->Build Settings->Enable Bitcode设置为No。



3.4 集成SDK

3.4.1 引入头文件及初始化

#import "RDVEUISDK.h"

- (instancetype) initWithAPPKey:(NSString *)appkey

                       APPSecret:(NSString *)appsecret

LicenceKey:(NSString *)licenceKey

                     resultFail:(RdVEFailBlock )resultFailBlock;

3.4.2 功能设置

@property (nonatomic,strong) ExportConfiguration     *exportConfiguration;



@property (nonatomic,strong) EditConfiguration        * editConfiguration;



@property (nonatomic,strong) CameraConfiguration    * cameraConfiguration;



3.4.2.1 视频导出设置

@property (nonatomic,assign)long int   outputVideoMaxDuration;



@property (nonatomic,assign)long int   inputVideoMaxDuration;



@property (nonatomic,assign)bool    endPicDisabled;



@property (nonatomic,copy)NSString * _Nullable endPicUserName;



@property (nonatomic,assign)float    endPicDuration;



@property (nonatomic,assign)float    endPicFadeDuration;



@property (nonatomic,copy)NSString * _Nullable endPicImagepath;



@property (nonatomic,assign)bool     waterDisabled;



@property (nonatomic,copy,nullable)NSString *waterText;



@property (nonatomic,strong,nullable)UIImage *waterImage;



@property (nonatomic,assign)RDWATERPOSITION  waterPosition;



@property (nonatomic,assign)float   videoBitRate;



@property (nonatomic,assign)CGSize  condenseVideoResolutionRatio;



3.4.2.2 视频编辑设置

@property (assign, nonatomic)bool enableWizard;



@property (assign, nonatomic)SUPPORTFILETYPE supportFileType;

3.4.2.2.1 相册界面设置

@property (nonatomic,assign) RDDEFAULTSELECTALBUM defaultSelectAlbum;



@property (nonatomic,assign) int mediaCountLimit;



@property (nonatomic,assign) int mediaMinCount;



@property (nonatomic,assign) bool enableAlbumCamera;





@property (nonatomic,copy,nullable) void(^clickAlbumCameraBlackBlock)();

3.4.2.2.2 截取界面设置

@property (nonatomic,assign) TRIMMODE trimMode;



@property (nonatomic,assign) float trimDuration_OneSpecifyTime;



@property (nonatomic,assign) float trimMinDuration_TwoSpecifyTime;



@property (nonatomic,assign) float trimMaxDuration_TwoSpecifyTime;



@property (nonatomic,assign) RDdefaultSelectCutMinOrMax  defaultSelectMinOrMax;



@property (nonatomic,assign) TRIMEXPORTVIDEOTYPE trimExportVideoType;

3.4.2.2.3 编辑界面设置

@property (nonatomic,assign) bool enableSingleSpecialEffects;





@property (nonatomic,assign) bool enableSingleMediaAdjust;



@property (nonatomic,assign) bool enableSingleMediaFilter;

@property (nonatomic,assign) bool enableTrim;



@property (nonatomic,assign) bool enableSplit;

@property (nonatomic,assign) bool enableEdit;



@property (nonatomic,assign) bool enableSpeedcontrol;



@property (nonatomic,assign) bool enableCopy;



@property (nonatomic,assign) bool enableSort;



@property (nonatomic,assign) bool enableProportion;



@property (nonatomic,assign) bool enableImageDurationControl;



@property (nonatomic,assign) bool enableTextTitle;



@property (nonatomic,assign) RDPROPORTIONTYPE  proportionType;



@property (nonatomic,assign) bool enableReverseVideo;



@property (nonatomic,assign) bool enableDraft;

3.4.2.2.4 高级编辑界面设置

@property (nonatomic,copy)NSString   * _Nonnull netMaterialTypeURL;



@property (nonatomic,copy)NSString    * _Nullable musicResourceURL;



@property (nonatomic,copy)NSString    * _Nullable cloudMusicResourceURL;

@property (nonatomic,copy)NSString    * _Nullable soundMusicTypeResourceURL;



@property (nonatomic,copy)NSString    * _Nullable soundMusicResourceURL;



@property (nonatomic,copy,nullable)NSString    *mvResourceURL;



@property (nonatomic,copy,nullable)NSString    *newmvResourceURL;



@property (nonatomic,copy,nullable)NSString    *newmusicResourceURL;



@property (nonatomic,copy,nullable)NSString    *newartist;



@property (nonatomic,copy,nullable)NSString    *newartistHomepageTitle;



@property (nonatomic,copy,nullable)NSString    *newartistHomepageUrl;



@property (nonatomic,copy,nullable)NSString    *newmusicAuthorizationTitle;



@property (nonatomic,copy,nullable)NSString    *newmusicAuthorizationUrl;



@property (nonatomic,copy,nullable)NSString    *filterResourceURL;



@property (nonatomic,copy,nullable)NSString    *subtitleResourceURL;



@property (nonatomic,copy,nullable)NSString    *effectResourceURL;



@property (nonatomic,copy,nullable)NSString    *specialEffectResourceURL;



@property (nonatomic,copy,nullable)NSString    *fontResourceURL;



@property (nonatomic,copy,nullable)NSString    *transitionURL;



@property (nonatomic,assign) bool enableLocalMusic;



@property (nonatomic,assign) bool enableMV;



@property (nonatomic,assign) bool enableMusic;



@property (nonatomic,assign) bool enableSoundEffect;



@property (nonatomic,assign) bool enableDubbing;



@property (nonatomic,assign) bool enableTransition;



@property (nonatomic,assign) RDDUBBINGTYPE dubbingType;

@property (nonatomic,assign) bool enableSubtitle;



@property (nonatomic,assign) bool enableFilter;



@property (nonatomic,assign) bool enableSticker;



@property (nonatomic,assign) bool enableEffectsVideo;



@property (nonatomic,assign) bool enableDewatermark;



@property (nonatomic,assign) bool enableFragmentedit;



@property (nonatomic,assign) bool enablePicZoom;



@property (nonatomic,assign) bool enableBackgroundEdit;



@property (nonatomic,assign) bool enableCover;

@property (nonatomic,assign) bool enableDoodle;



@property (nonatomic,assign) bool presentAnimated;



@property (nonatomic,assign) bool dissmissAnimated;



@property (nonatomic,assign) bool enableMVEffect;



@property (nonatomic,assign) bool enableCollage;

3.4.2.3 视频录制功能设置

@property(nonatomic, assign) bool captureAsYUV;



@property (nonatomic,assign) CameraModelType              cameraModelType;



@property (nonatomic,assign) bool                           cameraWriteToAlbum;



@property (nonatomic,assign) AVCaptureDevicePosition        cameraCaptureDevicePosition;



@property (nonatomic,assign) RecordVideoOrientation         cameraRecordOrientation;



@property (nonatomic,assign) RecordVideoSizeType            cameraRecordSizeType;



@property (nonatomic,assign) int32_t                        cameraFrameRate;



@property (nonatomic,assign) int32_t                        cameraBitRate;



@property (nonatomic,assign) Record_Type                    cameraRecord_Type;



@property (nonatomic,copy,nullable) NSString              *cameraOutputPath;



@property (nonatomic,assign) CGSize                         cameraOutputSize;



@property (nonatomic,assign) CameraCollocationPositionType  cameraCollocationPosition;



@property (nonatomic,assign) float                          cameraSquare_MaxVideoDuration;



@property (nonatomic,assign) float                          cameraNotSquare_MaxVideoDuration;



@property (nonatomic,assign) float                          cameraMinVideoDuration;



@property (nonatomic , assign) bool                         enableFilter;



@property (assign, nonatomic) bool                          enableFaceU;



@property (assign, nonatomic,nonnull) void                  *faceUAuth;



@property (assign, nonatomic)Float64                        lenFaceUAuth;



@property (assign, nonatomic)bool                           enableNetFaceUnity;



@property (copy, nonatomic,nonnull)NSString                 *faceUURL;



@property (nonatomic,assign) bool                           cameraMV;



@property (nonatomic,assign) bool                           cameraVideo;



@property (nonatomic,assign) bool                           cameraPhoto;



@property (nonatomic,assign) float                          cameraMV_MinVideoDuration;



@property (nonatomic,assign) float                          cameraMV_MaxVideoDuration;



@property (nonatomic,copy,nonnull) void(^cameraEnterPhotoAlbumCallblackBlock)( );



@property (nonatomic,assign) bool                           hiddenPhotoLib;



// faceU美颜设置

@property (nonatomic , assign) float cheekThinning;





@property (nonatomic , assign) float eyeEnlarging;





@property (nonatomic , assign) float colorLevel;



@property (nonatomic , assign) float blurLevel;



@property (nonatomic , assign) float faceShapeLevel;



@property (nonatomic , assign) float faceShape;



@property (nonatomic, assign) BOOL                  enableUseMusic;



@property (nonatomic, strong) RDMusicInfo          * _Nullable musicInfo;



@property (nonatomic, assign) BOOL              enabelCameraWaterMark;

@property (nonatomic, assign) float             cameraWaterMarkHeaderDuration;



@property (nonatomic, assign) float             cameraWaterMarkEndDuration;

 */

@property (nonatomic, copy) void (^cameraWaterProcessingCompletionBlock)(NSInteger type,RecordStatus status, UIView *waterMarkview ,float time);

3.4.2.3.1 启用faceU说明

1、 导入签权证书

2、 导入美颜基础资源：face_beautification.bundle、v3.bundle

3.4.2.3.1.1  开启faceU

rdVESDK.cameraConfiguration.enableFaceU = true;

3.4.2.3.1.2  启用签权证书

    rdVESDK.cameraConfiguration.faceUAuth = &g_faceuAuth_package;

rdVESDK.cameraConfiguration.lenFaceUAuth = sizeof(g_faceuAuth_package);

3.4.2.3.1.3  从网络加载faceUnity道具资源

rdVESDK.cameraConfiguration.enableNetFaceUnity  = true;

rdVESDK.cameraConfiguration.faceUURL = @"http://faceUnity道具资源下载地址";

自定义获取faceUnity道具的url方法，具体参见《3.16.1自定义faceU资源》。



3.5 录制视频

- (void)videoRecordAutoSizeWithSourceController: (UIViewController*)source

                                  callbackBlock: (RdVERecordCallbackBlock)callbackBlock

                                 imagebackBlock: (RdVECallbackBlock)imagebackBlock

                                     faileBlock: (RdVEFailBlock)failBlock

        cancel: (RdVECancelBlock)cancelBlock;



3.6 编辑视频

- (void)editVideoWithSuperController:(UIViewController *)viewController

                            urlAsset:(AVURLAsset *)urlAsset

                       clipTimeRange:(CMTimeRange )clipTimeRange

                                crop:(CGRect)crop

                          outputPath:(NSString *)outputVideoPath

                            callback:(RdVECallbackBlock )callbackBlock

cancel:(RdVECancelBlock )cancelBlock;



- (void)editVideoWithSuperController:(UIViewController *)viewController

                            urlAsset:(AVURLAsset *)urlAsset

                       clipTimeRange:(CMTimeRange )clipTimeRange

                                crop:(CGRect)crop

                           musicInfo:(RDMusicInfo *)musicInfo

                          outputPath:(NSString *)outputVideoPath

callback:(RdVECallbackBlock )callbackBlock

                        cancel:(RdVECancelBlock )cancelBlock;



- (void)editVideoWithSuperController:(UIViewController *)viewController

                          foldertype:(FolderType)foldertype

                   appAlbumCacheName:(NSString *)appAlbumCacheName

                           urlsArray:(NSMutableArray *)urlsArray

                          outputPath:(NSString *)outputVideoPath

                            callback:(RdVECallbackBlock )callbackBlock

cancel:(RdVECancelBlock )cancelBlock;



- (void)editVideoWithSuperController:(UIViewController *)viewController

                          foldertype:(FolderType)foldertype

                   appAlbumCacheName:(NSString *)appAlbumCacheName

                           urlsArray:(NSMutableArray *)urlsArray

                           musicInfo:(RDMusicInfo *)musicInfo

                          outputPath:(NSString *)outputVideoPath

                            callback:(RdVECallbackBlock )callbackBlock

cancel:(RdVECancelBlock )cancelBlock;

- (void)editDraftWithSuperController:(UIViewController *)viewController

                          outputPath:(NSString *)outputVideoPath

                            callback:(RdVECallbackBlock)callbackBlock

                            failback:(RdVEFailBlock) failback

cancel:(RdVECancelBlock)cancelBlock;





3.7 自定义相册或是调用系统相册

实现代理方法：

- (void)selectVideoAndImageResult:(UINavigationController *)nav callbackBlock:(void (^)(NSMutableArray *lists))callbackBlock;



- (void)selectVideosResult:(UINavigationController *)nav callbackBlock:(void (^)(NSMutableArray *lists))callbackBlock;

- (void)selectImagesResult:(UINavigationController *)nav callbackBlock:(void (^)(NSMutableArray *lists))callbackBlock;



以系统相册为例：(需实现以下两个协议：UINavigationControllerDelegate, UIImagePickerControllerDelegate)

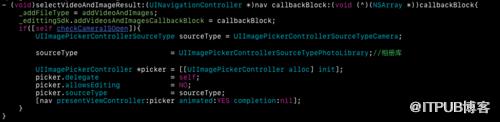

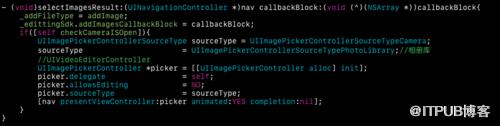

进入系统相册：

图片描述



 图片描述

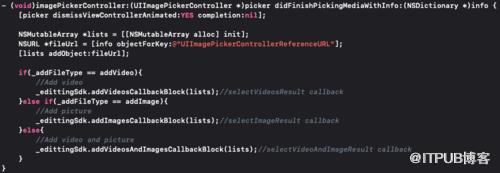

相册选择完成：

图片描述



3.8 截取视频

- (void)trimVideoWithSuperController:(UIViewController *)viewController

                     controllerTitle:(NSString *) title

                     backgroundColor:(UIColor  *) backgroundColor

                   cancelButtonTitle:(NSString *) cancelButtonTitle

              cancelButtonTitleColor:(UIColor  *) cancelButtonTitleColor

         cancelButtonBackgroundColor:(UIColor  *) cancelButtonBackgroundColor

                    otherButtonTitle:(NSString *) otherButtonTitle

               otherButtonTitleColor:(UIColor  *) otherButtonTitleColor

          otherButtonBackgroundColor:(UIColor  *) otherButtonBackgroundColor

                            urlAsset:(AVURLAsset *) urlAsset

                          outputPath:(NSString *) outputVideoPath

                       callbackBlock:(RdVE_TrimAssetCallbackBlock) callbackBlock

                            failback:(RdVEFailBlock       ) failback

cancel:(RdVECancelBlock     ) cancelBlock;

- (void)trimVideoWithSuperController:(UIViewController *)viewController

                     controllerTitle:(NSString *) title

                     backgroundColor:(UIColor  *) backgroundColor

                   cancelButtonTitle:(NSString *) cancelButtonTitle

              cancelButtonTitleColor:(UIColor  *) cancelButtonTitleColor

         cancelButtonBackgroundColor:(UIColor  *) cancelButtonBackgroundColor

                    otherButtonTitle:(NSString *) otherButtonTitle

               otherButtonTitleColor:(UIColor  *) otherButtonTitleColor

          otherButtonBackgroundColor:(UIColor  *) otherButtonBackgroundColor

                           assetPath:(NSString *) assetPath

                          outputPath:(NSString *) outputVideoPath

                       callbackBlock:(RdVE_TrimVideoPathCallbackBlock) callbackBlock

                            failback:(RdVEFailBlock       ) failback

                              cancel:(RdVECancelBlock     ) cancelBlock;



- (void)trimVideoWithType:(RDCutVideoReturnType )type;



- (void)Intercept:(NSString *)InPath

        atOutPath:(NSString *)OutPath

      atStartTime:(float) startTime

   atDurationTime:(float) DurationTime

         atAppkey:(NSString *)appKey

      atappSecret:(NSString *)appSecret

atvideoAverageBitRate:(float) videoAverageBitRate

atSuccessCancelBlock:(SuccessCancelBlock)successCancelBlock

atFailCancelBlock:(FailCancelBlock)failCancelBlock;



3.9 视频压缩

- (NSDictionary *) getVideoInformation:(AVURLAsset *)urlAsset;



- (void)compressVideoAsset:(AVURLAsset *)urlAsset

                outputPath:(NSString *)outputPath

                 startTime:(CMTime )startTime

                   endTime:(CMTime )endTime

                outputSize:(CGSize) size

             outputBitrate:(float) bitrate

                supperView:(UIViewController *)supperView

             progressBlock:(void (^)(float progress))progressBlock

             callbackBlock:(void (^)(NSString *videoPath))callbackBlock

                      fail:(void (^)(NSError *error))failBlock;

- (void) compressCancel;



3.10 照片电影

3.10.1 API实现(仿Quik)

- (void)pictureMovieWithSuperController_Theme:(UIViewController *)viewController

                                   UrlsArray:(NSMutableArray *)urlsArray

                                  outputPath:(NSString *)outputVideoPath

                                    callback:(RdVECallbackBlock )callbackBlock

                                      cancel:(RdVECancelBlock )cancelBlock;

3.10.2 AE模板

- (void)pictureMovieWithSuperController:(UIViewController *)viewController

                              UrlsArray:(NSMutableArray *)urlsArray

                             outputPath:(NSString *)outputVideoPath

                               callback:(RdVECallbackBlock )callbackBlock

                                 cancel:(RdVECancelBlock )cancelBlock;



3.11 创意搞怪小视频

3.11.1 AE模板(简影)

- (void)AEHomeWithSuperController:(UIViewController *)viewController

                       outputPath:(NSString *)outputVideoPath

                         callback:(RdVECallbackBlock )callbackBlock

                           cancel:(RdVECancelBlock )cancelBlock;

3.11.2 字说

- (void)aeTextAnimateWithSuperController:(UIViewController *)viewController

                              outputPath:(NSString *)outputVideoPath

                                callback:(RdVECallbackBlock )callbackBlock

                                  cancel:(RdVECancelBlock )cancelBlock;





3.12 多格

- (void)dogePuzzleWithSuperController:(UIViewController *)viewController

                                    UrlsArray:(NSMutableArray *)urlsArray

                                   outputPath:(NSString *)outputVideoPath

                                     callback:(RdVECallbackBlock )callbackBlock

cancel:(RdVECancelBlock )cancelBlock;



3.13 相册功能（选择视频或图片后返回选中资源）

- (BOOL)onRdVEAlbumWithSuperController:(UIViewController *)viewController

                            albumType:(ALBUMTYPE)albumType

                            callBlock:(OnAlbumCallbackBlock) callbackBlock

                          cancelBlock:(RdVECancelBlock) cancelBlock;



3.14 导出视频中的音频

3.14.1 无界面

+ (void)video2audiowithtype:(AVFileType)type

                   videoUrl:(NSURL*)videoUrl

                  trimStart:(float)start

                   duration:(float)duration

           outputFolderPath:(NSString*)outputFolder

                 samplerate:(int )samplerate

                 completion:(void(^)(BOOL result,NSString*outputFilePath))completionHandle;

3.14.2 有界面

- (void)video2audiowithtype:(UIViewController *)viewController

               atAVFileType:(AVFileType)type

                   videoUrl:(NSURL*)videoUrl

           outputFolderPath:(NSString*)outputFolder

                 samplerate:(int )samplerate

                   callback:(RdVECallbackBlock )callbackBlock

cancel:(RdVECancelBlock )cancelBlock;



3.15 小功能

- (void)singleMediaWithSuperController:(UIViewController *)viewController

                          functionType:(RDSingleFunctionType)functionType

                            outputPath:(NSString *)outputVideoPath

                              urlArray:(NSMutableArray <NSURL *>*)urlArray

                              callback:(RdVECallbackBlock)callbackBlock

                                cancel:(RdVECancelBlock)cancelBlock;



3.16 自定义资源

3.16.1 自定义faceU资源

获取人脸贴纸资源的 url 需满足以下定义:

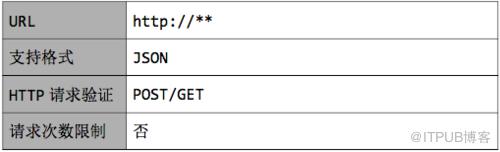

请求格式：

图片描述

参数说明：

图片描述

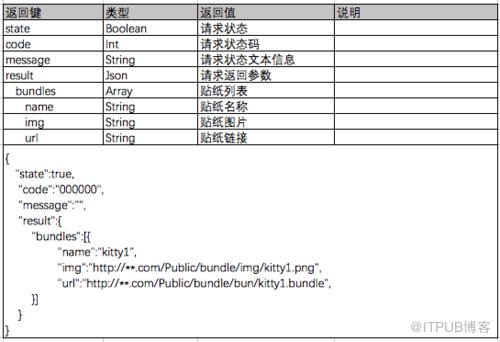

正常返回结果：

图片描述

设置访问http域名白名单：

图片描述

3.16.2  自定义MV资源

1、通过以下配置启用 MV, 并设置获取 MV 资源的 url

rdVESDK.editConfiguration.enableMV = true;

rdVESDK.editConfiguration.mvResourceURL   = @"http://**";

2、MV中的json配置参照文件：素材管理平台操作手册.doc

3、获取 MV 资源的 url 需满足以下定义:

请求格式:

图片描述

参数说明：

图片描述

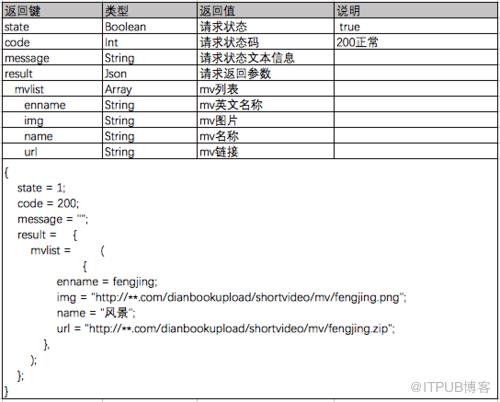

正常返回结果：

图片描述

3.16.3  自定义配乐资源

通过以下配置启用自定义配乐 ,并设置获取配乐资源的 url


rdVESDK.editConfiguration.enableMusic = true;

rdVESDK.editConfiguration.musicResourceURL= @"http:// **"; //若不设置 url 自动隐藏该功能

获取配乐资源的 url 需满足以下定义:

请求格式:

图片描述

参数说明：

图片描述

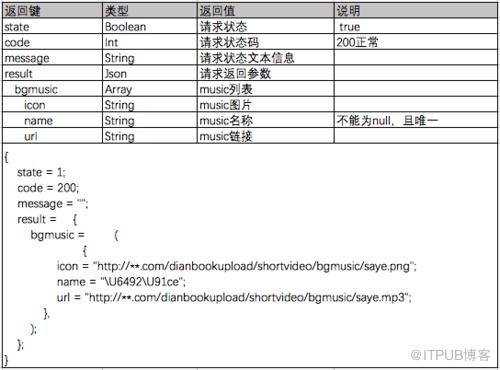

正常返回结果：

图片描述

3.16.4  自定义云音乐资源

通过以下配置启用自定义云音乐，并设置获取云音乐资源的 url


rdVESDK.editConfiguration.enableMusic = true;

rdVESDK.editConfiguration. soundMusicTypeResourceURL= @"http:// **";

rdVESDK.editConfiguration.cloudMusicResourceURL= @"http:// **";//若不设置 url 自动隐藏该功能

获取云音乐资源的 url 需满足以下定义:

请求格式:

图片描述

参数说明：

图片描述

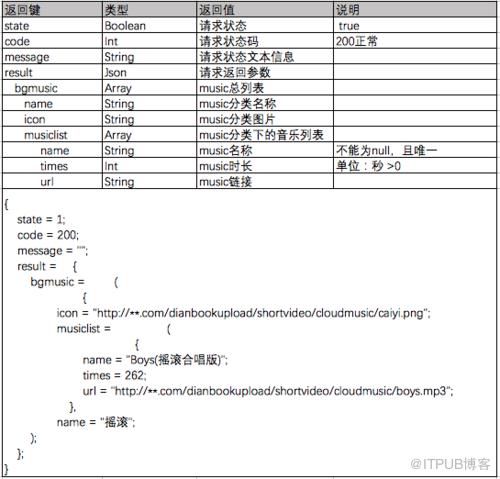

正常返回结果：

图片描述

3.16.5 自定义字幕、贴纸资源

1、通过以下配置启用自定义字幕、贴纸，并设置获取字幕、贴纸资源的 url


rdVESDK.editConfiguration. enableSubtitle = true;

rdVESDK.editConfiguration. subtitleResourceURL= @"http:// **";//若不设置 url ，则使用默认地址

rdVESDK.editConfiguration. enableSticker= true;

rdVESDK.editConfiguration. effectResourceURL= @"http:// **";//若不设置 url ，则使用默认地址

2、json配置参照文件：素材管理平台操作手册.doc

3.16.6 自定义字体资源

1、设置获取字体资源的 url


rdVESDK.editConfiguration. fontResourceURL= @"http:// **";//若不设置 url ，则使用默认地址

3.16.7 自定义滤镜资源

1、通过以下配置启用自定义滤镜，并设置获取滤镜的 url


rdVESDK.editConfiguration. enableFilter= true;

rdVESDK.editConfiguration. filterResourceURL= @"http:// **";//若不设置 url ，则使用默认地址

3.16.8 自定义转场资源

1、通过以下配置启用自定义转场，并设置获取转场资源的 url


rdVESDK.editConfiguration. enableTransition= true;

rdVESDK.editConfiguration. transitionURL= @"http:// **";//若不设置 url ，则使用默认地址

3.16.9 自定义特效

1、通过以下配置启用自定义特效，并设置获取特效资源的 url


rdVESDK.editConfiguration. enableEffectsVideo = true;

rdVESDK.editConfiguration. specialEffectResourceURL = @"http:// **";//若不设置 url ，则使用默认地址



来自 “ ITPUB博客 ” ，链接：https://blog.itpub.net/2551/viewspace-2824088/ ，如需转载，请注明出处，否则将追究法律责任。

0
0
上一篇： 深入分析Java Web-06-内存管理
下一篇： 实战：云开发·实现奶茶店小程序（二）
请登录后发表评论 登录
全部评论
uzhy

注册时间：2019-08-16

  • 博文量
    86
  • 访问量
    537

最新文章

支持我们 作者招募 用户协议 FAQ Contact Us

北京盛拓优讯信息技术有限公司. 版权所有  京ICP备16024965号-8 北京市公安局海淀分局网监中心备案编号：11010802021510 niuxiaotong@pcpop.com 17352615567 未成年人举报专区

广播电视节目制作经营许可证(京) 字第1234号 中国互联网协会会员

违法和不良信息举报电话:18101376593
