oracle数据库版本为 11.2.0.3
oracle ebs 版本为 r12.

一、安装前的准备

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

1：将uat环境的tar包传到培训环境（用vnc窗口传）

root@uat # cd uattmp_data/

root@uat # scp UAT.20121130.tar root@192.168.1.98:/peixun_data

2：在培训环境中解压tar包

root@peixun # df -h

root@peixun # tar -xvf UAT.20121130.tar

3：首先将解压出来的UAT文件夹改名为 PEIXUN

root@peixun # pwd

/peixun_data

root@peixun # ls

PEIXUN UAT.20121130.tar

root@peixun # mv UAT PEIXUN

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

4：以root身份登录，切换到orapx用户的过程中，报错

root@peixun # su - orapx

Oracle Corporation SunOS 5.10 Generic Patch January 2005

You have new mail.

-bash: /peixun_data/PEIXUN/db/tech_st/11.2.0/PEIXUN_peixun.env: No such file or directory

然后添加路径

-bash-3.2$ cd /peixun_data/PEIXUN/db/tech_st/11.2.0/appsutil

-bash-3.2$ ls

bin log perl UAT_uattmp.xml.bak

clone media scripts UAT_uat.xml

driver out sql UAT_uat.xml.bak

html outbound temp UAT_zone04.xml

install PEIXUN_peixun.xml template

java PEIXUN_peixun.xml.bak UAT_uattmp.xml

-bash-3.2$

-bash-3.2$ cd clone/

-bash-3.2$ ls

adlnkoh.sh context dbts jlib oui

bin data html jre ouicli.pl

-bash-3.2$ cd bin

-bash-3.2$

-bash-3.2$ ls

adcfgclone.pl adclone.pl CloneContext_1022180951.log

adchkutl.sh CloneContext_1022142426.log CloneContext_1203094607.log

adclonectx.pl CloneContext_1022142606.log

-bash-3.2$

-bash-3.2$ pwd

/peixun_data/PEIXUN/db/tech_st/11.2.0/appsutil/clone/bin

-bash-3.2$

设置搜索路径即可登录

-bash-3.2$ export PATH=/peixun_data/PEIXUN/db/tech_st/11.2.0/perl:$PATH

-bash-3.2$ export PERL5LIB=/peixun_data/PEIXUN/db/tech_st/11.2.0/perl/lib/5.10.0:/peixun_data/PEIXUN/db/tech_st/11.2.0/perl/lib/site_perl/5.10.0/

二、正式克隆

1：MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0用orapx用户克隆数据库

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

-bash-3.2$ cd /peixun_data/PEIXUN/db/tech_st/11.2.0/appsutil/clone/bin

-bash-3.2$ ls

adcfgclone.pl adclone.pl CloneContext_1022180951.log

adchkutl.sh CloneContext_1022142426.log CloneContext_1203094607.log

adclonectx.pl CloneContext_1022142606.log

-bash-3.2$

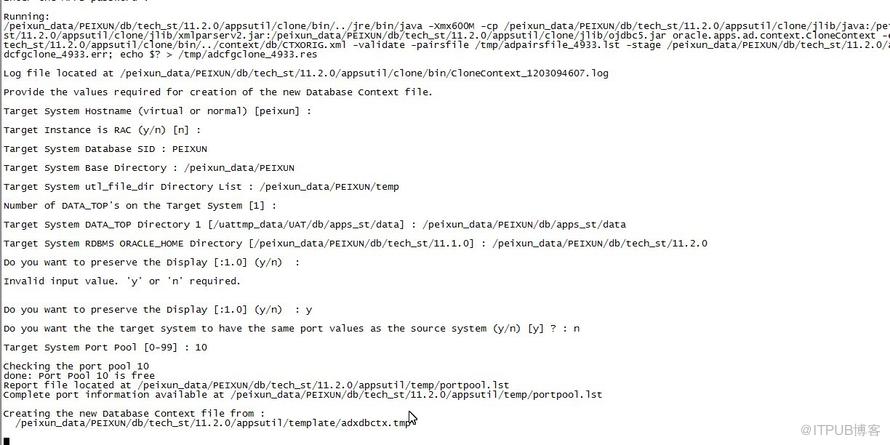

-bash-3.2$ perl adcfgclone.pl dbTier

Redwood Shores, California, USA

Oracle Applications Rapid Clone

Version 12.0.0

adcfgclone Version 120.31.12010000.8

Enter the APPS password :

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

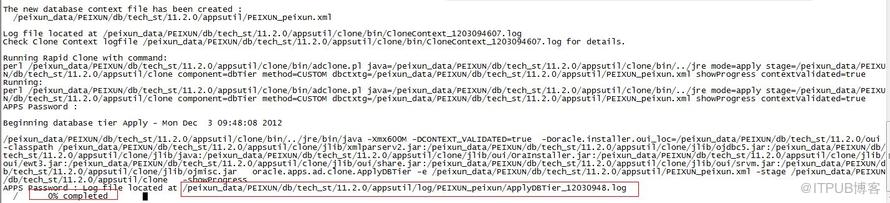

只要安装日志显示完全安装，即表示安装已经ok，完整的输出日志如下

2：MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0用applpx克隆应用

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

root@peixun # su - applpx

Oracle Corporation SunOS 5.10 Generic Patch January 2005

You have new mail.

-bash: /peixun_data/PEIXUN/apps/apps_st/appl/APPSPEIXUN_peixun.env: No such file or directory

-bash-3.2$ cd /peixun_data/PEIXUN/apps/apps_st/comn/clone/

-bash-3.2$ ls

appl context jre jre_BAK_1238541507821

appsts html jre_BAK_1227796676620 jre_BAK_1238586297462

bin jlib jre_BAK_1227797936181 oui

-bash-3.2$

-bash-3.2$ cd bin

-bash-3.2$

-bash-3.2$ ls

adaddnode.pl adclonectx.pl CloneContext_1022143922.log

adcfgclone.pl adclone.pl CloneContext_1022181928.log

adchkutl.sh CloneContext_1022143853.log CloneContext_1203100407.log

-bash-3.2$

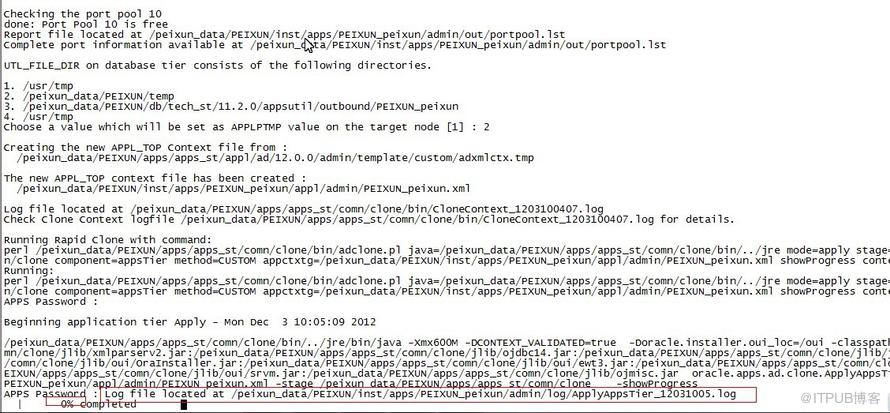

-bash-3.2$ perl adcfgclone.pl appsTier

Redwood Shores, California, USA

Oracle Applications Rapid Clone

Version 12.0.0

adcfgclone Version 120.31.12010000.8

Enter the APPS password :

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

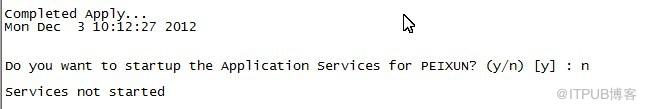

只要安装日志显示完全安装，即表示安装已经ok，完整的输出日志如下

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

然后再执行几个存储过程

root@peixun # su - applpx

Oracle Corporation SunOS 5.10 Generic Patch January 2005

You have new mail.

-bash-3.2$

-bash-3.2$ sqlplus apps/apps

SQL*Plus: Release 10.1.0.5.0 - Production on Mon Dec 3 15:11:32 2012

Connected to:

Oracle Database 11g Enterprise Edition Release 11.2.0.3.0 - 64bit Production

With the Partitioning, OLAP, Data Mining and Real Application Testing options

SQL> exec fnd_conc_clone.setup_clean;

SQL> commit;

Commit complete.

然后exit退出

三、修改参数

1：MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0orapx用户

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

root@peixun # su - orapx

Oracle Corporation SunOS 5.10 Generic Patch January 2005

You have new mail.

-bash-3.2$ cd $ORACLE_HOME/

-bash-3.2$ pwd

/peixun_data/PEIXUN/db/tech_st/11.2.0

-bash-3.2$ cd appsutil

-bash-3.2$ ls

bin log perl UAT_uattmp.xml.bak

clone media scripts UAT_uat.xml

driver out sql UAT_uat.xml.bak

html outbound temp UAT_zone04.xml

install PEIXUN_peixun.xml template

java PEIXUN_peixun.xml.bak UAT_uattmp.xml

-bash-3.2$

-bash-3.2$ cp PEIXUN_peixun.xml PEIXUN_peixun.xml.bak

-bash-3.2$

在该参数文件 PEIXUN_peixun.xml 中修改如下

这一行中，将所有的5.8.3更改为 5.10.0

/peixun_data/PEIXUN/db/tech_st/11.2.0/perl/lib/5.10.0:/peixun_data/PEIXUN/db/tech_st/11.2.0/perl/lib/site_perl/5.10.0:/peixun_d

ata/PEIXUN/db/tech_st/11.2.0/appsutil/perl

修改以后，保存退出，再更新配置

-bash-3.2$ pwd

/peixun_data/PEIXUN/db/tech_st/11.2.0/appsutil/scripts/PEIXUN_peixun

-bash-3.2$ ls

adautocfg.sh addbctl.sh adexecsql.pl adpreclone.pl adstrtdb.sql

adchknls.pl addlnctl.sh adlsnodes.sh adstopdb.sql

-bash-3.2$

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

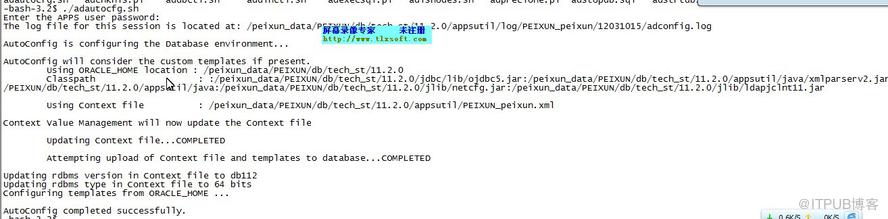

-bash-3.2$ ./adautocfg.sh

2：MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0applpx用户

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

root@peixun # su - applpx

Oracle Corporation SunOS 5.10 Generic Patch January 2005

You have new mail.

-bash-3.2$

-bash-3.2$ cd $ADMIN_SCRIPTS_HOME

-bash-3.2$ ls

adalnctl.sh adforms-c4wsctl.sh adopmnctl.sh ieo mwactlwrpr.sh

adapcctl.sh adformsctl.sh adpreclone.pl java.sh

adautocfg.sh adformsrvctl.sh adstpall.sh jtffmctl.sh

adcmctl.sh adoacorectl.sh adstrtal.sh msc

adexecsql.pl adoafmctl.sh gsmstart.sh mwactl.sh

-bash-3.2$

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

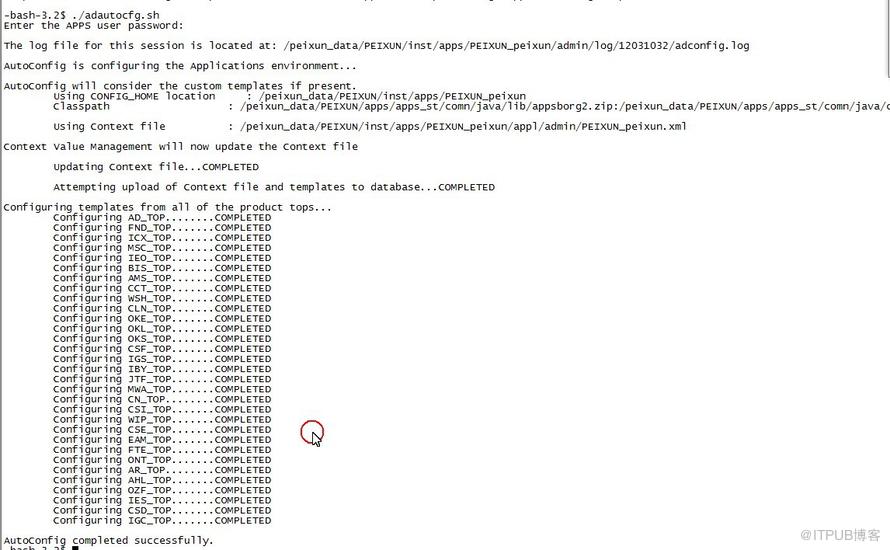

-bash-3.2$ ./adautocfg.sh

Enter the APPS user password:

3：再切换到orapx用户，关闭数据库，修改数据库初始化参数文件

root@peixun # su - orapx

Oracle Corporation SunOS 5.10 Generic Patch January 2005

bash-3.2$

bash-3.2$ ./stopdb.sh

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

bash-3.2$ cd $ORACLE_HOME/dbs

bash-3.2$ cp initPEIXUN.ora initPEIXUN.ora.bak

bash-3.2$ vi initPEIXUN.ora

此系统内存48g

参数内容修改如下：

sga_target=4G

pga_aggregate_target=4G

shared_pool_size = 1600M

shared_pool_reserved_size = 160M

processes = 500 # Max. no. of users x 2

sessions = 1000 # 2 X processes

在修改数据库初始化参数的过程中，使用了projects -l ，该命令表示什么意思？

还查看了 /etc/system的设置

四、更改配置后的验证

1：MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0以orapx用户启动db

-bash-3.2$ more startdb.sh

/peixun_data/PEIXUN/db/tech_st/11.2.0/appsutil/scripts/PEIXUN_peixun/addlnctl.sh start PEIXUN

/peixun_data/PEIXUN/db/tech_st/11.2.0/appsutil/scripts/PEIXUN_peixun/addbctl.sh start

-bash-3.2$ cd

-bash-3.2$ ./startdb.sh

2：MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0以applpx用户启动相关应用，并做相关设置

-bash-3.2$ ls

adalnctl.sh adcmctl.sh adformsctl.sh adoafmctl.sh adstpall.sh ieo msc

adapcctl.sh adexecsql.pl adformsrvctl.sh adopmnctl.sh adstrtal.sh java.sh mwactl.sh

adautocfg.sh adforms-c4wsctl.sh adoacorectl.sh adpreclone.pl gsmstart.sh jtffmctl.sh mwactlwrpr.sh

-bash-3.2$

-bash-3.2$ ./adopmnctl.sh starall

bash-3.2$ ./adalnctl.sh startall

该脚本启动以后，在ie中输入网址

http://peixun.yahgee.com:8010/ ，如果登录页面正常显示，则ok

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

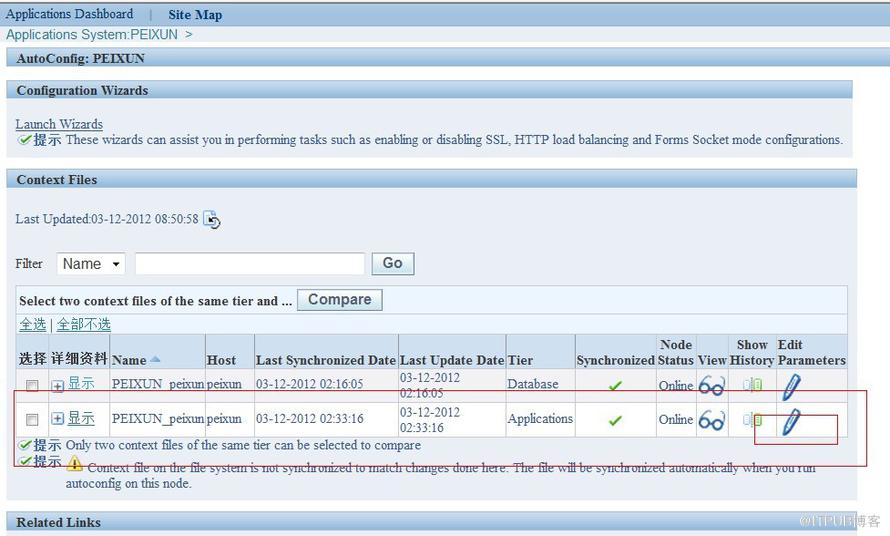

然后以sysadmin用户身份登录系统，选择“系统管理员”---------"Oracle Applications 管理器"------------“oracle workflow”----“site map”---------“auto config”

弹出以下界面

MicrosoftInternetExplorer402DocumentNotSpecified7.8Normal0

然后在弹出的页面中选择“system” 然后找到如下栏

（1）oa_forms_server（FORMS OC4J Instance Start Parameters）

该行由原来的

“-server -verbose:gc -Xmx256M -Xms64M -XX:MaxPermSize=128M -XX:NewRatio=2 -XX+PrintGCTimeStamps -XX:+UseTLAB -XX:+UseParallelGC -XX:ParallelGCThreads=2”

改为

“-server -verbose:gc -Xmx1024M -Xms256M -XX:MaxPermSize=128M -XX:NewRatio=2 -XX:+PrintGCTimeStamps -XX:+UseTLAB -XX:+UseParallelGC -XX:ParallelGCThreads=4 ”

（2）oacore_server （ OACORE OC4J Instance Start Parameters）

该行由原来的

“server -verbose:gc -Xmx512M -Xms128M -XX:MaxPermSize=160M -XX:NewRatio=2 -XX:+PrintGCTimeStamps -XX:+UseTLAB -XX:+UseParallelGC -XX:ParallelGCThreads=2”

改为

"server -verbose:gc -Xmx1024M -Xms256M -XX:MaxPermSize=160M -XX:NewRatio=2 -XX:+PrintGCTimeStamps -XX:+UseTLAB -XX:+UseParallelGC -XX:ParallelGCThreads=4 "

(3) oafm_server ( OAFM OC4J Instance Start Parameters)

该行由原来的

“-server -verbose:gc -Xmx256M -Xms64M -XX:MaxPermSize=128M -XX:NewRatio=2 -XX:+PrintGCTimeStamps -XX:+UseTLAB -XX:+UseParallelGC -XX:ParallelGCThreads=2 ”

改为

“-server -verbose:gc -Xmx1024M -Xms256M -XX:MaxPermSize=256M -XX:NewRatio=2 -XX:+PrintGCTimeStamps -XX:+UseTLAB -XX:+UseParallelGC -XX:ParallelGCThreads=4 ”

然后点击左下角的“environments”，找到如下栏

（1）oa_environment:adovars （ADJREOPTS）

由原来的

“-ms128m -mx512m”

改为

“-ms256m -mx1024m”

（2）oa_environment:adovars （AFJSMARG）

由原来的

“-server -Xmx512m -XX:NewRatio=2 -XX:+UseSerialGC -Doracle.apps.fnd.common.Pool.leak.mode=stderr:off -verbose:gc”

改为

“-server -Xmx1024m -XX:NewRatio=2 -XX:+UseSerialGC -Doracle.apps.fnd.common.Pool.leak.mode=stderr:off -verbose:gc”

最后点 save保存
