新建项目并导入依赖

    4.0.0

        org.springframework.boot
        spring-boot-starter-parent
        2.1.4.RELEASE
         <!-- lookup parent from repository -->

    com.itmuch
    gateway
    0.0.1-SNAPSHOT
    gateway
    Demo project for Spring Boot

        1.8
        Greenwich.SR1



            org.springframework.cloud
            spring-cloud-starter-gateway



            org.springframework.boot
            spring-boot-starter-test
            test


            org.springframework.cloud
            spring-cloud-starter-alibaba-nacos-discovery


            org.springframework.boot
            spring-boot-starter-actuator





                org.springframework.cloud
                spring-cloud-dependencies
                ${spring-cloud.version}
                pom
                import


                org.springframework.cloud
                spring-cloud-alibaba-dependencies
                0.9.0.RELEASE
                pom
                import







                org.springframework.boot
                spring-boot-maven-plugin




写配置

server:
  port: 8040
spring:
  application:
    name: gateway
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848 #打到nacos上
    gateway:
      discovery:
        locator:
          # 让gateway通过服务发现组件找到其他的微服务
          enabled: true
management:
  endpoints:
    web:
      exposure:
        include: '*' # 暴露所有的端点
  endpoint:
    health:
      show-details: always # 健康检查

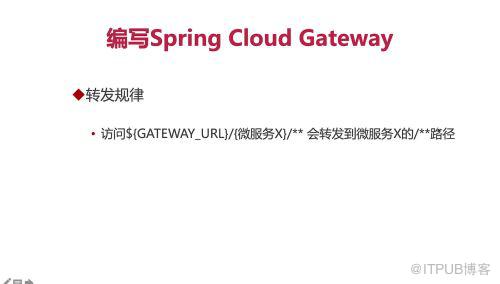

使用

1. http://localhost:8040/content-center/share/1

2. http://localhost:8002/users/1

3. http://localhost:8010/share/1

简单理解

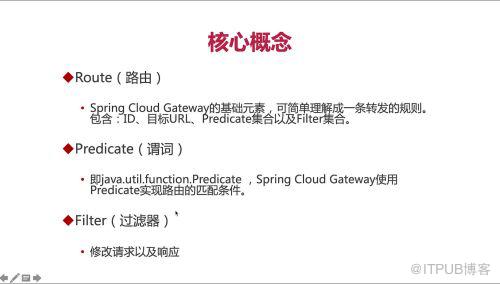

Gateway核心概念
路由：转发规则
谓词：转发规则的条件
过滤器：业务逻辑

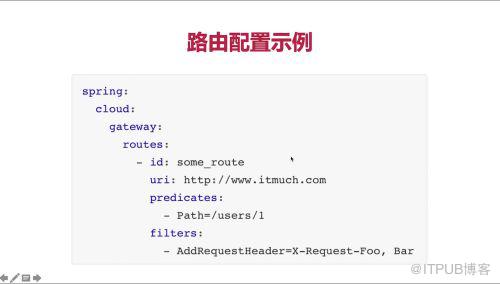

当用户访问/users/1时会进入到ID为sime_route这个理由里面，经过filters的AddRequestHeader这个过滤器处理后转发到url上。

不过我们现在直接用以下代码在配置文件中实现反向代理进行转发

         gateway:
      discovery:
        locator:
          # 让gateway通过服务发现组件找到其他的微服务
          enabled: true

内置路由谓词工厂详解地址：http://www.imocc.com/article/290804
