简单实现直播带货app源码的页面布局

IT综合 作者:云豹科技阿星 时间:2021-09-25 17:10:13 0 删除 编辑

页面布局是直播带货app源码非常重要的一部分,那么直播带货app源码可以怎样实现呢?

1.fullscreen Activity

布局:

<FrameLayout xmlns:android="!-- The primary full-screen view. This can be replaced with whatever view         is needed to present your content, e.g. VideoView, SurfaceView,         TextureView, etc. -->    <TextView        android:id="@+id/fullscreen_content"        android:layout_width="match_parent"        android:layout_height="match_parent"        android:gravity="center"        android:keepScreenOn="true"        android:text="@string/dummy_content"        android:textColor="#33b5e5"        android:textSize="50sp"        android:textStyle="bold" />    <!-- This FrameLayout insets its children based on system windows using         android:fitsSystemWindows. -->    <FrameLayout        android:layout_width="match_parent"        android:layout_height="match_parent"        android:fitsSystemWindows="true">
        <LinearLayout            android:id="@+id/fullscreen_content_controls"            style="?metaButtonBarStyle"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:layout_gravity="bottom|center_horizontal"            android:background="@color/black_overlay"            android:orientation="horizontal"            tools:ignore="UselessParent">
            <Button                android:id="@+id/dummy_button"                style="?metaButtonBarButtonStyle"                android:layout_width="0dp"                android:layout_height="wrap_content"                android:layout_weight="1"                android:text="@string/dummy_button" />
        </LinearLayout>
    </FrameLayout>
</FrameLayout>

显示效果:

2.SlidingMenu Activity

布局:

<?xml version="1.0" encoding="utf-8"?>
<android.support.v4.widget.DrawerLayout xmlns:android="
    <include        layout="@layout/app_bar_drawer"        android:layout_width="match_parent"        android:layout_height="match_parent" />
    <android.support.design.widget.NavigationView        android:id="@+id/nav_view"        android:layout_width="wrap_content"        android:layout_height="match_parent"        android:layout_gravity="start"        android:fitsSystemWindows="true"        app:headerLayout="@layout/nav_header_drawer"        app:menu="@menu/activity_drawer_drawer" />
</android.support.v4.widget.DrawerLayout>

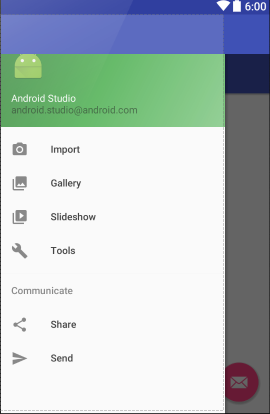

效果:

代码:

package com.example.administrator.jreduch05.adapter;import android.os.Bundle;import android.support.design.widget.FloatingActionButton;import android.support.design.widget.NavigationView;import android.support.design.widget.Snackbar;import android.support.v4.view.GravityCompat;import android.support.v4.widget.DrawerLayout;import android.support.v7.app.ActionBarDrawerToggle;import android.support.v7.app.AppCompatActivity;import android.support.v7.widget.Toolbar;import android.view.Menu;import android.view.MenuItem;import android.view.View;import com.example.administrator.jreduch05.R;public class DrawerActivity extends AppCompatActivity        implements NavigationView.OnNavigationItemSelectedListener {
    @Override    protected void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_drawer);
        Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);
        setSupportActionBar(toolbar);
        FloatingActionButton fab = (FloatingActionButton) findViewById(R.id.fab);
        fab.setOnClickListener(new View.OnClickListener() {
            @Override            public void onClick(View view) {
                Snackbar.make(view, "Replace with your own action", Snackbar.LENGTH_LONG)
                        .setAction("Action", null).show();
            }
        });
        DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
        ActionBarDrawerToggle toggle = new ActionBarDrawerToggle(                this, drawer, toolbar, R.string.navigation_drawer_open, R.string.navigation_drawer_close);
        drawer.setDrawerListener(toggle);
        toggle.syncState();
        NavigationView navigationView = (NavigationView) findViewById(R.id.nav_view);
        navigationView.setNavigationItemSelectedListener(this);
    }
    @Override    public void onBackPressed() {
        DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);        if (drawer.isDrawerOpen(GravityCompat.START)) {
            drawer.closeDrawer(GravityCompat.START);
        } else {            super.onBackPressed();
        }
    }
    @Override    public boolean onCreateOptionsMenu(Menu menu) {        // Inflate the menu; this adds items to the action bar if it is present.        getMenuInflater().inflate(R.menu.drawer, menu);        return true;
    }
    @Override    public boolean onOptionsItemSelected(MenuItem item) {        // Handle action bar item clicks here. The action bar will        // automatically handle clicks on the Home/Up button, so long        // as you specify a parent activity in AndroidManifest.xml.        int id = item.getItemId();        //noinspection SimplifiableIfStatement        if (id == R.id.action_settings) {            return true;
        }        return super.onOptionsItemSelected(item);
    }
    @SuppressWarnings("StatementWithEmptyBody")
    @Override    public boolean onNavigationItemSelected(MenuItem item) {        // Handle navigation view item clicks here.        int id = item.getItemId();        if (id == R.id.nav_camera) {            // Handle the camera action        } else if (id == R.id.nav_gallery) {
        } else if (id == R.id.nav_slideshow) {
        } else if (id == R.id.nav_manage) {
        } else if (id == R.id.nav_share) {
        } else if (id == R.id.nav_send) {
        }
        DrawerLayout drawer = (DrawerLayout) findViewById(R.id.drawer_layout);
        drawer.closeDrawer(GravityCompat.START);        return true;
    }
}

3.Login Activity

布局:(将英文改成汉字)

<LinearLayout xmlns:android="!-- Login progress -->    <ProgressBar        android:id="@+id/login_progress"        style="?android:attr/progressBarStyleLarge"        android:layout_width="wrap_content"        android:layout_height="wrap_content"        android:layout_marginBottom="8dp"        android:visibility="gone" />
    <ScrollView        android:id="@+id/login_form"        android:layout_width="match_parent"        android:layout_height="match_parent">
        <LinearLayout            android:id="@+id/email_login_form"            android:layout_width="match_parent"            android:layout_height="wrap_content"            android:orientation="vertical">
            <android.support.design.widget.TextInputLayout                android:layout_width="match_parent"                android:layout_height="wrap_content">
                <AutoCompleteTextView                    android:id="@+id/user"                    android:layout_width="match_parent"                    android:layout_height="wrap_content"                    android:hint="用户名"                    android:inputType="textEmailAddress"                    android:maxLines="1"                    android:singleLine="true" />
            </android.support.design.widget.TextInputLayout>
            <android.support.design.widget.TextInputLayout                android:layout_width="match_parent"                android:layout_height="wrap_content">
                <EditText                    android:id="@+id/pwd"                    android:layout_width="match_parent"                    android:layout_height="wrap_content"                    android:hint="密码"                    android:imeActionId="@+id/login"                    android:imeActionLabel="@string/action_sign_in_short"                    android:imeOptions="actionUnspecified"                    android:inputType="textPassword"                    android:maxLines="1"                    android:singleLine="true" />
            </android.support.design.widget.TextInputLayout>
            <Button                android:id="@+id/bt1"                style="?android:textAppearanceSmall"                android:layout_width="match_parent"                android:layout_height="wrap_content"                android:layout_marginTop="16dp"                android:text="登录"                android:textStyle="bold" />
        </LinearLayout>
    </ScrollView>
</LinearLayout>

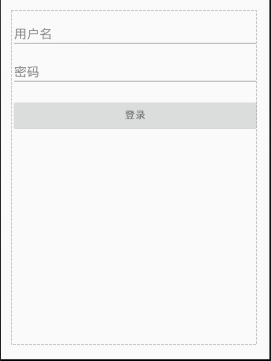

效果:

代码:(如果密码和用户名为空,则提示)

package com.example.administrator.jreduch05;import android.support.v7.app.AppCompatActivity;import android.os.Bundle;import android.text.TextUtils;import android.view.View;import android.widget.Button;import android.widget.EditText;public class MyLoginActivity extends AppCompatActivity {    private Button bt1;    private EditText user;    private EditText pwd;
    @Override    protected void onCreate(Bundle savedInstanceState) {        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_my_login);        bt1=(Button) findViewById(R.id.bt1);        user=(EditText) findViewById(R.id.user);        pwd=(EditText) findViewById(R.id.pwd);        bt1.setOnClickListener(new View.OnClickListener() {
            @Override            public void onClick(View v) {                if(TextUtils.isEmpty(user.getText().toString())){                    user.setError("请输入正确用户名");
                }else if(TextUtils.isEmpty(pwd.getText().toString())){                    pwd.setError("请输入正确密码");
                }
            }
        });
    }
}

这样我们就实现了一个简单的直播带货app源码页面布局。
