emcli command-line interface可以执行几乎所有EMCC控制台界面的操作。之前工作中，在目标端服务器部署agent时，通过控制台图形界面进行配置目标端自动搜索时，偶尔会遇见无法搜索发现某些目标类型的情况。例如目标服务器上面存在oracle instance以及listener，配置自动搜索后无法发现此类型的目标，并且排查失败原因比较耗时。此时就需要通过emcli命令行接口登录OMS去执行添加操作。这里介绍的是命令行模式下的emcli的一些操作，此外还有交互脚本模式这里不做介绍。
1. 环境要求
■ Enterprise Manager 12c Cloud Control framework
■ Sun Java JRE version 1.6.0_43 or greater
■ Workstation running Solaris, Linux, HPUX, Tru64, AIX, or Windows with NTFS
2.下载emcli，下载地址如下
3.安装jdk1.8,设置JAVA_HOME
[oracle@rptdb ~]$ tar -xvf jdk-8u231-linux-x64.tar.gz [oracle@rptdb bin]$ /home/oracle/jdk1.8.0_231/bin/java -version java version "1.8.0_231" Java(TM) SE Runtime Environment (build 1.8.0_231-b11) Java HotSpot(TM) 64-Bit Server VM (build 25.231-b11, mixed mode) [oracle@rptdb ~]$ export JAVA_HOME=/home/oracle/jdk1.8.0_231 [oracle@rptdb ~]$ env | grep JAVA_HOME JAVA_HOME=/home/oracle/jdk1.8.0_231
4.创建安装目录，执行安装
[oracle@rptdb ~]$ mkdir emcli [oracle@rptdb ~]$ $JAVA_HOME/bin/java -jar emclikit.jar -install_dir=/home/oracle/emcli Oracle Enterprise Manager 12c Release 5. Copyright (c) 2012, 2015 Oracle Corporation. All rights reserved. EM CLI client-side install completed successfully. Execute "emcli help setup" from the EM CLI home (the directory where you have installed EM CLI) for further instructions.
5.使用emcli，登录oms
在非oms服务器本地上使用emcli登录oms，需要先进行setup配置。
--查看相关语法：
./emcli help setup
./emcli help sync
--执行初始化配置:
[oracle@rptdb emcli]$ ./emcli setup -url= Oracle Enterprise Manager 12c Release 5. Copyright (c) 1996, 2015 Oracle Corporation and/or its affiliates. All rights reserved. Enter password Emcli setup successful
注: -autologin参数的作用是，如果登录超时，emcli会自动进行登录。默认时 noautologin模式，emcli超过45min没用执行操作，会超时，需要重新登录。
--执行同步操作:
[oracle@rptdb emcli]$./emcli sync Synchronized successfully [oracle@rptdb emcli]$
--查看状态:
[oracle@rptdb emcli]$ ./emcli status Oracle Enterprise Manager 12c Release 5 EM CLI. Copyright (c) 1996, 2015 Oracle Corporation and/or its affiliates. All rights reserved. Instance Home : /home/oracle/emcli/.emcli Verb Jars Home : /home/oracle/emcli/.emcli Status : Configured EM CLI Home : /home/oracle/emcli/. EM CLI Version : 12.1.0.5.0 Java Home : /home/oracle/jdk1.8.0_231/jre Java Version : 1.8.0_231 Log file : /home/oracle/emcli/.emcli/.emcli.log EM URL : EM user : sysman Auto login : true Trust all certificates : true
6.添加，查看，删除主机上的目标
先在目标端主机上部署agent，这里不做介绍。
6.1.add_target语法如下:
emcli add_target
-name="name"
-type="type"
-host="hostname"
[-properties="pname1:pval1;pname2:pval2;..."]
[-separator=properties="sep_string"]
[-subseparator=properties="subsep_string"]
[-credentials="userpropname:username;pwdpropname:password;..."]
[-input_file="parameter_tag:file_path"]
[-display_name="display_name"]
[-groups="groupname1:grouptype1;groupname2:grouptype2;..."]
[-timezone_region="gmt_offset"]
[-monitor_mode="monitor_mode"]
[-instances="rac_database_instance_target_name1:target_type1;..."]
[-force=true|false]
[-timeout="time_in_seconds"]
--添加l类型为oracle数据库目标
[oracle@rptdb emcli]$ ./emcli add_target -name="ekpdev" -type="oracle_database" -host="ekptest" -prop="SID:ekpdev;MachineName:ekptest" -prop="OracleHome:/u01/app/oracle/product/11.2.0/db_1;Port:1521" -credentials="UserName:dbsnmp;password:oracle;Role:normal" Target "ekpdev:oracle_database" added successfully
--添加类型为listener的目标的方法:
[oracle@rptdb emcli]$ ./emcli add_target -name="LISTENER_ekpdev" -type="oracle_listener" -host="ekptest" -prop="Machine:ekptest;OracleHome:/u01/app/oracle/product/11.2.0/db_1;ListenerOraDir:/u01/app/oracle/product/11.2.0/db_1/network/admin;LsnrName:LISTENER;Port:1521" Target "LISTENER_ekpdev:oracle_listener" added successfully
6.2. 获取目标状态信息
语法如下:
emcli get_targets
[-targets="[name1:]type1;[name2:]type2;..."]
[-alerts]
[-noheader]
[-script | -format=
[name:<pretty|script|csv>];
[column_separator:"column_sep_string"];
[row_separator:"row_sep_string"];
]
[-limit_rows="maximum_targets_to_be_retrieved"]
[-config_search="configuration_search_UI_name"]
[-unmanaged]
[-properties]
[-separator_properties="properties_sep_string"]
[-subseparator_properties="properties_subsep_string"]
[oracle@rptdb emcli]$ ./emcli get_targets -targets="ekpdev:oracle_database;" Status Status Target Type Target Name ID 1 Up oracle_database ekpdev [oracle@rptdb emcli]$ ./emcli get_targets -targets="LISTENER_ekpdev:oracle_listener;" Status Status Target Type Target Name ID 1 Up oracle_listener LISTENER_ekpdev

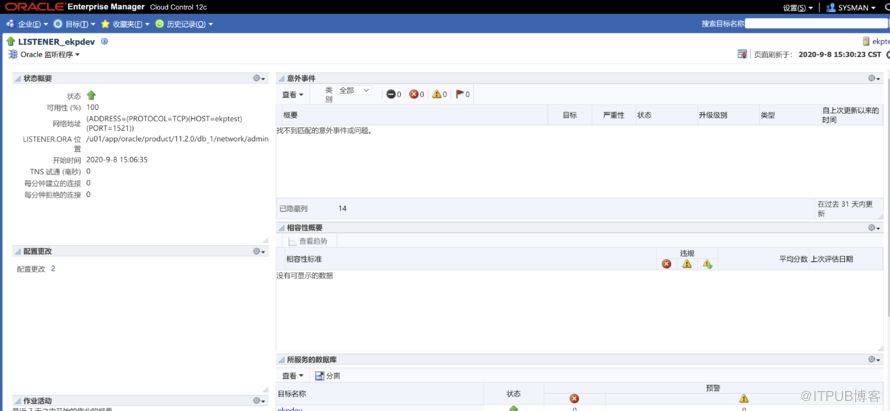

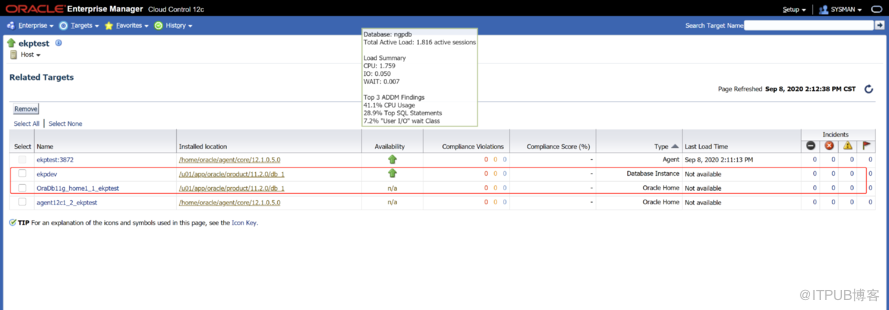

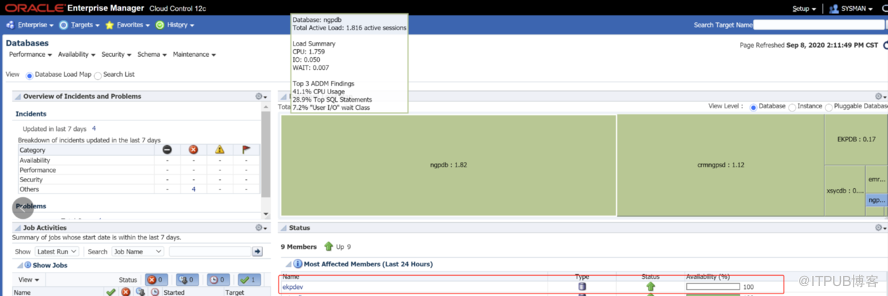

登录emcc控制台，可以看见目标添加成功:
6.3删除目标
语法如下:
emcli delete_target
-name=<name>
-type=<type>
[-delete_monitored_targets]
[-async]
[-delete_members]
[oracle@rptdb emcli]$ ./emcli delete_target –type = "oracle_database" –name="ekpdev" Target " ekpdev:oracle_database" deleted successfully [oracle@rptdb emcli]$ ./emcli delete_target -name="LISTENER_ekpdev" -type="oracle_listener" Target "LISTENER_ekpdev:oracle_listener" deleted successfully
6.7 转移目标到新的target
当一个目标需要迁移到别的主机上时，常规的操作是先删除当前的目标，然后在新的目标端添加该目标。或者当前目标主机上在别的路径新部署了一个agent，需要删除老的agent的安装目录二进制文件，需要删除后重新添加目标。这样就会丢失该目标历史的相关
度量
信息。此时可以使用relocate targets，保证不丢失该目标历史的度量信息。
语法如下:
emcli relocate_targets
-src_agent=<source_agent_target_name>
-dest_agent=<dest_agent_target_name>
-target_name=<name_of_target_to_be_relocated>
-target_type=<type_of_target_to_be_relocated>
-copy_from_src
-changed_param=<propName>:<propValue>
-input_file:dupTargets=<targets_contents>
-input_file:moveTargets="complete path to file containing targets with
overridden property values"
-copy_from_src [-changed_param=<propName>:<propValue>]*
[-ignoreRelatedTargets]
[-noHostColumnUpdate]
[-ignoreTimeSkew=yes]
[-changed_param=MachineName:mmmm ]
[-force=yes]
例如，我需要把 crmmysql01主机上 一个mysql迁移到一台新的服务器上，并进行监控。新的服务器 prdmysql01 安装好agent，mysql迁移完成后,就可以执行下面命令进行relocate target:
emcli relocate_targets -src_agent="crmmysql01:3872" -dest_agent=" prdmysql01 :3872" -target_name="crmmysql01" -target_type="mysql" -copy_from_src
7.使用emcli管理agent
可以通过emcli远程管理，启停所有目标端服务器上的agent
7.1列出类型为agent的目标:
[oracle@rptdb emcli]$ ./emcli get_targets -targets="oracle_emd" Status Status Target Type Target Name ID 1 Up oracle_emd crmmysql03:3872 1 Up oracle_emd ekptest:3872 1 Up oracle_emd EKPDB01:3872 1 Up oracle_emd zysf:3872 1 Up oracle_emd oms.oracle.com:3872 1 Up oracle_emd ngpdb02:3872 1 Up oracle_emd ngpdb01:3872 1 Up oracle_emd crmmysql02:3872 1 Up oracle_emd ngppdg:3872 1 Up oracle_emd rptdb:3872 1 Up oracle_emd crmmysql01:3872 1 Up oracle_emd crmngpstd:3872
7.2关闭agent
[oracle@rptdb emcli]$ ./emcli stop_agent -agent=ekptest:3872 -host_username=oracle Host User password: The Shut Down operation is in progress for the Agent: ekptest:3872 The Agent "ekptest:3872" has been stopped successfully. --------------------- Operation Output --------------------- Oracle Enterprise Manager Cloud Control 12c Release 5 Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Stopping agent ..... stopped.
7.3启动agent
[oracle@rptdb emcli]$ ./emcli start_agent -agent=ekptest:3872 -host_username=oracle Host User password: The Start Up operation is in progress for the Agent: ekptest:3872 The Agent "ekptest:3872" has been started successfully. --------------------- Operation Output --------------------- Oracle Enterprise Manager Cloud Control 12c Release 5 Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Starting agent ................ started.
--启动后查看agent状态
[oracle@rptdb emcli]$ ./emcli get_targets -targets="ekptest:3872:oracle_emd" Status Status Target Type Target Name ID 1 Up oracle_emd ekptest:3872
7.4重启agent
[oracle@rptdb emcli]$ ./emcli restart_agent -agent=ekptest:3872 -host_username=oracle Host User password: The Restart operation is in progress for the Agent: ekptest:3872 The Agent "ekptest:3872" has been restarted successfully. --------------------- Operation Output --------------------- Oracle Enterprise Manager Cloud Control 12c Release 5 Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Stopping agent ..... stopped.Oracle Enterprise Manager Cloud Control 12c Release 5 Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Starting agent ................ started.
7.5查看agent的配置信息
[oracle@rptdb emcli]$ ./emcli get_agent_properties -agent_name=ekptest:3872 Name Value agentVersion 12.1.0.5.0 agentTZRegion Asia/Shanghai emdRoot /home/oracle/agent/core/12.1.0.5.0 agentStateDir /home/oracle/agent/agent_inst perlBin /home/oracle/agent/core/12.1.0.5.0/perl/bin scriptsDir /home/oracle/agent/core/12.1.0.5.0/sysman/admin/sc ripts EMD_URL localListeningHost localListeningPort REPOSITORY_URL externalProxyPort EMAGENT_PERL_TRACE_LEVEL INFO UploadInterval 15 Total Properties : 13
7.6 删除agent
--停止agent
[oracle@rptdb emcli]$ ./emcli stop_agent -agent=crmmysql01:3872 -host_username=crmuser Host User password: The Shut Down operation is in progress for the Agent: crmmysql01:3872 The Agent "crmmysql01:3872" has been stopped successfully. --------------------- Operation Output --------------------- Oracle Enterprise Manager Cloud Control 12c Release 5 Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Stopping agent ..... stopped. [oracle@rptdb emcli]$ ./emcli stop_agent -agent=crmmysql02:3872 -host_username=crmuser Host User password: The Shut Down operation is in progress for the Agent: crmmysql02:3872 The Agent "crmmysql02:3872" has been stopped successfully. --------------------- Operation Output --------------------- Oracle Enterprise Manager Cloud Control 12c Release 5 Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Stopping agent ..... stopped. [oracle@rptdb emcli]$ ./emcli stop_agent -agent=crmmysql03:3872 -host_username=crmuser Host User password: The Shut Down operation is in progress for the Agent: crmmysql03:3872 The Agent "crmmysql03:3872" has been stopped successfully. --------------------- Operation Output --------------------- Oracle Enterprise Manager Cloud Control 12c Release 5 Copyright (c) 1996, 2015 Oracle Corporation. All rights reserved.Stopping agent ..... stopped.
--删除主机上agent和监控的target
[oracle@rptdb emcli]$ ./emcli delete_target -type="oracle_emd" -name="crmmysql01:3872" -delete_monitored_targets -async; Target "crmmysql01:3872:oracle_emd" deleted successfully [oracle@rptdb emcli]$ ./emcli delete_target -type="oracle_emd" -name="crmmysql02:3872" -delete_monitored_targets -async; Target "crmmysql02:3872:oracle_emd" deleted successfully [oracle@rptdb emcli]$ ./emcli delete_target -type="oracle_emd" -name="crmmysql03:3872" -delete_monitored_targets -async; Target "crmmysql03:3872:oracle_emd" deleted successfully
总结:emcli可以实现几乎EMCC控制台图形界面的所有操作，这里只列举一些简单的常用操作命令。具体可以执行./emcli help查看相关命令并结合官方文档去查看对应的操作。
