技术人生系列 · 我和数据中心的故事——第一期

Oracle 作者:记录每一次错误 时间:2018-12-03 11:00:36 0 删除 编辑

小y这个名字,是笔者临时想的一个笔名,其实没有什么特殊的含义,就暂且用他来代表我们这些为各个数据中心奉献自己青春的一群默默无闻的IT人吧!


小y今天要和大家分享的是一个疑难杂症的分析过程。如果大家有耐心读完这个案例,一定会或多或少有些收获,也就没浪费小y的一片苦心。


具体来说是一个应用间歇性局部挂起案例的分析过程,报告中将对 Oracle 数据库稳定运行的共性风险和隐患作出提醒。


1
问题描述

据客户反映,应用会间歇性出现异常,包括 insert 单条记录在内的操作长时间无法完成,按照客户的说法,数据库内可能有“死锁”现象,希望能够找到问题发生的根因,提出解决方案,以避免问题再次发生。

2015 12 23 日,问题再次发生,客户再次联系到小 y, y 通过远程方式进行了信息收集和故障诊断,最终定位了问题的根本原因。

环境介绍:

操作系统   HPUX IA64 B.11.31

数据库   ORACLE 10.2.0.5, 单实例


2
分析过程

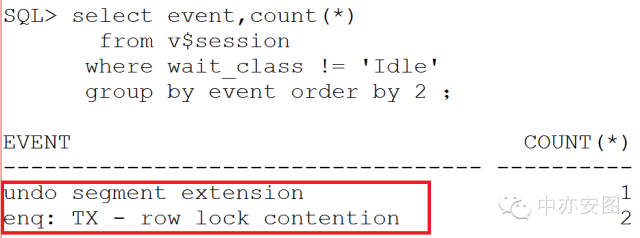

> > >   2.1 异常时刻数据库出现异常等待



可以看到:


2 个会话在等待行锁(拿不到事务锁,需要一直等待), 另外有一个会话在等待“ undo segment extension ”。


> > > >   2.2 梳理异常等待之间的关系

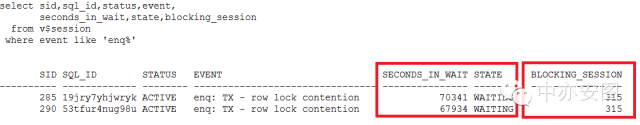

1 )分析行锁等待的阻塞者




可以看到:


SID 285/290的两个会话都是被SID=315的会话阻塞了,他们在等待行锁,时间已经超过60000秒。

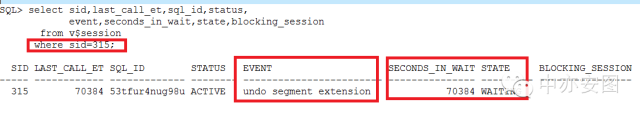

2 )查看阻塞者 SID=315 在做什么




可以看到:


SID=315的会话阻塞了其他两个会话, 他本身也处于一个资源的等待上,在等待“undo segment extension”,已经等了70384秒了!该等待事件没有阻塞者。

3)SID=315在执行的SQL语句

INSERT INTO TABLE_NAME(COL1,COL2,COL3,COL4,COL5,COL6,COL7)VALUES(:1,:2,:3,:4,:5,:6,:7)


> > > >   2.3 什么是 “undo segment extension”等待事件

“undo segment extension”即等待回滚段扩展完成。当执行增删改等操作时,数据库需要回滚段来存储前镜像,当回滚段空间不足时,则需要扩展。


具体来说, undo segment 的扩展或者回收( extend / shrink )都是前台进程通过通知 SMON 后台进程来完成的。

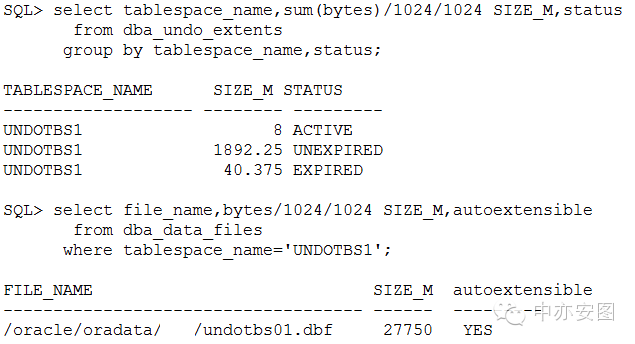

发出下列命令查看 undo 的使用情况, UNDO 表有空有 1 个文件 27750M ,其中目前活动的值有 8M ,未过 undo retention 1892M ,过了 undo retention 的有 40M 未发现异常。




> > > >   2.4 收集数据库 hanganalyze systemstate 信息


发出下列命令异常时候的 hanganalyze systemstate 信息

SQL> oradebug setmypid

Statement processed.

SQL> oradebug hanganalyze 3

Hang Analysis in /oracle/admin/xxdb/udump/xxdb_ora_14136.trc

SQL>

SQL> oradebug dump systemstate 266

Statement processed.

SQL> oradebug tracefile_name

/oracle/admin/xxdb/udump/xxdb_ora_14136.trc


> > > >   2.5 问题在收集信息后自动解决

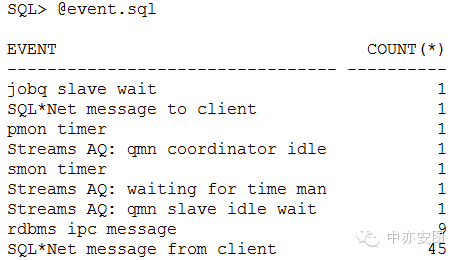

在发出上述命令收集相关信息后,再次检查,发现数据库异常等待居然已经自动解决掉了。

从原理和经验分析,这是因为oradebug 在收集systemstate dump时,其中会调用dbx等OS命令去做进程堆栈的打印,此时会将进行wakeup(唤醒)。

如下所示

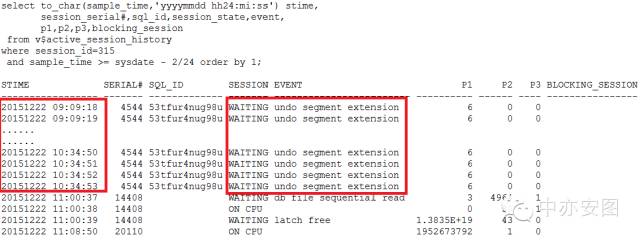

> > > >   2.6 获得SID:315会话的活动会话历史



可以看到,确实一直在等待 undo segment extension


> > > >   2.7 分析systemstate dump定位问题根因


其中 SID=315 的会话在等待 ”undo segment extension”, 该会话对应 PROCESS 19 SSD 当中的信息如下 :

PROCESS 19:

----------------------------------------

SO: c00000003949b948, type: 2, owner: 0000000000000000, flag: INIT/-/-/0x00

(process) Oracle pid=19, calls cur/top: c0000000397209b0/c0000000397209b0, flag: (0) -

int error: 0, call error: 0, sess error: 0, txn error 0

(post info) last post received: 0 0 121

last post received-location: kcbzww

last process to post me: c000000039496148 1 22

last post sent: 0 0 121

last post sent-location: kcbzww

last process posted by me: c000000039496148 1 22

(latch info) wait_event=0 bits=0

Process Group: DEFAULT, pseudo proc: c000000039529928

O/S info: user: oracle, term: UNKNOWN, ospid: 11880

OSD pid info: Unix process pid: 11880, image: oracle@ap-machine-

*** 2015-12-22 10:34:53.431

Short stack dump:

ksdxfstk()+48<-ksdxcb()+1200<-sspuser()+368<-<kernel><-_ pw_wait()+48<-pw_wait() +128<-sskgpwwait()+384<-skgpwwait()+208<-ksliwat()+1728<-kslwaitns_timed()+112<-kskthbwt()+400<-kslwait()+640<-ktugur()+4416<-ktuchg()+1280<-ktbchg2()+704<-kdiins0()+267536<-kdiinsp()+320<-kauxsin()+2960<-insidx()+1744<-insrow()+1440<-insdrv()+960<-inscovexe()+1408<-insExecStmtExecIniEngine()+176<-insexe()+1040<-opiexe()+13776<-kpoal8()+3808<-opiodr()+2144<-ttcpip()+1680<-opitsk()+2368<-opiino()+1664<-opiodr()+2144<-opidrv()+1248<-sou2o()+240<-opimai_real()+496<-main()+240<-main_opd_entry()+80

----------------------------------------

SO: c0000000396d80d8, type: 4, owner: c00000003949b948, flag: INIT/-/-/0x00

(session) sid: 315 trans: c0000000355b2a28, creator: c00000003949b948, flag: (100041) USR/- BSY/-/-/-/-/-

DID: 0001-0013-00000027, short-term DID: 0000-0000-00000000

txn branch: 0000000000000000

oct: 2, prv: 0, sql: c0000000384bad50, psql: c0000000384bad50, user: 33/XXDB

service name: xxdb

O/S info: user: , term: , ospid: 1234, machine: rvwapp2-1

program:

waiting for 'db file sequential read' wait_time=0, seconds since wait started=0

file#=c, block#=2f359, blocks=1

blocking sess=0x0000000000000000 seq=42271

Dumping Session Wait History

for 'undo segment extension' count=1 wait_time=2 min 45 sec

segment#=6, =0, =0

for 'buffer busy waits' count=1 wait_time=0.000009 sec

file#=2, block#=59, class#=1b

for 'SQL*Net message from client' count=1 wait_time=0.000087 sec

driver id=28444553, #bytes=1, =0

for 'SQL*Net message to client' count=1 wait_time=0.000001 sec

driver id=28444553, #bytes=1, =0

for 'SQL*Net message from client' count=1 wait_time=0.000086 sec

driver id=28444553, #bytes=1, =0

for 'SQL*Net message to client' count=1 wait_time=0.000001 sec

driver id=28444553, #bytes=1, =0

for 'SQL*Net message from client' count=1 wait_time=0.000086 sec

driver id=28444553, #bytes=1, =0

for 'SQL*Net message to client' count=1 wait_time=0.000001 sec

driver id=28444553, #bytes=1, =0

for 'SQL*Net message from client' count=1 wait_time=0.000087 sec

driver id=28444553, #bytes=1, =0

for 'SQL*Net message to client' count=1 wait_time=0.000001 sec

driver id=28444553, #bytes=1, =0

Sampled Session History of session 315 serial 4544

---------------------------------------------------

The sampled session history is constructed by sampling

the target session every 1 second. The sampling process

captures at each sample if the session is in a non-idle wait,

an idle wait, or not in a wait. If the session is in a

non-idle wait then one interval is shown for all the samples

the session was in the same non-idle wait. If the

session is in an idle wait or not in a wait for

consecutive samples then one interval is shown for all

the consecutive samples. Though we display these consecutive

samples in a single interval the session may NOT be continuously

idle or not in a wait (the sampling process does not know).

The history is displayed in reverse chronological order.

sample interval: 1 sec, max history 120 sec

---------------------------------------------------

[120 samples, 10:32:52 - 10:34:53]

waited for 'undo segment extension', seq_num: 42270

p1: 'segment#'=0x6

p2: ''=0x0

p3: ''=0x0

time_waited: >= 120 sec (still in wait)

---------------------------------------------------

Sampled Session History Summary:

longest_non_idle_wait: 'undo segment extension'

[120 samples, 10:32:52 - 10:34:53]

time_waited: >= 120 sec (still in wait)

可以看到:

进程在被 ORADEBUG 间接唤醒后,不再等待 undo segment extension, 而是做   db file sequential read

从前面的分析得知,“ undo segment extension” 即等待回滚段扩展完成。当执行增删改等操作时,数据库需要回滚段来存储前镜像,当回滚段空间不足时,则需要扩展。 具体来说, undo segment 的扩展或者回收( extend / shrink )都是前台进程通过通知 SMON 后台进程来完成的。 CallStack 堆栈的调用中,最后停在“ pw_wait” 的调用上,即说明在等待 SMON 返回扩展 UNDO SEGMENT 成功与否的消息。

因此,我们需要查看 SMON 进程的状态。


检查 SMON 的信息如下:

PROCESS 8:

----------------------------------------

SO: c000000039496148, type: 2, owner: 0000000000000000, flag: INIT/-/-/0x00

(process) Oracle pid=8, calls cur/top: c00000003971e868/c00000003971e868, flag: (16) SYSTEM

int error: 0, call error: 0, sess error: 0, txn error 0

(post info) last post received: 0 0 121

last post received-location: kcbzww

last process to post me: c0000000394a0948 211 0

last post sent: 0 0 24

last post sent-location: ksasnd

last process posted by me: c000000039495148 1 6

(latch info) wait_event=0 bits=0

Process Group: DEFAULT, pseudo proc: c000000039529928

O/S info: user: oracle, term: UNKNOWN, ospid: 10072

OSD pid info: Unix process pid: 10072, image: oracle@ap-machine- (SMON)

Short stack dump:

ksdxfstk()+48<-ksdxcb()+1200<-sspuser()+368<-<kernel><-_pw_wait()+48<-pw_wait()+352<-sskgpwwait()+384<-skgpwwait()+208<-ksliwat()+1728<-kslwaitns_timed()+112<-kskthbwt()+400<-kslwait()+640<-ktmmon()+1168<-ktmSmonMain()+64<-ksbrdp()+2368<-opirip()+1184<-opidrv()+1184<-sou2o()+240<-opimai_real()+336<-main()+240<-main_opd_entry()+80

----------------------------------------

----------------------------------------

SO: c0000000396ead68, type: 4, owner: c000000039496148, flag: INIT/-/-/0x00

(session) sid: 329 trans: 0000000000000000, creator: c000000039496148, flag: (100051) USR/- BSY/-/-/-/-/-

DID: 0001-0008-00000002, short-term DID: 0000-0000-00000000

txn branch: 0000000000000000

oct: 0, prv: 0, sql: 0000000000000000, psql: 0000000000000000, user: 0/SYS

service name: SYS$BACKGROUND

waiting for 'smon timer' wait_time=0, seconds since wait started=3109

sleep time=12c, failed=0, =0

blocking sess=0x0000000000000000 seq=7382

Dumping Session Wait History

for 'smon timer' count=1 wait_time=4 min 53 sec

sleep time=12c, failed=0, =0

for 'smon timer' count=1 wait_time=4 min 53 sec

sleep time=12c, failed=0, =0

for 'smon timer' count=1 wait_time=4 min 11 sec

sleep time=12c, failed=0, =0

for 'smon timer' count=1 wait_time=4 min 53 sec

sleep time=12c, failed=0, =0

for 'smon timer' count=1 wait_time=4 min 53 sec

sleep time=12c, failed=0, =0

for 'smon timer' count=1 wait_time=4 min 53 sec

sleep time=12c, failed=0, =0

for 'smon timer' count=1 wait_time=4 min 53 sec

sleep time=12c, failed=0, =0

for 'smon timer' count=1 wait_time=4 min 53 sec

sleep time=12c, failed=0, =0

for 'smon timer' count=1 wait_time=4 min 53 sec

sleep time=12c, failed=0, =0

for 'smon timer' count=1 wait_time=4 min 53 sec

sleep time=12c, failed=0, =0

Sampled Session History of session 329 serial 1


可以看到, SMON 进程在等“ SMON TIMER ”,即空闲等待。


这说明 SMON 没有因为阻塞在异常的等待上,导致无法腾出时间来处理前台进程发过来的 undo segment 扩展请求。


> > > >   2.8 定位问题的根本原因


综上所有现象:

1)   前台进程 SID 315 smon 发送一条消息,请求对回滚段进行扩展,并在“ undo segment extension “事件上等待,进程 callStack 停在 pw_wait, post/wait, 等待消息的返回;

2)   SMON 进程在等待 ”SMON TIMER”, 即空闲等待。此时 SMON 可能已经完成了 UNDO SEGMENT 的扩展请求并返回了前台进程;也可能没有收到前台进程发送过来的请求;


3)   ORADEBUG SID 315 收集信息并间接唤醒了该前台进程后,前台进行可以继续往下工作,这说明,步骤 2 )的消息已经返回给前台进程,只是由于操作系统调度进制的问题,未能即使将前台进程调度到 CPU 上,拿到 UNDO 扩展成功的消息。


结上所述,我们可以判定:造成该故障的根本原因是操作系统调度机制的问题。

环境介绍:

操作系统   HPUX IA64 B.11.31

数据库   ORACLE 10.2.0.5, 单实例


因此,我们在 ORACLE 官方网站 BUG 中以“ Hpux pw_wait “做关键字索 HPUX 已知的调度缺陷,可知命中操作系统缺陷。

The problem is a defect in the pw_wait() O/S system call.
On HP-UX 11.31, this is caused by a problem with the HP-UX scheduler patch PHKL_37456:

PHKL_37456 scheduler cumulative patch

HPUX11.31 上,当安装了 PHKL_37456 这个调度补丁后,操作系统调用 pw_wait 存在缺陷,导致进程无法从 post/wait 中被唤醒,解决方案是 Solution: on 11.31 install PHKL_38397 or later equivalent.


以下是官网原文


Processes Hang Waiting on 'cursor: pin S wait on X' (and other Wait Events) on HP-UX 11.23 and 11.31 Itanium Systems (Doc ID 580273.1)

In this Document

Symptoms

Changes

Cause

Solution

APPLIES TO:

Oracle Database - Enterprise Edition - Version 9.2.0.1 and later
HP-UX Itanium
***Checked for relevance on 23-JUL-2013***

SYMPTOMS

Process hangs indefinitely waiting on one of the following wait events:

  • cursor: pin S wait on X (10g wait)

  • kksfbc child completion

  • SGA: allocation forcing component growth

There is no blocker process.
The variety in wait events is explained by the fact that the underlying issue is with the pw_wait() HP-UX system call.
Therefore, the above list is not exhaustive, use the pstack output below to match the problem in all cases.
The problem is commonly seen on Parallel Execution Slave processes but can affect any Oracle process.
A command to generate a systemstate, processstate, or errorstack dump e.g. via ALTER SESSION or oradebug command frees the hanging process.

An example of the top of the call stack of an affected process, obtained using pstack:

0: c0000000003e2ff0 : pw_wait() + 0x30 (/usr/lib/hpux64/libc.so.1)
1: 4000000002e98a20 : pw_wait() + 0x80
(/oracle/DwhProd/orabin/oradb/product/10.2.0/bin/oracle)
2: 4000000002e492f0 : sskgpwwait() + 0x170 (/oracle/DwhProd/orabin/oradb/pr
oduct/10.2.0/bin/oracle)
3: 4000000002e3af80 : skgpwwait() + 0xa0 (/oracle/DwhP
rod/orabin/oradb/product/10.2.0/bin/oracle)
4: 4000000002d6ffd0 : ksliwat() + 0x670
(/oracle/DwhProd/orabin/oradb/product/10.2.0/bin/oracle)
5: 4000000002d4a1b0 : kslwaitns_timed() + 0x70
(/oracle/DwhProd/orabin/oradb/product/10.2.0/bin/oracle)
6: 4000000002d4b9b0 : kskthbwt() + 0x190 (/oracle/DwhProd/orabin/oradb/p
roduct/10.2.0/bin/oracle)
7: 4000000002e35220 : kslwait() + 0xe0 (/oracle/DwhPr
od/orabin/oradb/product/10.2.0/bin/oracle)
...

First few calls of the call stacks will differ depending on the particular wait event.

Output of the tusc system call tracer tool will be similar to the following:

( Attached to process 6144 ("ora_j032_SATAVA02") [64-bit] )
15:30:27 [6144]{631499} #1 pw_wait(0x9ffffffffffe1700) ... [sleeping]
User time: 0.00
Interrupt time: 0.00
Elapsed time: 66.3

CHANGES

The following HP Patch Bundle for 11.31 may have been recently applied
Mar 2008: FEATURE11i,B.11.31.0803.318b.

Note: it has been brought to our attention that the problem may also occur on HP-UX 11.23 systems.

CAUSE

The problem is a defect in the pw_wait() O/S system call.
On HP-UX 11.31, this is caused by a problem with the HP-UX scheduler patch PHKL_37456:

PHKL_37456 scheduler cumulative patch


Additional info may be sought in HP Change Request QXCR1000811756.

Please note that the wait events shown above 'cursor: pin S wait on X' and 'kksfbc child completion' can occur for a number of other legitimate reasons, so presence of these waits alone does not indicate that the problem described in this article has been encountered. You will need to verify in detail the other symptoms described here when investigating the issue you are facing.

The problem is also reported to occur on HP-UX 11.23. We have no information at this time on specific PHKL patch levels are susceptible to it, only that it is fixed starting with PHKL_37809.

SOLUTION

A number of options are available to work around or resolve this problem:

  • Workaround: oradebug setospid+unlimit to free the hanging process:

1.   identify the Unix process id of the hanging process

2.   use oradebug on it as follows (the unlimit command is sufficient to stop the hang)

SQL> oradebug setospid <unix process id>
SQL> oradebug unlimit

3.   alternatively, if there are many processes hanging on 'cursor: pin S wait on X', or time is short, a systemstate dump (at minimum level 1 to minimize the amount of trace that will be written) will be the quickest way to go over all hanging processes and wake them up:

SQL> oradebug setmypid
SQL> oradebug unlimit
SQL> oradebug dump systemstate 1

  • Solution: on 11.31 install PHKL_38397 or later equivalent.

  • Solution: on 11.23 install PHKL_37809 or later equivalent.

Note: the patches whose names begin with PHKL_ are HP-UX patches. Please check with HP-UX support on the latest applicable patch numbers as such patches are regularly updated and superceded.


3
原因总结和建议

> > > >   3.1 原因总结:应用程序中的下列INSERT语句


INSERT INTO TABLE_NAME(COL1,COL2,COL3,COL4,COL5,COL6,COL7)VALUES(:1,:2,:3,:4,:5,:6,:7)

之所以执行不下去,不是因为死锁,而是因为该会话即 SID=315 的会话 , 需要执行 DML ,因此需要 UNDO SEGMENT 即回滚段来存储前镜像,但发现回滚段空间不足,需要通知 SMON 后台进程来完成扩展的请求 , 但是长时间没有获得回滚段扩展成功与否的返回消息。前台进程和 SMON 之间通过 POST/WAIT 进制来通讯。

由于操作系统 HPUX 调度的缺陷,具体来说是 pw_wait 系统调用 (post/wait) 存在缺陷,当 SMON 进程完成回滚段扩展后,消息返回时,前台进程 SID=315 并没有能被及时调度到 CPU 上继续处理后续工作,即体现出来就是等待在“ undo segment extension “事件上等待,当我们人为使用 ORADEBUG SID 315 收集信息并间接唤醒了该前台进程后,前台进行可以继续往下工作,这更加印证了 SMON 已经将消息已经返回给前台进程,只是由于操作系统调度进制的问题,未能即使将前台进程调度到 CPU 上,拿到 UNDO 扩展成功的消息

造成该故障的根本原因是操作系统调度机制的问题,该问题命中操作系统 HPUX 上的已知缺陷。

The problem is a defect in the pw_wait() O/S system call.
On HP-UX 11.31, this is caused by a problem with the HP-UX scheduler patch PHKL_37456:

PHKL_37456 scheduler cumulative patch

HPUX11.31 上,当安装了 PHKL_37456 这个调度补丁后,操作系统调用 pw_wait 存在缺陷,导致进程无法从 post/wait 中被唤醒,解决方案是 Solution: on 11.31 install PHKL_38397 or later equivalent.


> > > >   3.2 建议


Solution: on 11.31 install PHKL_38397 or later equivalent.

请系统管理员为操作系统安装 PHKL_38397 补丁。


本文是转载中亦安图的文章。

来自 “ ITPUB博客 ” ,链接:http://blog.itpub.net/31547066/viewspace-2222438/,如需转载,请注明出处,否则将追究法律责任。

上一篇: oracle 数据库优化
请登录后发表评论 登录
全部评论
性格开朗,有较强的学习能力,对oracle数据库的体系结构,搭建RAC,timesten,goldengate,分布式数据库,dataguard,系统调优有较深入的了解, 尤其是oracle优化,深入学习的主机命令,对数据库的优化,SQL语句的优化有深入的认识,目前正在shell脚本,mysql,以后会有计划学习大数据和python。

注册时间:2018-07-23

  • 博文量
    171
  • 访问量
    214820
