有关SQL server connection KeepAlive 的FAQ

原创 Linux操作系统 作者:apgcdsd 时间:2011-08-15 14:33:03 0 删除 编辑

1、什么是SQL server TCP连接的keep Alive

简单说,keep alive SQL server在建立每一个TCP 连接的时候,指定了TCP 协议的keepaliveinterval keepalivetime参数。这样对每个TCP连接,如果该连接空闲时间(没有任何数据交互)超过keepalivetimeTCP协议会自动发出keepalive 包检测连接存活与否。如果keepalive 检测次数超过注册表TcpMaxDataRetransmissions定义的值而对方还是没有回应,那么TCP就认为该连接有问题而关闭它。通过这样的机制SQL server能够检测出orphaned connection等问题。



SQL  server 对每个TCP连接缺省指定keep alive 30秒,keepaliveinterval1秒。Windows TCP配置的TcpMaxDataRetransmissions缺省是5次。就是说,如果TCP连接idle30秒,那么TCP会发送第一个keepalive检查。如果失败,那么TCP会每隔1秒重发keepalive 包,直到重发5次。如果第五次检测依然失败,则该连接就被close。所以,一个TCP连接如果出现异常问题,大概在35秒的时候就会被close



2、在那里可以配置SQL server keep alive 配置?

SQL server 2000代码里面也有对TCP连接指定keep alive属性,但没有提供用户界面给用户定制修改。SQL server2005使用configuration manager可以修改keep alive值,但是不能修改keepalive interval Keepaliveintervalhardcoded1秒。

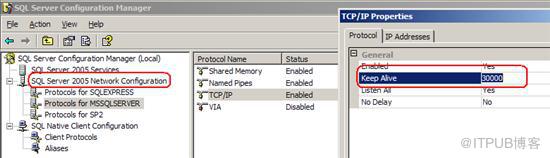

Configuration manager的界面如下:



该值保存在注册表如下位置:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Microsoft SQL Server\MSSQL.?\MSSQLServer\SuperSocketNetLib\Tcp

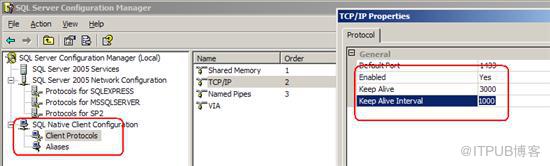

注意SQL serverNative client也有类似配置,不要和server side TCP配置搞混了:



Native client keep alive 配置保存在如下位置:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\MSSQLServer\Client\SNI9.0\tcp



3SQL serverkeepalive WindowsTCP协议里面的keepalive 是一样的吗?

原理一样,但不相互干扰。

Windows TCP协议也有keep alive 配置,位置如下:

HKLM\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters

OSTCP协议的keep alive SQL server keep alive 工作原理一样的,就是在建立TCP连接的时候指定TCP连接的keepalive属性(参见后面描述)。但是SQL server读取自己注册表的keep alive来设置TCP连接属性,不理会windows OS的注册表里面的keepalivetimekeepaliveinterval的值。

如果一个应用程序没有显式调用函数设置TCP连接的keepalive属性,那么他的TCP连接默认使用OS TCP配置。OSkeep alive配置默认是关闭的。

有关OS TCP配置参考如下文档:

http://support.microsoft.com/kb/314053



KeepAliveInterval

Key: Tcpip\Parameters
Value Type: REG_DWORD - Time in milliseconds
Valid Range: 1 - 0xFFFFFFFF
Default: 1000 (one second)
Description: This parameter determines the interval that separates keepalive retransmissions until a response is received. After a response is received, KeepAliveTime again controls the delay until the next keepalive transmission. The connection is aborted after the number of retransmissions that are specified by TcpMaxDataRetransmissions are unanswered.

KeepAliveTime

Key: Tcpip\Parameters
Value Type: REG_DWORD - Time in milliseconds
Valid Range: 1 - 0xFFFFFFFF
Default: 7,200,000 (two hours)
Description: The parameter controls how frequently TCP tries to verify that an idle connection is still intact by sending a keepalive packet. If the remote computer is still reachable and functioning, the remote computer acknowledges the keepalive transmission. By default, keepalive packets are not sent. A program can turn on this feature on a connection



4SQL server OS里面 TCPkeep alive是如何实现的?

详见如下文档:

http://msdn.microsoft.com/en-us/library/ms741621.aspx

SQL server也是调用如下API,把keepalive参数(lpvInBufferpass给这个API



int WSAIoctl(

  __in   SOCKET s,

  __in   DWORD dwIoControlCode,

  __in   LPVOID lpvInBuffer,

  __in   DWORD cbInBuffer,

  __out  LPVOID lpvOutBuffer,

  __in   DWORD cbOutBuffer,

  __out  LPDWORD lpcbBytesReturned,

  __in   LPWSAOVERLAPPED lpOverlapped,

  __in   LPWSAOVERLAPPED_COMPLETION_ROUTINE lpCompletionRoutine

);



该文章里面有如下描述:

SIO_KEEPALIVE_VALS (opcode setting: I, T==3)

Enables or disables the per-connection setting of the TCP keep-alive option which specifies the TCP keep-alive timeout and interval. For more information on the keep-alive option, see section 4.2.3.6 on the Requirements for Internet Hosts—Communication Layers specified in RFC 1122 available at the IETF website. The argument structure for SIO_KEEPALIVE_VALS is specified in the tcp_keepalive structure defined in the Mstcpip.h header file. This structure is defined as follows:

Copy Code

/* Argument structure for SIO_KEEPALIVE_VALS */

struct tcp_keepalive {

    u_long  onoff;

    u_long  keepalivetime;

    u_long  keepaliveinterval;

};



5Named Pipe也有keepalive设置 吗?

有。 参见如下文档:

http://support.microsoft.com/?id=137983



Named Pipes: Named Pipes are implemented in Server Message Block (SMB) layer on top of other transport protocols such as TCP/IP, NetBEUI, or NWLink IPX/SPX. A thin layer called NetBIOS is typically implemented between the SMB and the transport layer. Therefore, a convenient way of adjusting how long a non-responsive Named Pipes session has to wait before being closed is through adjusting the KeepAlive parameters of the relevant NetBIOS layer. For TCP/IP, the NetBIOS layer involved is NBT (NetBIOS over TCP), and the parameter involved is SessionKeepAlive in the following registry key:



KEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Netbt\Parameters



6. 如何看SQL server 的连接?SQL server 会主动关闭连接吗?如何看连接的idle时间?

SQL 2005查询dm_exec_connections即可:

select session_id from sys.dm_exec_connections

比较输出里面的last reads/writes 和现在时间可以大概知道一个连接的idle时间。

SQL server 2000则需要查询sysprocesses表。Last_batch时间代表最近一次执行batch的时间。



SQL server 不会关闭一个正常的TCP连接。除非底层TCP报告错误。或者连接或接收数据出错。



7、相关参考文档

SQL server TCPkeep alive

http://blogs.msdn.com/sql_protocols/archive/2006/03/09/546852.aspx



DBNetLib sets hard-coded KeepAliveTime and KeepAliveInterval

http://support.microsoft.com/kb/816649



TCP Keep-Alive Messages

http://msdn.microsoft.com/en-us/library/ms819735.aspx
