SAP WebClient UI开发工具中attribute文件夹展开的实现原理分析

原创 IT综合 作者:i042416 时间:2020-08-29 12:49:08 0 删除 编辑

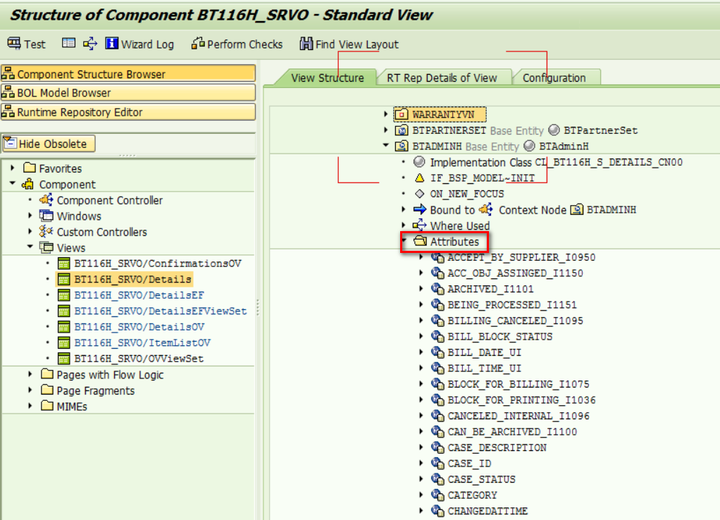

For project reason I need to figure out the logic how the field list is assembled when folder “Attributes” for a given context node is expanded in CRM WebClient UI workbench:

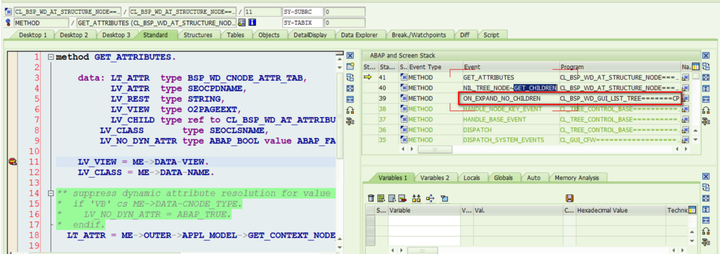

Debugging entry point is CL_BSP_WD_GUI_LIST_TREE~ON_EXPAND_NO_CHILDREN:



There are three kinds of fields which will appear under “Attributes” folder:

(1) direct attribute

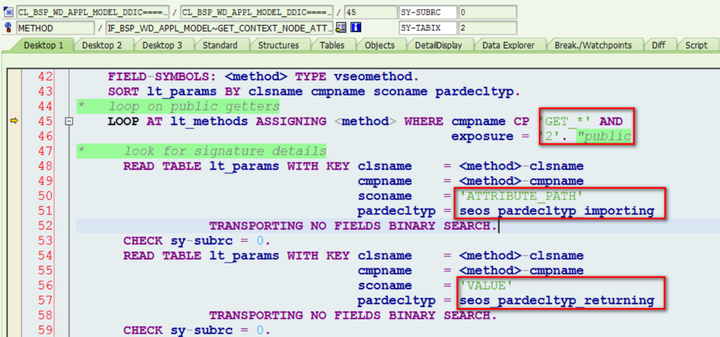

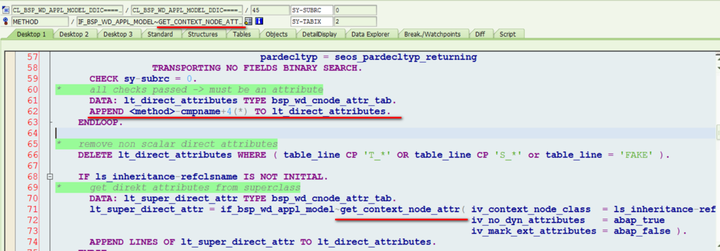

get the public method list of context node class with naming convention that method name starts with GET_, and have one importing parameter ATTRIBUTE_PATH and one returning parameter VALUE.



And then extract the attribute name and stored it to internal table lt_direct_attribute.

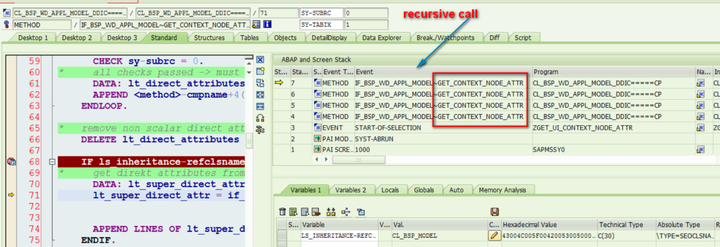

Once the direct attribute of the current context node class has been extracted, there is a recursive call with the same extraction logic on the super class.

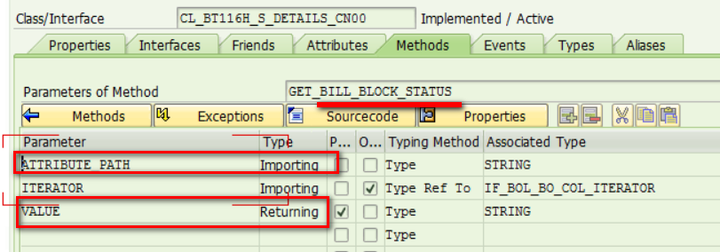

Since I am using UI component BT116H_SRVO, context node BTADMH to debug, the inheritance hierarchy from children to parent in this example is: CL_BT116H_S_DETAILS_CN00 -> CL_CRM_UIU_BTADMINH_CN -> CL_CRM_UIU_BT_EASYCNDENTRY_FCN -> CL_BSP_WD_CONTEXT_NODE -> CL_BSP_MODEL For example, there is a method GET_BILL_BLOCK_STATUS with the specified signature,

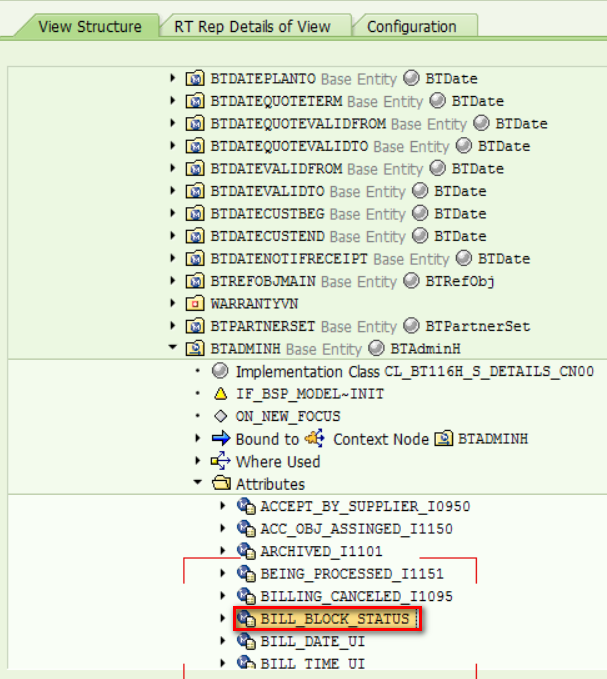

so BILL_BLOCK_STATUS is regarded as one direct attribute for this context node:

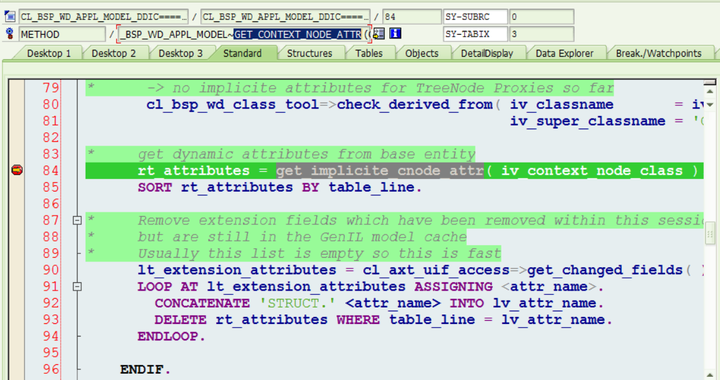

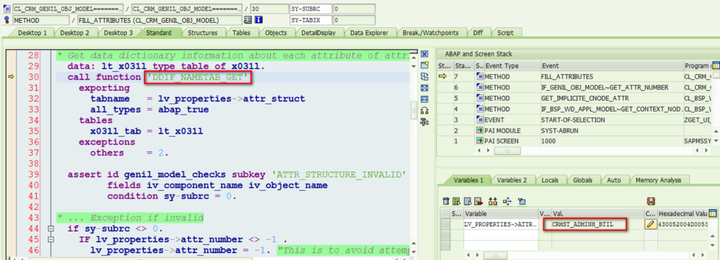

(2) implicit attribute Retrieved from method get_implicite_cnode_attr,



Attributes defined in DDIC structure CRMST_ADMINH_BTIL are regarded as implicit attribute.

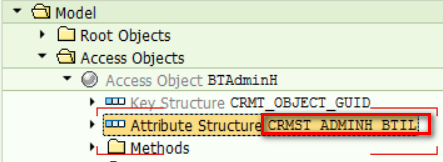

This structure is bound to context node BTAdminH in Genil model editor.



(3) AET attribute ( Application Enhancement Tool )

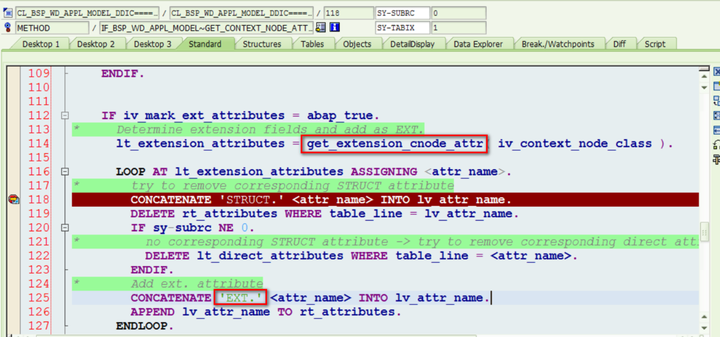

In fact AET attribute could be regarded as a special kind of implicit attribute as it is physically appended to EEW structure just the same way as implicit attribute. AET fields are retrieved via method get_extension_cnode_attr:

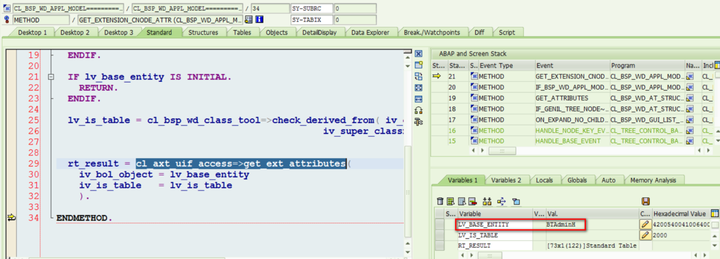

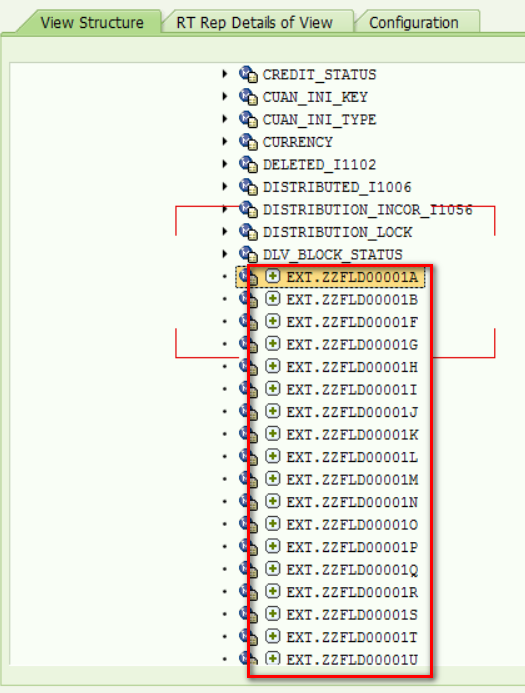

Those fields are retrieved with API cl_axt_uif_access=>get_ext_attributes and marked with prefix EXT in UI component workbench:



You can use the following report to print out the attribute list of a given UI component’s context node:

REPORT zget_ui_context_node_attr.PARAMETERS: comp TYPE string OBLIGATORY DEFAULT 'BT116H_SRVO',
            cs   TYPE string OBLIGATORY DEFAULT 'CL_BT116H_S_DETAILS_CN00'.DATA(lo_model) = cl_bsp_wd_appl_model=>get_appl_model(
      EXPORTING  iv_bsp_appl = CONV #( comp )
                  iv_model_type      = 'CL_BSP_WD_APPL_MODEL_DDIC' ).DATA(lt_attr) = lo_model->get_context_node_attr( iv_context_node_class  = CONV #( cs )
  iv_mark_ext_attributes = 'X' ).LOOP AT lt_attr ASSIGNING FIELD-SYMBOL(<attr>).
  WRITE:/ <attr>.ENDLOOP.

要获取更多Jerry的原创文章,请关注公众号"汪子熙":
