在国产芯片服务器上构建postgresql-xl的大数据平台

原创 数据分析 作者:wxh585 时间:2019-10-10 11:23:31 0 删除 编辑

基于海之舟大数据平台服务器,操作系统,使用二台设备构建。

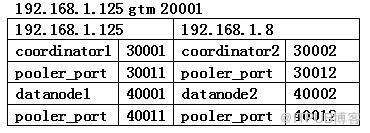

端口、ip配置见下表

大数据软件postgresql-xl,ssh软件操作系统已自带,用户zs(操作系统已创建),工作目录/home/zs/

1.以下操作二台服务器均需配置

su zs

nano /etc/hosts //编辑文件,加入以下行

192.168.1.125 gtm

192.168.1.125 coordinator1

192.168.1.125 datanode1

192.168.1.8 coordinator2

192.168.1.8 datanode2

vi .bashrc //配置环境变量

export PGHOME=/usr/local/pgxl10

export LD_LIBRARY_PATH=PGHOME/lib:PGHOME/lib:PGHOME/lib:LD_LIBRARY_PATH

export PATH=PGHOME/bin:PGHOME/bin:PGHOME/bin:PATH

export dataDirRoot=$HOME/data

su root //重启服务器,使配置生效

reboot


2.在gtm上操作

2.1设置ssh 二台设备无密码登陆

su zs

ssh-keygen -t rsa

cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys

chmod 600 ~/.ssh/authorized_keys

ssh zs@datanode1 mkdir -p .ssh

cat .ssh/id_rsa.pub | ssh zs@datanode1 ‘cat >> .ssh/authorized_keys’

ssh zs@datanode2 mkdir -p .ssh

cat .ssh/id_rsa.pub | ssh zs@datanode2 ‘cat >> .ssh/authorized_keys’

以上操作,提问全部回车。

2.2 建立大数据库

zs@bigdataA:~$pgxc_ctl

/bin/bash

Installing pgxc_ctl_bash script as /home/zs/pgxc_ctl/pgxc_ctl_bash.

Installing pgxc_ctl_bash script as /home/zs/pgxc_ctl/pgxc_ctl_bash.

Reading configuration using /home/zs/pgxc_ctl/pgxc_ctl_bash --home /home/zs/pgxc_ctl --configuration /home/zs/pgxc_ctl/pgxc_ctl.conf

Finished reading configuration.

******** PGXC_CTL START ***************


Current directory: /home/zs/pgxc_ctl

PGXC prepare config empty

PGXC exit

zs@bigdataA:~$ nano /home/zs/pgxc_ctl/pgxc_ctl.conf

zs@bigdataA:~$ cp /home/zs/pgxc_ctl/pgxc_ctl.conf /home/zs/pgxc_ctl.conf-all-in-2-init

zs@bigdataA:~$ pgxc_ctl

/bin/bash

Installing pgxc_ctl_bash script as /home/zs/pgxc_ctl/pgxc_ctl_bash.

Installing pgxc_ctl_bash script as /home/zs/pgxc_ctl/pgxc_ctl_bash.

Reading configuration using /home/zs/pgxc_ctl/pgxc_ctl_bash --home /home/zs/pgxc_ctl --configuration /home/zs/pgxc_ctl/pgxc_ctl.conf

Finished reading configuration.

******** PGXC_CTL START ***************

Current directory: /home/zs/pgxc_ctl

PGXC add gtm master gtm gtm 20001 $dataDirRoot/gtm

Initialize GTM master

The files belonging to this GTM system will be owned by user “zs”.

This user must also own the server process.


fixing permissions on existing directory /home/zs/data/gtm … ok

creating configuration files … ok

creating control file … ok


Success.

Done.

Start GTM master

server starting

PGXC add coordinator master coord1 gtm 30001 30011 $dataDirRoot/coord_master.1 none none

Actual Command: ssh zs@gtm “( PGXC_CTL_SILENT=1 initdb -D $dataDirRoot/coord_master.1 --nodename coord1 ) > /tmp/bigdataA_STDOUT_671_7 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@gtm:/tmp/bigdataA_STDOUT_671_7 /tmp/STDOUT_671_8 > /dev/null 2>&1

The files belonging to this database system will be owned by user “zs”.

This user must also own the server process.


The database cluster will be initialized with locale “en_US.UTF-8”.

The default database encoding has accordingly been set to “UTF8”.

The default text search configuration will be set to “english”.


Data page checksums are disabled.


creating directory /home/zs/data/coord_master.1 … ok

creating subdirectories … ok

selecting default max_connections … 100

selecting default shared_buffers … 128MB

selecting dynamic shared memory implementation … posix

creating configuration files … ok

running bootstrap script … ok

performing post-bootstrap initialization … creating cluster information … ok

syncing data to disk … ok

freezing database template0 … ok

freezing database template1 … ok

freezing database postgres … ok


WARNING: enabling “trust” authentication for local connections

You can change this by editing pg_hba.conf or using the option -A, or

–auth-local and --auth-host, the next time you run initdb.


Success.

Starting coordinator master coord1

2016-11-04 01:22:10.335 CST [1005] LOG: listening on IPv4 address “0.0.0.0”, port 30001

2016-11-04 01:22:10.336 CST [1005] LOG: listening on IPv6 address “::”, port 30001

2016-11-04 01:22:10.377 CST [1005] LOG: listening on Unix socket “/tmp/.s.PGSQL.30001”

2016-11-04 01:22:10.435 CST [1005] LOG: redirecting log output to logging collector process

2016-11-04 01:22:10.435 CST [1005] HINT: Future log output will appear in directory “pg_log”.

Done.

ALTER NODE

pgxc_pool_reload

t

(1 row)


vacuumdb: vacuuming database “postgres”

vacuumdb: vacuuming database “template1”

PGXC


PGXC add coordinator master coord1 gtm 30001 30011 $dataDirRoot/coord_master.1 none none

Actual Command: ssh zs@gtm “( PGXC_CTL_SILENT=1 initdb -D $dataDirRoot/coord_master.1 --nodename coord1 ) > /tmp/bigdataA_STDOUT_671_7 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@gtm:/tmp/bigdataA_STDOUT_671_7 /tmp/STDOUT_671_8 > /dev/null 2>&1

The files belonging to this database system will be owned by user “zs”.

This user must also own the server process.


The database cluster will be initialized with locale “en_US.UTF-8”.

The default database encoding has accordingly been set to “UTF8”.

The default text search configuration will be set to “english”.


Data page checksums are disabled.


creating directory /home/zs/data/coord_master.1 … ok

creating subdirectories … ok

selecting default max_connections … 100

selecting default shared_buffers … 128MB

selecting dynamic shared memory implementation … posix

creating configuration files … ok

running bootstrap script … ok

performing post-bootstrap initialization … creating cluster information … ok

syncing data to disk … ok

freezing database template0 … ok

freezing database template1 … ok

freezing database postgres … ok


WARNING: enabling “trust” authentication for local connections

You can change this by editing pg_hba.conf or using the option -A, or

–auth-local and --auth-host, the next time you run initdb.


Success.

Starting coordinator master coord1

2016-11-04 01:22:10.335 CST [1005] LOG: listening on IPv4 address “0.0.0.0”, port 30001

2016-11-04 01:22:10.336 CST [1005] LOG: listening on IPv6 address “::”, port 30001

2016-11-04 01:22:10.377 CST [1005] LOG: listening on Unix socket “/tmp/.s.PGSQL.30001”

2016-11-04 01:22:10.435 CST [1005] LOG: redirecting log output to logging collector process

2016-11-04 01:22:10.435 CST [1005] HINT: Future log output will appear in directory “pg_log”.

Done.

ALTER NODE

pgxc_pool_reload

t

(1 row)


vacuumdb: vacuuming database “postgres”

vacuumdb: vacuuming database “template1”

PGXC add coordinator master coord2 datanode2 30002 30012 $dataDirRoot/coord_master.2 none none

Actual Command: ssh zs@datanode2 “( PGXC_CTL_SILENT=1 initdb -D $dataDirRoot/coord_master.2 --nodename coord2 ) > /tmp/bigdataA_STDOUT_671_11 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_11 /tmp/STDOUT_671_12 > /dev/null 2>&1

The files belonging to this database system will be owned by user “zs”.

This user must also own the server process.


The database cluster will be initialized with locale “en_US.UTF-8”.

The default database encoding has accordingly been set to “UTF8”.

The default text search configuration will be set to “english”.


Data page checksums are disabled.


creating directory /home/zs/data/coord_master.2 … ok

creating subdirectories … ok

selecting default max_connections … 100

selecting default shared_buffers … 128MB

selecting dynamic shared memory implementation … posix

creating configuration files … ok

running bootstrap script … ok

performing post-bootstrap initialization … creating cluster information … ok

syncing data to disk … ok

freezing database template0 … ok

freezing database template1 … ok

freezing database postgres … ok


WARNING: enabling “trust” authentication for local connections

You can change this by editing pg_hba.conf or using the option -A, or

–auth-local and --auth-host, the next time you run initdb.


Success.

INFO: please do not close this session until you are done adding the new node

pgxc_lock_for_backup

t

(1 row)


Actual Command: ssh zs@datanode2 “( pg_ctl start -w -Z restoremode -D $dataDirRoot/coord_master.2 -o ‘-i -b’ ) > /tmp/bigdataA_STDOUT_671_14 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_14 /tmp/STDOUT_671_15 > /dev/null 2>&1

2019-10-07 11:26:12.056 CST [1370] LOG: listening on IPv4 address “0.0.0.0”, port 30002

2019-10-07 11:26:12.056 CST [1370] LOG: listening on IPv6 address “::”, port 30002

2019-10-07 11:26:12.106 CST [1370] LOG: listening on Unix socket “/tmp/.s.PGSQL.30002”

2019-10-07 11:26:12.183 CST [1370] LOG: redirecting log output to logging collector process

2019-10-07 11:26:12.183 CST [1370] HINT: Future log output will appear in directory “pg_log”.

SET

SET

SET

binary_upgrade_set_next_pg_authid_oid

(1 row)

ALTER ROLE

UPDATE 1

UPDATE 1

REVOKE

GRANT

CREATE NODE

You are now connected to database “postgres” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config

(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

You are now connected to database “template1” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config


(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

Actual Command: ssh zs@datanode2 “( pg_ctl stop -w -Z restoremode -D $dataDirRoot/coord_master.2 ) > /tmp/bigdataA_STDOUT_671_16 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_16 /tmp/STDOUT_671_17 > /dev/null 2>&1

Starting coordinator master coord2

2019-10-07 11:26:17.231 CST [1443] LOG: listening on IPv4 address “0.0.0.0”, port 30002

2019-10-07 11:26:17.231 CST [1443] LOG: listening on IPv6 address “::”, port 30002

2019-10-07 11:26:17.282 CST [1443] LOG: listening on Unix socket “/tmp/.s.PGSQL.30002”

2019-10-07 11:26:17.358 CST [1443] LOG: redirecting log output to logging collector process

2019-10-07 11:26:17.358 CST [1443] HINT: Future log output will appear in directory “pg_log”.

Done.

CREATE NODE

t

(1 row)


ALTER NODE

pgxc_pool_reload

t

(1 row)


vacuumdb: vacuuming database “postgres”

vacuumdb: vacuuming database “template1”

PGXC add datanode master dn1 gtm 40001 40011 $dataDirRoot/dn_master.1 none none none

Actual Command: ssh zs@gtm “( PGXC_CTL_SILENT=1 initdb -D $dataDirRoot/dn_master.1 --nodename dn1 ) > /tmp/bigdataA_STDOUT_671_20 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@gtm:/tmp/bigdataA_STDOUT_671_20 /tmp/STDOUT_671_21 > /dev/null 2>&1

The files belonging to this database system will be owned by user “zs”.

This user must also own the server process.


The database cluster will be initialized with locale “en_US.UTF-8”.

The default database encoding has accordingly been set to “UTF8”.

The default text search configuration will be set to “english”.

Data page checksums are disabled.

creating directory /home/zs/data/dn_master.1 … ok

creating subdirectories … ok

selecting default max_connections … 100

selecting default shared_buffers … 128MB

selecting dynamic shared memory implementation … posix

creating configuration files … ok

running bootstrap script … ok

performing post-bootstrap initialization … creating cluster information … ok

syncing data to disk … ok

freezing database template0 … ok

freezing database template1 … ok

freezing database postgres … ok


WARNING: enabling “trust” authentication for local connections

You can change this by editing pg_hba.conf or using the option -A, or

–auth-local and --auth-host, the next time you run initdb.


Success.

INFO: please do not close this session until you are done adding the new node

pgxc_lock_for_backup

t

(1 row)


Actual Command: ssh zs@gtm “( pg_ctl start -w -Z restoremode -D $dataDirRoot/dn_master.1 -o ‘-i -b’ ) > /tmp/bigdataA_STDOUT_671_23 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@gtm:/tmp/bigdataA_STDOUT_671_23 /tmp/STDOUT_671_24 > /dev/null 2>&1

2016-11-04 01:26:13.536 CST [1328] LOG: listening on IPv4 address “0.0.0.0”, port 40001

2016-11-04 01:26:13.536 CST [1328] LOG: listening on IPv6 address “::”, port 40001

2016-11-04 01:26:13.580 CST [1328] LOG: listening on Unix socket “/tmp/.s.PGSQL.40001”

2016-11-04 01:26:13.622 CST [1328] LOG: redirecting log output to logging collector process

2016-11-04 01:26:13.622 CST [1328] HINT: Future log output will appear in directory “pg_log”.

SET

SET

SET

binary_upgrade_set_next_pg_authid_oid

(1 row)


ALTER ROLE

UPDATE 1

UPDATE 1

REVOKE

GRANT

CREATE NODE

CREATE NODE

You are now connected to database “postgres” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config

(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

You are now connected to database “template1” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config

(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

Actual Command: ssh zs@gtm “( pg_ctl stop -w -Z restoremode -D $dataDirRoot/dn_master.1 ) > /tmp/bigdataA_STDOUT_671_25 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@gtm:/tmp/bigdataA_STDOUT_671_25 /tmp/STDOUT_671_26 > /dev/null 2>&1

Starting datanode master dn1.

2016-11-04 01:26:18.175 CST [1447] LOG: listening on IPv4 address “0.0.0.0”, port 40001

2016-11-04 01:26:18.176 CST [1447] LOG: listening on IPv6 address “::”, port 40001

2016-11-04 01:26:18.191 CST [1447] LOG: listening on Unix socket “/tmp/.s.PGSQL.40001”

2016-11-04 01:26:18.246 CST [1447] LOG: redirecting log output to logging collector process

2016-11-04 01:26:18.246 CST [1447] HINT: Future log output will appear in directory “pg_log”.

Done.

CREATE NODE

pgxc_pool_reload t

(1 row)


CREATE NODE

pgxc_pool_reload

t

(1 row)


EXECUTE DIRECT

pgxc_pool_reload

t

(1 row)


PGXC add datanode master dn2 datanode2 40002 40012 $dataDirRoot/dn_master.2 none none none

Actual Command: ssh zs@datanode2 “( PGXC_CTL_SILENT=1 initdb -D $dataDirRoot/dn_master.2 --nodename dn2 ) > /tmp/bigdataA_STDOUT_671_29 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_29 /tmp/STDOUT_671_30 > /dev/null 2>&1

The files belonging to this database system will be owned by user “zs”.

This user must also own the server process.


The database cluster will be initialized with locale “en_US.UTF-8”.

The default database encoding has accordingly been set to “UTF8”.

The default text search configuration will be set to “english”.


Data page checksums are disabled.


creating directory /home/zs/data/dn_master.2 … ok

creating subdirectories … ok

selecting default max_connections … 100

selecting default shared_buffers … 128MB

selecting dynamic shared memory implementation … posix

creating configuration files … ok

running bootstrap script … ok

performing post-bootstrap initialization … creating cluster information … ok

syncing data to disk … ok

freezing database template0 … ok

freezing database template1 … ok

freezing database postgres … ok


WARNING: enabling “trust” authentication for local connections

You can change this by editing pg_hba.conf or using the option -A, or

–auth-local and --auth-host, the next time you run initdb.


Success.

INFO: please do not close this session until you are done adding the new node

pgxc_lock_for_backup

t

(1 row)


Actual Command: ssh zs@datanode2 “( pg_ctl start -w -Z restoremode -D $dataDirRoot/dn_master.2 -o ‘-i -b’ ) > /tmp/bigdataA_STDOUT_671_32 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_32 /tmp/STDOUT_671_33 > /dev/null 2>&1

2019-10-07 11:31:28.128 CST [1586] LOG: listening on IPv4 address “0.0.0.0”, port 40002

2019-10-07 11:31:28.128 CST [1586] LOG: listening on IPv6 address “::”, port 40002

2019-10-07 11:31:28.178 CST [1586] LOG: listening on Unix socket “/tmp/.s.PGSQL.40002”

2019-10-07 11:31:28.255 CST [1586] LOG: redirecting log output to logging collector process

2019-10-07 11:31:28.255 CST [1586] HINT: Future log output will appear in directory “pg_log”.

SET

SET

SET

binary_upgrade_set_next_pg_authid_oid

(1 row)


ALTER ROLE

UPDATE 1

UPDATE 1

REVOKE

GRANT

CREATE NODE

CREATE NODE

CREATE NODE

You are now connected to database “postgres” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config


(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

You are now connected to database “template1” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config

(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

Actual Command: ssh zs@datanode2 “( pg_ctl stop -w -Z restoremode -D $dataDirRoot/dn_master.2 ) > /tmp/bigdataA_STDOUT_671_34 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_34 /tmp/STDOUT_671_35 > /dev/null 2>&1

Starting datanode master dn2.

2019-10-07 11:31:33.339 CST [1659] LOG: listening on IPv4 address “0.0.0.0”, port 40002

2019-10-07 11:31:33.339 CST [1659] LOG: listening on IPv6 address “::”, port 40002

2019-10-07 11:31:33.389 CST [1659] LOG: listening on Unix socket “/tmp/.s.PGSQL.40002”

2019-10-07 11:31:33.466 CST [1659] LOG: redirecting log output to logging collector process

2019-10-07 11:31:33.466 CST [1659] HINT: Future log output will appear in directory “pg_log”.

Done.

CREATE NODE

pgxc_pool_reload

t

(1 row)


CREATE NODE

pgxc_pool_reload

t

(1 row)


EXECUTE DIRECT

pgxc_pool_reload

t

(1 row)


EXECUTE DIRECT

pgxc_pool_reload

t

(1 row)


PGXC

可看到,所有节点均已正常启动

PGXC monitor all

Running: gtm master

Running: coordinator master coord1

Running: coordinator master coord2

Running: datanode master dn1

Running: datanode master dn2

PGXC exit

2.3 操作大数据库

zs@bigdataA:~$ psql -h datanode1 -p 30001 postgres zs //进入数据库

psql (PGXL 10r1.1, based on PG 10.6 (Postgres-XL 10r1.1))

Type “help” for help.

postgres=# select * from pgxc_node;

node_name | node_type | node_port | node_host | nodeis_primary | nodeis_preferred | node_id

-----------±----------±----------±----------±---------------±-----------------±------------

coord1 | C | 30001 | gtm | f | f | 1885696643

coord2 | C | 30002 | datanode2 | f | f | -1197102633

dn1 | D | 40001 | gtm | f | f | -560021589

dn2 | D | 40002 | datanode2 | f | f | 352366662

(4 rows)

postgres=# CREATE TABLE t3(bid serial PRIMARY KEY,id integer,xm varchar(255),zh varchar(255),nr bytea,tjsj timestamp DEFAULT now()); //建立表t3

CREATE TABLE

postgres=# \d

List of relations

Schema | Name | Type | Owner

--------±-----------±---------±------

public | t1 | table | zs

public | t1_bid_seq | sequence | zs

public | t2 | table | zs

public | t2_bid_seq | sequence | zs

public | t3 | table | zs

public | t3_bid_seq | sequence | zs

(6 rows)

postgres=#\q



————————————————

版权声明:本文为CSDN博主「wxh585」的原创文章,遵循 CC 4.0 BY-SA 版权协议,转载请附上原文出处链接及本声明。

原文链接:https://blog.csdn.net/wxh585/article/details/102297112

端口、ip配置见下表


大数据软件postgresql-xl,ssh软件操作系统已自带,用户zs(操作系统已创建),工作目录/home/zs/

1.以下操作二台服务器均需配置

su zs

nano /etc/hosts //编辑文件,加入以下行

192.168.1.125 gtm

192.168.1.125 coordinator1

192.168.1.125 datanode1

192.168.1.8 coordinator2

192.168.1.8 datanode2

vi .bashrc //配置环境变量

export PGHOME=/usr/local/pgxl10

export LD_LIBRARY_PATH=PGHOME/lib:PGHOME/lib:PGHOME/lib:LD_LIBRARY_PATH

export PATH=PGHOME/bin:PGHOME/bin:PGHOME/bin:PATH

export dataDirRoot=$HOME/data

su root //重启服务器,使配置生效

reboot


2.在gtm上操作

2.1设置ssh 二台设备无密码登陆

su zs

ssh-keygen -t rsa

cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys

chmod 600 ~/.ssh/authorized_keys

ssh zs@datanode1 mkdir -p .ssh

cat .ssh/id_rsa.pub | ssh zs@datanode1 ‘cat >> .ssh/authorized_keys’

ssh zs@datanode2 mkdir -p .ssh

cat .ssh/id_rsa.pub | ssh zs@datanode2 ‘cat >> .ssh/authorized_keys’

以上操作,提问全部回车。

2.2 建立大数据库

zs@bigdataA:~$pgxc_ctl

/bin/bash

Installing pgxc_ctl_bash script as /home/zs/pgxc_ctl/pgxc_ctl_bash.

Installing pgxc_ctl_bash script as /home/zs/pgxc_ctl/pgxc_ctl_bash.

Reading configuration using /home/zs/pgxc_ctl/pgxc_ctl_bash --home /home/zs/pgxc_ctl --configuration /home/zs/pgxc_ctl/pgxc_ctl.conf

Finished reading configuration.

******** PGXC_CTL START ***************


Current directory: /home/zs/pgxc_ctl

PGXC prepare config empty

PGXC exit

zs@bigdataA:~$ nano /home/zs/pgxc_ctl/pgxc_ctl.conf

zs@bigdataA:~$ cp /home/zs/pgxc_ctl/pgxc_ctl.conf /home/zs/pgxc_ctl.conf-all-in-2-init

zs@bigdataA:~$ pgxc_ctl

/bin/bash

Installing pgxc_ctl_bash script as /home/zs/pgxc_ctl/pgxc_ctl_bash.

Installing pgxc_ctl_bash script as /home/zs/pgxc_ctl/pgxc_ctl_bash.

Reading configuration using /home/zs/pgxc_ctl/pgxc_ctl_bash --home /home/zs/pgxc_ctl --configuration /home/zs/pgxc_ctl/pgxc_ctl.conf

Finished reading configuration.

******** PGXC_CTL START ***************

Current directory: /home/zs/pgxc_ctl

PGXC add gtm master gtm gtm 20001 $dataDirRoot/gtm

Initialize GTM master

The files belonging to this GTM system will be owned by user “zs”.

This user must also own the server process.


fixing permissions on existing directory /home/zs/data/gtm … ok

creating configuration files … ok

creating control file … ok


Success.

Done.

Start GTM master

server starting

PGXC add coordinator master coord1 gtm 30001 30011 $dataDirRoot/coord_master.1 none none

Actual Command: ssh zs@gtm “( PGXC_CTL_SILENT=1 initdb -D $dataDirRoot/coord_master.1 --nodename coord1 ) > /tmp/bigdataA_STDOUT_671_7 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@gtm:/tmp/bigdataA_STDOUT_671_7 /tmp/STDOUT_671_8 > /dev/null 2>&1

The files belonging to this database system will be owned by user “zs”.

This user must also own the server process.


The database cluster will be initialized with locale “en_US.UTF-8”.

The default database encoding has accordingly been set to “UTF8”.

The default text search configuration will be set to “english”.


Data page checksums are disabled.


creating directory /home/zs/data/coord_master.1 … ok

creating subdirectories … ok

selecting default max_connections … 100

selecting default shared_buffers … 128MB

selecting dynamic shared memory implementation … posix

creating configuration files … ok

running bootstrap script … ok

performing post-bootstrap initialization … creating cluster information … ok

syncing data to disk … ok

freezing database template0 … ok

freezing database template1 … ok

freezing database postgres … ok


WARNING: enabling “trust” authentication for local connections

You can change this by editing pg_hba.conf or using the option -A, or

–auth-local and --auth-host, the next time you run initdb.


Success.

Starting coordinator master coord1

2016-11-04 01:22:10.335 CST [1005] LOG: listening on IPv4 address “0.0.0.0”, port 30001

2016-11-04 01:22:10.336 CST [1005] LOG: listening on IPv6 address “::”, port 30001

2016-11-04 01:22:10.377 CST [1005] LOG: listening on Unix socket “/tmp/.s.PGSQL.30001”

2016-11-04 01:22:10.435 CST [1005] LOG: redirecting log output to logging collector process

2016-11-04 01:22:10.435 CST [1005] HINT: Future log output will appear in directory “pg_log”.

Done.

ALTER NODE

pgxc_pool_reload

t

(1 row)


vacuumdb: vacuuming database “postgres”

vacuumdb: vacuuming database “template1”

PGXC


PGXC add coordinator master coord1 gtm 30001 30011 $dataDirRoot/coord_master.1 none none

Actual Command: ssh zs@gtm “( PGXC_CTL_SILENT=1 initdb -D $dataDirRoot/coord_master.1 --nodename coord1 ) > /tmp/bigdataA_STDOUT_671_7 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@gtm:/tmp/bigdataA_STDOUT_671_7 /tmp/STDOUT_671_8 > /dev/null 2>&1

The files belonging to this database system will be owned by user “zs”.

This user must also own the server process.


The database cluster will be initialized with locale “en_US.UTF-8”.

The default database encoding has accordingly been set to “UTF8”.

The default text search configuration will be set to “english”.


Data page checksums are disabled.


creating directory /home/zs/data/coord_master.1 … ok

creating subdirectories … ok

selecting default max_connections … 100

selecting default shared_buffers … 128MB

selecting dynamic shared memory implementation … posix

creating configuration files … ok

running bootstrap script … ok

performing post-bootstrap initialization … creating cluster information … ok

syncing data to disk … ok

freezing database template0 … ok

freezing database template1 … ok

freezing database postgres … ok


WARNING: enabling “trust” authentication for local connections

You can change this by editing pg_hba.conf or using the option -A, or

–auth-local and --auth-host, the next time you run initdb.


Success.

Starting coordinator master coord1

2016-11-04 01:22:10.335 CST [1005] LOG: listening on IPv4 address “0.0.0.0”, port 30001

2016-11-04 01:22:10.336 CST [1005] LOG: listening on IPv6 address “::”, port 30001

2016-11-04 01:22:10.377 CST [1005] LOG: listening on Unix socket “/tmp/.s.PGSQL.30001”

2016-11-04 01:22:10.435 CST [1005] LOG: redirecting log output to logging collector process

2016-11-04 01:22:10.435 CST [1005] HINT: Future log output will appear in directory “pg_log”.

Done.

ALTER NODE

pgxc_pool_reload

t

(1 row)


vacuumdb: vacuuming database “postgres”

vacuumdb: vacuuming database “template1”

PGXC add coordinator master coord2 datanode2 30002 30012 $dataDirRoot/coord_master.2 none none

Actual Command: ssh zs@datanode2 “( PGXC_CTL_SILENT=1 initdb -D $dataDirRoot/coord_master.2 --nodename coord2 ) > /tmp/bigdataA_STDOUT_671_11 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_11 /tmp/STDOUT_671_12 > /dev/null 2>&1

The files belonging to this database system will be owned by user “zs”.

This user must also own the server process.


The database cluster will be initialized with locale “en_US.UTF-8”.

The default database encoding has accordingly been set to “UTF8”.

The default text search configuration will be set to “english”.


Data page checksums are disabled.


creating directory /home/zs/data/coord_master.2 … ok

creating subdirectories … ok

selecting default max_connections … 100

selecting default shared_buffers … 128MB

selecting dynamic shared memory implementation … posix

creating configuration files … ok

running bootstrap script … ok

performing post-bootstrap initialization … creating cluster information … ok

syncing data to disk … ok

freezing database template0 … ok

freezing database template1 … ok

freezing database postgres … ok


WARNING: enabling “trust” authentication for local connections

You can change this by editing pg_hba.conf or using the option -A, or

–auth-local and --auth-host, the next time you run initdb.


Success.

INFO: please do not close this session until you are done adding the new node

pgxc_lock_for_backup

t

(1 row)


Actual Command: ssh zs@datanode2 “( pg_ctl start -w -Z restoremode -D $dataDirRoot/coord_master.2 -o ‘-i -b’ ) > /tmp/bigdataA_STDOUT_671_14 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_14 /tmp/STDOUT_671_15 > /dev/null 2>&1

2019-10-07 11:26:12.056 CST [1370] LOG: listening on IPv4 address “0.0.0.0”, port 30002

2019-10-07 11:26:12.056 CST [1370] LOG: listening on IPv6 address “::”, port 30002

2019-10-07 11:26:12.106 CST [1370] LOG: listening on Unix socket “/tmp/.s.PGSQL.30002”

2019-10-07 11:26:12.183 CST [1370] LOG: redirecting log output to logging collector process

2019-10-07 11:26:12.183 CST [1370] HINT: Future log output will appear in directory “pg_log”.

SET

SET

SET

binary_upgrade_set_next_pg_authid_oid

(1 row)

ALTER ROLE

UPDATE 1

UPDATE 1

REVOKE

GRANT

CREATE NODE

You are now connected to database “postgres” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config

(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

You are now connected to database “template1” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config


(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

Actual Command: ssh zs@datanode2 “( pg_ctl stop -w -Z restoremode -D $dataDirRoot/coord_master.2 ) > /tmp/bigdataA_STDOUT_671_16 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_16 /tmp/STDOUT_671_17 > /dev/null 2>&1

Starting coordinator master coord2

2019-10-07 11:26:17.231 CST [1443] LOG: listening on IPv4 address “0.0.0.0”, port 30002

2019-10-07 11:26:17.231 CST [1443] LOG: listening on IPv6 address “::”, port 30002

2019-10-07 11:26:17.282 CST [1443] LOG: listening on Unix socket “/tmp/.s.PGSQL.30002”

2019-10-07 11:26:17.358 CST [1443] LOG: redirecting log output to logging collector process

2019-10-07 11:26:17.358 CST [1443] HINT: Future log output will appear in directory “pg_log”.

Done.

CREATE NODE

t

(1 row)


ALTER NODE

pgxc_pool_reload

t

(1 row)


vacuumdb: vacuuming database “postgres”

vacuumdb: vacuuming database “template1”

PGXC add datanode master dn1 gtm 40001 40011 $dataDirRoot/dn_master.1 none none none

Actual Command: ssh zs@gtm “( PGXC_CTL_SILENT=1 initdb -D $dataDirRoot/dn_master.1 --nodename dn1 ) > /tmp/bigdataA_STDOUT_671_20 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@gtm:/tmp/bigdataA_STDOUT_671_20 /tmp/STDOUT_671_21 > /dev/null 2>&1

The files belonging to this database system will be owned by user “zs”.

This user must also own the server process.


The database cluster will be initialized with locale “en_US.UTF-8”.

The default database encoding has accordingly been set to “UTF8”.

The default text search configuration will be set to “english”.

Data page checksums are disabled.

creating directory /home/zs/data/dn_master.1 … ok

creating subdirectories … ok

selecting default max_connections … 100

selecting default shared_buffers … 128MB

selecting dynamic shared memory implementation … posix

creating configuration files … ok

running bootstrap script … ok

performing post-bootstrap initialization … creating cluster information … ok

syncing data to disk … ok

freezing database template0 … ok

freezing database template1 … ok

freezing database postgres … ok


WARNING: enabling “trust” authentication for local connections

You can change this by editing pg_hba.conf or using the option -A, or

–auth-local and --auth-host, the next time you run initdb.


Success.

INFO: please do not close this session until you are done adding the new node

pgxc_lock_for_backup

t

(1 row)


Actual Command: ssh zs@gtm “( pg_ctl start -w -Z restoremode -D $dataDirRoot/dn_master.1 -o ‘-i -b’ ) > /tmp/bigdataA_STDOUT_671_23 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@gtm:/tmp/bigdataA_STDOUT_671_23 /tmp/STDOUT_671_24 > /dev/null 2>&1

2016-11-04 01:26:13.536 CST [1328] LOG: listening on IPv4 address “0.0.0.0”, port 40001

2016-11-04 01:26:13.536 CST [1328] LOG: listening on IPv6 address “::”, port 40001

2016-11-04 01:26:13.580 CST [1328] LOG: listening on Unix socket “/tmp/.s.PGSQL.40001”

2016-11-04 01:26:13.622 CST [1328] LOG: redirecting log output to logging collector process

2016-11-04 01:26:13.622 CST [1328] HINT: Future log output will appear in directory “pg_log”.

SET

SET

SET

binary_upgrade_set_next_pg_authid_oid

(1 row)


ALTER ROLE

UPDATE 1

UPDATE 1

REVOKE

GRANT

CREATE NODE

CREATE NODE

You are now connected to database “postgres” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config

(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

You are now connected to database “template1” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config

(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

Actual Command: ssh zs@gtm “( pg_ctl stop -w -Z restoremode -D $dataDirRoot/dn_master.1 ) > /tmp/bigdataA_STDOUT_671_25 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@gtm:/tmp/bigdataA_STDOUT_671_25 /tmp/STDOUT_671_26 > /dev/null 2>&1

Starting datanode master dn1.

2016-11-04 01:26:18.175 CST [1447] LOG: listening on IPv4 address “0.0.0.0”, port 40001

2016-11-04 01:26:18.176 CST [1447] LOG: listening on IPv6 address “::”, port 40001

2016-11-04 01:26:18.191 CST [1447] LOG: listening on Unix socket “/tmp/.s.PGSQL.40001”

2016-11-04 01:26:18.246 CST [1447] LOG: redirecting log output to logging collector process

2016-11-04 01:26:18.246 CST [1447] HINT: Future log output will appear in directory “pg_log”.

Done.

CREATE NODE

pgxc_pool_reload t

(1 row)


CREATE NODE

pgxc_pool_reload

t

(1 row)


EXECUTE DIRECT

pgxc_pool_reload

t

(1 row)


PGXC add datanode master dn2 datanode2 40002 40012 $dataDirRoot/dn_master.2 none none none

Actual Command: ssh zs@datanode2 “( PGXC_CTL_SILENT=1 initdb -D $dataDirRoot/dn_master.2 --nodename dn2 ) > /tmp/bigdataA_STDOUT_671_29 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_29 /tmp/STDOUT_671_30 > /dev/null 2>&1

The files belonging to this database system will be owned by user “zs”.

This user must also own the server process.


The database cluster will be initialized with locale “en_US.UTF-8”.

The default database encoding has accordingly been set to “UTF8”.

The default text search configuration will be set to “english”.


Data page checksums are disabled.


creating directory /home/zs/data/dn_master.2 … ok

creating subdirectories … ok

selecting default max_connections … 100

selecting default shared_buffers … 128MB

selecting dynamic shared memory implementation … posix

creating configuration files … ok

running bootstrap script … ok

performing post-bootstrap initialization … creating cluster information … ok

syncing data to disk … ok

freezing database template0 … ok

freezing database template1 … ok

freezing database postgres … ok


WARNING: enabling “trust” authentication for local connections

You can change this by editing pg_hba.conf or using the option -A, or

–auth-local and --auth-host, the next time you run initdb.


Success.

INFO: please do not close this session until you are done adding the new node

pgxc_lock_for_backup

t

(1 row)


Actual Command: ssh zs@datanode2 “( pg_ctl start -w -Z restoremode -D $dataDirRoot/dn_master.2 -o ‘-i -b’ ) > /tmp/bigdataA_STDOUT_671_32 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_32 /tmp/STDOUT_671_33 > /dev/null 2>&1

2019-10-07 11:31:28.128 CST [1586] LOG: listening on IPv4 address “0.0.0.0”, port 40002

2019-10-07 11:31:28.128 CST [1586] LOG: listening on IPv6 address “::”, port 40002

2019-10-07 11:31:28.178 CST [1586] LOG: listening on Unix socket “/tmp/.s.PGSQL.40002”

2019-10-07 11:31:28.255 CST [1586] LOG: redirecting log output to logging collector process

2019-10-07 11:31:28.255 CST [1586] HINT: Future log output will appear in directory “pg_log”.

SET

SET

SET

binary_upgrade_set_next_pg_authid_oid

(1 row)


ALTER ROLE

UPDATE 1

UPDATE 1

REVOKE

GRANT

CREATE NODE

CREATE NODE

CREATE NODE

You are now connected to database “postgres” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config


(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

You are now connected to database “template1” as user “zs”.

SET

SET

SET

SET

SET

SET

set_config

(1 row)


SET

SET

SET

UPDATE 1

UPDATE 1

COMMENT

Actual Command: ssh zs@datanode2 “( pg_ctl stop -w -Z restoremode -D $dataDirRoot/dn_master.2 ) > /tmp/bigdataA_STDOUT_671_34 2>&1” < /dev/null > /dev/null 2>&1

Bring remote stdout: scp zs@datanode2:/tmp/bigdataA_STDOUT_671_34 /tmp/STDOUT_671_35 > /dev/null 2>&1

Starting datanode master dn2.

2019-10-07 11:31:33.339 CST [1659] LOG: listening on IPv4 address “0.0.0.0”, port 40002

2019-10-07 11:31:33.339 CST [1659] LOG: listening on IPv6 address “::”, port 40002

2019-10-07 11:31:33.389 CST [1659] LOG: listening on Unix socket “/tmp/.s.PGSQL.40002”

2019-10-07 11:31:33.466 CST [1659] LOG: redirecting log output to logging collector process

2019-10-07 11:31:33.466 CST [1659] HINT: Future log output will appear in directory “pg_log”.

Done.

CREATE NODE

pgxc_pool_reload

t

(1 row)


CREATE NODE

pgxc_pool_reload

t

(1 row)


EXECUTE DIRECT

pgxc_pool_reload

t

(1 row)


EXECUTE DIRECT

pgxc_pool_reload

t

(1 row)


PGXC

可看到,所有节点均已正常启动

PGXC monitor all

Running: gtm master

Running: coordinator master coord1

Running: coordinator master coord2

Running: datanode master dn1

Running: datanode master dn2

PGXC exit

2.3 操作大数据库

zs@bigdataA:~$ psql -h datanode1 -p 30001 postgres zs //进入数据库

psql (PGXL 10r1.1, based on PG 10.6 (Postgres-XL 10r1.1))

Type “help” for help.

postgres=# select * from pgxc_node;

node_name | node_type | node_port | node_host | nodeis_primary | nodeis_preferred | node_id

-----------±----------±----------±----------±---------------±-----------------±------------

coord1 | C | 30001 | gtm | f | f | 1885696643

coord2 | C | 30002 | datanode2 | f | f | -1197102633

dn1 | D | 40001 | gtm | f | f | -560021589

dn2 | D | 40002 | datanode2 | f | f | 352366662

(4 rows)

postgres=# CREATE TABLE t3(bid serial PRIMARY KEY,id integer,xm varchar(255),zh varchar(255),nr bytea,tjsj timestamp DEFAULT now()); //建立表t3

CREATE TABLE

postgres=# \d

List of relations

Schema | Name | Type | Owner

--------±-----------±---------±------

public | t1 | table | zs

public | t1_bid_seq | sequence | zs

public | t2 | table | zs

public | t2_bid_seq | sequence | zs

public | t3 | table | zs

public | t3_bid_seq | sequence | zs

(6 rows)

postgres=#\q



————————————————

版权声明:本文为CSDN博主「wxh585」的原创文章,遵循 CC 4.0 BY-SA 版权协议,转载请附上原文出处链接及本声明。

原文链接:https://blog.csdn.net/wxh585/article/details/102297112


来自 “ ITPUB博客 ” ,链接:http://blog.itpub.net/23102655/viewspace-2659318/,如需转载,请注明出处,否则将追究法律责任。

上一篇: 没有了~
请登录后发表评论 登录
全部评论

注册时间:2019-10-10

  • 博文量
    8
  • 访问量
    2183
